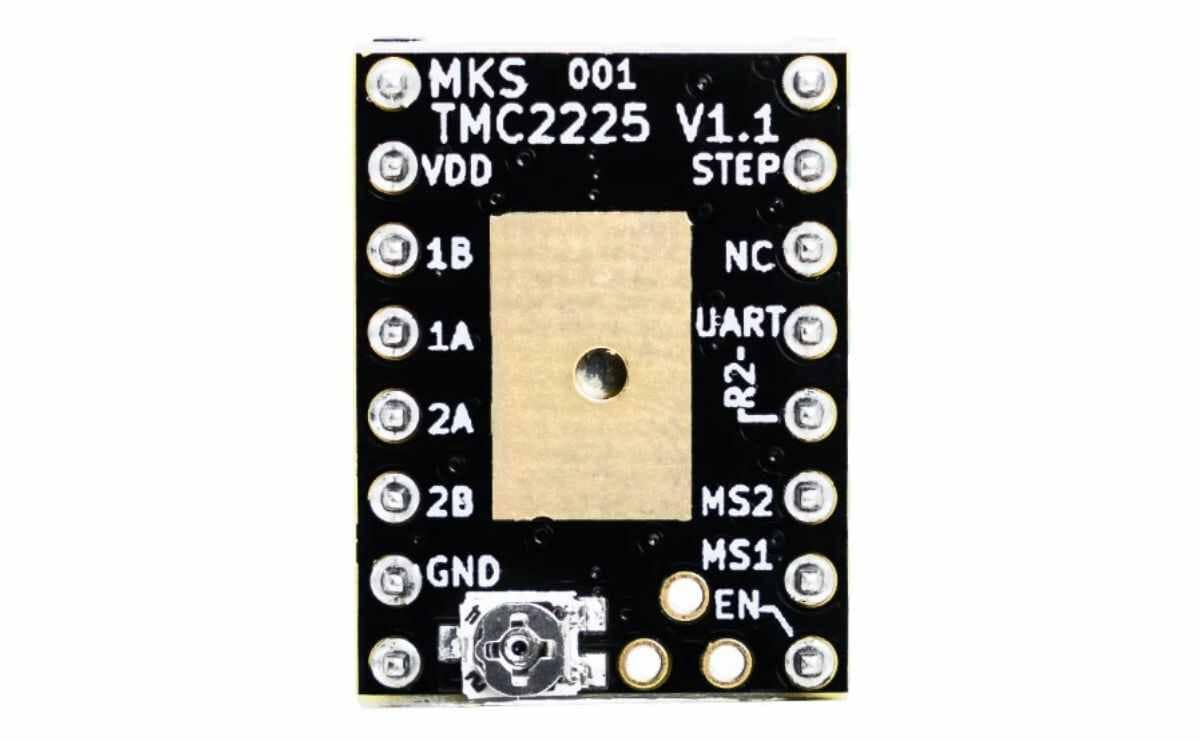

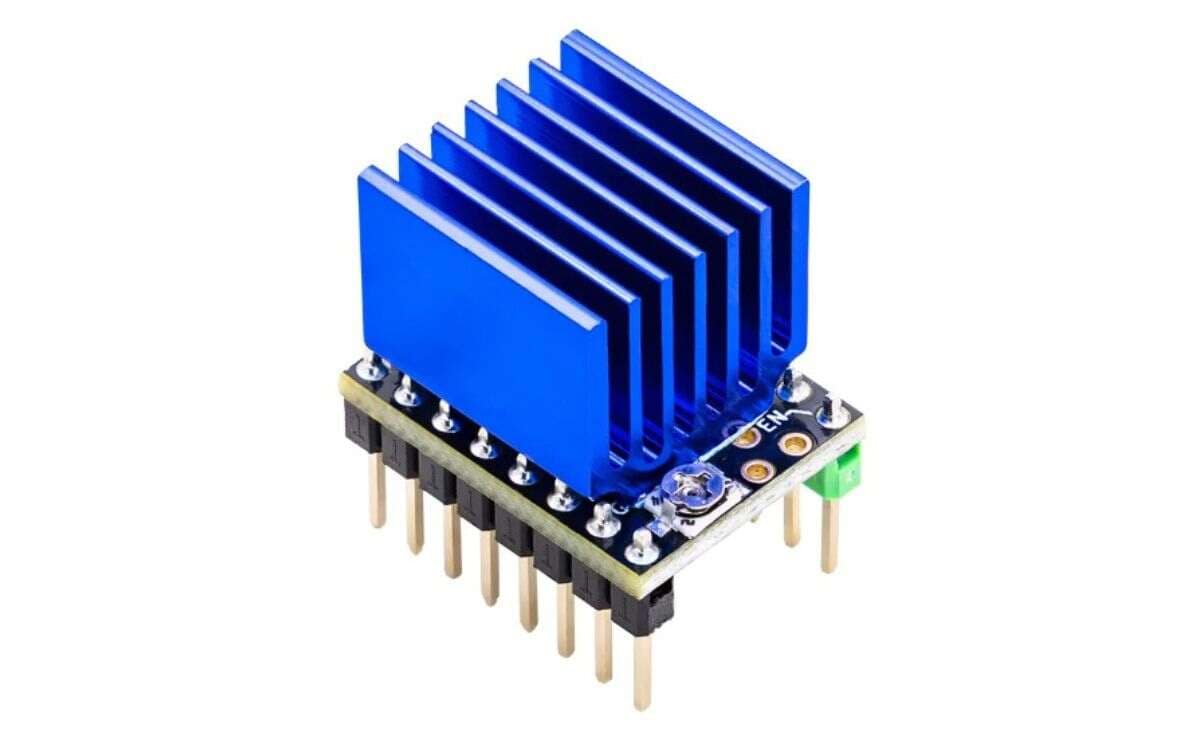

MKS TMC2225 V1.0 Stepper Motor Driver for Heat Sink

MKS TMC2225 V1.0 Stepper Motor Driver for Heat Sink

MKS TMC2225 V1.0 Stepper Motor Driver for Heat Sink

• MKS TMC2225 V1.0 Stepper Motor Driver is a next-generation motor driver built for high-precision 3D printing and CNC automation.
• It features advanced StealthChop2 silent-drive technology, delivering exceptionally quiet operation while maintaining torque and accuracy.
• The driver’s SpreadCycle mode ensures excellent performance at higher speeds, making it suitable for all types of motion control.
• Improved thermal design, the TMC2225 operates reliably under continuous load and is compatible with most 3D printer control boards, including MKS, Creality, SKR, Rumba, and more.

Specifications

• Model: MKS TMC2225 V1.0
• Driver Type: Stepper Motor Driver
• Technology: StealthChop2 & SpreadCycle
• Control Interface: UART
• Supply Voltage: 4.75V – 36V
• Motor Current: Up to 2.0A RMS / 2.8A Peak
• Microstepping: Up to 256 microsteps
• Heat Dissipation: Improved thermal pad & heatsink compatible
• Compatibility: MKS Gen, MKS Robin, Creality boards, SKR, Rumba, CNC controllers
• Protection: Over-current, over-temperature, short-circuit protection

Features

• Ultra-silent operation with StealthChop2 technology
• High-performance motion control for 3D printers & CNC machines
• 256-microstep interpolation for smooth and precise movement
• Lower heat generation with enhanced thermal efficiency
• UART mode enables smart tuning and real-time parameter adjustment
• Compatible with most common 3D printer mainboards
• Easy installation — drop-in replacement for TMC2208
• Supports both standalone and UART configuration
• Extended lifespan with robust MOSFET design

Applications

• 3D Printers
• CNC Routers
• Laser Engravers
• Robotics & Automation Projects
• DIY Motion Control Systems
• Silent motor upgrades and retrofits

Usage Instructions

• Insert the driver into the mainboard socket as per orientation.
• Ensure correct jumper settings for UART or standalone mode.
• Attach heatsinks for better cooling.
• Adjust Vref only if needed — start with recommended settings.
• Test axis movement and confirm smooth, silent operation.

Package Includes

• 1 piece of MKS TMC2225 V1.0 Stepper Motor Driver
