MKS TMC2160 OC Stepper Motor Driver

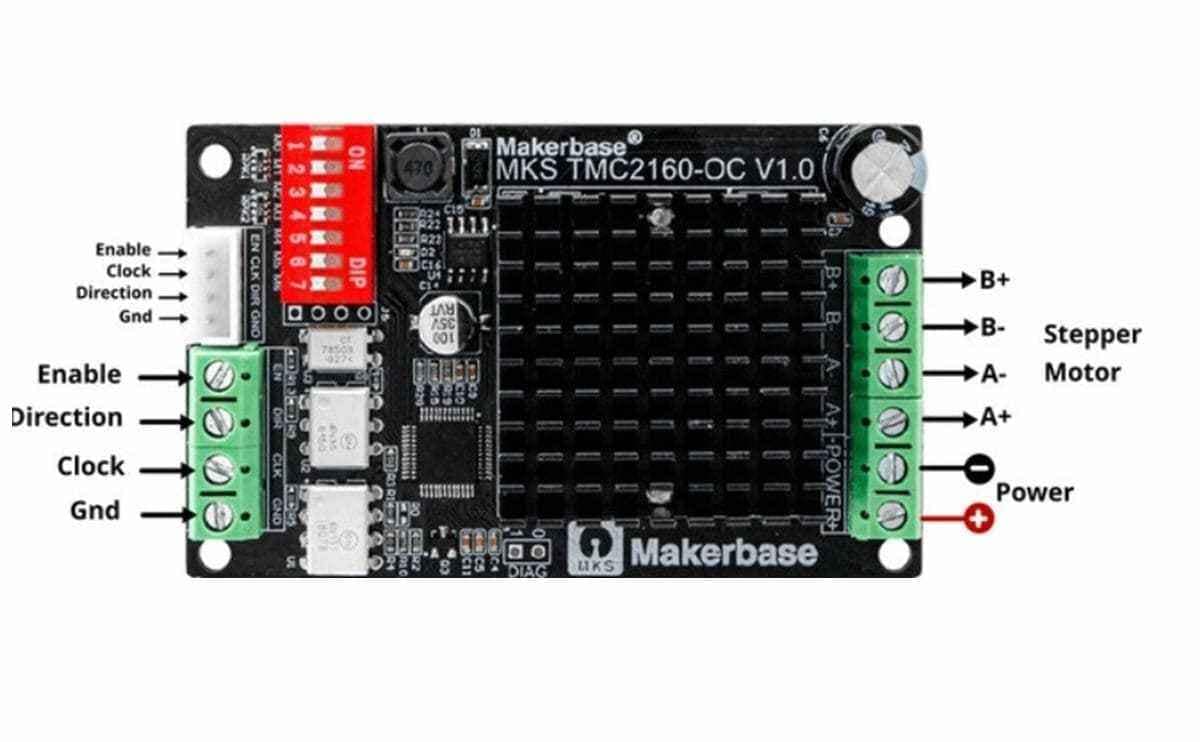

MKS TMC2160 OC Stepper Motor Driver:

• The MKS TMC2160 OC is a brand new generation 4.3A Stepper motor driver and replaces the old TB6600 Stepper Driver. The driver has opto-isolated inputs and supports up to 64 microsteps. This is a very powerful, yet cost-effective stepper driver.
• Introducing the MKS TMC2160-OC, a powerful and versatile driver designed to enhance the performance and control of your stepper motor system. With its advanced features and user-friendly design, this driver is perfect for a wide range of applications.
• The TMC2160-OC driver comes equipped with a mute function that allows you to easily control the noise level of your stepper motor.
• This feature is particularly useful in environments where noise reduction is a priority, such as in home automation systems or quiet office spaces.
• With the TMC2160-OC, you have the ability to set the maximum current of your stepper motor system up to 4.33A. This can be easily adjusted using the built-in switch, providing you with the flexibility to optimize the performance of your motor.

specification:

• Model: TMC2160-OC
• Current Max: 4.33A
• Voltage: 5V
• Material: PCB
• Supporting Microsteps(max): 64

Features:

• TMC series of drivers with mute function.
• Setting current max 4.33A by the switch.
• Little heat and easy to cool down.
• Easy to modify micro step via DIP Switch, max supporting 64 micro steps.
• Safe Optically coupled isolation signal.

Package Includes:

• 1 x MakerBase MKS TMC2160-OC Stepper Driver.
