Mitutoyo Dial Gauge Standard 0-1mm/0-30mm of measuring tools

Availability:

In stock


Warranty: 6 Months

4,674.00 7,505.00

Mitutoyo Dial Gauge-Standard 0-1mm/0-30mm of measuring tools:

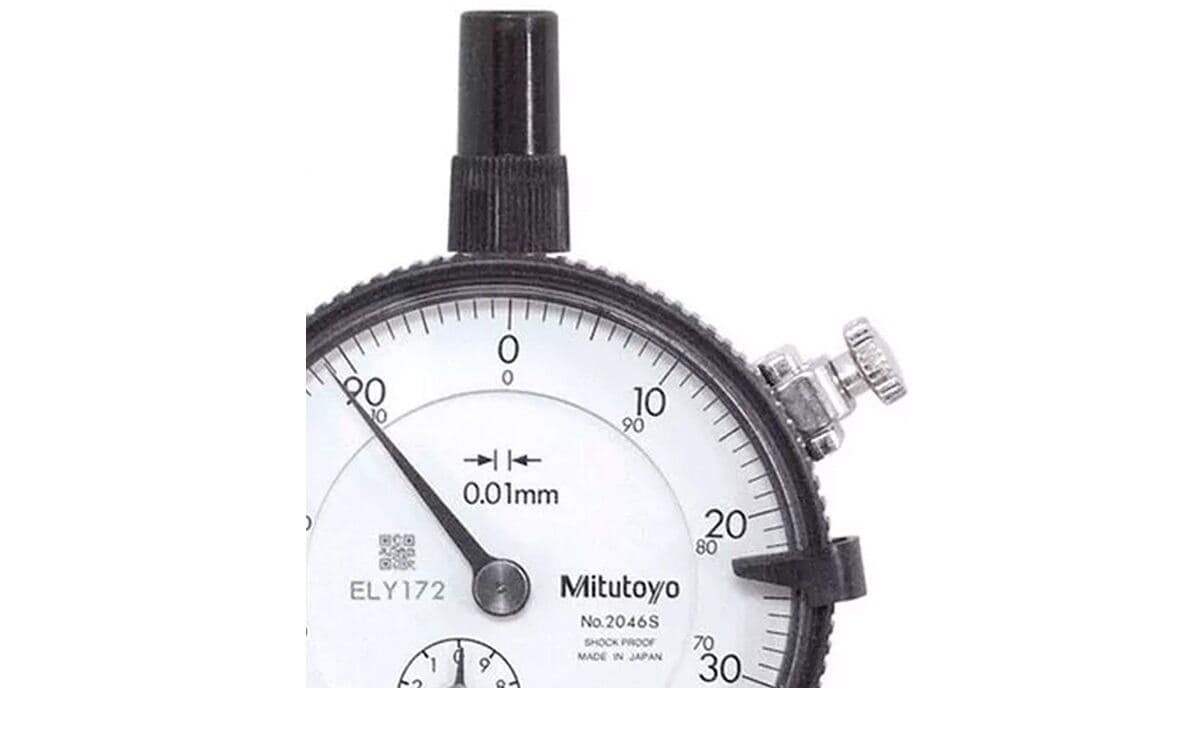

Mitutoyo Dial Gauge Standard 0.01 mm graduation dial gages having a bezel with an outside diameter of 57 mm. The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. A carbide contact point is used. The grand gear is made of stainless steel with high resistance to wear and deformation. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

  • No through screw-holes on the frame for high oil- and dust-resistance. The bezel clamp (optional) can be attached either to the right or left side.
  • Improved Impact- and oil-resistant materials are employed in the bezel. Easier reading is due to the improved shape of the crystal face.
  • Revolutionary stem-bush design for troublefree stem clamping (longer clamping range; maximum tightening torque at the clamping point with M5 screw: 150 N-cm)
  • The spindle lifting lever can be attached to either the right or left side providing high operability and smooth movement. This lever can be easily installed and removed
  • Limit hand can be moved without interfering with the bezel clamp.
