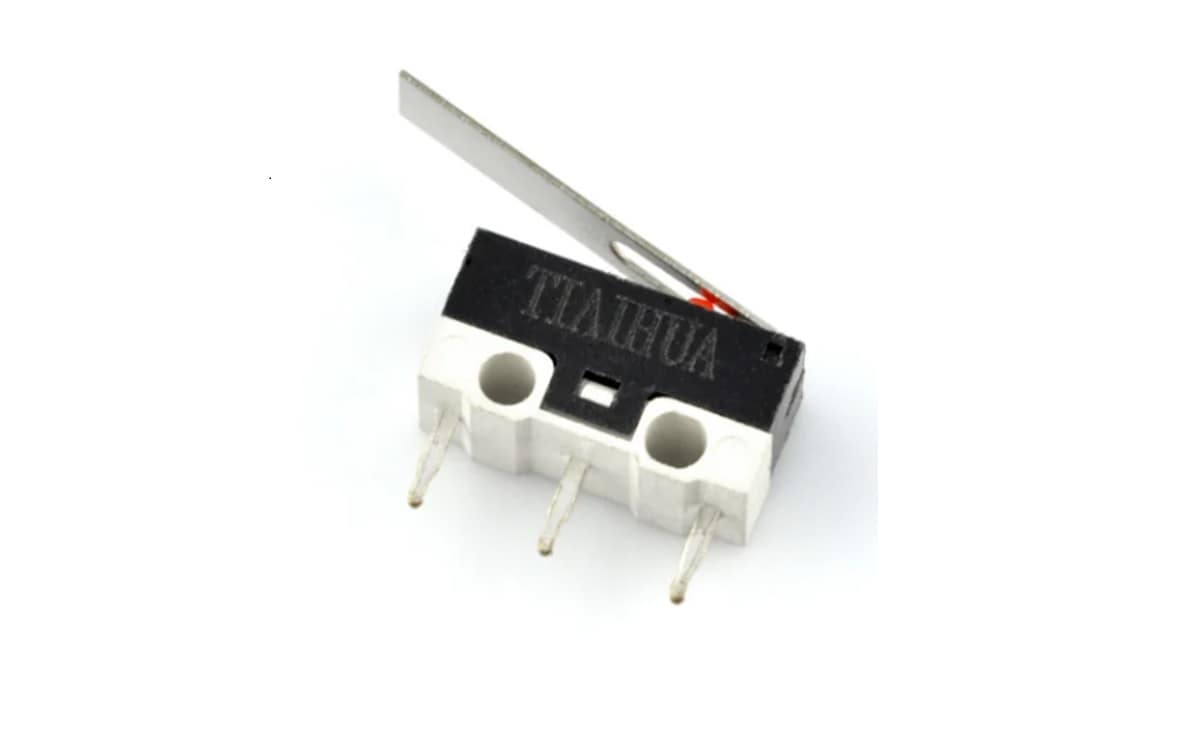

Limit Switch external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) az series mini limit switches will be used to force action on a reed, producing reed instantaneous action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.
When the force is removed on the drive components, action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action
limit switches are electromechanical devices with an actuator connected to a group of contacts. The actuator makes contact with an object, and the device operates the contacts to establish or break an electrical connection. They are highly durable, easy to install, and offer consistent performance, making them ideal for various applications and settings.
Limit switches can detect if an object is present or absent, moving through, positioned in a particular location, or reaching the end of its travel. Their versatility makes them a reliable choice for controlling and monitoring movements in machines and systems, ensuring safety, and improving efficiency.
Features:
contact spacing is small.
short stroke action.
Power is small.
fast-break
Application:
 A computer mouse.
3d printers.
car mouse.
automobile electronic products.
communications equipment.
military products.
test instrument.
gas water heater.
gas burner.
small home appliance.
microwave oven.
Specifications:
Color: Black

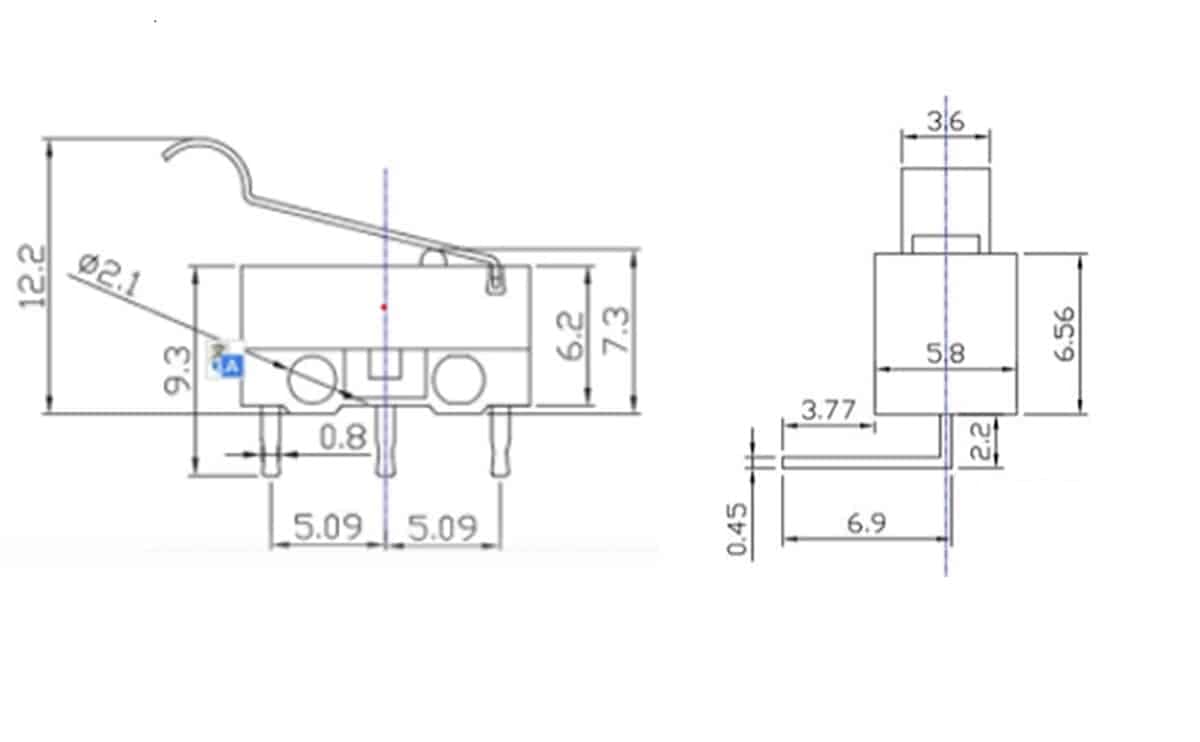

Dimension: 20 x 10 x 6mm (L X W X H)
Rated voltage: AC 125V-250V
Current rating: 5A

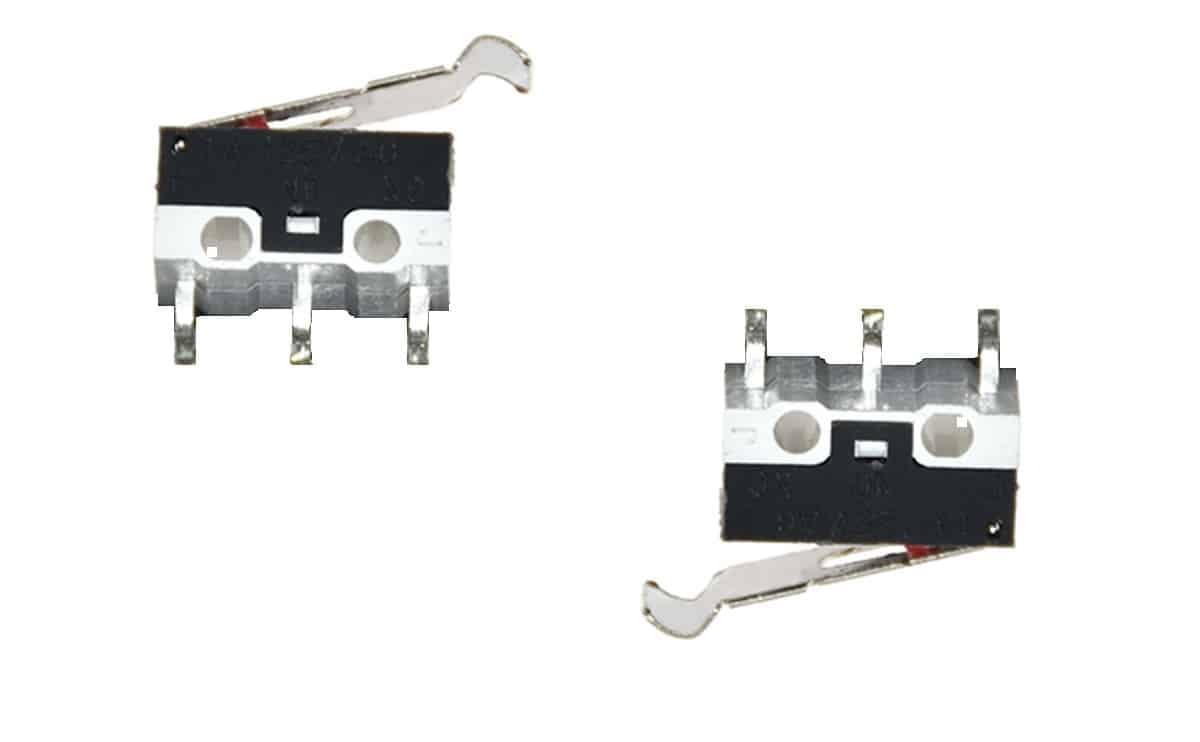

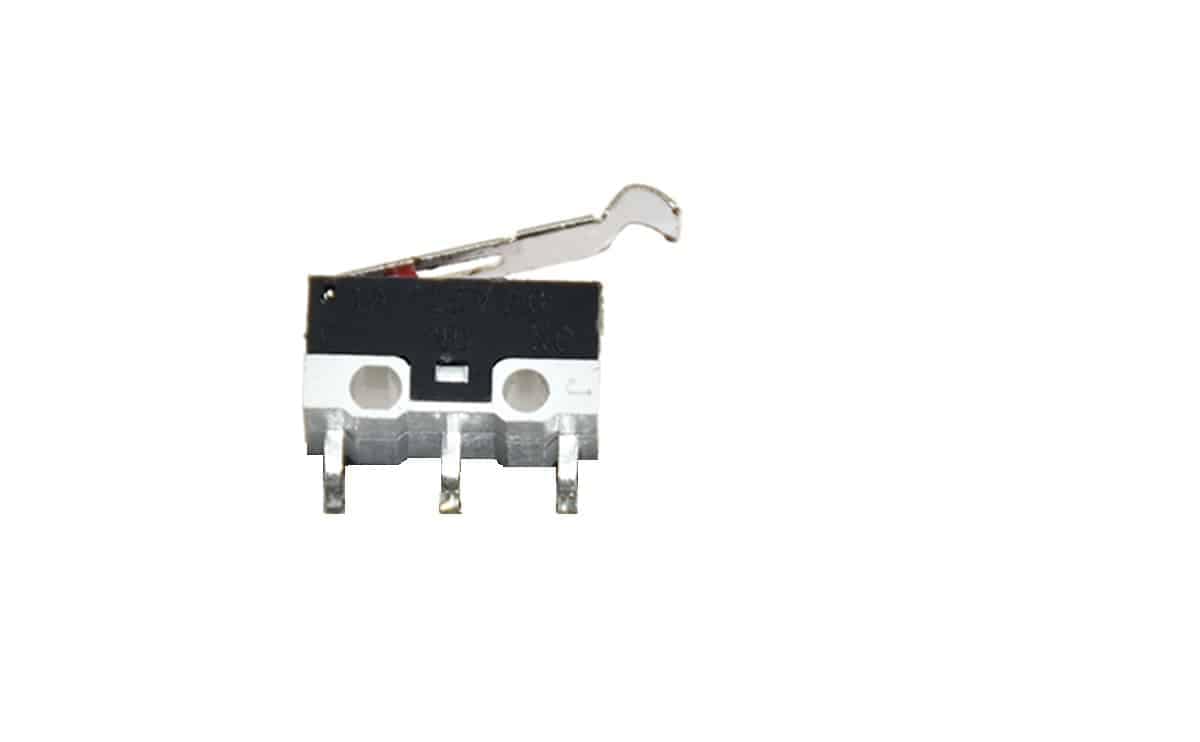

PCB Terminals Circuit Board With Roller Lever Limit
