Mean Well SMPS LRS-150-12V 12.5A 150W and LRS-150-24 24V 6.2A 150W

Mean Well SMPS LRS-150-12V 12.5A 150W and LRS-150-24 24V 6.2A 150W

Mean Well SMPS LRS-150-12V 12.5A 150W and LRS-150-24 24V 6.2A 150W power supply

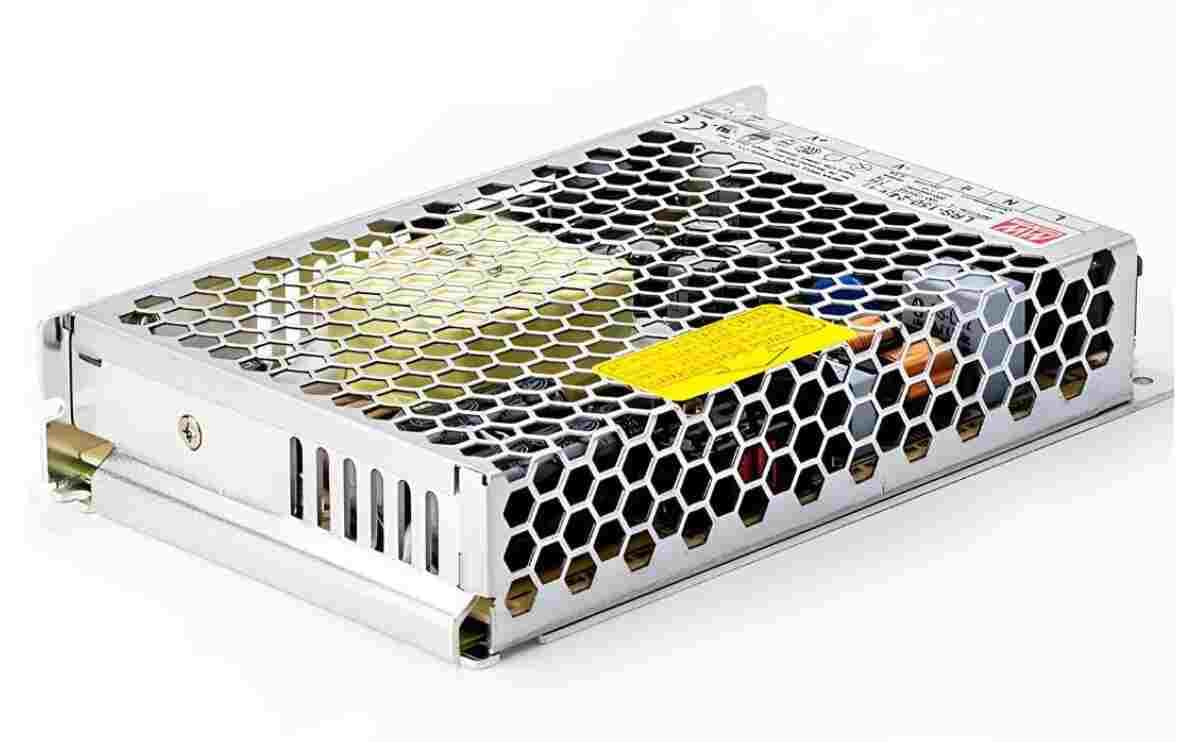

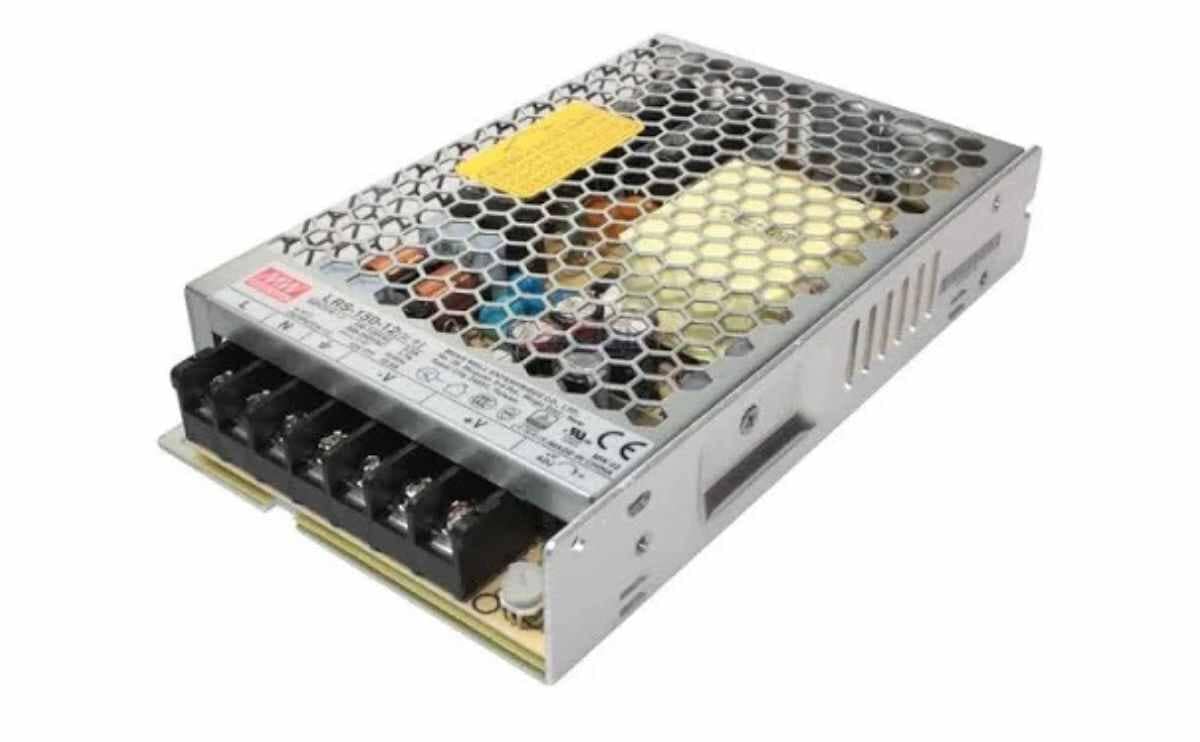

• Vented metal mesh enclosure for excellent heat dissipation and operator safety. With efficiency up to 90 %
• Low standby power consumption, and universal
• AC input (85–264 V), it is ideal for industrial automation, CNC controllers, and LED lighting systems.

Specifications

• Brand: Mean Well
• Model:Mean Well LRS-150-12, Mean Well LRS-150-24
• Output Voltage: 12V DC, 24V DC
• Output Current 12V: 12.5A
• Output Current 24V: 6.2A
• Output Power: 150W
• Input Voltage: 85 – 264V AC / 120 – 373V DC
• Efficiency: Up to 90%
• Ripple & Noise: ≤ 120 mVp-p
• Protections: Short circuit, Overload, Overvoltage, Overtemperature
• Overvoltage Range: 13.8 – 16.2V DC
• Cooling Method: Natural air convection (no fan)
• Working Temperature: −30 °C to +70 °C

Applications

• Mean well smps CNC controllers and stepper motor drivers
• 3D printers and automation equipment
• LED modules and lighting panels
• Meanwell power supplySecurity camera systems and DVRs
• IoT and embedded electronics
• Industrial control systems and test instruments

Features

• Mean Well SMPS LRS-150-12 Reliable 12 × 7 continuous operation
• Mean Well SMPS LRS-150-24 Reliable 24 × 7 continuous operation
• Compact and lightweight form factor
• Built-in EMI filter for low noise
• Low standby power consumption (< 0.5 W)
• High durability metal housing
•  Global safety certifications and long lifespan

Usage

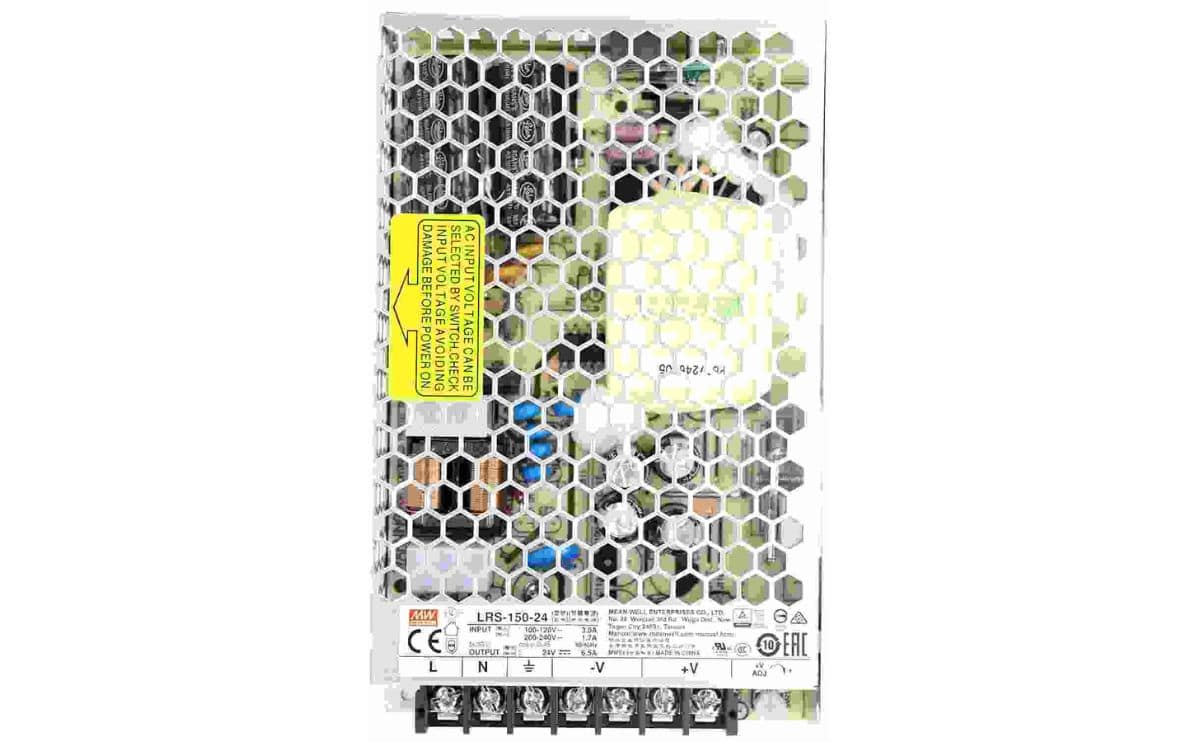

• Mean Well SMPS LRS-150-12  and Mean Well SMPS LRS-150-24 Connect input terminals to AC mains (85–264V),
• use DC output for 12 V devices.Mount securely in control panels or equipment enclosures.
• Ensure proper airflow for maximum efficiency and longevity.

Package Includes

• 1 pieces of 12V 12.5 or 24V 6.2A LRS-150  meanwell power supply
