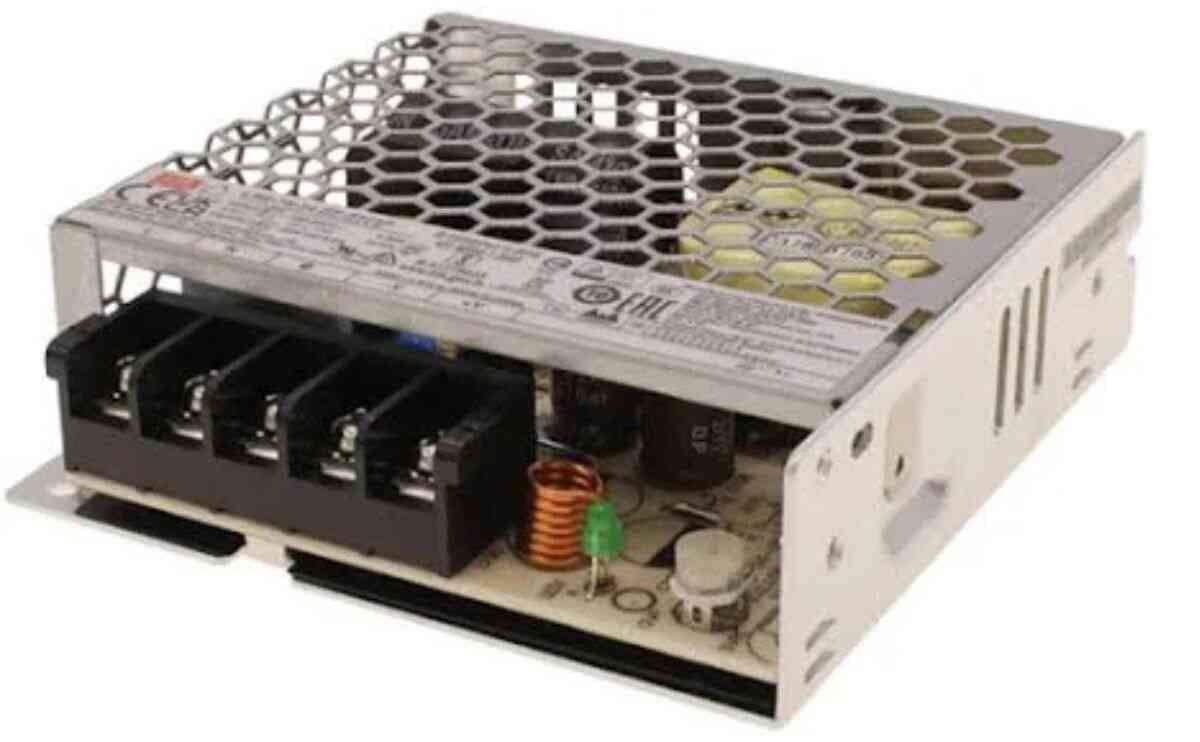

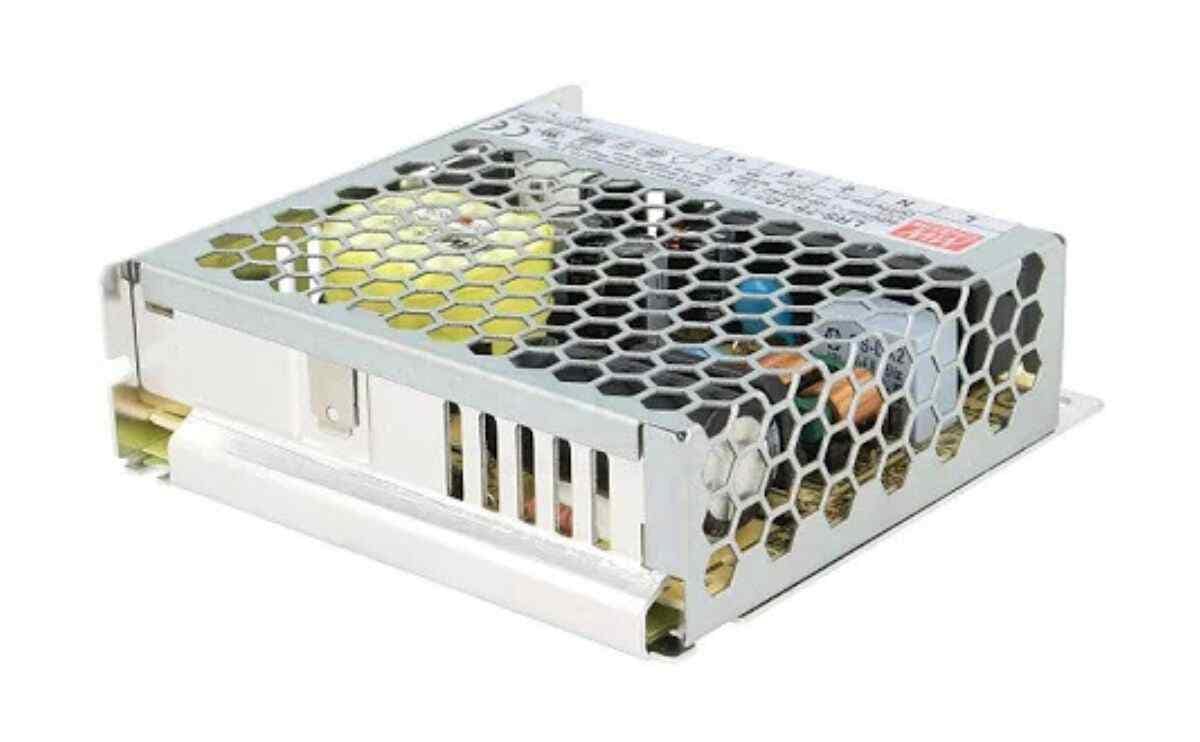

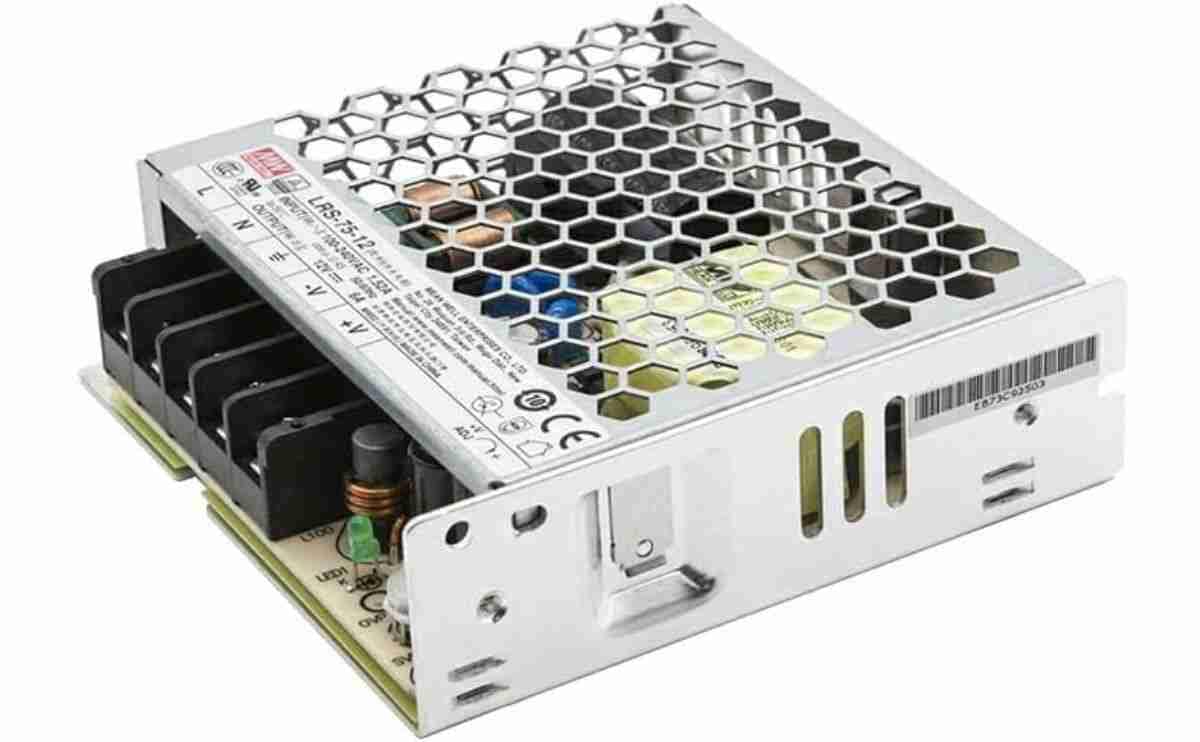

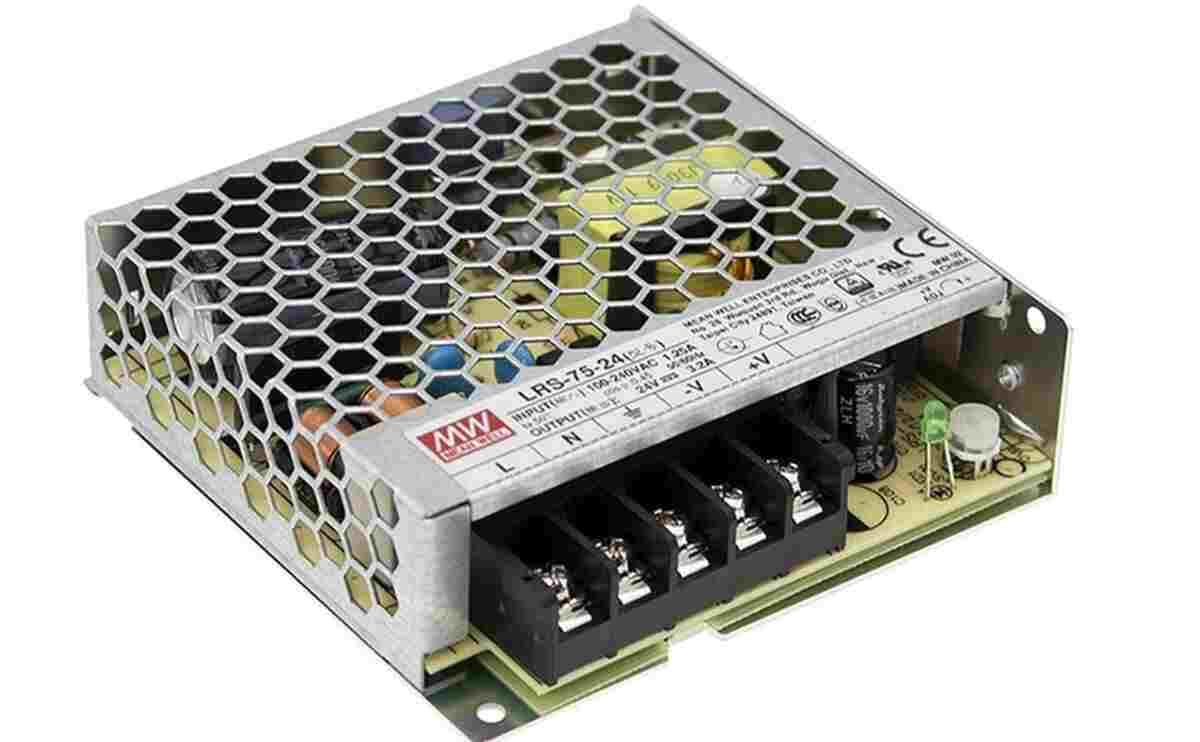

Mean Well LRS-75-12 SMPS 12V 6.25A 75W and LRS-75-24 SMPS 24V 3.1A 50W Power Supply

• Efficiency up to 90%, low no-load power consumption.
• Universal AC input (85–264 V), this SMPS offers long-term stability for industrial and electronic projects.

Bullet Highlights

• Designed for compact and enclosed installations
• Metal mesh case for enhanced heat dissipation and safety
• High efficiency up to 90 % and low power loss
• Universal AC input 85–264V for global compatibility
• Stable 12V DC and 24V DC output with tight voltage regulation
• Ideal for industrial automation, CNC, LED, and 3D printer applications

Specifications

• Brand: Mean Well
• Model:Mean Well  LRS-75-12, MeanWell  LRS-75-24
• Output Voltage: 12V DC, 24V DC
• Output Current 12V: 6.25 A
• Output Current 24V: 3.1 A
• Output Power 12V: 72W
• Output Power 24V: 75W
• Input Voltage: 85 – 264V AC / 120 – 373V DC
• Efficiency: Up to 90%
• Ripple & Noise: ≤ 120 mVp-p
• Protection Modes: Short circuit / Overload / Overvoltage / Overtemperature
• Overvoltage Range: 13.8 – 16.2V DC
• Cooling: Natural air convection (no fan required)
• Working Temperature: −30°C to +70°C

Applications

• Mean Well  LRS-75-12 and Mean Well  LRS-75-24 CNC controllers and stepper motor drivers
• 3D printers and automation projects
• LED signage and lighting modules
• Security cameras and surveillance systems
• Embedded control and IoT devices
• Communication and industrial equipment

Features

• Compact 75W form factor for tight enclosures
• High durability with metal enclosure
• Mean well smps Low standby power consumption (< 0.5W)
• Built-in EMI filter and protection circuit
• Reliable for continuous 24 × 7 operation
• Long service life with global safety compliance

Usage

• Connect the input to an AC mains (85–264V)
• Mean Well LRS-75-12 DC  output terminals for 12V loads.
• Mean Well  LRS-75-24 DC  output terminals for 24V loads.
• Mount on DIN rail or inside a metal enclosure for best performance.
• Ensure proper ventilation for optimal thermal management.

Package Includes

• 1 pieces of 12V 6.25 A or 24V 3.1A meanwell power supply
