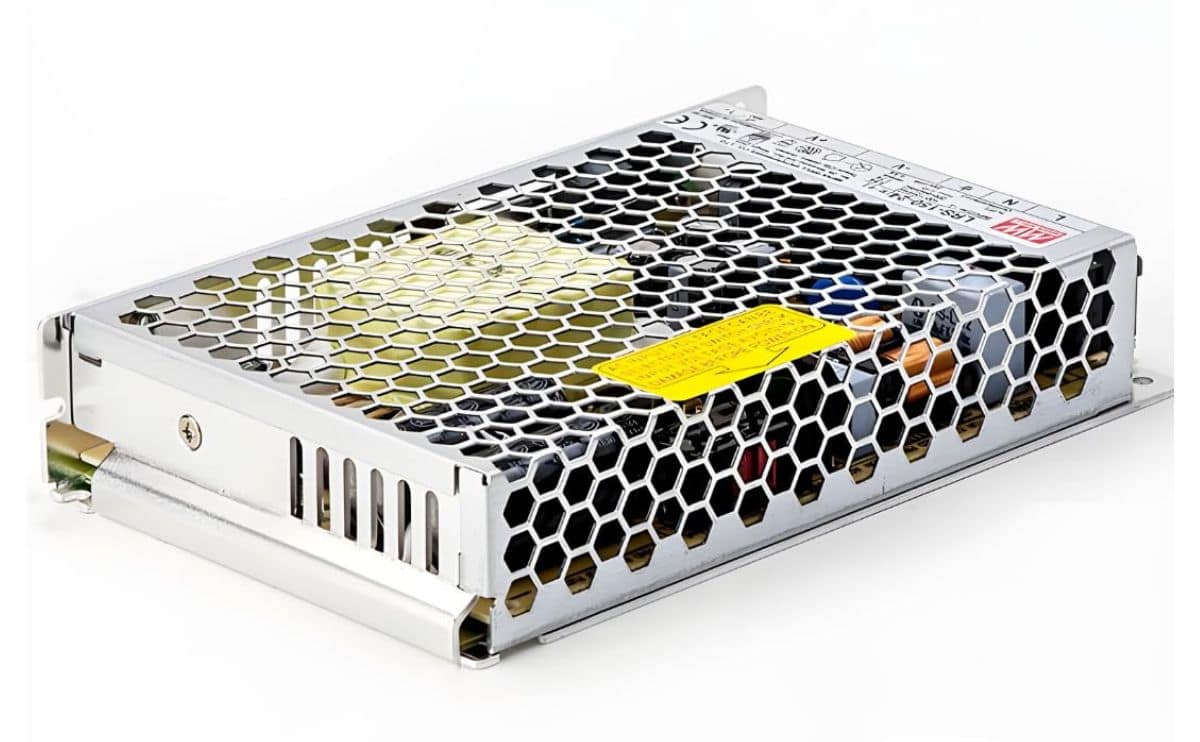

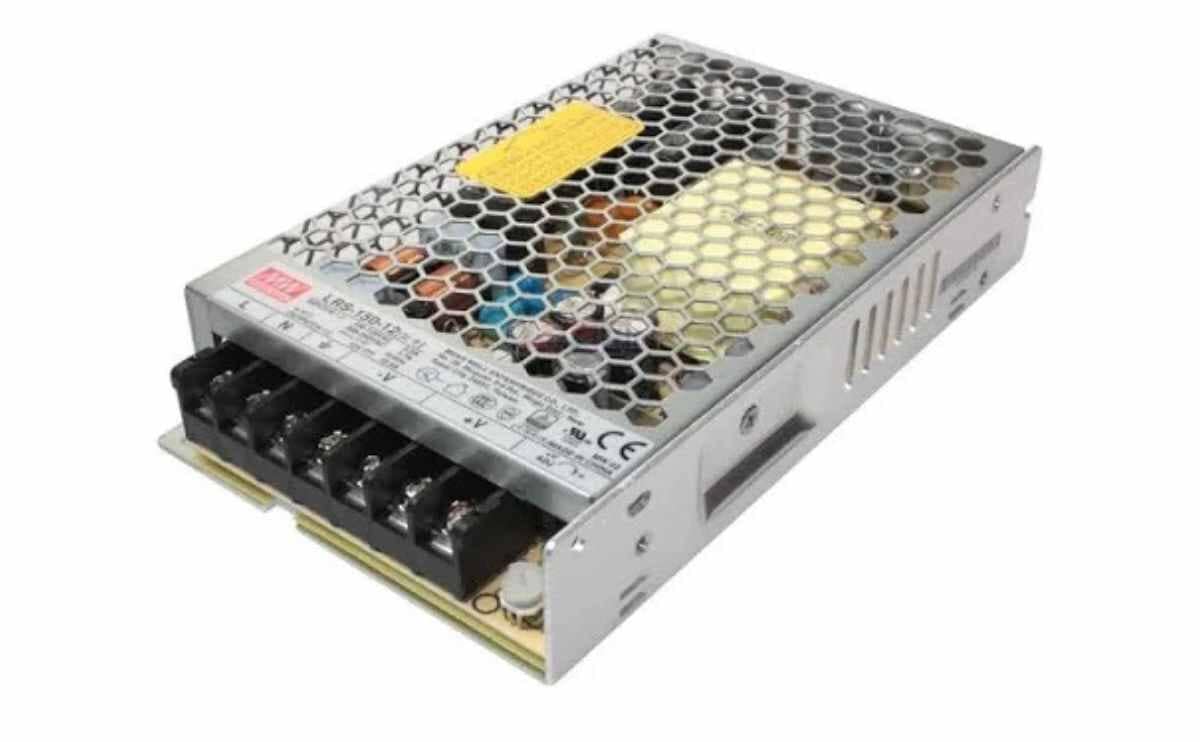

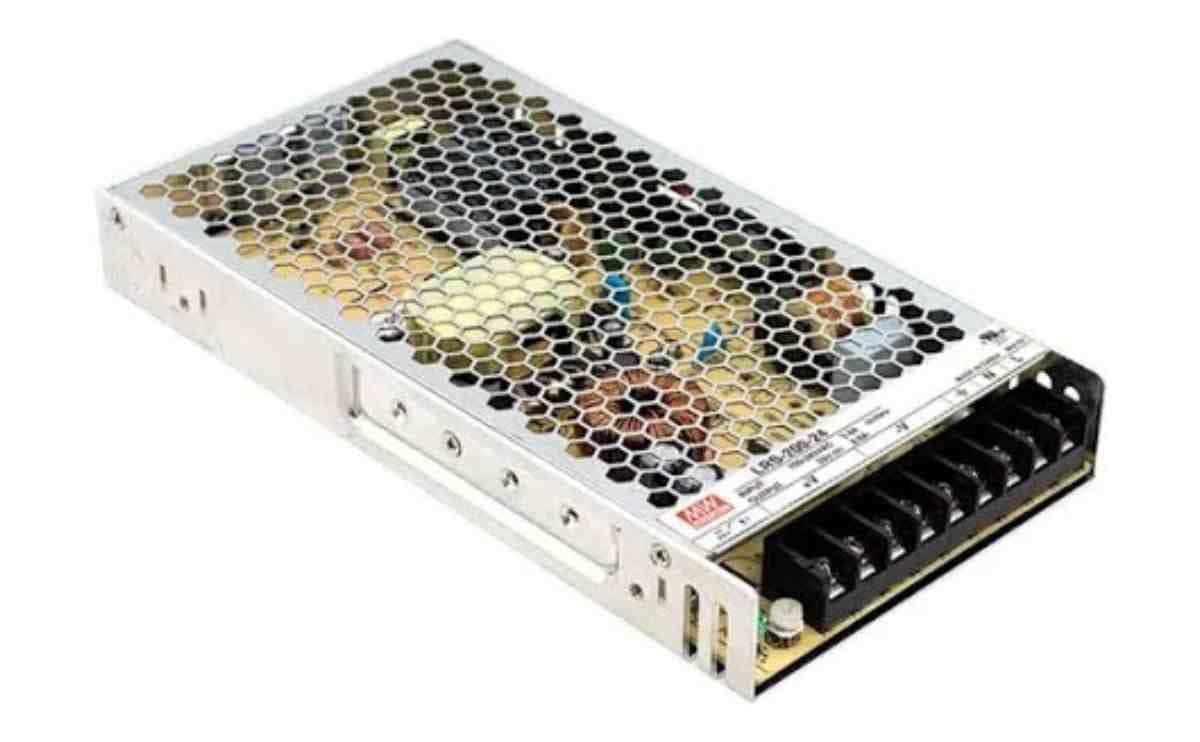

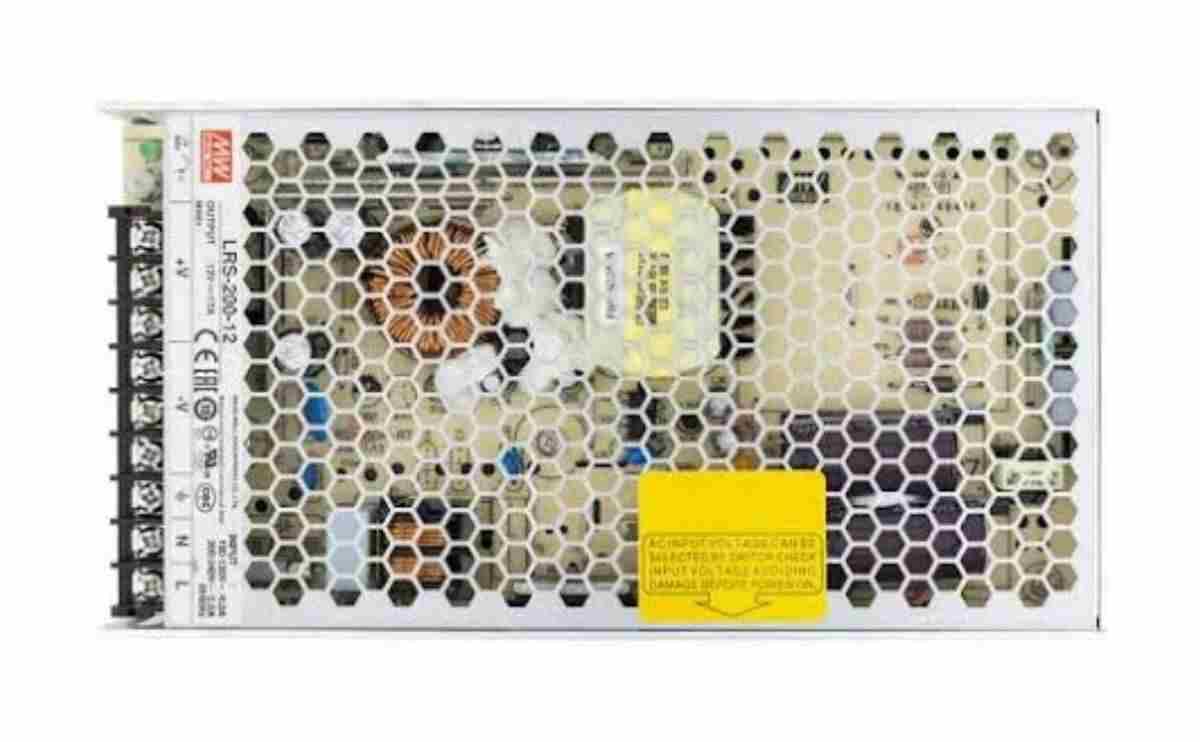

Mean Well LRS-200-12 SMPS 12V 16A 200W and LRS-200-24 24V 8.3A 202W

Mean Well LRS-200-12 SMPS 12V 16A 200W and LRS-200-24 24V 8.3A 202W

Mean Well LRS-200-12 SMPS 12V 16A 200W and LRS-200-24 24V 8.3A 202W power supply

• Delivers a stable Mean Well LRS-200-12 SMPS 12V 16A 200 W and 24V 8.3A 200W
• Vented metal mesh enclosure ensures excellent heat dissipation and safety in industrial settings. With efficiency up to 90.5 %, low standby power
• Consumption, and universal AC input (85–264V), it provides reliable performance for CNC controllers, LED modules and automation projects.

Specifications

• Brand: Mean Well
• Model: Mean Well LRS-200-12, Mean Well LRS-200-24
• Output Voltage: 12V DC, 24V DC
• Output Current 12V: 16A
• Output Current 24V: 8.3A
• Output Power: 200W
• Input Voltage: 85 – 264V AC / 120 – 373V DC
• Efficiency: Up to 90.5%
• Ripple & Noise: ≤ 120 mVp-p
• Protection Features: Short Circuit, Overload, Overvoltage, Overtemperature
• Overvoltage Range: 13.8 – 16.2V DC
• Cooling Method: Natural air convection (no fan)
• Working Temperature: −30 °C to +70 °C

Applications

• CNC controllers and stepper motor drivers
• 3D printers and automation equipment
• LED signage and lighting modules
• Security camera and surveillance systems
• Embedded controllers and IoT devices
• Communication and test instruments

Features

• Reliable 24 × 7 continuous operation
• Low standby power (< 0.5W) for energy efficiency
• Built-in EMI filter to reduce noise
• Rugged metal body for industrial durability
• Easy installation and maintenance-free design
• Long service life with global safety certifications

Usage

• Connect the input terminals to AC mains (85 – 264V),
• DC output for 12 V devices requiring up to 16A.
• DC output for 24 V devices requiring up to 8.3A.
• Ideal for mounting in control panels or equipment enclosures. Ensure adequate ventilation for efficient cooling.

Package Includes

• 1 pieces of 12V 16A or 24V 8.3A LRS-200 meanwell power supply.
