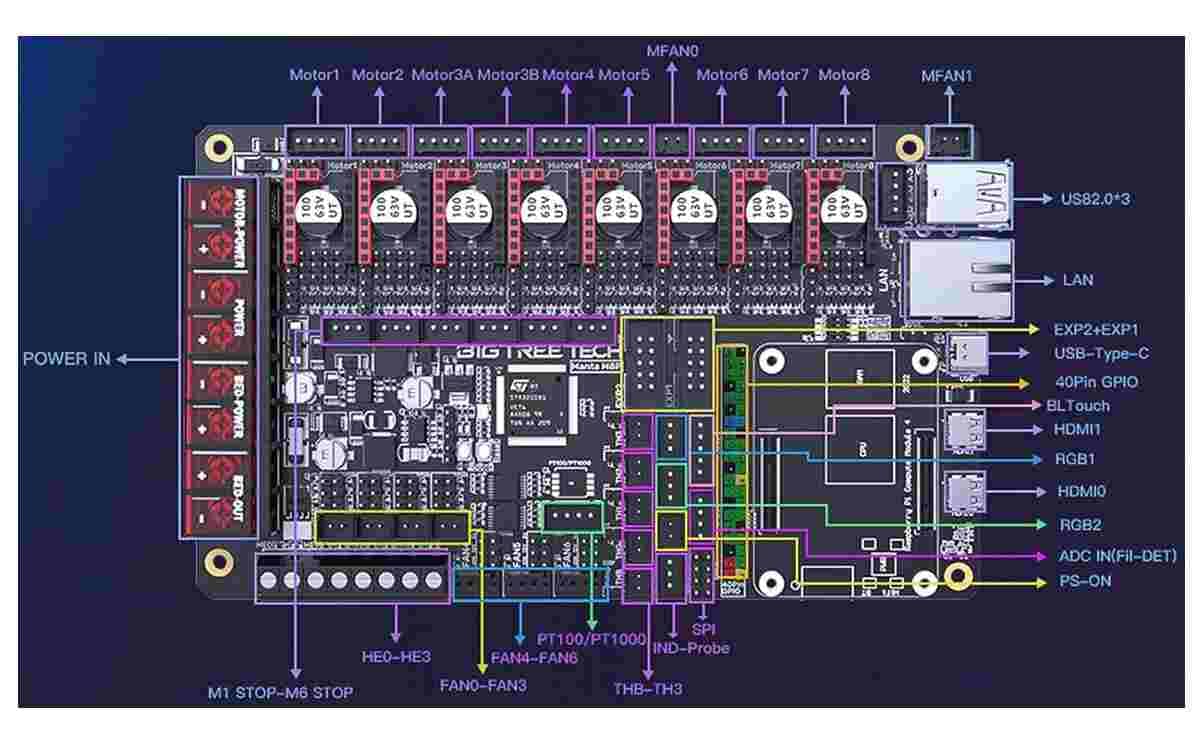

Manta M8P V1.1 Bigtreetech Control Board For 3D Printer

Manta M8P V1.1 Bigtreetech Control Board For 3D Printer

The Manta M8P V1.1 by BigTreeTech is an advanced, high-performance control board designed for 3D printing enthusiasts and professionals.

• Packed with state-of-the-art features, it offers excellent compatibility, versatility, and precision.
• Whether you’re upgrading your existing 3D printer or building a custom setup, the Manta M8P V1.1 is engineered to meet your most demanding needs.

Specifications

• MCU: STM32G0B1VET6.
• Frequency: 64MHz.
• Driver Slot: 8.
• eFuse: √.
• Fan Port: 2 pins PWM Fan x 5 4pins PWM Fan x 2 Always on Fan x 1 SoC Fan x 1.
• Fan Voltage Selection (24V,12V.5V): √.
• Heater Cartridge Connector: 4.
• Thermistor: 100K NTC x 5.
• USB: 1 USB-OTG or UART to USB 3 USB- Host 2.0.
• HDMI: Micro HDMI x 2.
• 12C Interface: X.
• CAN bus Interface: yes.

Key Specifications of Manta M8P V1.1

• Processor:
  • Equipped with a powerful 32-bit ARM Cortex-M7 STM32H743VIT6 microcontroller, ensuring lightning-fast processing and superior performance.
• Power Input:
  • Supports DC 12V-24V, providing stable and efficient power for various 3D printer configurations.
• Driver Compatibility:
  • Supports up to 8 stepper motor drivers, including TMC2209, TMC2226, TMC5160, and other silent drivers for ultra-quiet and precise operation.
  • Offers flexible configurations for advanced motor control.
• Onboard EEPROM:
  • Built-in 24C32 EEPROM for reliable storage of settings and data, ensuring smooth operation and fast startup.
• Wi-Fi Compatibility:
  • Features an ESP32-Socket, allowing seamless integration with Wi-Fi modules for remote control and monitoring via a web interface or mobile app.
• Multiple Fan Ports:
  • Includes 4 controllable fan interfaces, offering customizable cooling options for improved thermal management.
• Dual Z-Axis Support:
  • Comes with double Z-axis interfaces, improving print stability and precision, especially for larger models.
• USB-C Interface:
  • High-speed USB-C port for easy PC connectivity and firmware updates.
• Expandable Interface:
  • Includes breakout ports for external accessories, sensors, and add-ons such as BLTouch or filament runout detection.
• SD and U Disk Support:
  • Manta M8P V1.1 Supports both SD card and USB disk functionality, making file management and firmware updates simple and convenient.

Package Include

• 1 pcs of M8P V1.1 manta board 3d printer.
