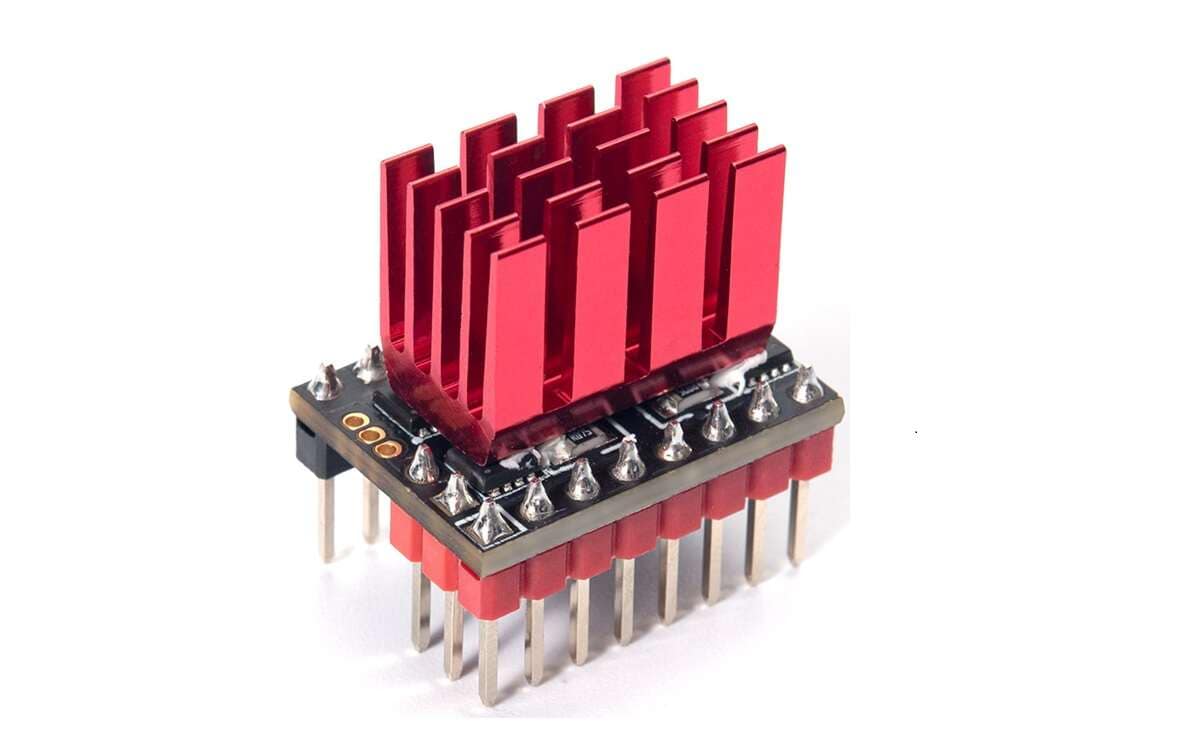

TMC5160T Driver Bigtreetech TMC5160T stepper motor driver for 3D printer machine
TMC5160T Driver Bigtreetech TMC5160T stepper motor driver for 3D printer machine
- It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized.
- The driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque.
- High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions.
- The complete solution reduces learning curve to a minimum while giving best performance in class.
Specifications
- The TMC5160T Driver by Bigtreetech is a high-performance stepper motor driver designed specifically for 3D printer machines. It offers advanced features and reliable performance to ensure smooth and precise motor control.
- Input Voltage: 4.75V to 46V
- Motor Phase Current: Up to 2.8A RMS (5A peak)
- Microstepping: Up to 256 microsteps per full step
- Interface: SPI, Step/Dir
- Operating Temperature: -20°C to +75°C

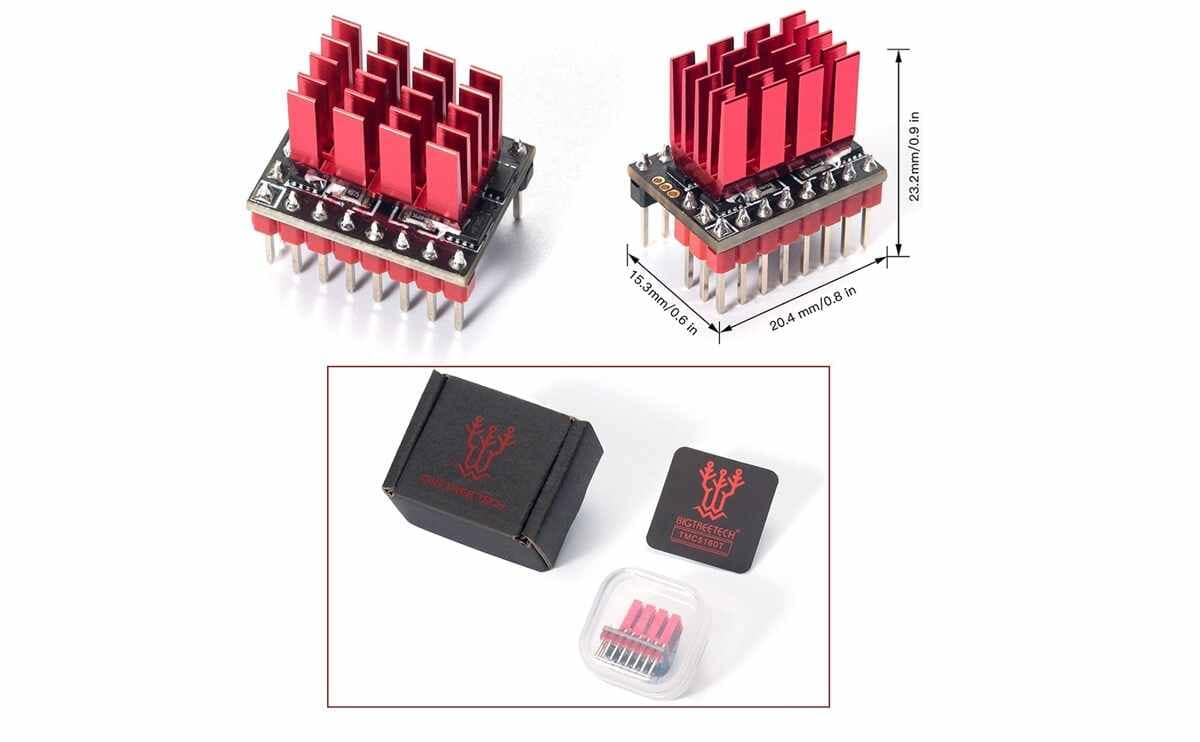

Dimensions
- The TMC driver has compact dimensions, making it suitable for various 3D printer machine designs.
- The board measures approximately 20mm x 25mm, ensuring easy integration into your system without taking up much space.
Applications
- The TMC5160T Driver is ideal for a wide range of applications in the 3D printing industry.
- Stepper motor and driver can be used in both professional and hobbyist-grade 3D printers, CNC machines, robotic systems, and other motion control applications.
- Its high-performance capabilities make it suitable for demanding projects that require precise motor control and smooth operation.
Usage

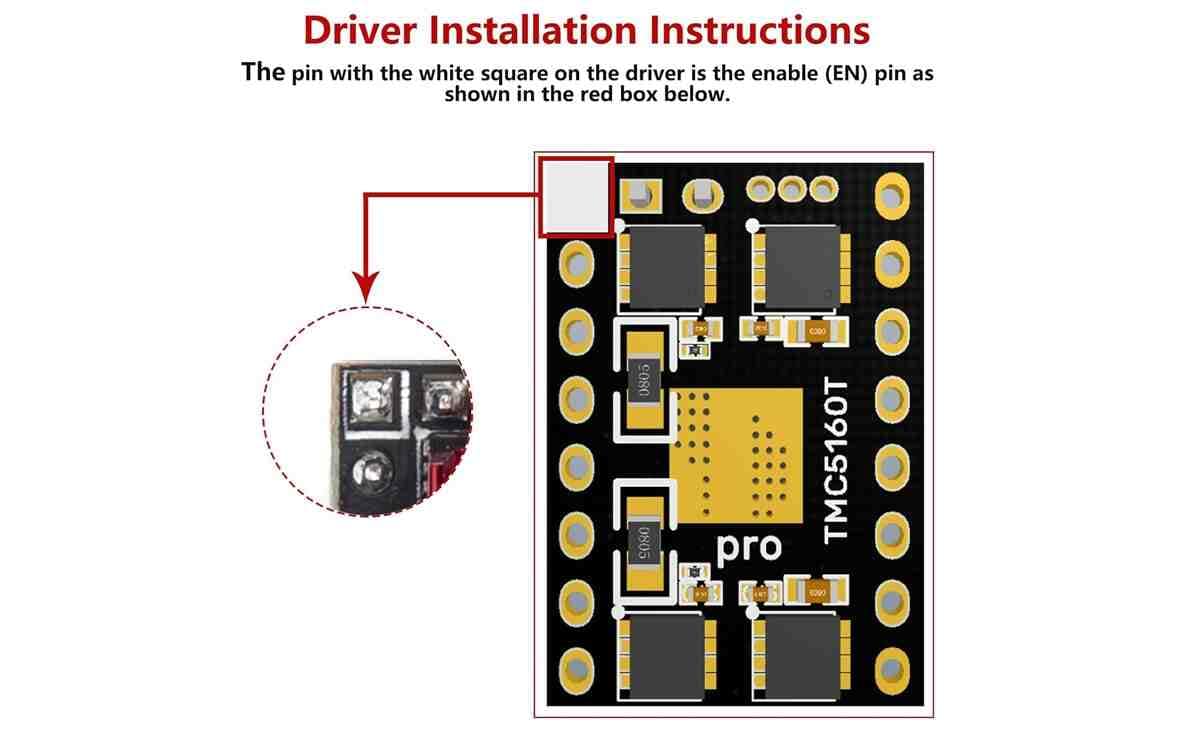

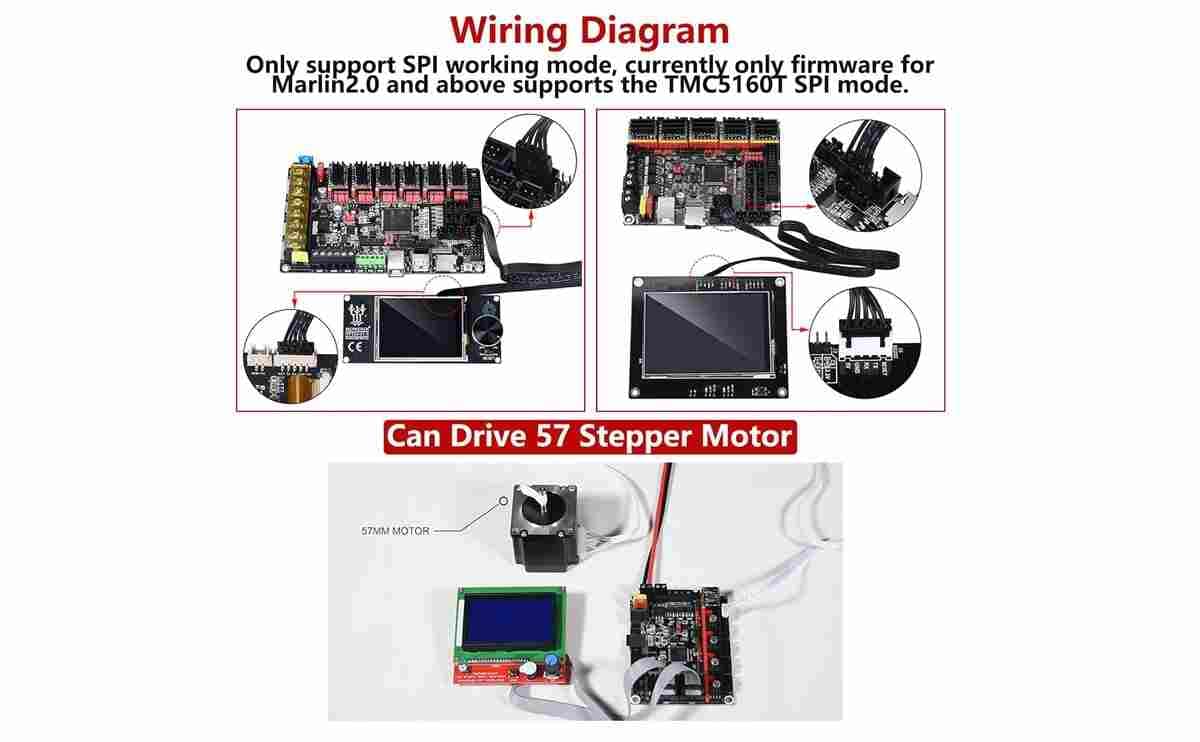

- The TMC5160T Driver can be easily connected to your 3D printer machine or other compatible systems.
- It supports both SPI and Step/Dir interfaces, providing flexibility in integration.
- The driver’s advanced features, such as stealthChop2 and spreadCycle, ensure quiet operation and reduced motor noise.
- Additionally, the driver offers various protection features, including over-temperature, over-current, and short-circuit protection, ensuring the safety and longevity of your system.
Package Include:
- 1 piece of TMC5160T V1.0.
