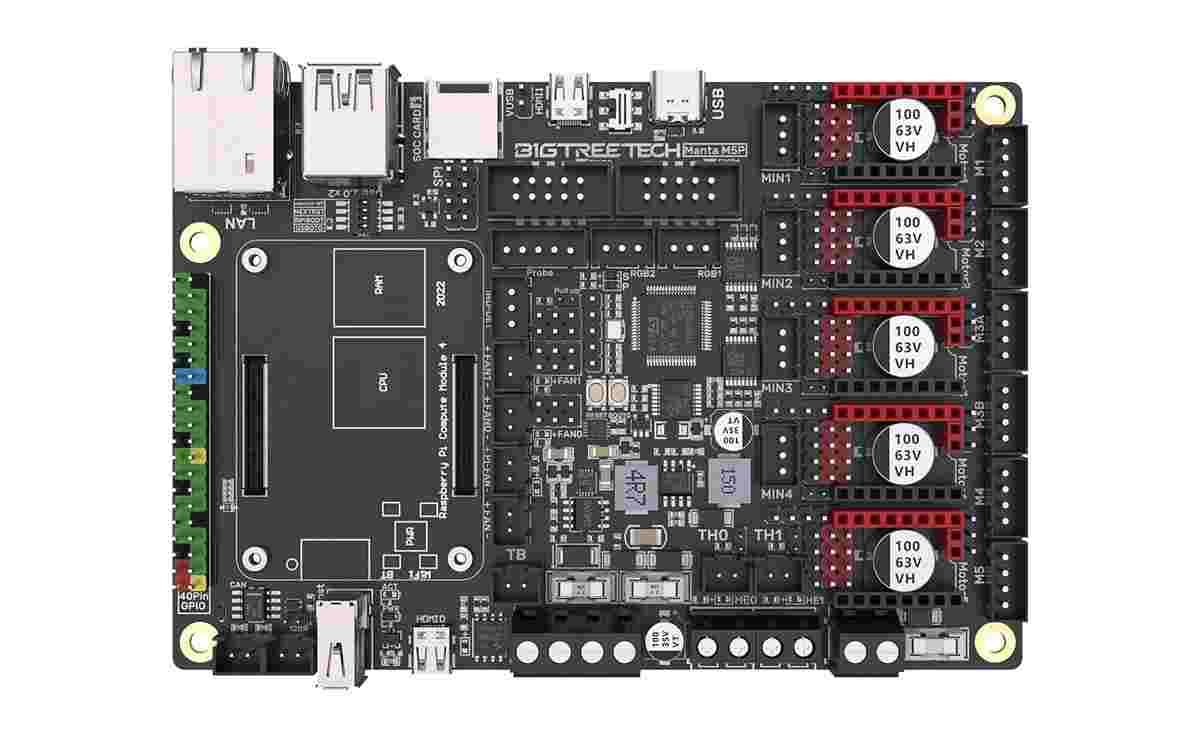

Manta M5P Bigtreetech Control Board for 3D Printer,

• Powered by a 32Bit 64MHZ ARM Cortex-M0 Series-STM32G0B1RET6 chip, this board offers exceptional speed and reliability.
• One of the standout features of the Manta M5P is its compatibility with Marlin firmware without the need for CB1/CM4.
• This allows for seamless integration and easy setup. Additionally, the board supports 5-axis stepper motor drivers, providing enhanced control and precision.
• The Manta M5P is equipped with integrated SPI and UART modes of TMC driver and DIAG pin, which can be easily configured using jumpers.
• This flexibility allows for effortless customization and adaptation to your specific needs.
• The board also supports CAN Bus, allowing for simplified wiring and providing strong anti-interference capabilities.
• With onboard SPI interface and proximity switch port, the Manta M5P enables the connection of an acceleration sensor, enabling Klipper’s input shaping.

Key Specifications

• Processor:
  • Built with a high-speed 32-bit ARM Cortex-M4 STM32F407VGT6 microcontroller for superior performance, fast processing, and precise control.
• Power Input:
  • Supports DC 12V-24V, ensuring stable power delivery for various 3D printing setups.
• Driver Support:
  • Compatible with up to 5 stepper motor drivers, including popular models like TMC2209, TMC5160, and TMC2225, for quiet and accurate motor control.
• Onboard EEPROM:
  • Includes 24C32 EEPROM for reliable storage of printer settings and configurations.
• Wi-Fi Ready:
  • Features an ESP32-Socket for easy installation of a Wi-Fi module, enabling remote control and monitoring.
• Fan Interfaces:
  • Offers 3 controllable fan ports, providing excellent cooling and thermal management for components.
• Dual Z-Axis Support:
  • Equipped with dual Z-axis interfaces for improved print stability and precision, particularly for large-format 3D printing.
• USB-C Connectivity:
  • Comes with a USB-C port for fast and seamless communication with your PC and firmware updates.
• SD Card and U Disk Support:
  • Includes a push-pull SD card slot and support for USB disk functionality, ensuring easy file transfers and firmware updates.

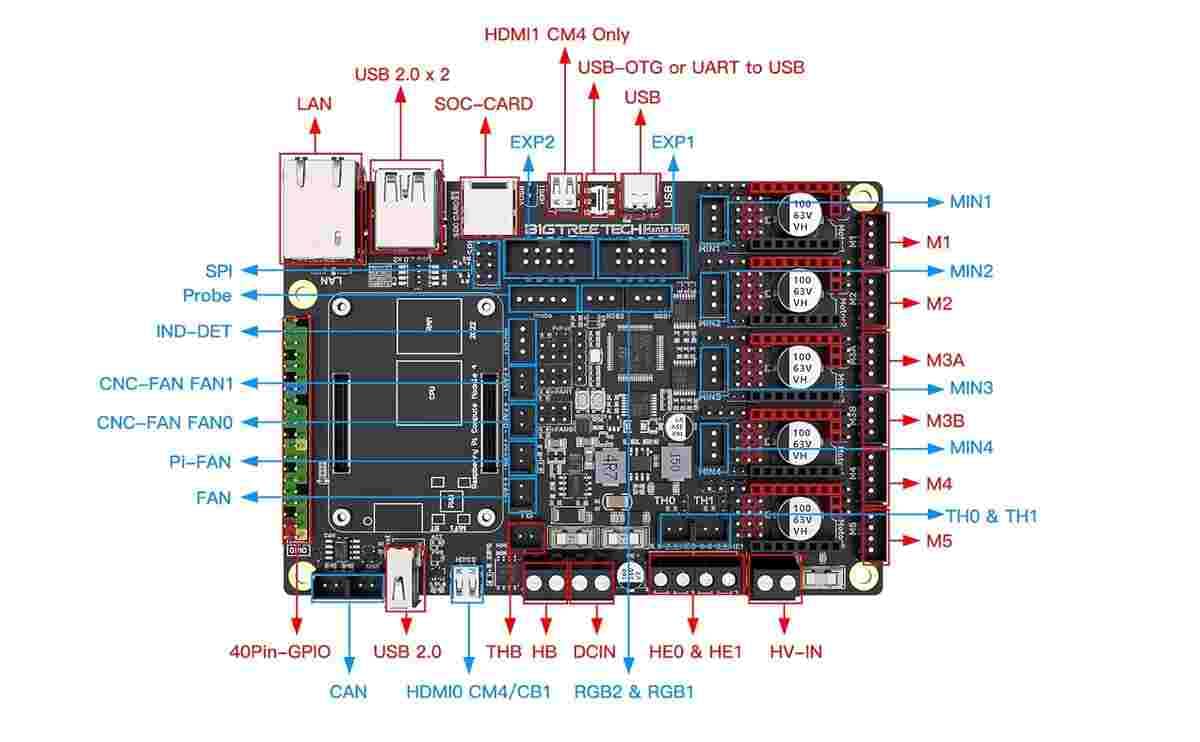

• Expandable Interfaces:
  • Supports a wide range of add-ons and accessories, including BLTouch for auto bed leveling, filament runout sensors, and more.

Package Includes

• 1 x Manta M5P
• 1 x Type C USB Cable and accessories.
