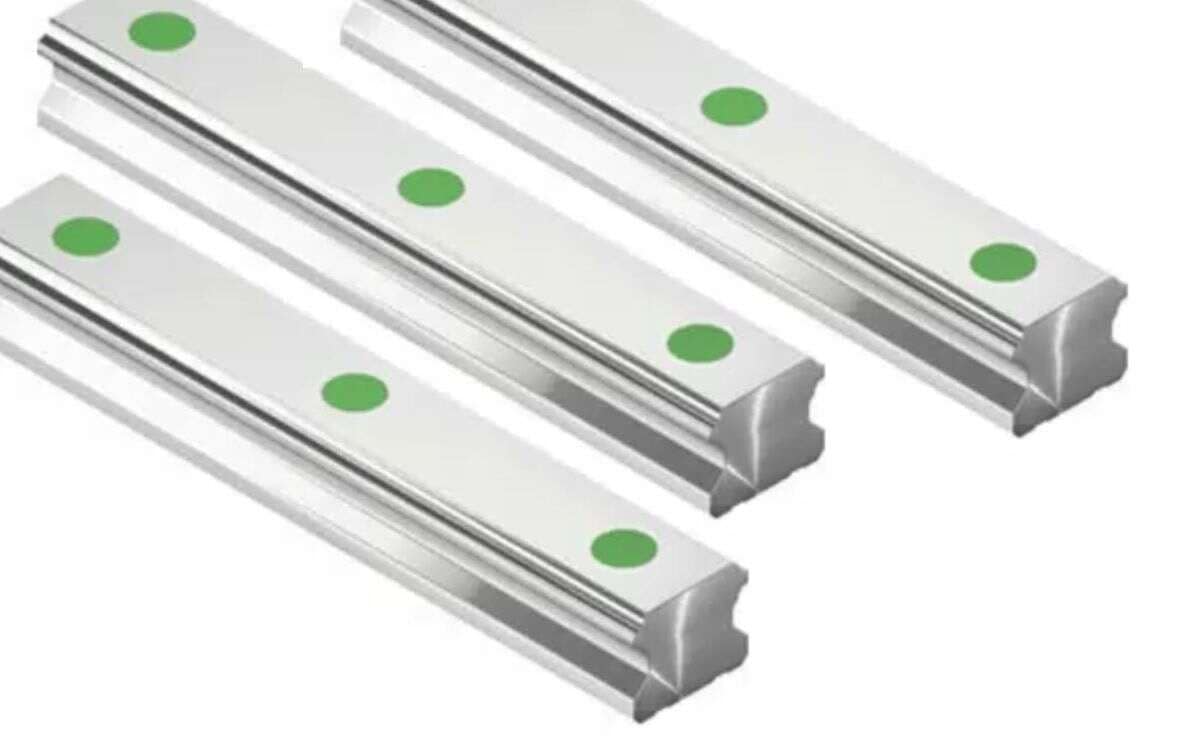

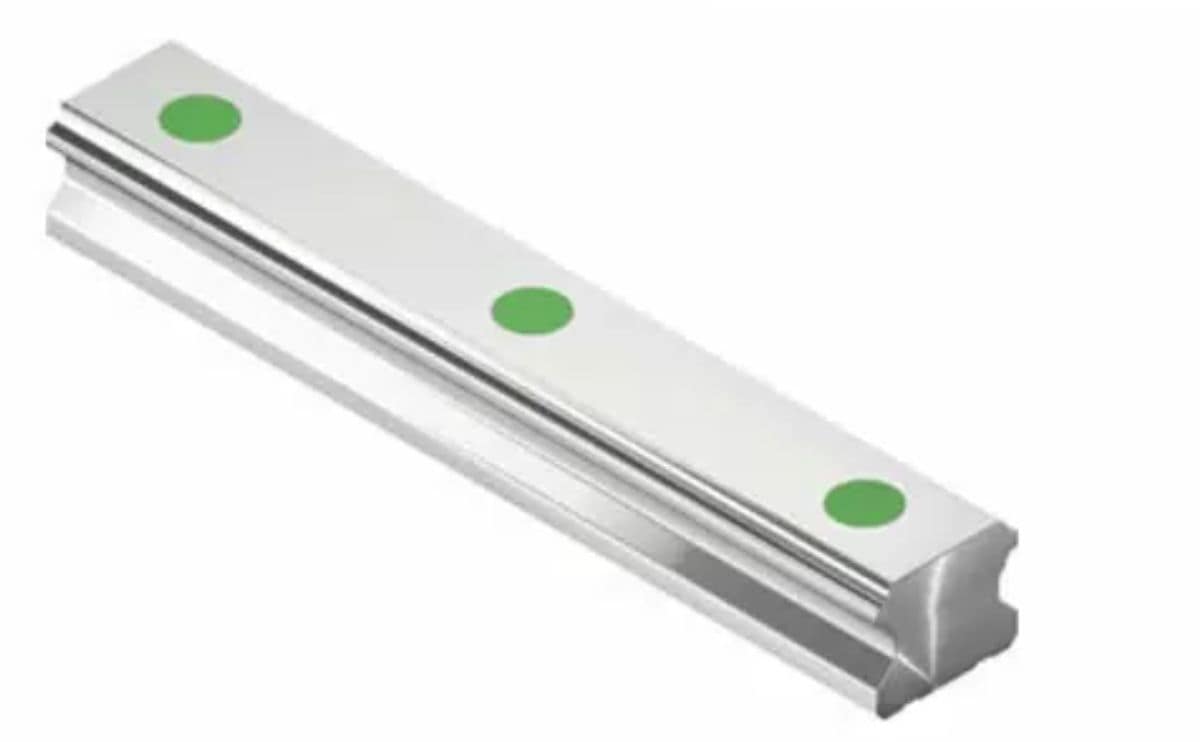

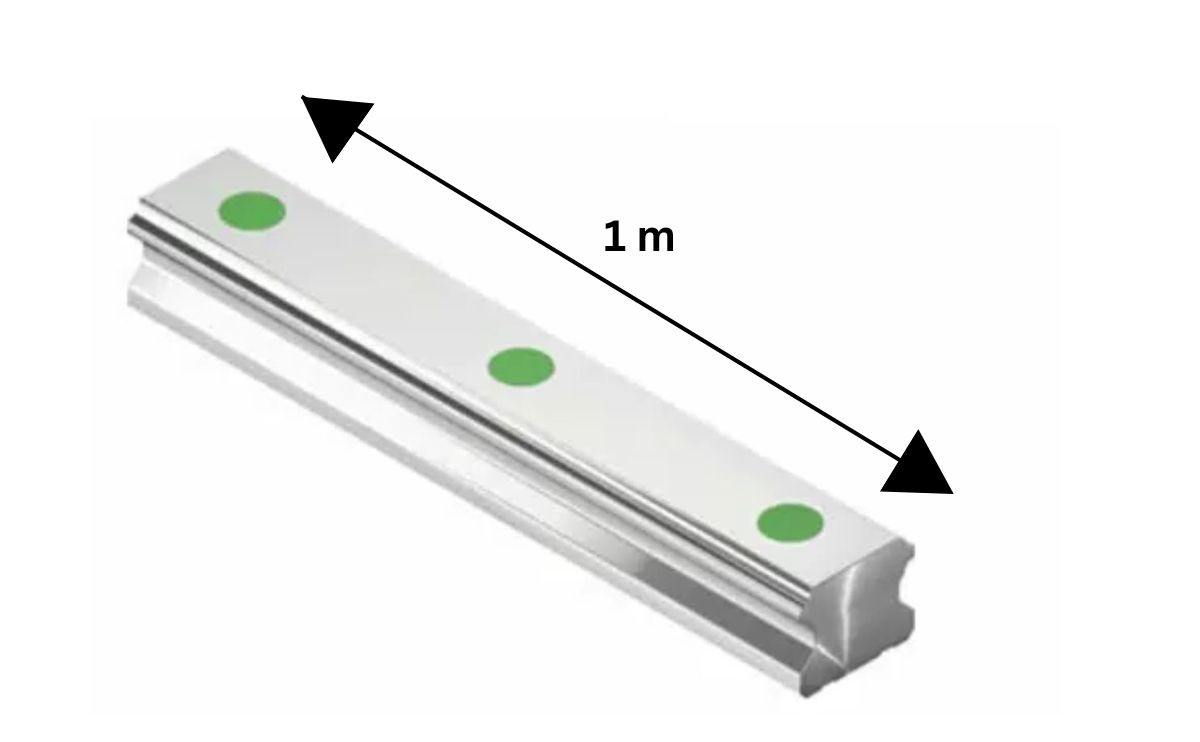

Hiwin MGN9 Linear Guide Rail length 1000mm Without Block Precision Miniature Linear Motion Guide

Hiwin MGN9 Linear Guide Rail length 1000mm Without Block Precision Miniature Linear Motion Guide

Hiwin MGN9 Linear Guide Rail length 1000mm Without Block Precision Miniature Linear Motion Guide

• Hiwin MGN9 Linear Guide Rail is a high-precision miniature linear motion rail designed to deliver smooth, stable, and accurate movement in compact mechanical systems.
• Manufactured from hardened high-carbon steel with precision-ground raceways, the MGN9 rail ensures low friction, high rigidity, and long service life even under continuous operation.
• Its compact 9 mm width makes it ideal for applications where space is limited but precision is critical. When paired with compatible HIWIN MGN9 linear blocks, the rail provides excellent load capacity, minimal vibration, and reliable positioning accuracy.
• The corrosion-resistant surface treatment further enhances durability, making it suitable for both industrial and desktop-level machines.

Specifications

• Brand: HIWIN
• Series: MGN
• Model: MGN9
• Rail Width: 9 mm
• Material: High-carbon hardened steel
• Surface Treatment: Anti-rust / corrosion-resistant coating
• Accuracy Grade: Standard / High precision
• Mounting Type: Top-mounted linear rail
• Compatible Blocks: MGN9C, MGN9H
• Motion Type: Recirculating ball linear guide

Applications MGN9 Linear Rail

• 3D Printers (X-axis, Y-axis, Z-axis upgrades)
• Desktop CNC machines
• Laser cutting and engraving machines
• Pick-and-place automation systems
• Robotics and motion control projects
• Medical and laboratory equipment
• Semiconductor and electronics machinery

Advantages MGN9 Linear Rail

• Genuine HIWIN miniature linear guide system
• Ultra-smooth and quiet linear motion
• High rigidity and excellent load-carrying capacity
• Precision-ground raceways for long service life
• Compact size ideal for small and lightweight machines
• Low friction and high positioning accuracy
• Corrosion-resistant surface treatment

Package Includes

• 1 piece of Hiwin MGN9 Linear Guide Rail
