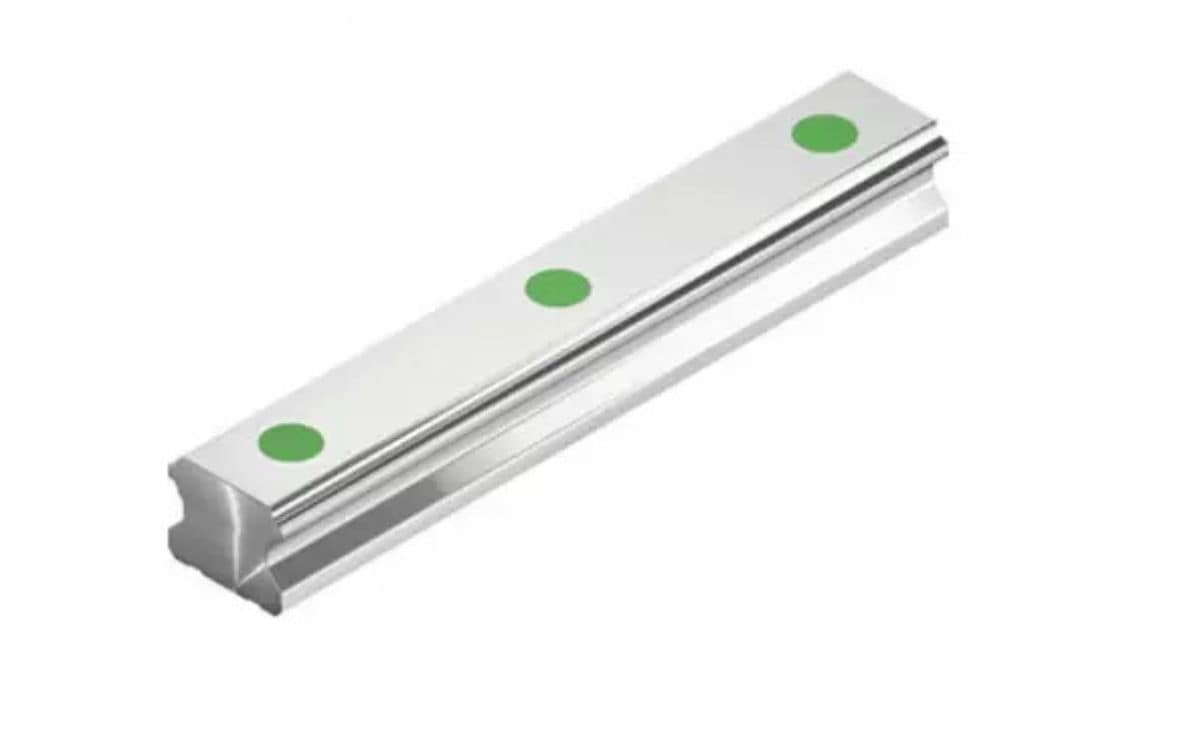

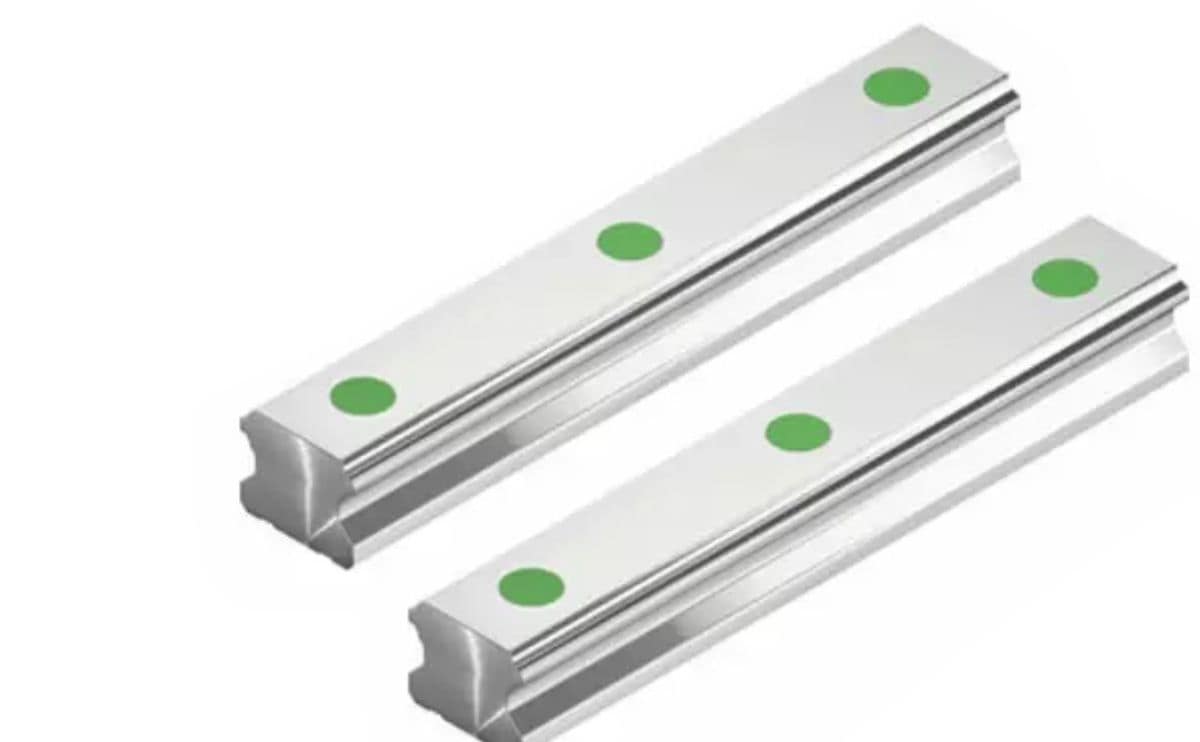

Hiwin MGN12 Linear Guide Rail Length 1000mm Without Block Precision Miniature Linear Motion Guide
Hiwin MGN12 Linear Guide Rail Length 1000mm Without Block Precision Miniature Linear Motion Guide
- Hiwin MGN12 Linear Guide Rail is a precision miniature linear motion rail designed to deliver smooth, accurate, and stable movement in compact and high-performance mechanical systems.
- Manufactured from hardened high-carbon steel and finished with precision-ground raceways, the MGN12 rail offers excellent rigidity, low friction, and long-term reliability.
- With a wider 12 mm profile, the MGN12 rail provides higher load-carrying capacity and improved stability compared to smaller miniature rails, making it suitable for both desktop and light-industrial applications.

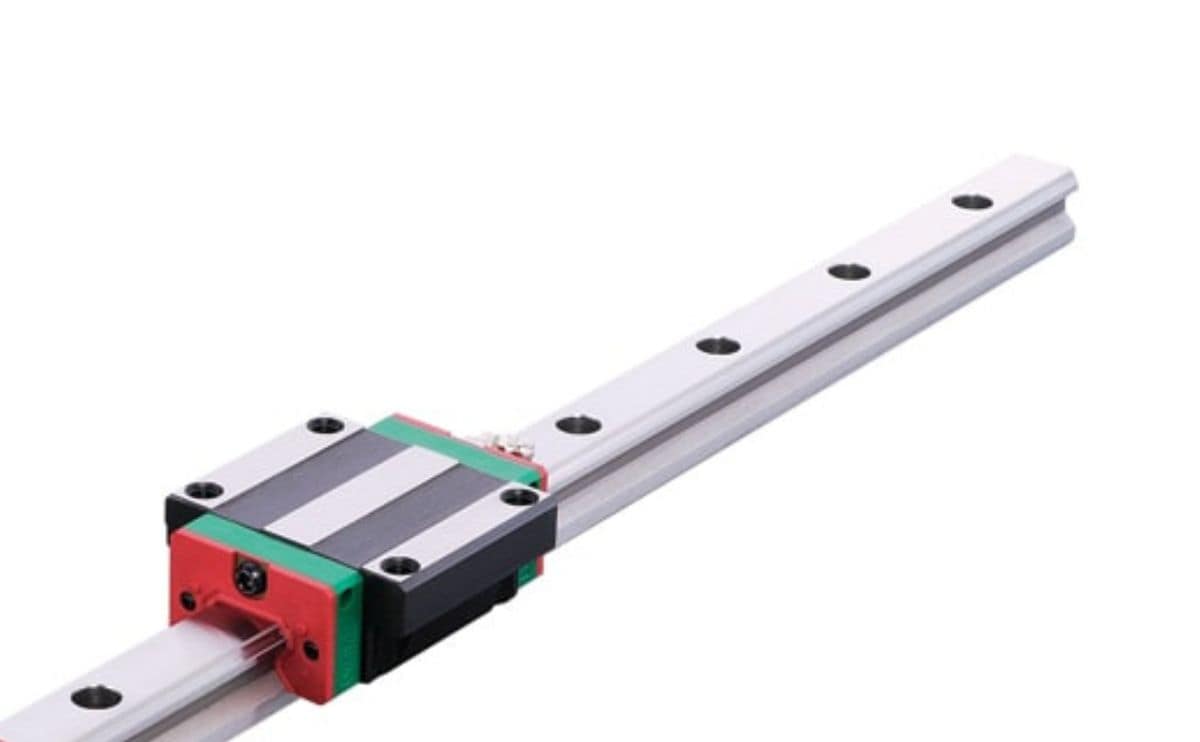

- When paired with compatible HIWIN MGN12 linear blocks, it ensures quiet operation, minimal vibration, and precise positioning even during continuous use.
- The Hiwin MGN12 Linear Guide Rail is widely used in 3D printers, CNC machines, laser engravers, automation systems, robotics, and precision equipment, where consistent accuracy, durability, and smooth linear motion are essential.
Specifications mgn12 linear rail
- Brand: HIWIN
- Model: MGN12
- Series: Miniature Linear Guide
- Rail Width: 12 mm

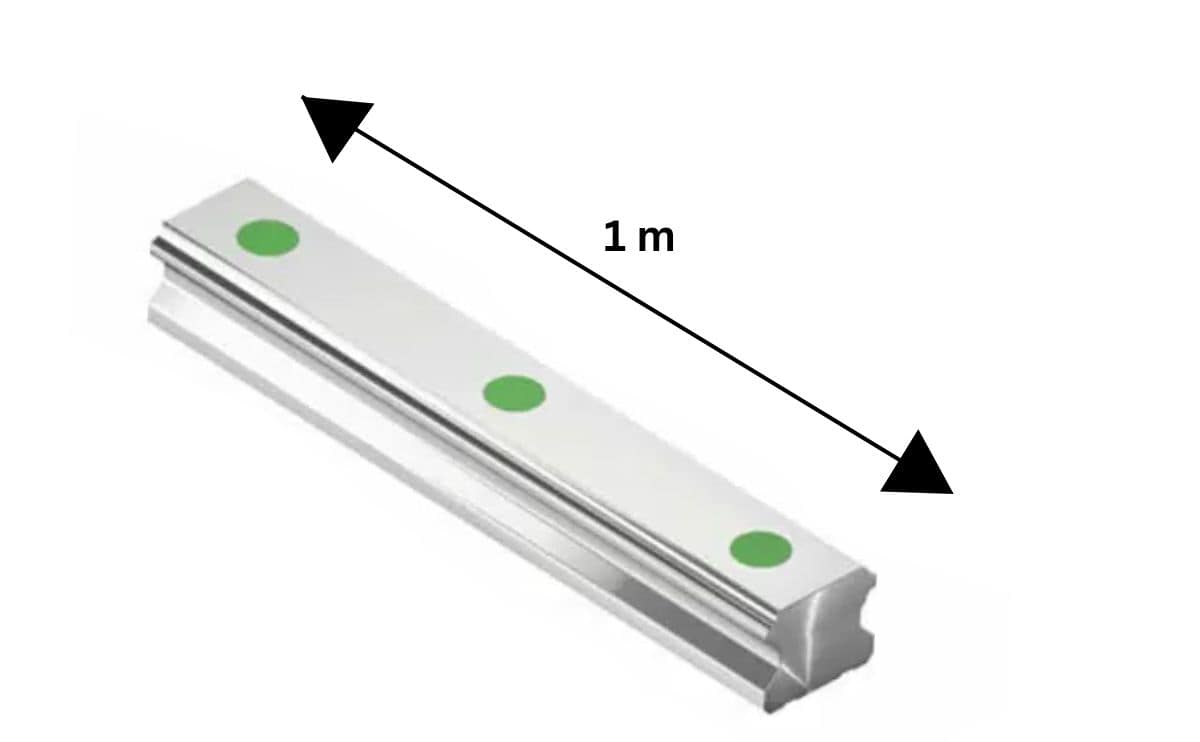

- Length: 1000 mm
- Material: Hardened alloy / stainless steel
- Surface Finish: Precision ground
- Mounting Hole Type: Counterbored
- Compatible Blocks: MGN12H, MGN12C
- Accuracy Class: Standard (higher grades on request)
- Mounting Orientation: Horizontal & vertical
- Note: Block will not come along with rail
Applications Hiwin MGN12 Linear Guide Rail
- 3D printers (X, Y, Z axes)
- Desktop CNC and engraving machines
- Laser cutting and marking machines
- Robotics and automation equipment
- Pick and place systems
- Camera sliders and motion platforms
- Precision measuring and inspection devices
Advantages
- Original HIWIN miniature linear guide rail
- Compact 12mm rail width for space-constrained designs
- Smooth, low-friction and low-noise linear motion
- High positional accuracy and repeatability
- Precision-ground hardened steel construction
- Long service life with minimal maintenance
- Compatible with MGN12H & MGN12C guide blocks
Package Includes
- 1 piece of 1000mm Hiwin MGN12 Linear Guide Rail without Block
