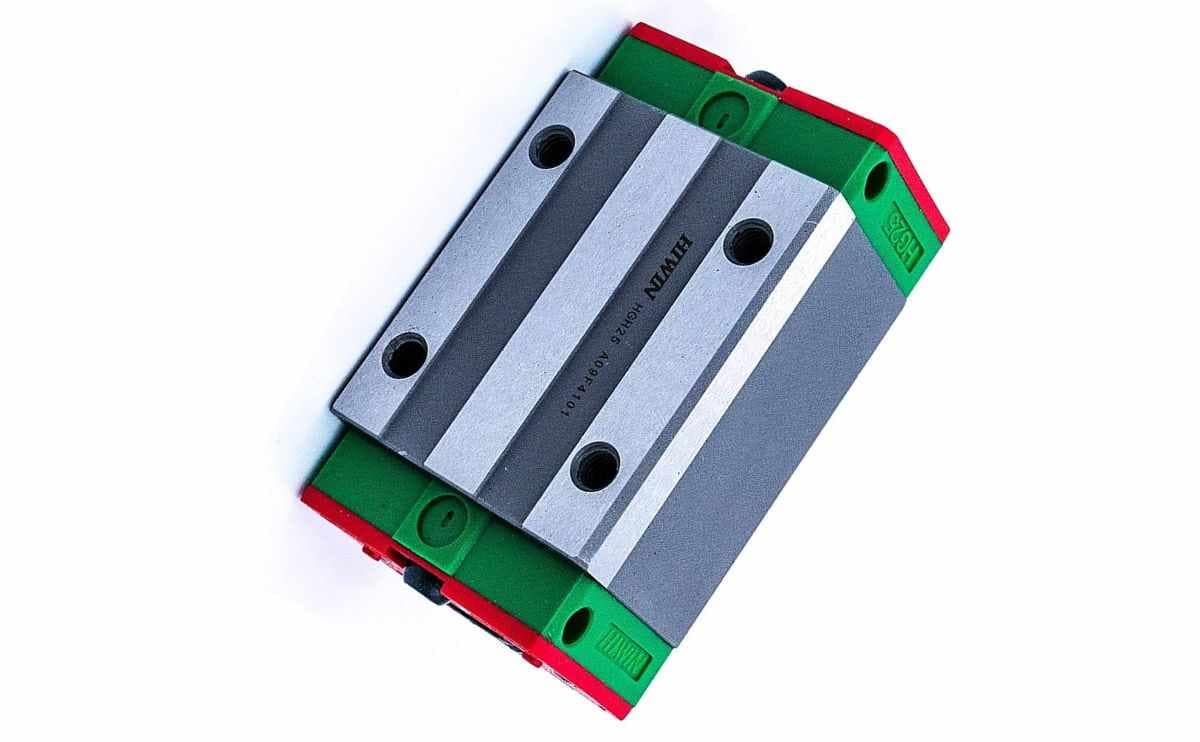

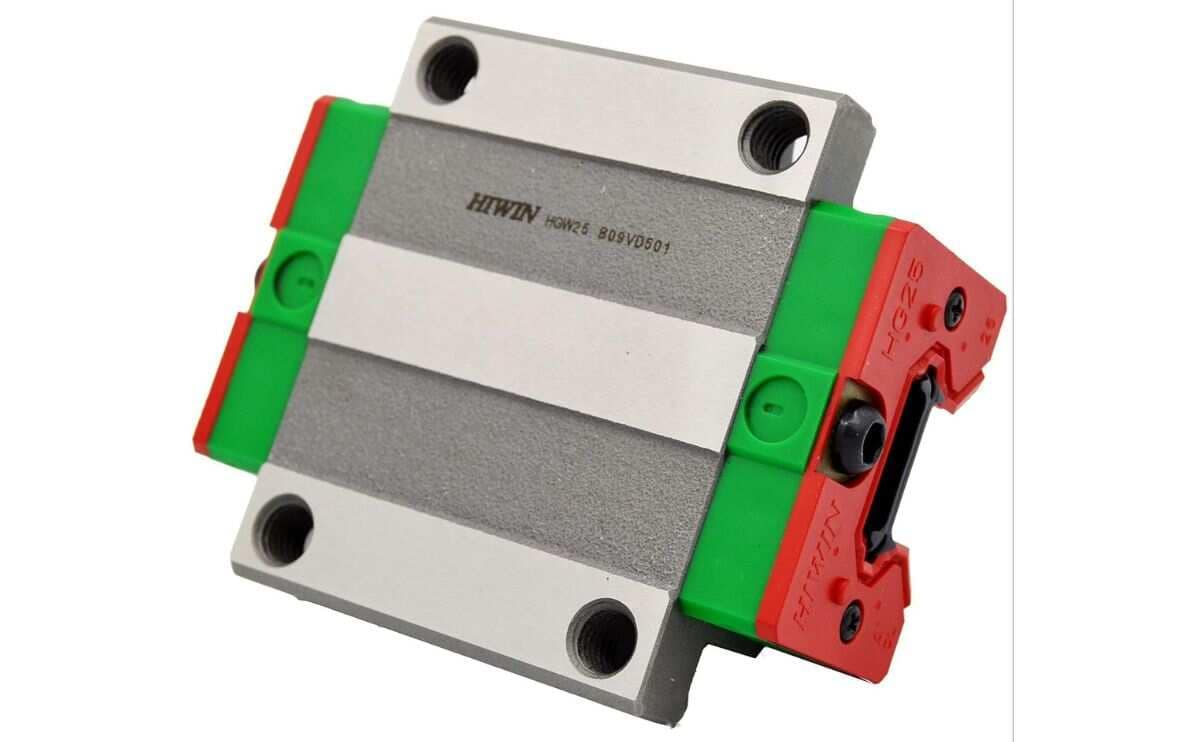

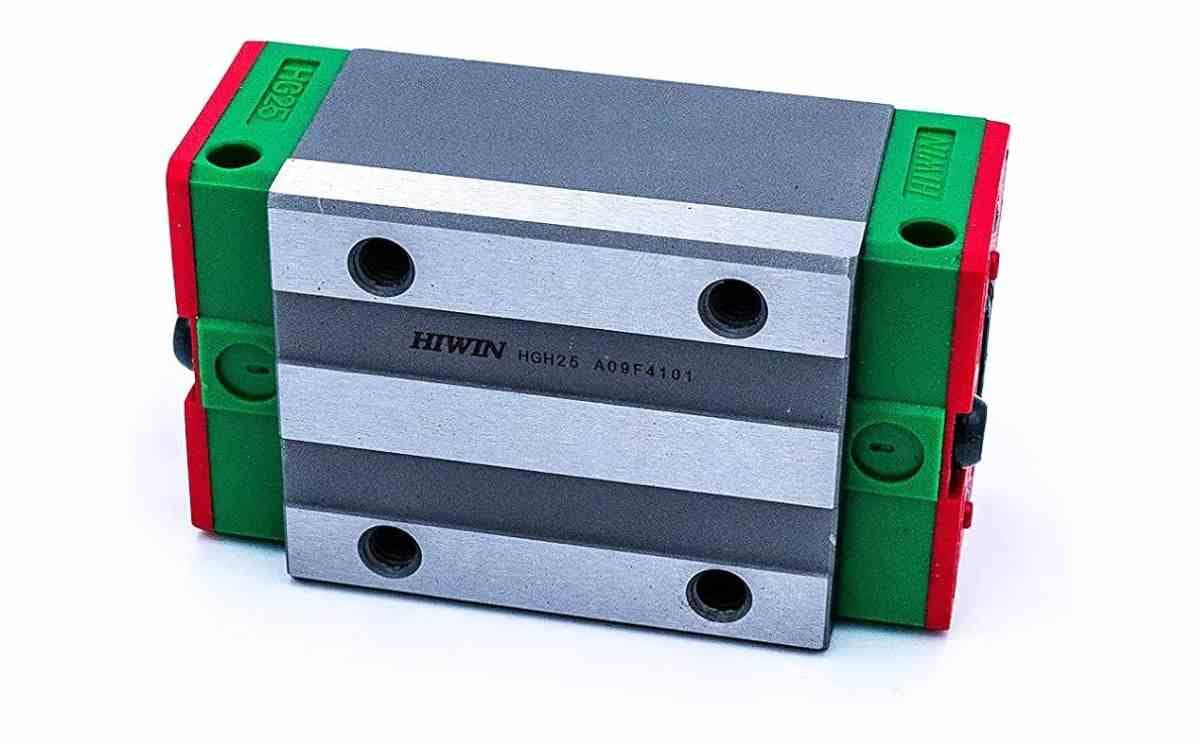

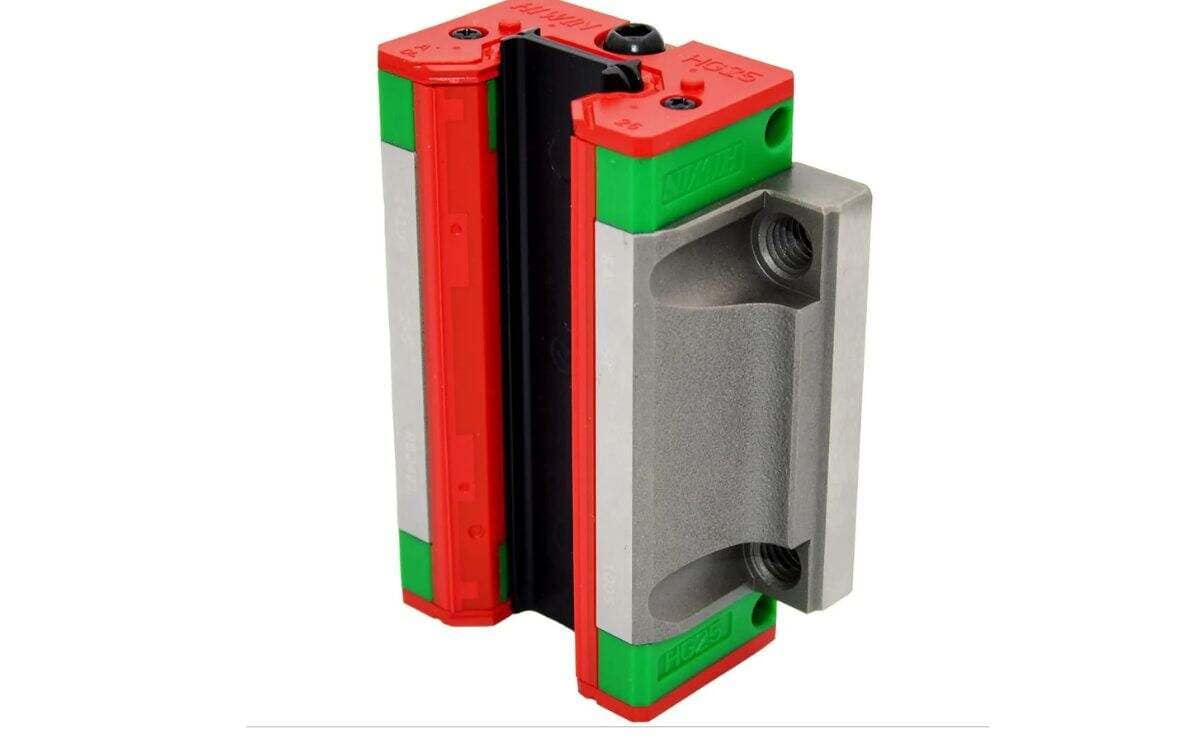

Hiwin HGH25 Linear Guide Block Square Type for CNC Original

Hiwin HGH25 Linear Guide Block Square Type for CNC Original Hiwin

Hiwin HGH25 Linear Guide Block Square Type for CNC Original Hiwin

• Hiwin HGH25 linear guide block is a standard square-type carriage used with HGR25 linear guide rails to achieve precise linear motion with high load capacity and rigidity.
• Manufactured from hardened bearing steel with precision-ground raceways, this block ensures low friction, minimal vibration, and long service life.
• Its compact square design allows equal load capacity in all directions, making it suitable for applications requiring accuracy, stability, and durability.
• The integrated sealing system protects the internal ball circulation from dust and contaminants, ensuring reliable performance even in demanding industrial environments.
• HGH25 Linear Block are widely used in CNC routers, vertical machining centers, automation equipment, laser cutting machines, robotics and linear motion systems.

Specifications

• Brand : Hiwin
• Model: HGH25
• Type: Square Type Linear Guide Block
• Rail Compatibility: HGR25 linear rail
• Rail Size: 25 mm
• Material: Hardened bearing steel
• Mounting Type: Top mounting
• Lubrication: Grease lubricated
• Sealing: End seals for dust protection
• Accuracy Class: Standard / High precision (depending on variant)
• Application Orientation: Horizontal & vertical

Applications of Hiwin HGH25 Linear Guide Block

• CNC milling and routing machines
• VMC and machining centers
• Industrial automation systems
• Laser cutting and engraving machines
• Robotics and motion control systems
• Pick and place machines
• Heavy-duty linear motion setups

Advantages

• Square-type linear guide block
• High load capacity and excellent rigidity
• Smooth and accurate linear motion
• Low friction, low noise operation
• Precision hardened bearing steel construction
• Dust-proof end seals for longer service life
• Pre-lubricated for easy installation
• Compatible with HGR25 linear guide rails

Package Includes

• 1 piece of Hiwin HGH25 Linear Guide Block
