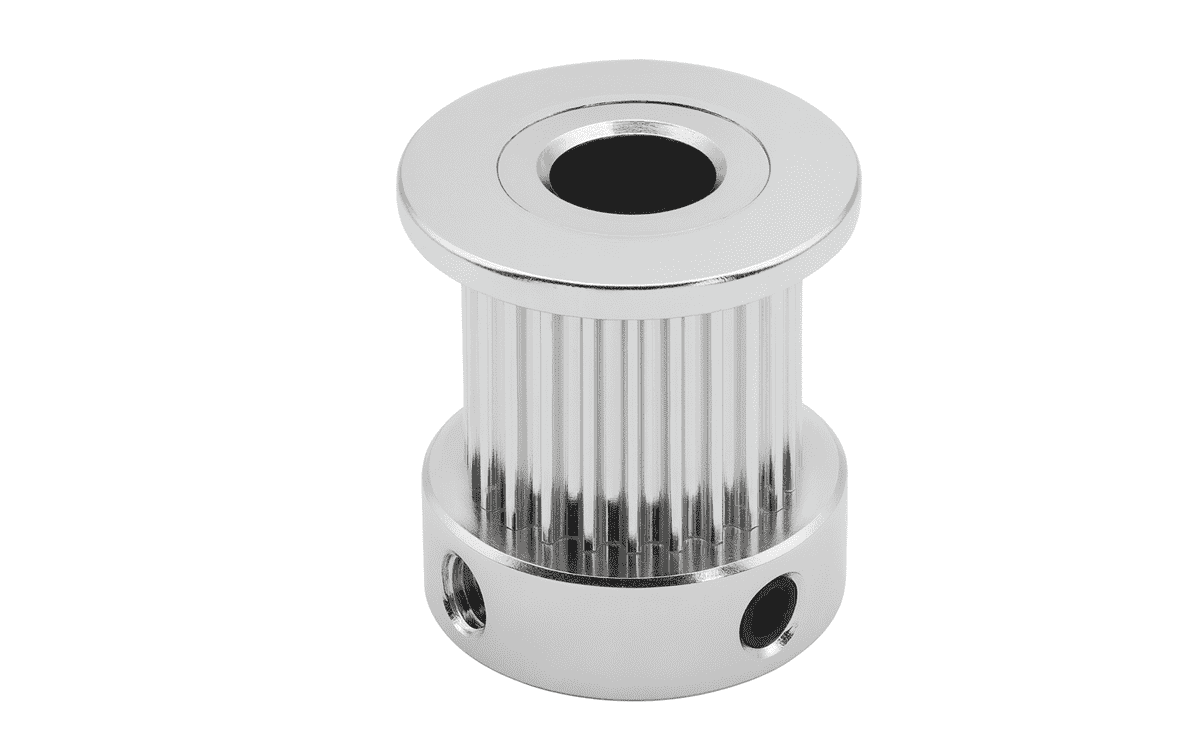

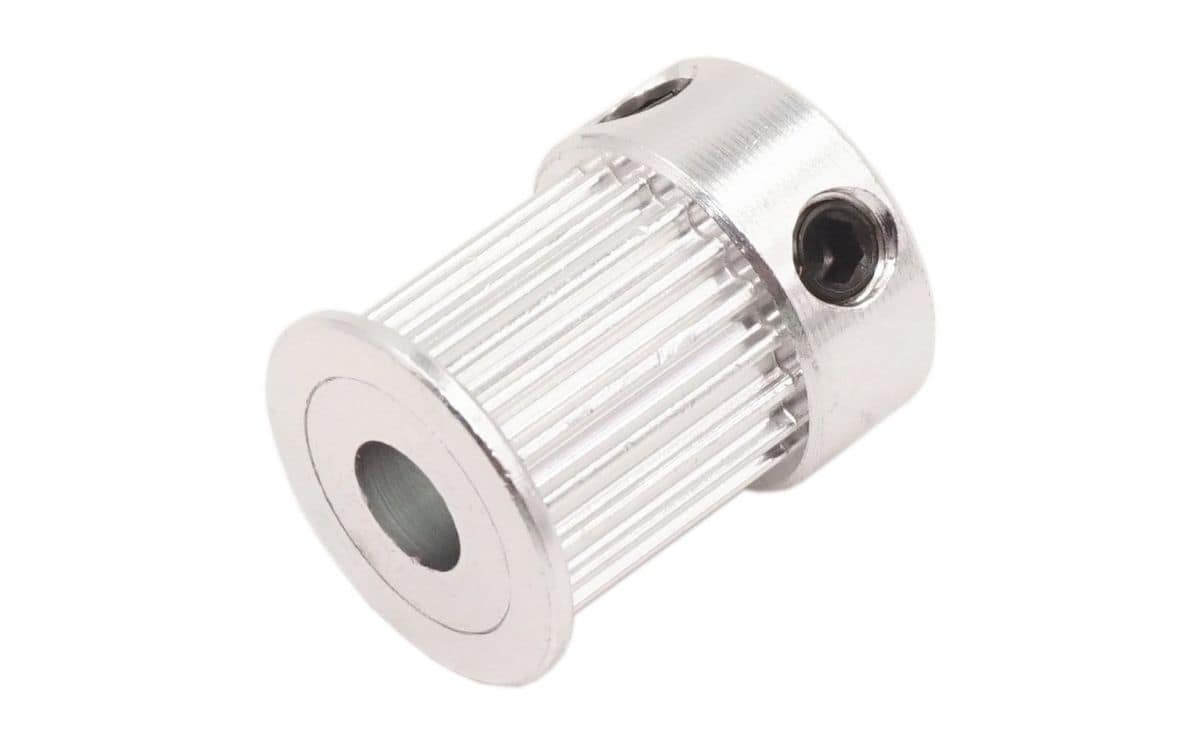

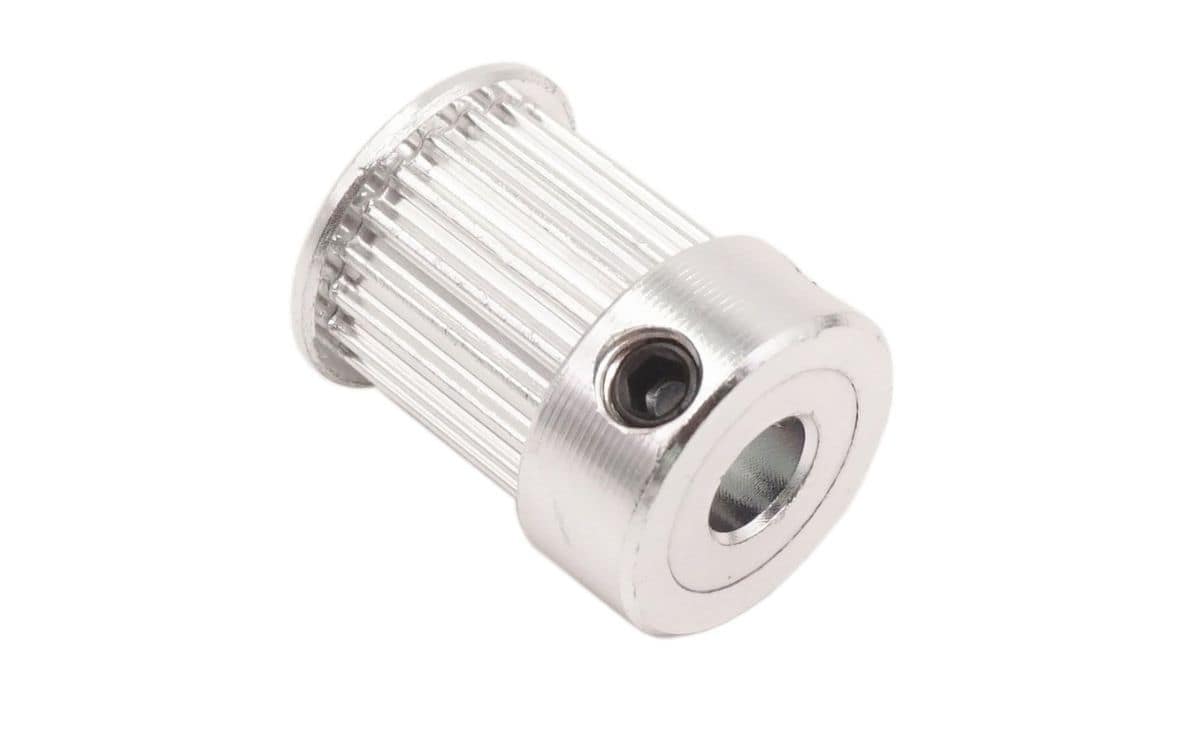

GT2 Pulley 16T 5mm Bore High Precision 16 Teeth GT2 Timing Pulley for 3D Printers and CNC

GT2 Pulley 16T 5mm Bore High Precision 16 Teeth GT2 Timing Pulley for 3D Printers and CNC

GT2 pulley 16T 5mm bore High Precision 16 Teeth GT2 Timing Pulley for 3D Printers & CNC

• Made from high-strength aluminum alloy, this pulley delivers excellent durability, reduced backlash, and enhanced belt grip for consistent print quality.
• With 16 teeth, a 5mm bore, and support for 10mm GT2 timing belts, it fits perfectly on NEMA17 stepper motors commonly used in Ender, CR, Prusa, and DIY printer builds.
• The tight tooth profile ensures accurate positioning and vibration free movement during high-speed operations.
• This pulley is ideal for upgrades, replacements, and custom machine assembly.

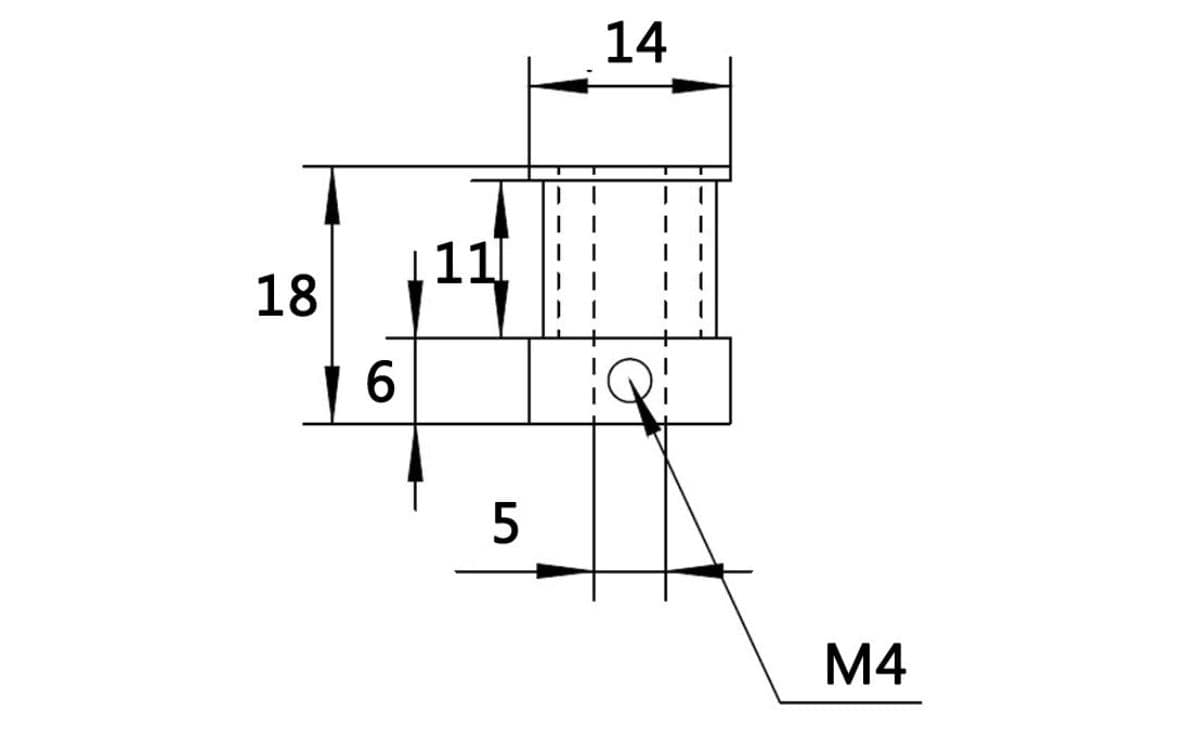

Specifications

• Pulley Type: GT2 Timing Pulley
• Teeth Count: 16 Teeth
• Bore Diameter: 5mm
• Belt Width Support: 10mm GT2 belt
• Material: High-quality Aluminum Alloy
• Tooth Profile: GT2 (2mm pitch)
• Outer Diameter: Standard GT2 16T dimensions
• Fixing Method: Dual set screws for strong grip
• Compatibility: NEMA17 stepper motors, 3D printers, CNC machines

Features 16 teeth GT2 pulley

• High precision tooth profile ensures accurate movement
• Durable aluminum construction for long life
• Strong belt grip prevents slipping and backlash
• Smooth operation for stable 3D printing
• Supports 10mm GT2 belts for maximum torque
• Easy installation with dual set screws
• Compatible with most 3D printers using GT2 belt systems

Applications 16 teeth GT2 pulley

• 3D Printers (Ender, CR Series, Prusa, Voron, DIY builds)
• GT2 pulley 16T 5mm bore is used in CNC Machines
• Robotics and automation systems
• Linear motion mechanisms
• Belt-driven actuator systems
• Stepper motor timing belt drives

Usage

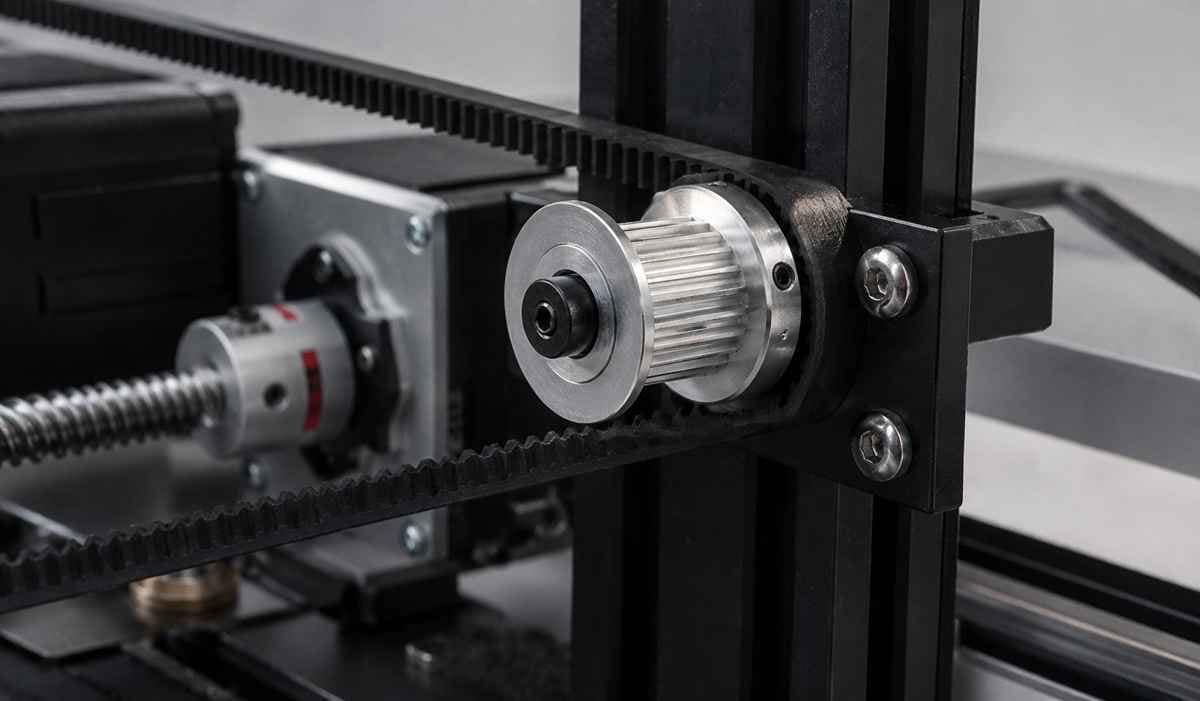

• Mount the pulley on a 5mm motor shaft (NEMA17).
• Align the GT2 timing belt with the pulley teeth.
• Tighten the set screws securely for zero slippage.
• Use with 10mm GT2 belts for best performance.

Package Includes

• 1 piece of GT2 pulley 16T 5mm bore
