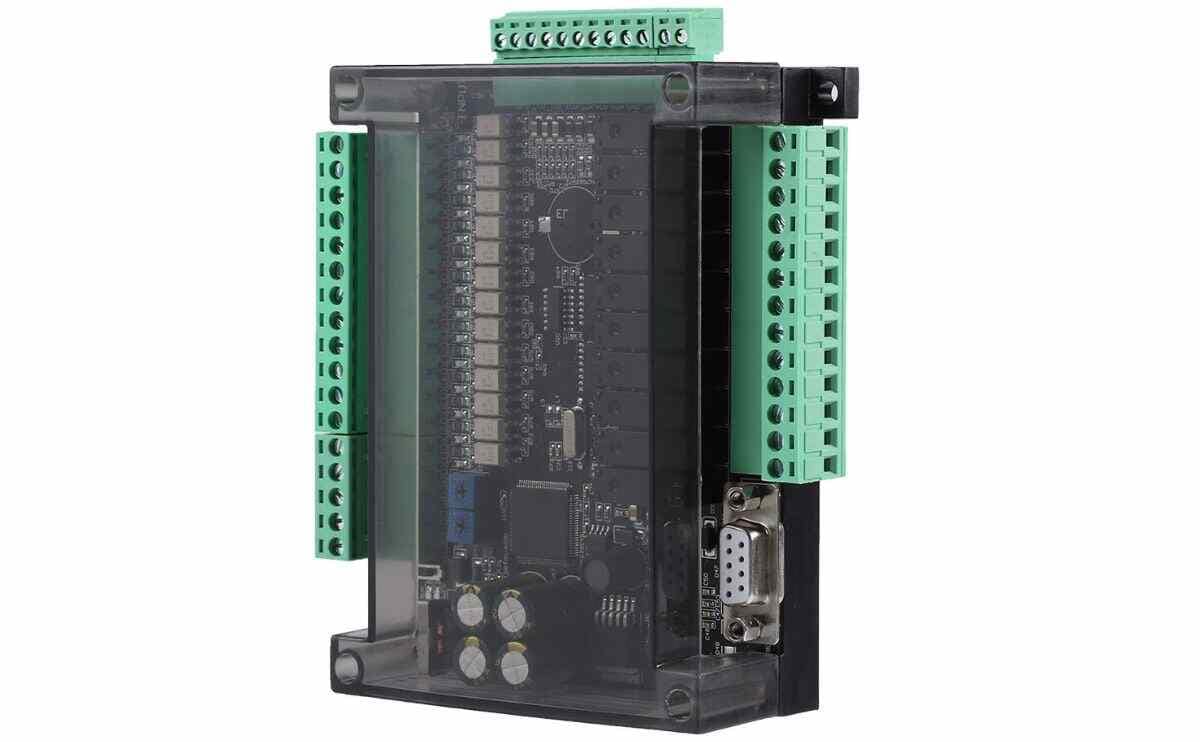

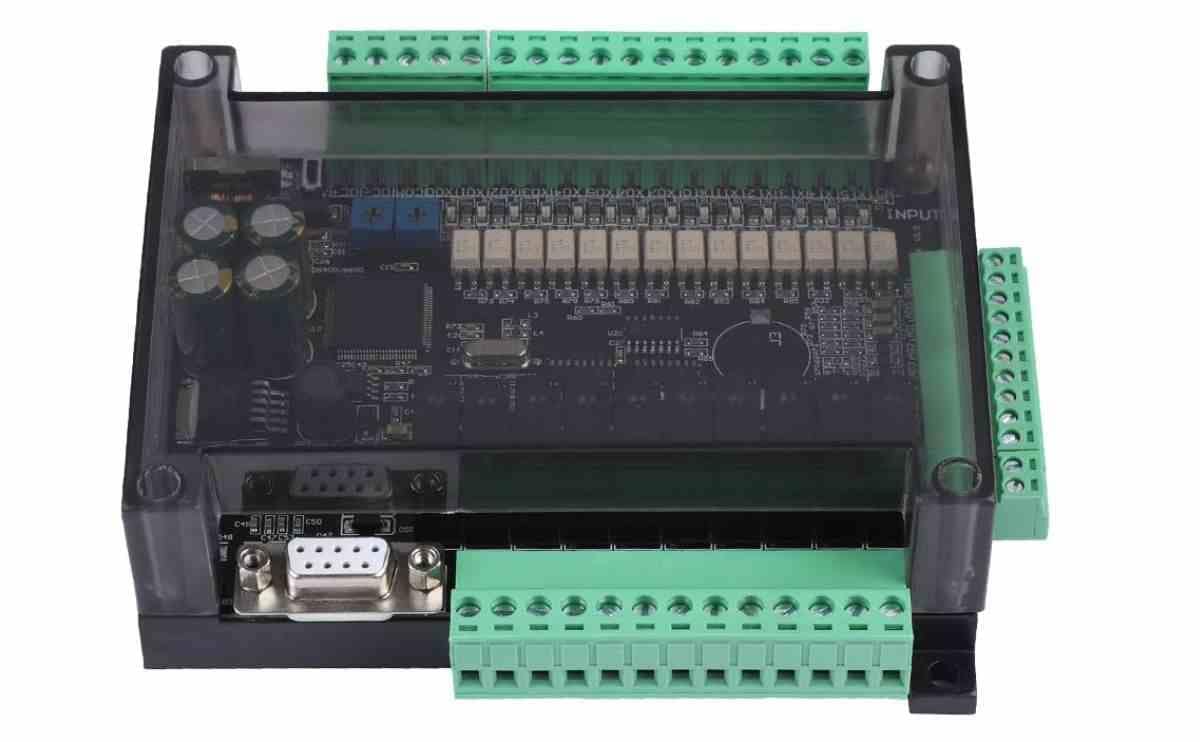

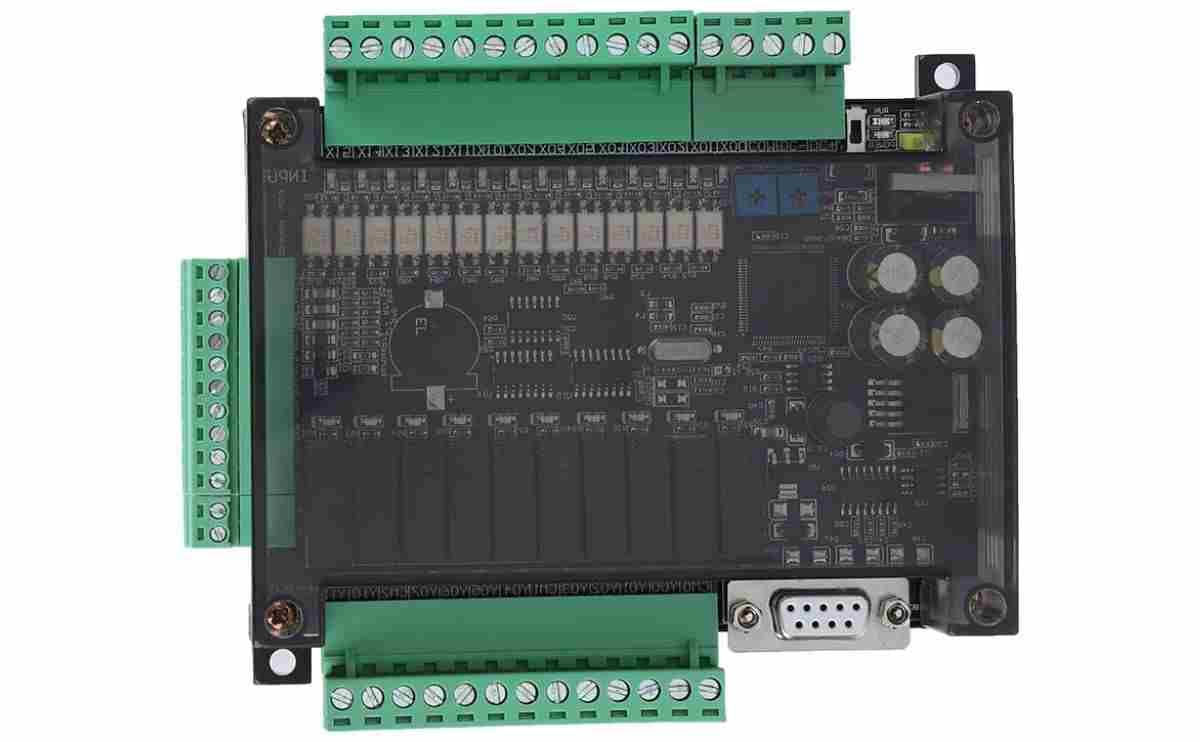

• The FX3U 24MR PLC is a reliable and versatile relay-output programmable logic controller from Mitsubishi’s FX3U series.
• Designed for general-purpose industrial automation, it offers stable operation with a compact footprint.
• Relay outputs allow direct switching of AC and DC loads, making it ideal for motors, contactors, solenoids, and lamps.
• Fully compatible with GX Developer and GX Works2, ensuring easy programming and maintenance.
• Its rugged construction ensures long-term performance in demanding industrial environments.

Specification

• Model: FX3U-24MR
• Series: Mitsubishi FX3U
• PLC Type: Compact Main Unit PLC Control board
• Digital Inputs: 14 × 24V DC
• Digital Outputs: 10 × Relay Outputs (MR – Relay Type)
• Input Voltage:  24 V DC
• Output Type: Mechanical relay outputs (suitable for AC & DC loads)
• Power Supply: 100–240V AC (varies by sub-model)
• Program Memory Capacity: Approx. 8,000 steps

Features

• Compact and high-performance PLC Control board from Mitsubishi FX3U series
• Relay output type suitable for both AC and DC load control
• High reliability for continuous industrial operation
• Supports high-speed input processing for accurate control
• Modular design allows easy expansion with I/O and special function modules
• DIN-rail and panel mounting options for flexible installation
• Strong noise immunity for harsh industrial environments
• Easy programming using Mitsubishi GX Developer & GX Works2 software
• Compatible with HMIs, VFDs, sensors, and industrial communication devices
• Ideal replacement for conventional relay-based control panels

Applications

• Factory automation panels
• Conveyor and material handling systems
• Packaging and filling machines
• HVAC and building automation
• Pump, motor, and lighting control
• Small to medium industrial machinery
• OEM control systems

Uses

• General-purpose logic control
• Switching of AC and DC loads
• Sequential machine operations
• Timer and counter-based control
• Replacement of relay logic panels
• Automation projects requiring relay outputs
• Control applications where transistor outputs are not required

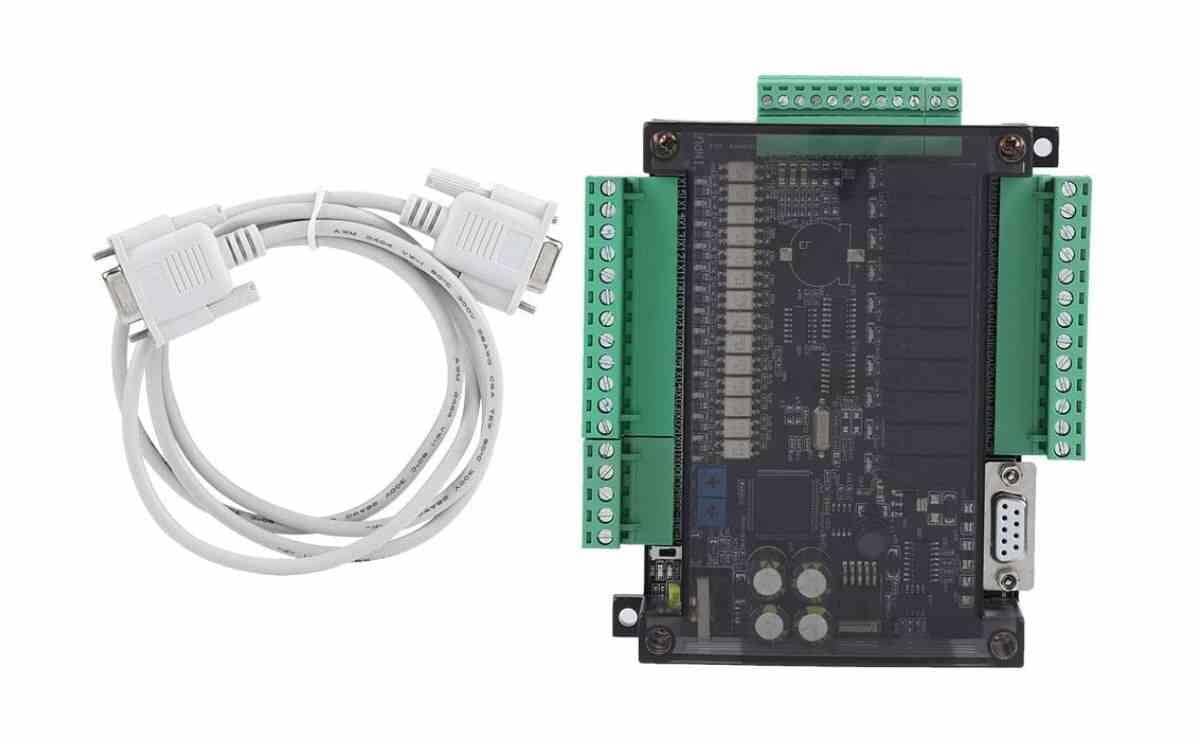

Package Includes

• 1 pcs of FX3U 24MR PLC unit
