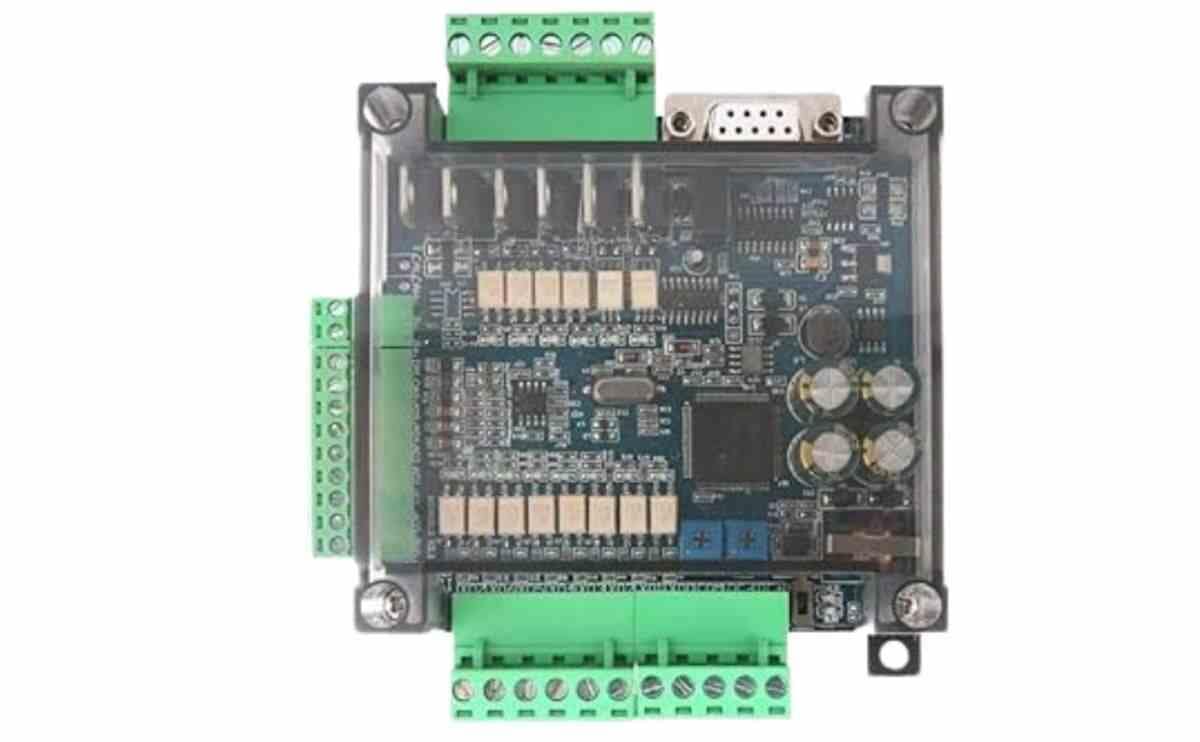

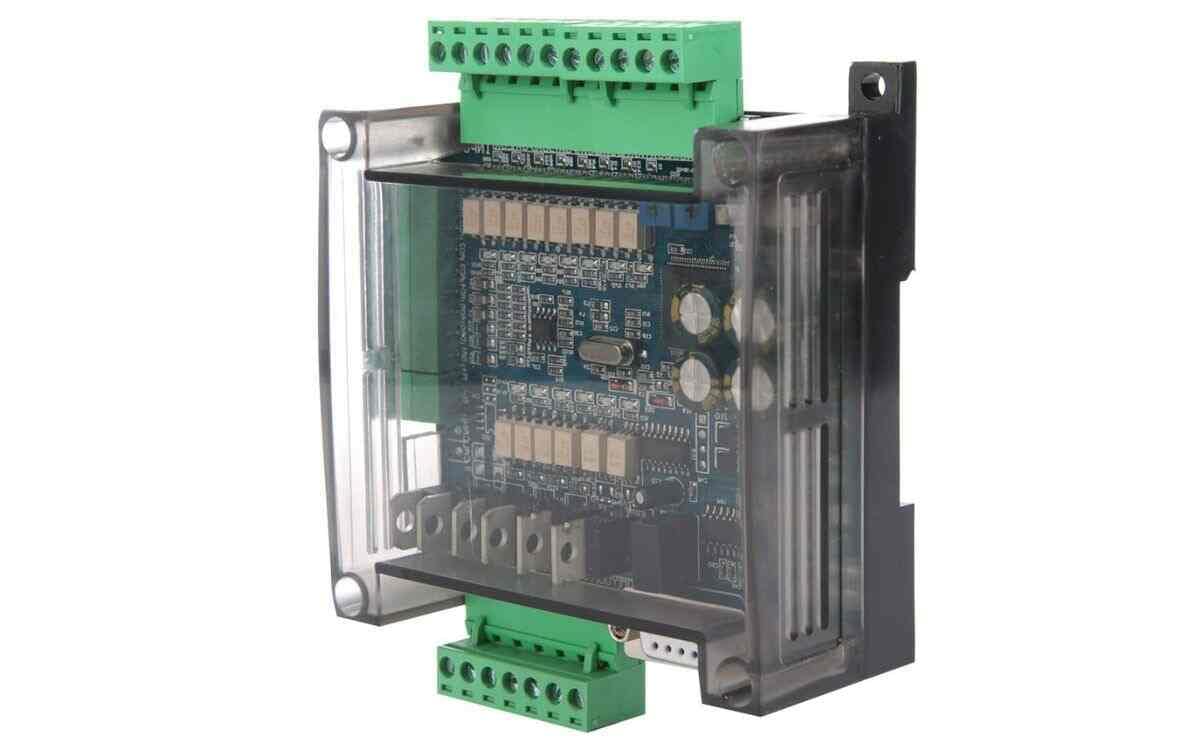

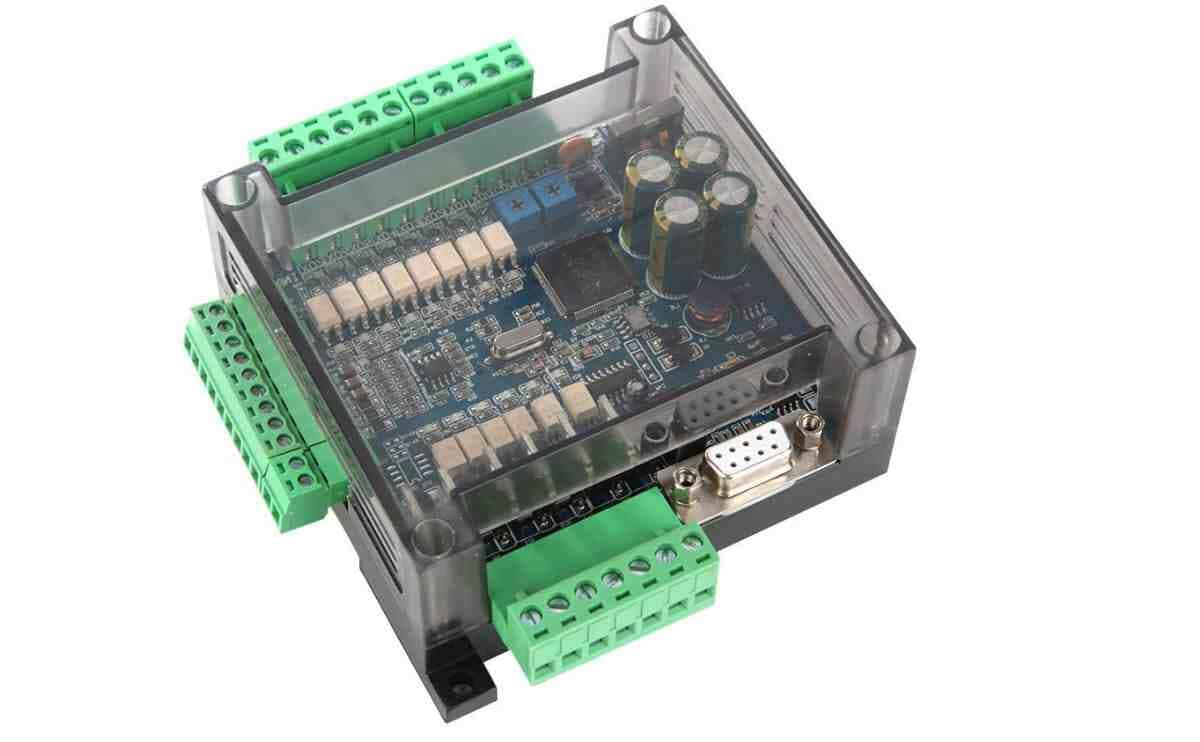

FX3U 14MT PLC Ideal for controlling AC and DC loads,

• Compact and reliable FX3U 14MT PLC with 14 I/O (8 digital inputs + 6 transistor outputs).
• Features 6 analog inputs, 2 analog outputs, high-speed pulse I/O, RS232 & RS485 communication, and DC24V power support
• Ideal for industrial automation, motion control, and process applications.

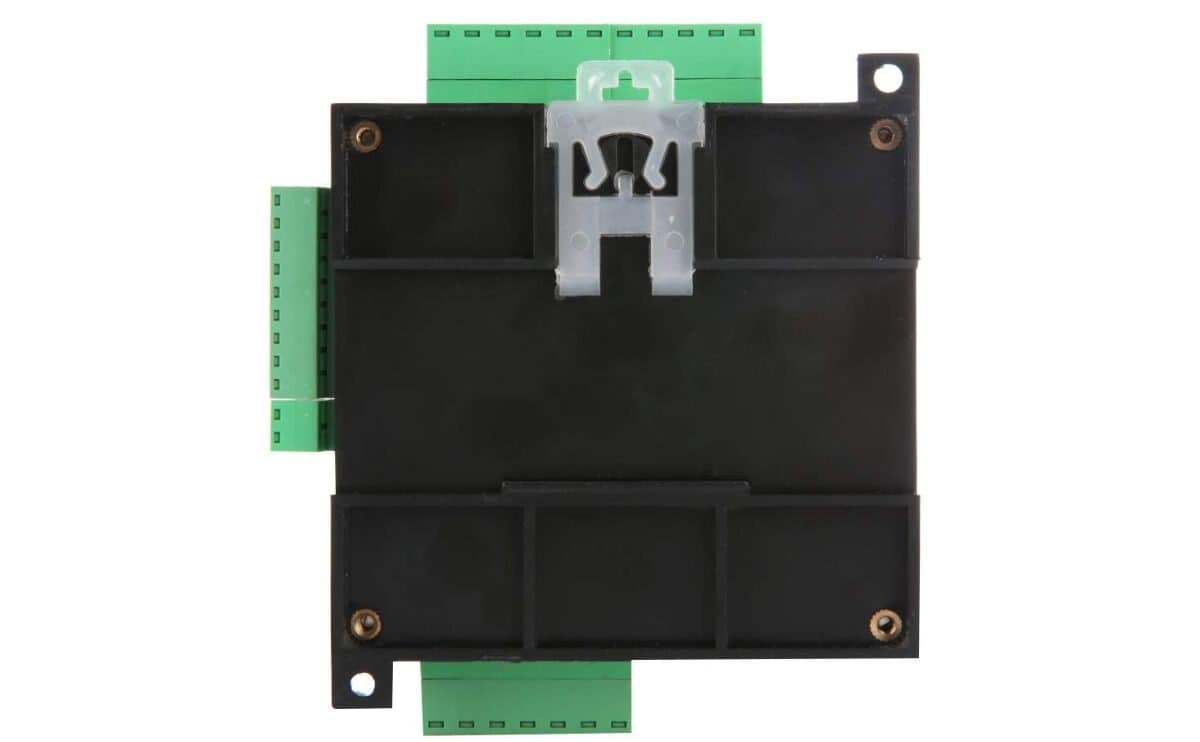

• Includes DIN-rail mountable casing with dimensions 107 × 120 × 43 mm and light weight ~255 g for space-saving installations

Specification

• Model: FX3U 14MT Programmable Logic Controller
• Brand: Electric (FX3U Series PLC)
• PLC Type: Compact main unit with built-in I/O and analog support
• Power Supply: DC 24 V input for industrial systems
• Digital Inputs: 8 channels (24 V DC)
• Digital Outputs: 6 transistor outputs (sinking/sourcing depending on wiring)
• Analog Inputs: 6 channels (0-10 V / 0-20 mA)
• Analog Outputs: 2 channels (0-10 V / 0-20 mA)
• High-Speed Counting: Supported on input channels (typ. ~12 kHz default)
• Pulse Outputs: 2 high-speed transistor outputs (up to ~100 kHz)
• Communication: RS232 (DB9) + RS485 (Modbus RTU) ports for programming & networking

Applications FX3U 14MT PLC

• Factory conveyor & machine control
• Process automation & sequence control
• Analog sensor monitoring & control
• PID control loops with analog I/O
• RS485 networked PLC systems
• Motion & pulse control (stepper/servo interfacing)

Package Includes

• 1 piece FX3U 14MT PLC Programmable Logic Controller (Main Unit)
• 1 piece DIN-Rail Mounting Clip
• 1 piece Removable Terminal Cover
• 1 piece Programming Port Protective Cap
• 1 piece User/Installation Guide
