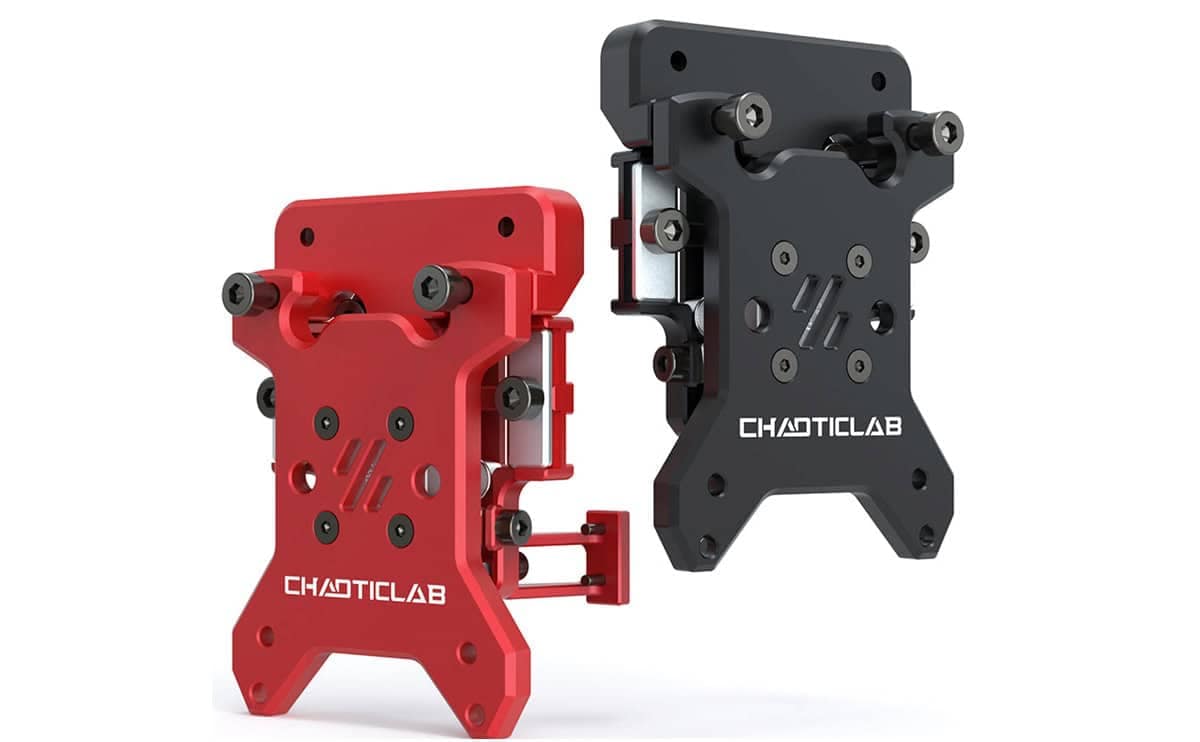

CNC Voron Tap V2 Red and Black
CNC Voron Tap V2 Red and Black,
- Compared to MGNH9, MGNH7 is lighter and thinner. This allows us to minimize the burden on the extruder and avoid loss of Y Stroke.
- Meanwhile, MGNH7 offers the same sturdiness as MGNH9. We specifically chose reputable HIWIN linear guideways, designed steel limit nuts, and a magnetic limit assembly to maximize sturdy and reliable construction.
- This gives the CNC Voron Tap V2 excellent Input Shaper data.

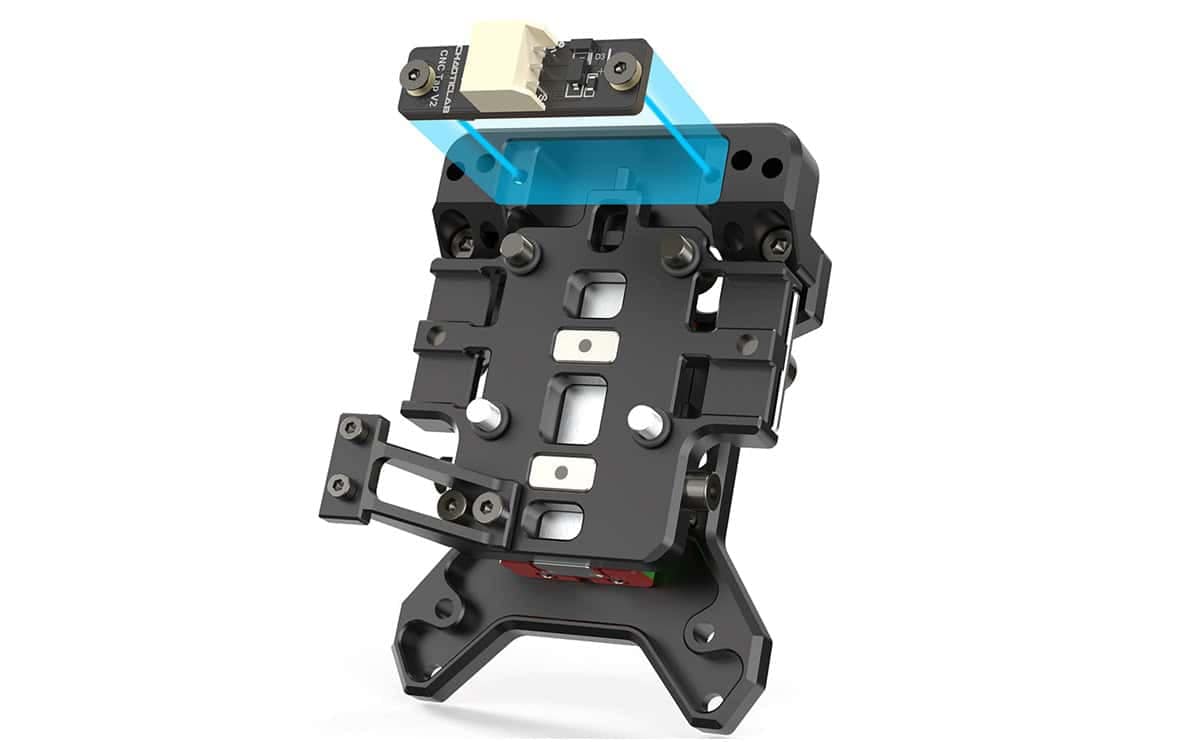

Experience higher accuracy and reliability with the OMRON EE-SX4320.
- V2: Transmissive Photomicrosensor with 0.3mm Wide Aperture.
- V1:Contactless Optical Microswitch.
- 5-24V.
- Expanding the voltage range in the upgraded V2 to support 5-24V for flexibility.
Feather Light
- Weighing just 62g without screws, the incredibly lightweight bodywon’t add noticeable mass to the toolhead, maintaining precesion.
Build for Solid, Made for Ease
- When using the CNC VORON TAP V2 with the Carbon Fiber Tube Kit for Voron2.4 X-Axis (300)\ (350), an additional printed part is required to adjust the mounting position of the X-axis limit switch bracket.
- You can access the following link to obtain the print file:CNC Voron Tap V2
- CNC Voron Tap V2 Compatible Carbon Fiber Kit Adapter and Old Version Hall Sensor Adapter MOD link: https://github.com/Chaoticlab/CNC-Tap-for-Voron/tree/master/STL/CNC_VORON_TAP_V2.
Installation and Usage Notes
- XY Stroke Influence: No XY adjustment needed – CNC VORON V2 thickness similar to 2.4R2 X carriage.
- MGN12H X-Axis Requirement: CNC VORON V2 requires MGN12 X-Axis, not older MGN9.
- CW2-Style Mounted Extruder: Replaces X-carriage and needs front screws like CW2.LGX/Galileo mounts are available.
- Bed Mount Stability: 500-800g nozzle force during probing. Ensure no bed motion as it reduces accuracy. Not recommended for Voron 1.8/Legacy/Switchwire.
- Compatibility Test: Firmly tap bed – movement means unsuitable.
- Good Mechanical Condition: More precise than previous sensors. Fix known issues before installing.

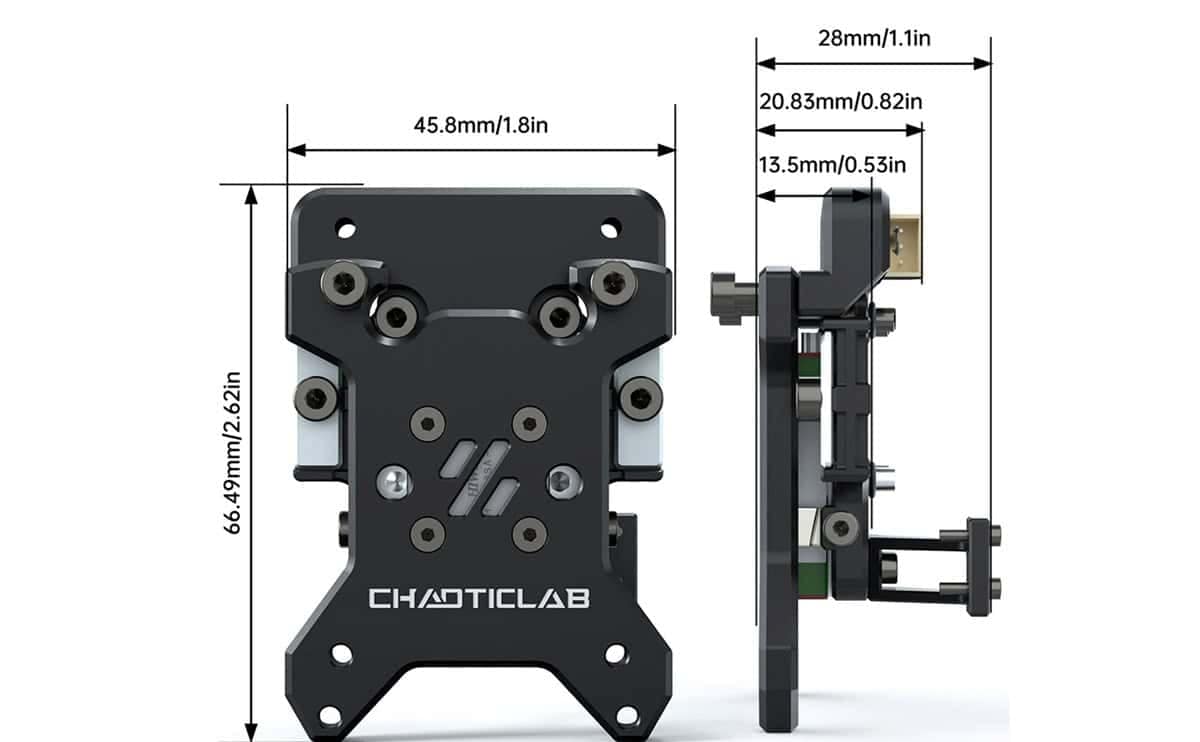

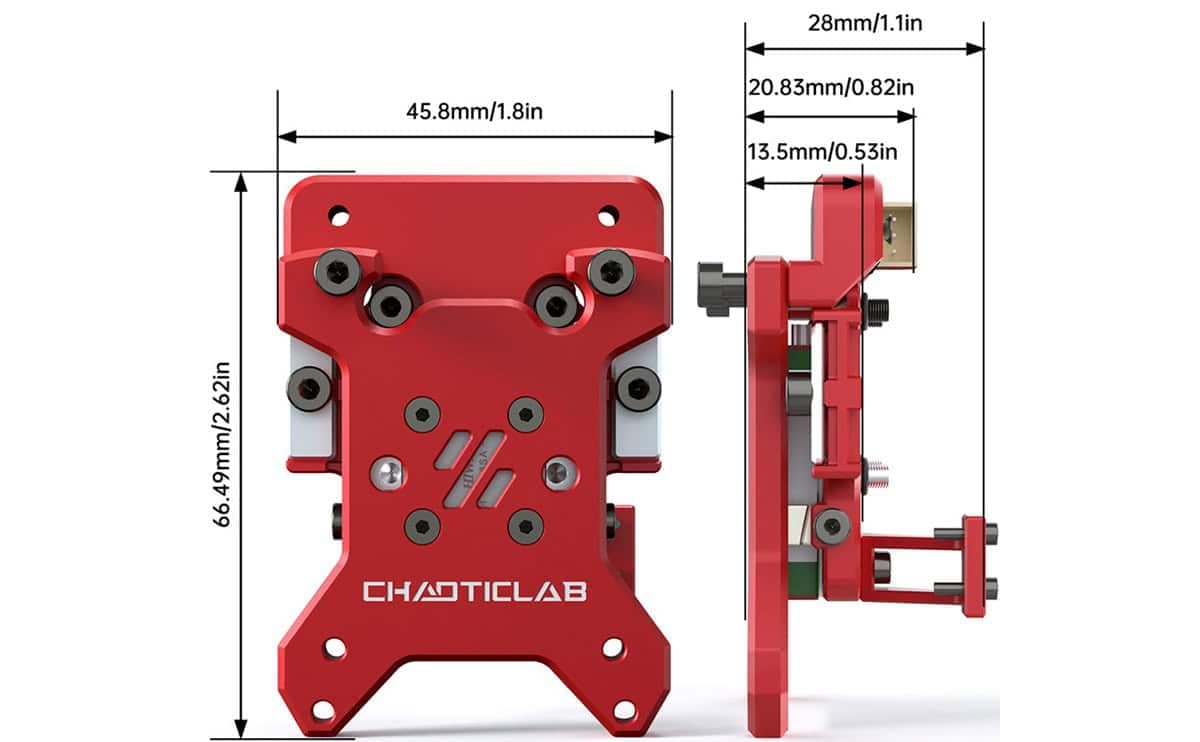

Specifications:
- Product name: CNC voron Tap V2.
- Material: CNC all metal (AL6061/SS304)
- Net weight: 65g ( including the x axis limit switch bracket).
- Sensor type: Omron EE-SX4320.
- Voltage: 5-24V
- Linear guideways: MGN7H
- Compatibility: Voron2.4 R2, Trident (with MGN12H) linear rails and lead screw.
Package Include:
- 1 piece of CNC voron tap V2 (red/black).
