Bondtech LGX Large Gears extruder for 3D printer

Bondtech LGX Large Gears extruder for 3D printer:

The Bondtech LGX Large Gears extruder is the first of our filament feeders using Bondtech’s new Dual Drive Technology based on larger drive gears.

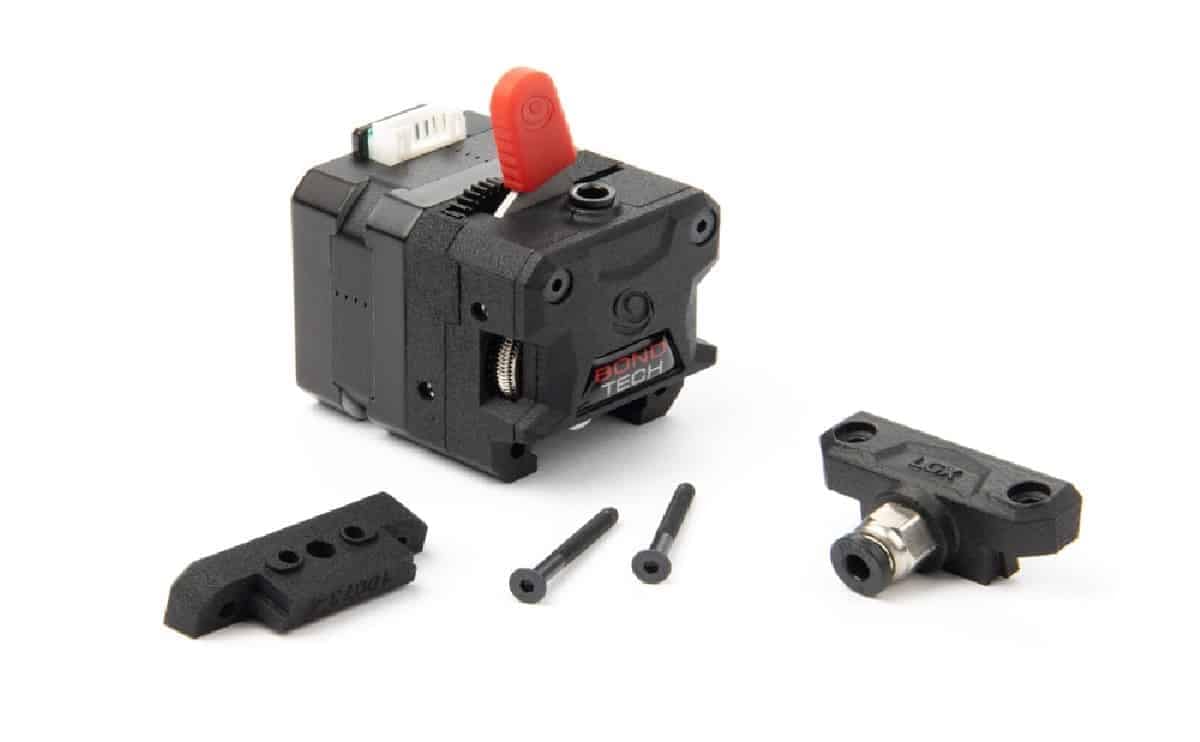

• Each LGX extruder is supplied with:
  • 1x LGX feeder;
  • 1x Custom LDO Nema17 25mm pancake stepper motor
    (with PH-06AWJ connector);
  • 1x Bowden Interface Plug (with threaded metal push-fit);

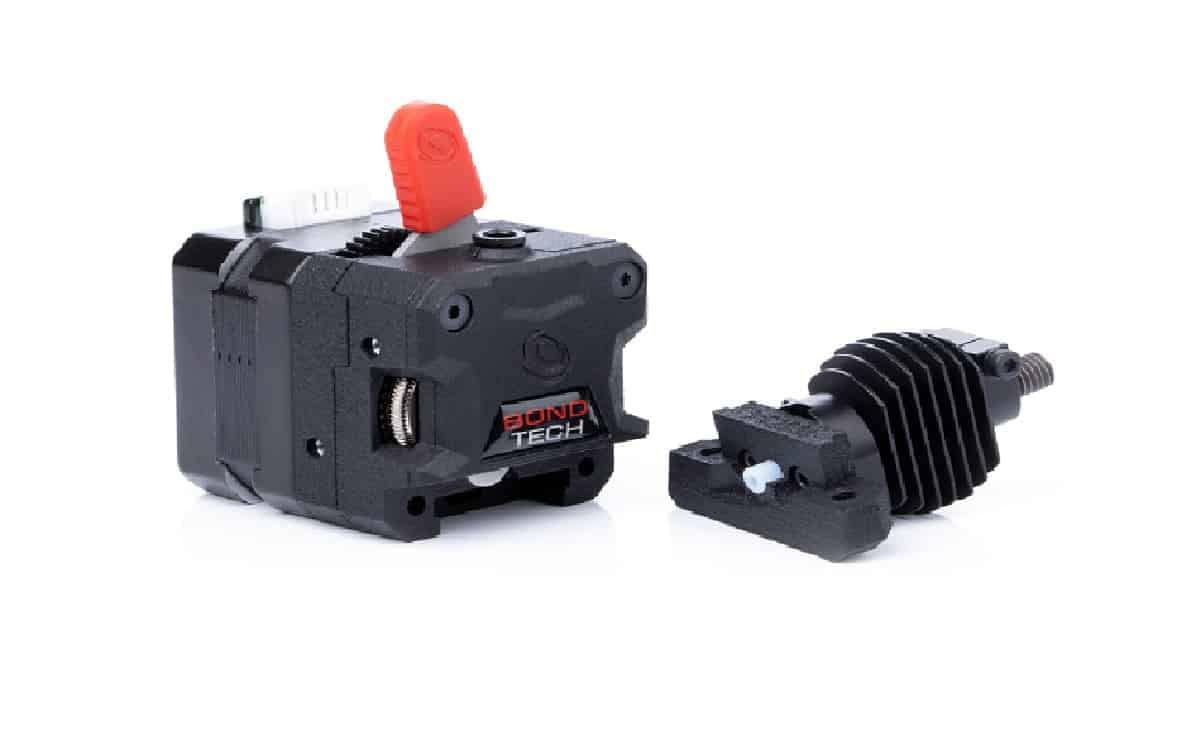

  • 1x Direct Drive Interface Plug (for Slice Engineering hotends);
  • 1x 2mm Hex Key (recommended tool);
  • 1x Product Line Information Brochure;
  • 1x Powered By Bondtech sticker.

New features on a Bondtech LGX extruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;
• Multi-function interface socket, for tool or application quick swap;
• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & symmetric design, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• A small step for a greener Future, craft boxes without bleaching & no coating.

Technical Specification Bondtech extruder:

• e-steps value : 400 using 16 microsteps; 800 using 32 microsteps.
• Drive wheels : hardened steel.
• Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft.
• Mounting holes : M3.

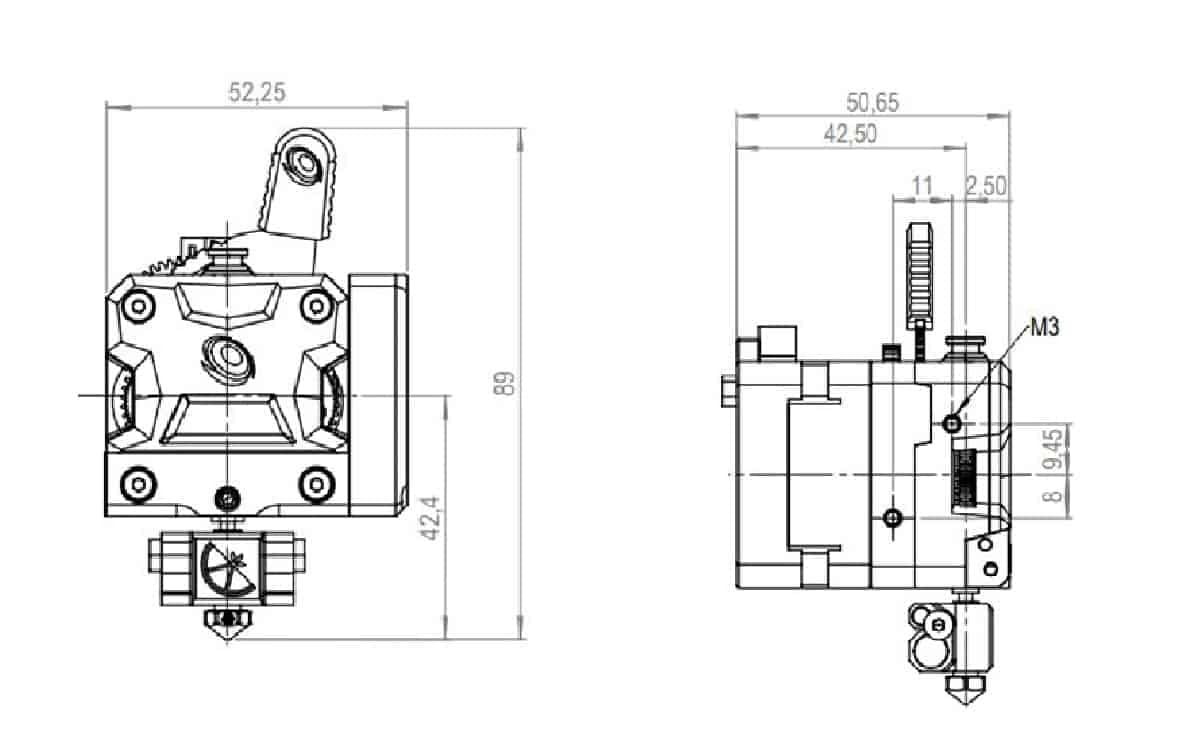

• Mounting patterns : bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points).
• Holes on the sides of the LGX™ : 5 mm depth.
• Holes on the bottom of the LGX™ : 12 mm depth.

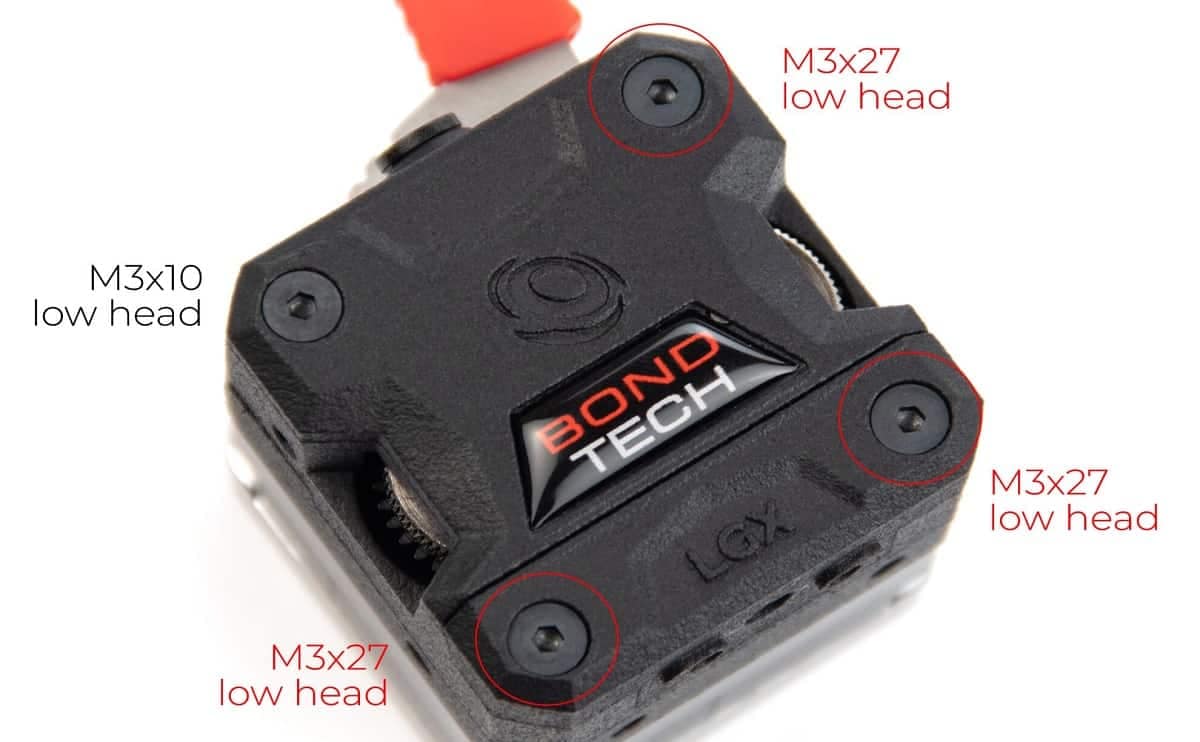

• Max tightening torque on the extruder screws is 0.3 Nm.

Package Include:

• 1 pcs of LGX extruder.
