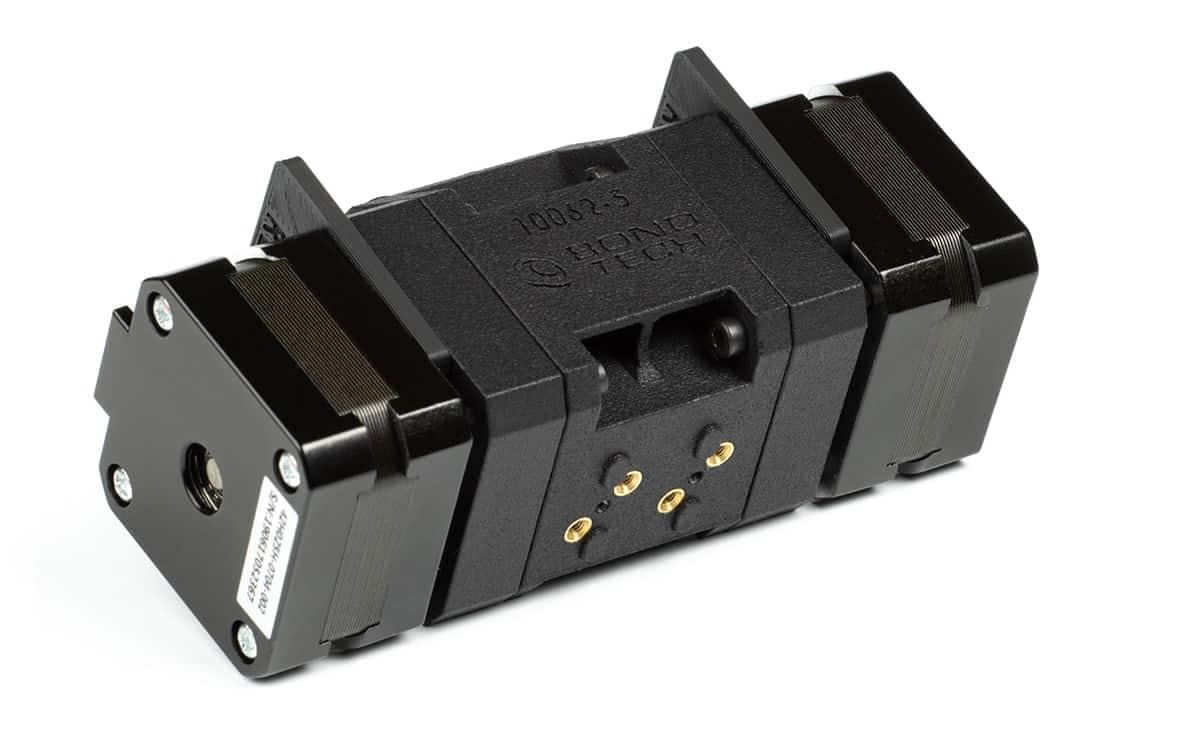

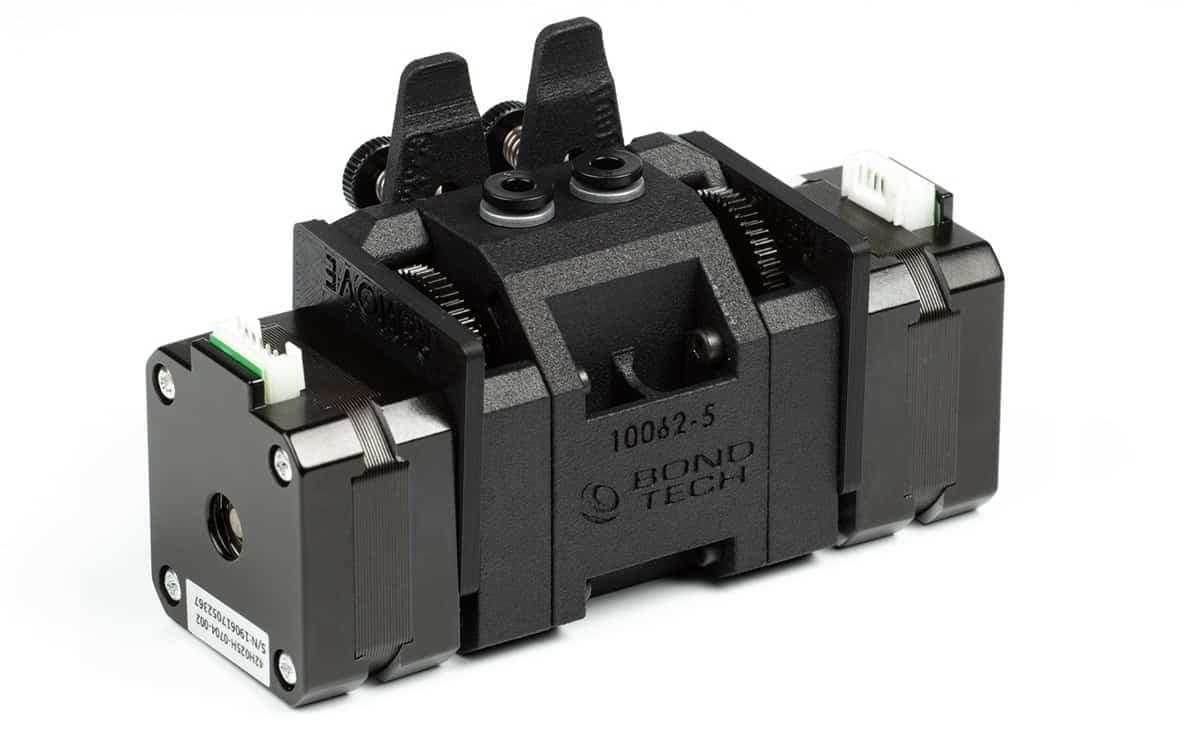

BMG X2M Extruder Bondtech Extruder For Mosquito for 3d printer

BMG X2M Extruder Bondtech Extruder For Mosquito for 3d printer:

The Bondtech BMG-X2-M is the best and lightest performing extruder on the market that combines low weight with dual high feeding capacity.

• The Bondtech BMG-X2-M is based on our proven BMG design that utilizes an internal gearing ratio of 3:1 together with precision cnc-machined hardened steel drive gears to give you a compact powerhouse for all your multi extrusion applications.
• Whether you require high resolution prints with small nozzles or high-flow prints with big nozzles the optimized gearing ratio combined with our industry leading drive gears provides unparalleled pushing power and lightning fast retractions in a lightweight and compact dual extrusion package.

Dedicated For Mosquito Hotends:

• BMG X2M Extruder is available in a single version, to use Mosquito hotends. The same version is also compatible with Mosquito Magnum. Both have a C-C distance of 15mm.
• SLS 3D Printed Housing in PA: The housing parts are professionally SLS printed in nylon for maximum strength and precision. For 1.75mm Filaments only
• Bondtech Dual-Drive: BMG X2M Extruder unique Dual-Drive technology delivers uninterrupted material flow without fear of grinding or slipping in even the most demanding conditions. Bondtech users the world over will attest that even in prints with thousands of retracts our extruders perform flawless, with unmatched precision, and zero damage or degradation to the filament.
• Multi-material Capability BMG-X2-M: BMG X2M Extruder feeds all material with high reliability, from slippery nylons and soft TPU/TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials. The extruder is designed for 1.75 mm filaments, but has been tested to ensure performance of filament from 1.5mm up to 2.0mm allowing for high reliability regardless of the tolerance of the filament used. The filament path is fully guided throughout the extruder body and the housing maintains tight tolerances to the drive gears mitigating the chances of Filament misfeed when the hotend experiences increased back pressure or highly flexible filaments are used.
• Adjustable Tension: The thumbscrew tensioners allows the user to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust according to your preferences and to optimize for the type of material you are using.
• Quick-Release: To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.

Flexible Mounting Options:

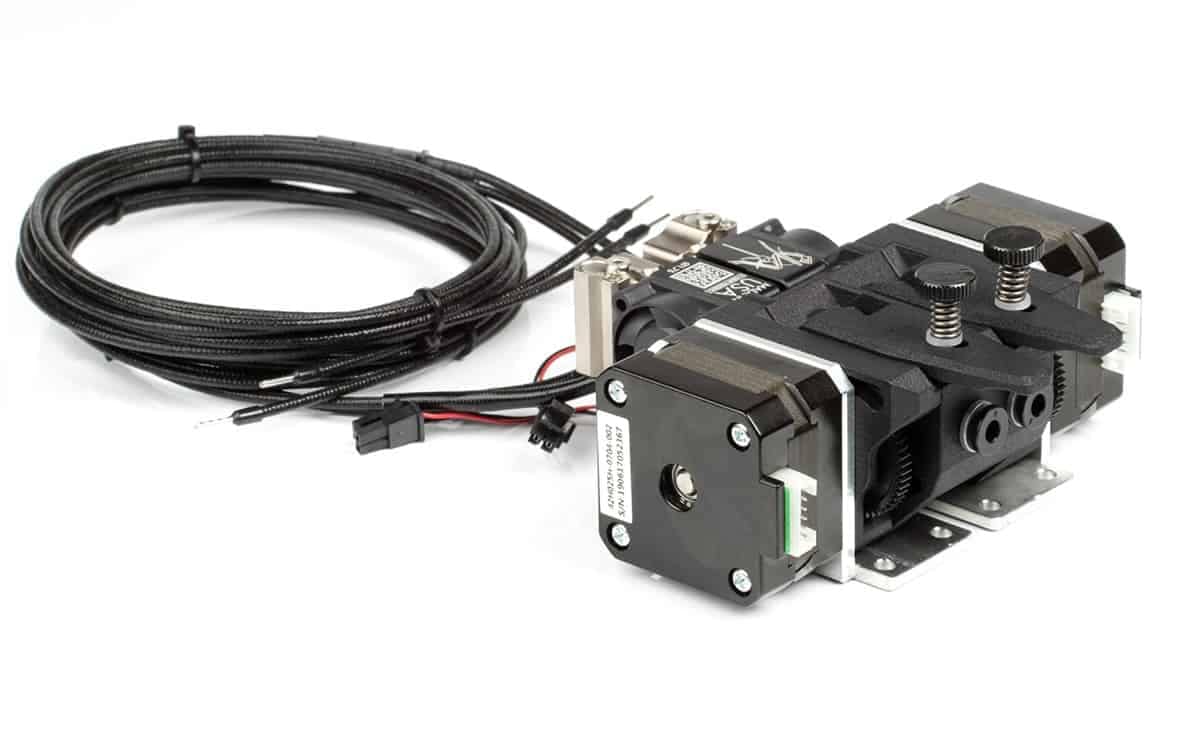

• BMG X2M Extruder standard mounting bracket in CNC machined aluminum can be used to mount the extruder as on the photos or a simple 3d printed bracket can be used.
• You can download a cad or stl-file of the extruder that gives you the dimensions you need in order to design your custom mounting bracket. The extruder is delivered without mounts.

NOTICE

• The following parts are NOT included in this product: Alu Mounts; Hotends; Heaters, Thermistors, and their Cables.
• To use this BMG X2M Extruder, you will also need to buy the following
  • a Mosquito Hotend or a Mosquito Magnum Hotend for higher material flow;
  • the Boron Nitride Paste;
  • the Mosquito Thermistor;
  • the Mosquito 12v 50w Heater Cartridge or the Mosquito 24v 50w Heater Cartridge;

Optional items

• one or more Vanadium Nozzles;
• a Mosquito 12v fan or a Mosquito 24v fan to cool down the hotend;
• a 1.5Nm Torque Wrench to properly tighten the nozzle(s).

Included Stepper Motors:

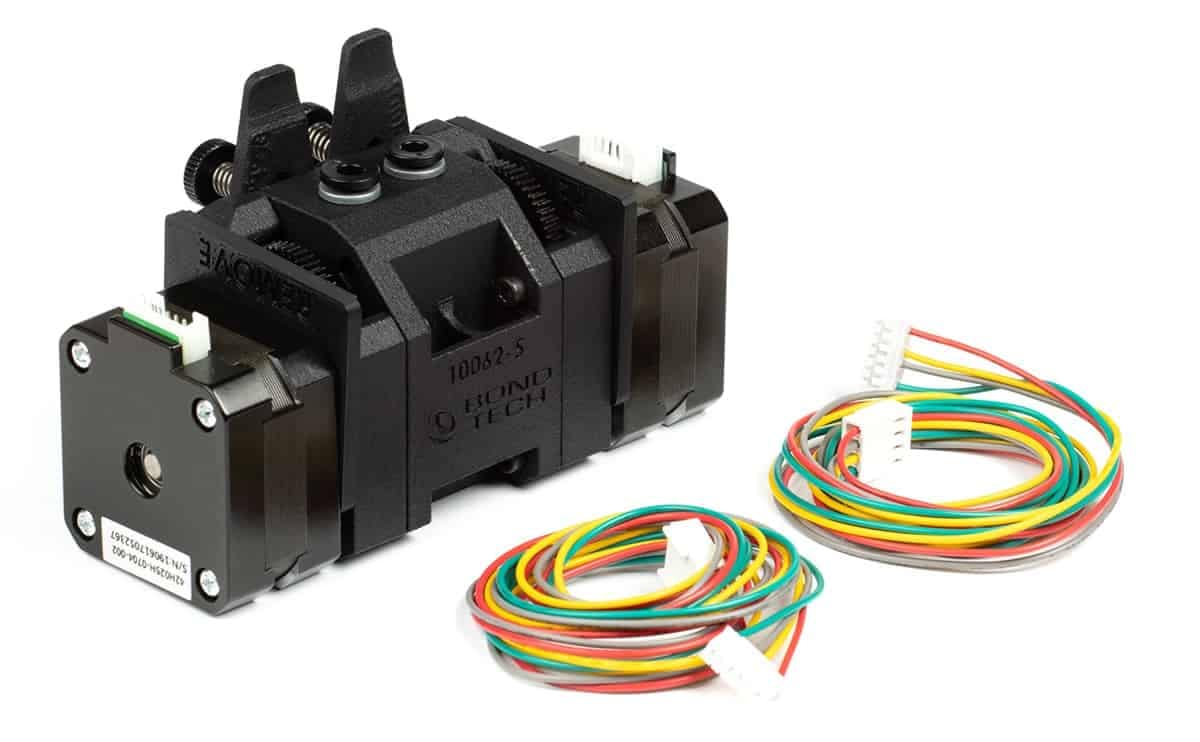

• BMG X2M Extruder included high power Nema17 pancake motors provides high torque and a low weight.
• We use, and recommend using, the following stepper motor with this extruder: NEMA17 Pancake Stepper Motor 25mm.

Package Include:

• 1 pcs of BMG X2M extruder.
