BMG X2 Extruder Bondtech for 3d printer

BMG X2 Extruder Bondtech for 3d printer

The Bondtech BMG X2 Extruder is the best and lightest performing extruder on the market that combines low weight with double high feeding capacity.

• Bondtech BMG X2 Extruder is a compact, lightweight dual extrusion extruder built for high pushing power, fast retractions, and reliable multi‑material printing.
• Based on Bondtech’s proven BMG Dual‑Drive design, it uses an internal 3:1 gear ratio with precision CNC‑machined hardened steel, coated drive gears to deliver stable, high‑traction filament feeding—helping prevent grinding and slipping even on long prints with frequent retractions.
• Whether you’re printing fine detail with small nozzles or high‑flow parts with larger nozzles, the BMG X2 provides consistent extrusion and excellent control.
• The fully guided filament path and tight gear tolerances improve performance with demanding materials, including Nylon, TPU/TPE, and carbon‑filled composites (filament quality dependent).
• A thumbscrew tensioner lets you fine‑tune gear pressure for different filaments, and the Quick‑Release lever makes filament changes faster and easier.

Two Versions Available BMG X2 Extruder

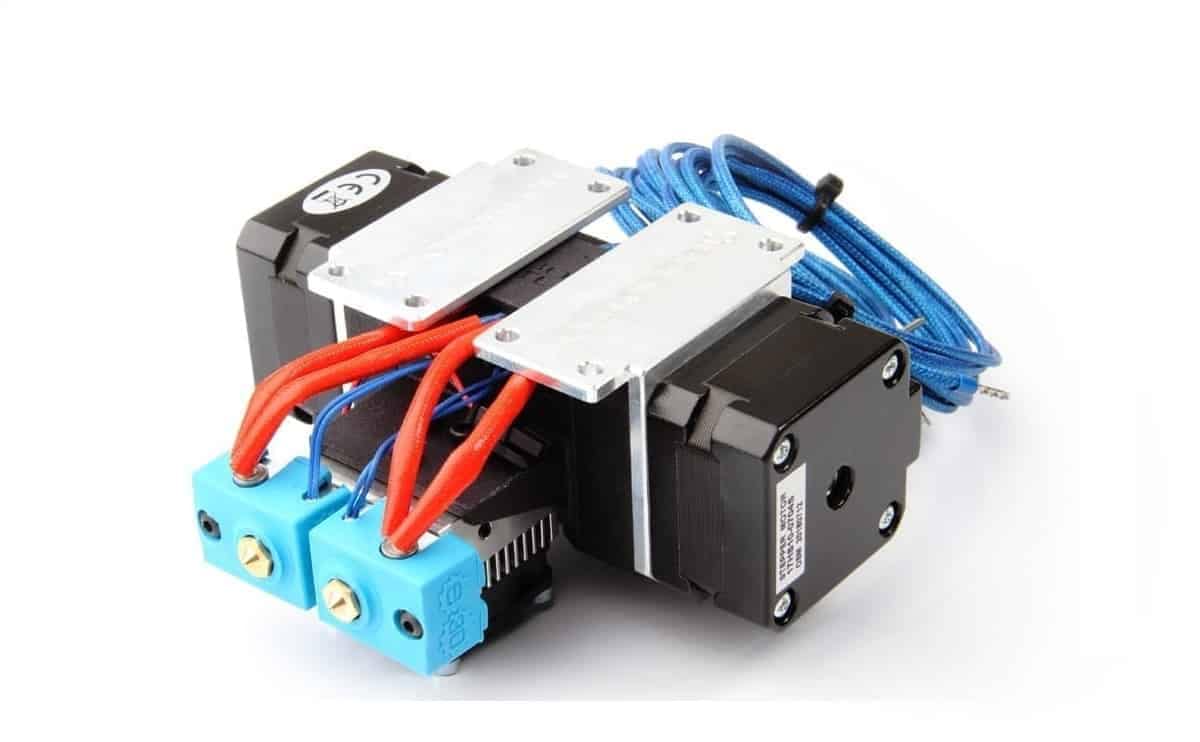

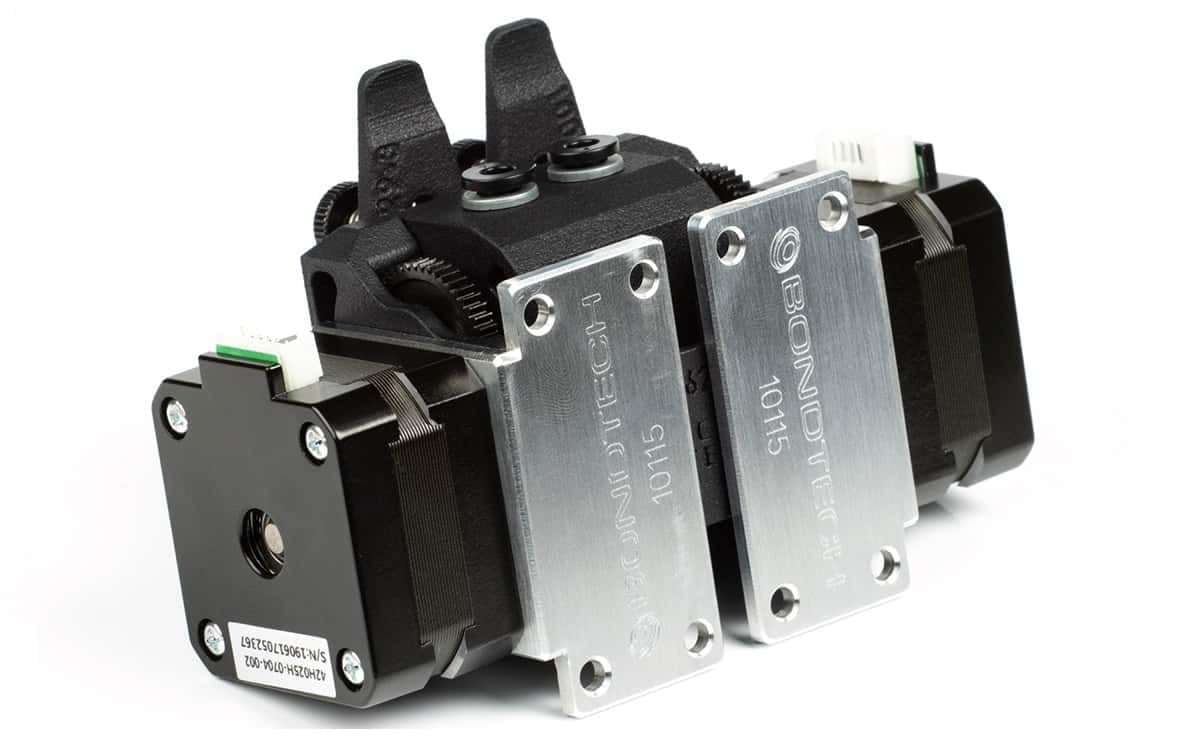

• for the older type of Chimera/Cyclops with a c-c of 18.00 mm (see pictures with Alu Mounts);

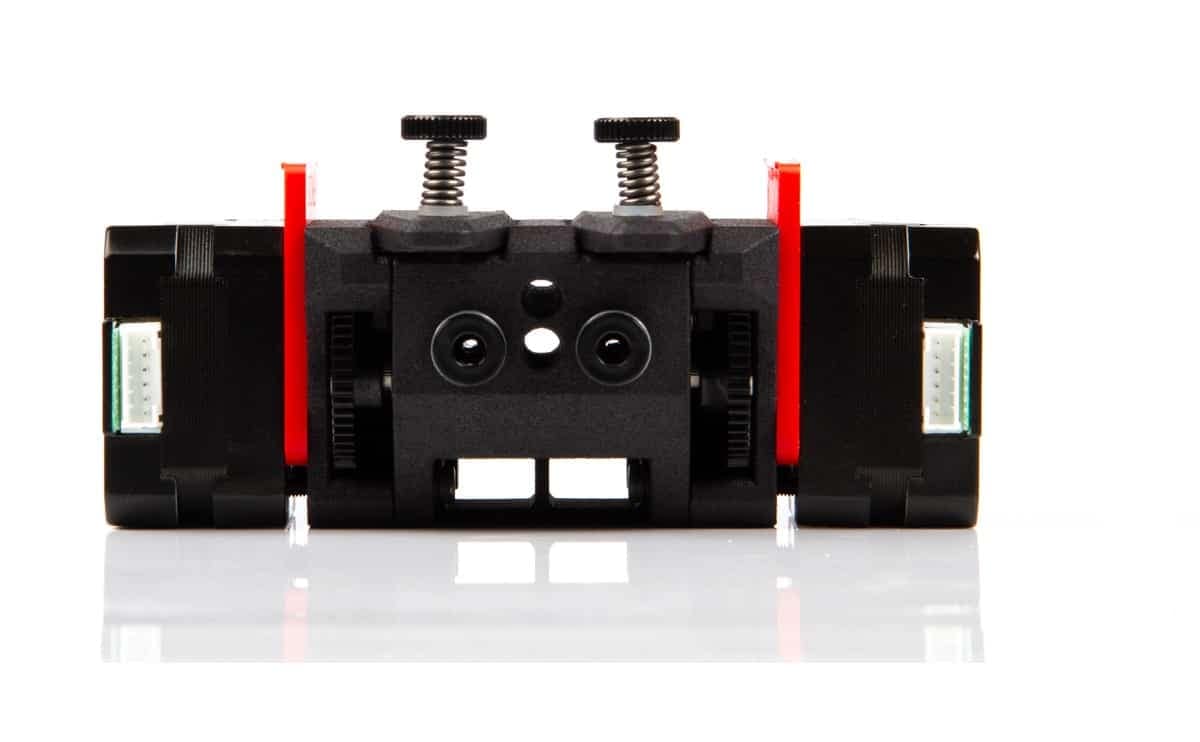

• for the newer Chimera+/Cyclops+ with a c-c of 20.00 mm (see pictures with red tabs).
• The CC 20.00 version is compatible with the Aqua Version. Make sure to select the correct version for your application.
• SLS 3D Printed Housing in PA12
• The housing parts are professionally SLS printed in nylon for maximum strength and precision.
• BMG X2 extruder only supports 1.75 mm size filament.

NOTICE

• NOT INCLUDED in this product: Alu Mounts; Hotends; Heaters, Thermistors, and their Cables.
• INCLUDED in this product: 2x NEMA 17 Pancake stepper motor; 2x JST-XH6 to PC2510 Cable 700 mm. More/different Cable options available.

We use this Stepper Motor

• We use, and recommend using, the following stepper motor with this extruder:
  • NEMA17 Pancake Stepper Motor 25mm
  • Basic description and datasheet can be found in its page.
• Bondtech Dual-Drive: BMG X2 extruder unique Dual-Drive technology delivers uninterrupted material flow without fear of grinding or slipping in even the most demanding conditions.
• Bondtech users the world over will attest that even in prints with thousands of retracts BMG X2 extruder perform flawless, with unmatched precision, and zero damage or degradation to the filament.
• Multi-material Capability: BMG X2 extruder feeds all material with high reliability, from slippery nylons and soft TPU/TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials.
• BMG X2 extruder is designed for 1.75 mm filaments, but has been tested to ensure performance of filament from 1.5mm up to 2.0mm allowing for high reliability regardless of the tolerance of the filament used.
• The filament path is fully guided throughout the extruder body and the housing maintains tight tolerances to the drive gears mitigating the chances of Filament misfeed when the hotend experiences increased back pressure or highly flexible filaments are used.
• Adjustable Tension: The thumbscrew tensioners allows the user to fine-tune the pressure exerted by the drive gears onto the filament. BMG X2 extruder gives you the power to adjust according to your preferences and to optimize for the type of material you are using.
• Quick-Release: To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.

Features

• Bondtech Dual‑Drive: strong grip, reliable feeding, fewer slips/grinds
• 3:1 gearing for high pushing force and fast retractions
• Multi‑material capable: works well with flexible and engineering filaments
• Adjustable tension for tuning to filament type
• Quick‑Release lever for easy loading/unloading
• SLS PA12 housing for lightweight strength and precision
• 1.75mm filament only (tested across 1.5–2.0mm tolerance range)

Package Include

• 1 pcs of BMG X2 extruder.
