Bigtreetech SKRat V1.0 control board 32bit 64MHz

Bigtreetech SKRat V1.0 control board 32bit 64MHz

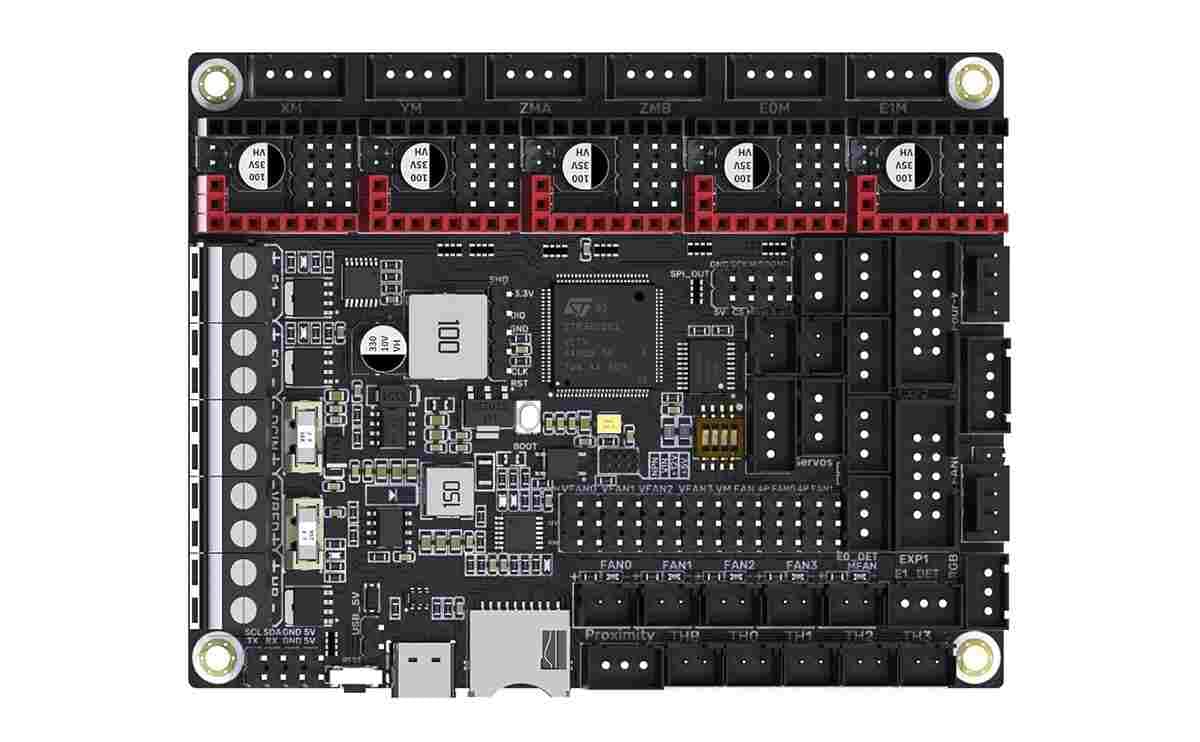

Bigtreetech Skrat V1.0 control board is a prominent choice for enthusiasts and professionals involved in 3D printing and CNC machining.

• Bigtreetech Skrat V1.0 advanced control board operates on a robust 32-bit processor, running at a frequency of 64 MHz, which significantly enhances system performance and reliability.
• One of the standout features of the Skrat V1.0 is its ability to process complex calculations quickly, allowing for smoother movements and better precision during operations

Specifications

• MountingSize: 110x85mm
• MCU: ARM Cortex-M0+STM32G0B1VET6
• Input Voltage: DC12V-DC24V
• Logic Voltage: DC3.3V
• Heater Connection: Heated Bed(HB),Heater Cartridge(HE0,HE1)
• HB Port Max.Current : 10A Continuous,15A Instantaneous
• Heater Max.Current Cartridge: 8A Continuous,10A Instantaneous

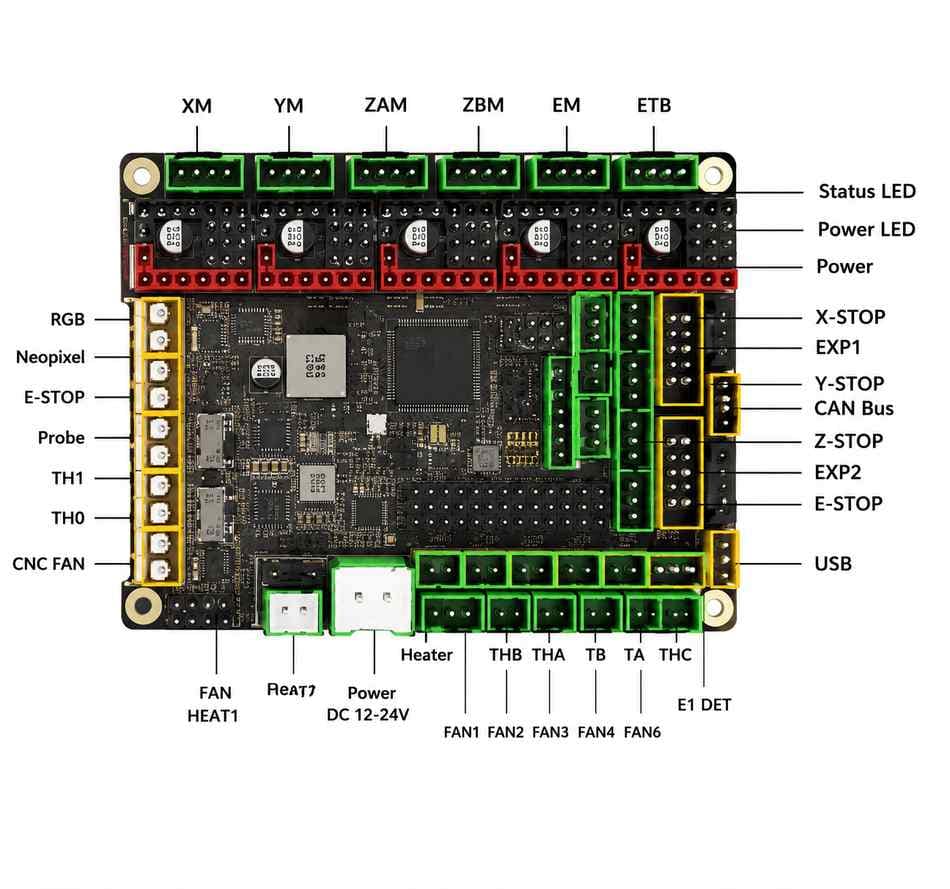

• Fan Port: 4xCNC,1xAlwaysOn,2×4-pinHeader
• Fan Port Max: Current 1A Continuous,1.5A Instantaneous
• Overall Current : (Heater Cartridge+Drivers+All Fans)＜15A

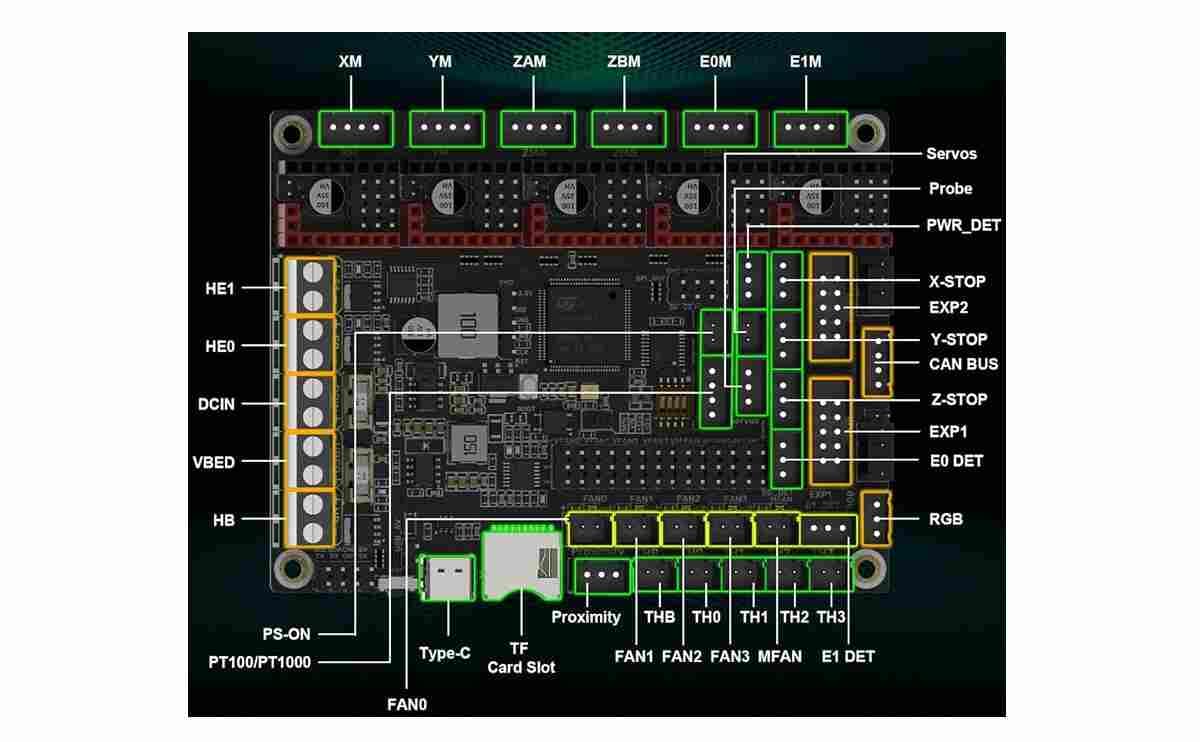

• Expansion Port: BLTouch(Servos,Probe),PS-ON,PWR-DET,Fil-DET,RGB,CAN-FD,SPI,UART,I2C.
• Stepper Drive rMode: SPI,UART,STEP/DIR
• Stepper Motor Socket: X,Y,Z (DualZaxes),E0,E15 channels in total
• Thermistor: 5xNTC Ports,1xPT100/PT1000
• Display: 2.4-inch TFT,3.5-inch TFT,LCD12864 Screen…
• PC Connection: Type-C
• Supported File Format : G-code
• Recommended: Slicer/ConsoleCura,Simplify 3D,Pronterface,Repetier-host,Makerware
• Firmware Supported : Marlin,Klipper

Advantages

• Main Control Chip: BIGTREETECH SKRat Control board adpots 32bit 64MHz ARM-STM32GOB1VET6 Chip, Support 5 axis,Integrated SPI and UART mode of TMC driver and DIAG pin,easily configur able with jumpers.
• About Firmware: Bigtreetech Skrat V1.0 at a collaborative creation from BIGTREETECEH and Rat Rig, is fully supported by RatOS 2.0 for an easy klipper experience and is ideally suited for Klipper-based printers and suppport Marlin firmware ,For specific and detailed operations, please refer to the instructions on GitHub for compilation.
• Multi-Function Interface: Bigtreetech Skrat V1.0 Supports Resume Printing While Power Off Module,Filament runout sensor,Automatic Shutdown Module BLTouch,proximity switch,RGB Lights, Onboard CAN bus/Max31865/BOOT button to enable DFU mode to update the boot loader/UART and I2C expansion output ports.
• Cooling Fan Upgraded: All fans can realize VIN,12V,5V voltage selection via jumpers,and different voltages can be set separately for different ports.Four 2-pin fan ports,one always-on fan port,and two 4-pin fan ports.

Package Include

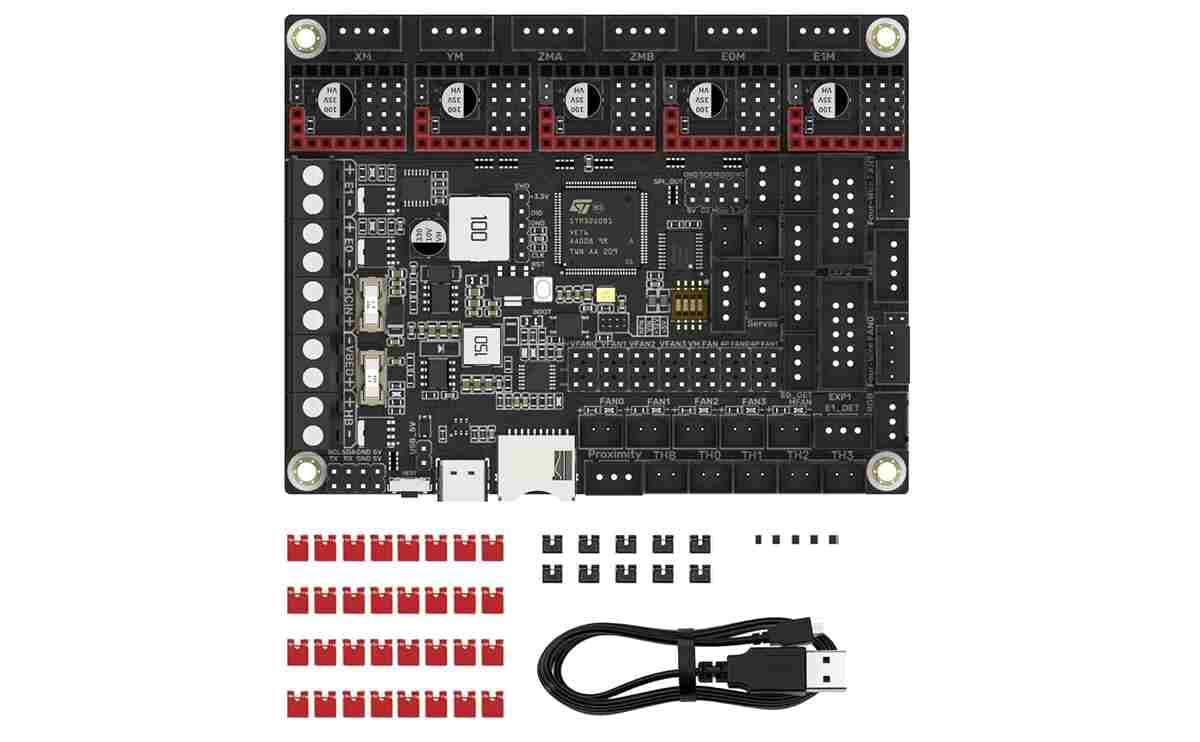

• 1 piece of Bigtreetech Skrat V1.0.
