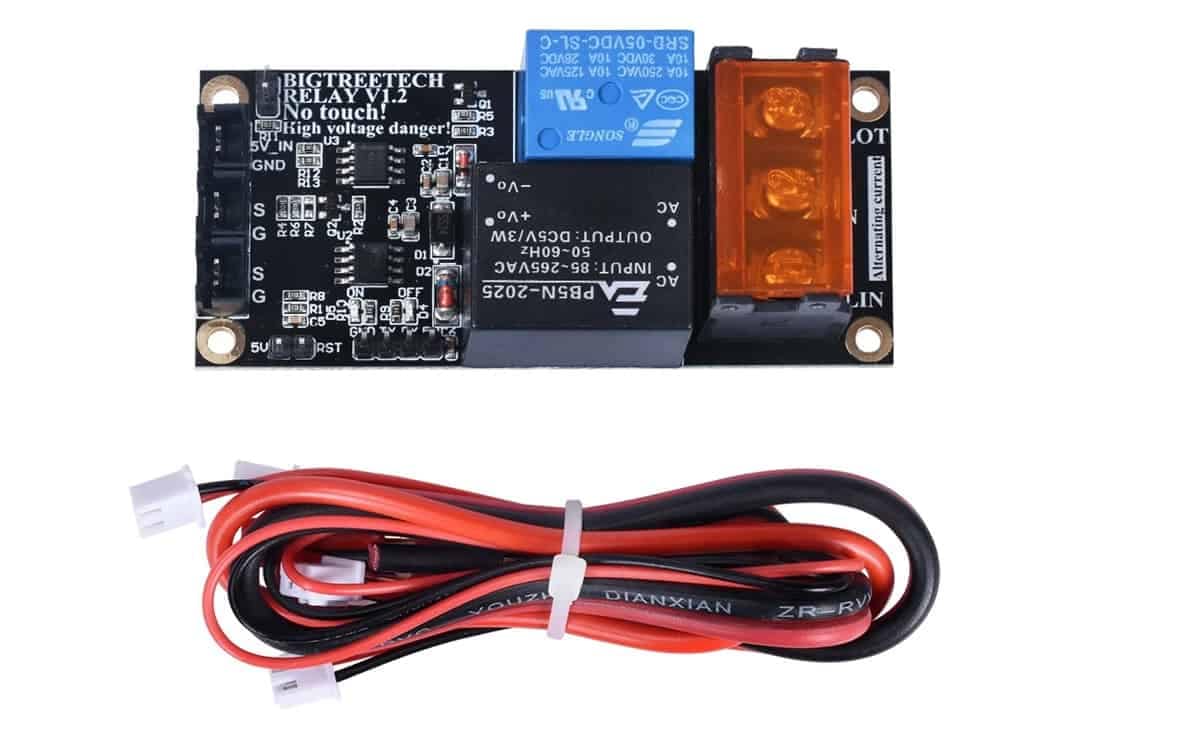

Bigtreetech relay module V1.2 automatic shutdown module for 3D printer parts

3 reviews
Availability:

In stock


1,099.00

In stock

Bigtreetech relay module V1.2 automatic shutdown module for 3D printer parts:

Bigtreetech relay module V1.2 automatic shutdown module for 3D printer parts.

Specifications

  • Model: Bigtreetech Relay Module V1.2
  • Compatible with: 3D printers
  • Input Voltage: 12V
  • Maximum Current: 10A
  • Relay Type: SPDT (Single Pole Double Throw)
  • Dimensions: 50mm x 33mm x 18mm
  • Weight: 20g



Applications

  • The Bigtreetech Relay Module V1.2 is specifically designed for use with 3D printers.
  • BTT relay module acts as an interface between the printer’s mainboard and external devices, allowing you to control additional components such as heated beds, fans, and lights.
  • With this relay module, you can easily switch high-current devices on and off, ensuring optimal performance and safety for your 3D printer.
  • It provides a reliable and efficient solution for managing power distribution within your printing setup.



Usage

  • Installing and using the Bigtreetech Relay Module V1.2 is straightforward.
  • Simply connect the module to your 3D printer’s mainboard using the provided connectors.
  • Ensure that the input voltage matches your printer’s requirements.
  • Once connected, you can control the relay module through your printer’s firmware or software.
  • The module provides a convenient way to toggle power to connected devices, allowing you to turn them on or off as needed during the printing process.
  • Whether you want to regulate the temperature of a heated bed, activate cooling fans for better print quality, or control lighting for visibility, the Bigtreetech Relay Module V1.2 offers a reliable solution for integrating additional functionality into your 3D printing setup.
  • Enhance the capabilities of your 3D printer with the Relay Module V1.2. Its compact size, compatibility, and reliable performance make it a valuable addition to any 3D printing enthusiast’s toolkit.

Short circuit detection function instructions:

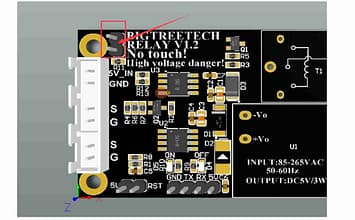

When using the short circuit detection function, it is necessary to connect the two pins with the short circuit cap as shown in the figure below If you don’t want to use the short circuit detection function, please remove the short circuit cap.

Bigtreetech relay

Package Include:

  • 1 piece of Bigtreetech relay module V1.2.



Weight 150 g
