Bigtreetech KNOMI V2.0 (touchable) For Voron Stealthburner

Bigtreetech KNOMI V2.0 (touchable) For Voron Stealthburner

• Bigtreetech KNOMI is a mini round screen designed specifically for Klipper running 3D printers, offering users a unique and personalized way to monitor their printer’s operation.
• The screen displays important information through KNOMI UI, such as heated bed temperature, nozzle temperature, leveling status, printing progress, etc.
• KNOMI is an open-source product, allows users to customize the user interface and design mounting brackets to fit their specific 3D printer.

Key Features:

• Bigtreetech KNOMI UI-based display for quick and easy monitoring of printer status.
• User-friendly, wireless communication through WiFi.
• Open-source enables effortless customization and adaptation of KNOMI to various 3D printers with provided 3D model files, while also allowing personalized user interfaces to suit preferences.

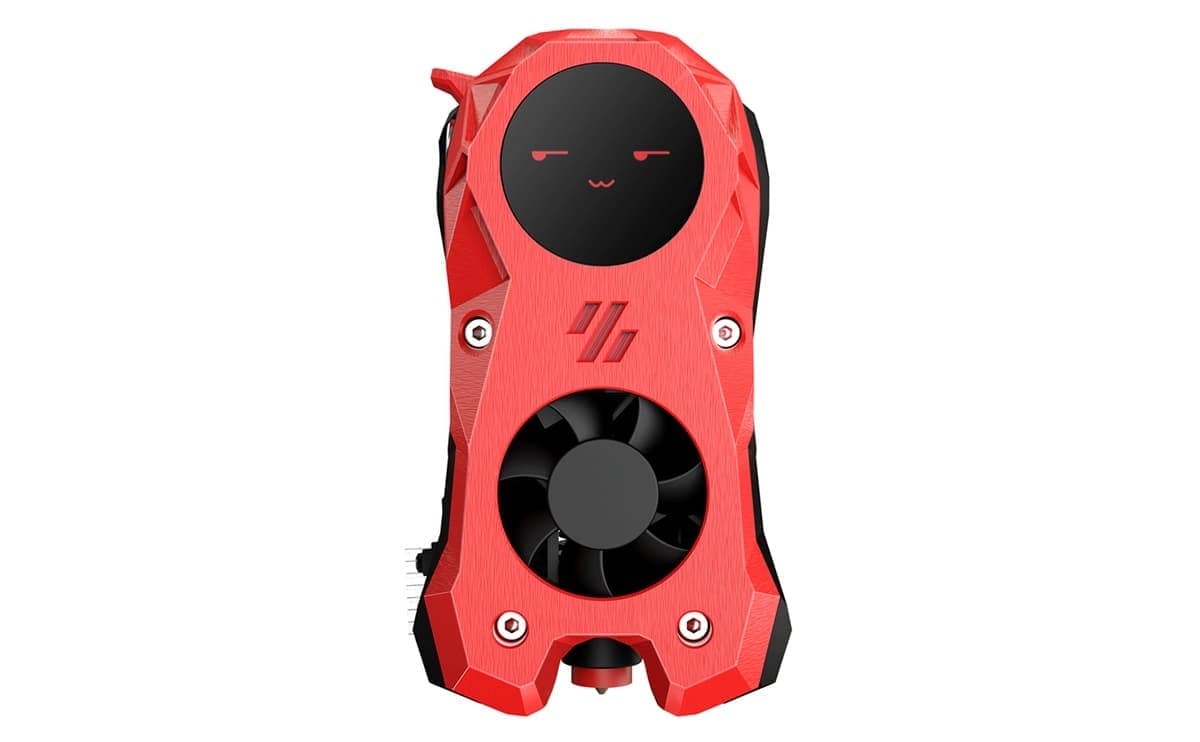

• Compatibility with Voron StealthBurner using our custom printed part files.
• Reserved Type-C port for DIY burning, increasing versatility.
• Full-view screen for accurate color representation from any angle.

Specifications:

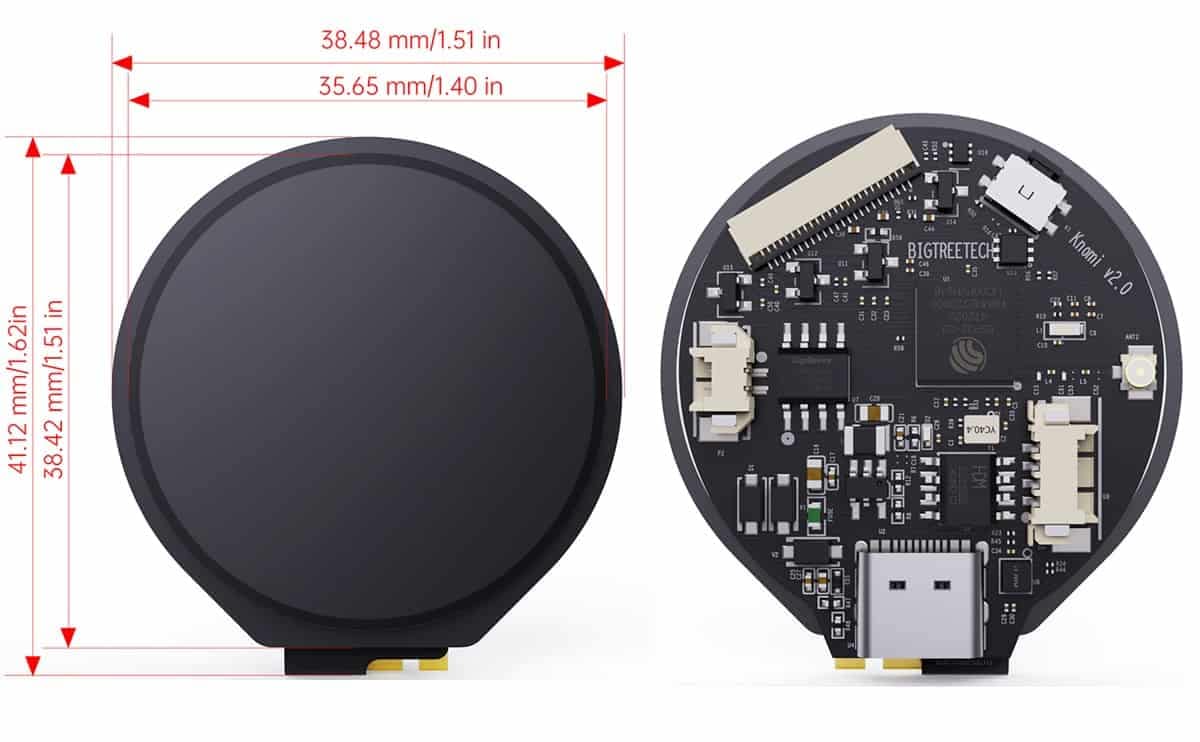

• Bigtreetech KNOMI V2.0 touch screen display adopts ESP32-S3R8 dual core processor with a main frequency of up to 240MHz Xtensa 32-bit LX7 main control chip, GC9 A01 driver chip, 1.28inch, 180C°All View,240RGB*240 DOTS,Flash:16MB,PSRAM:8MB.

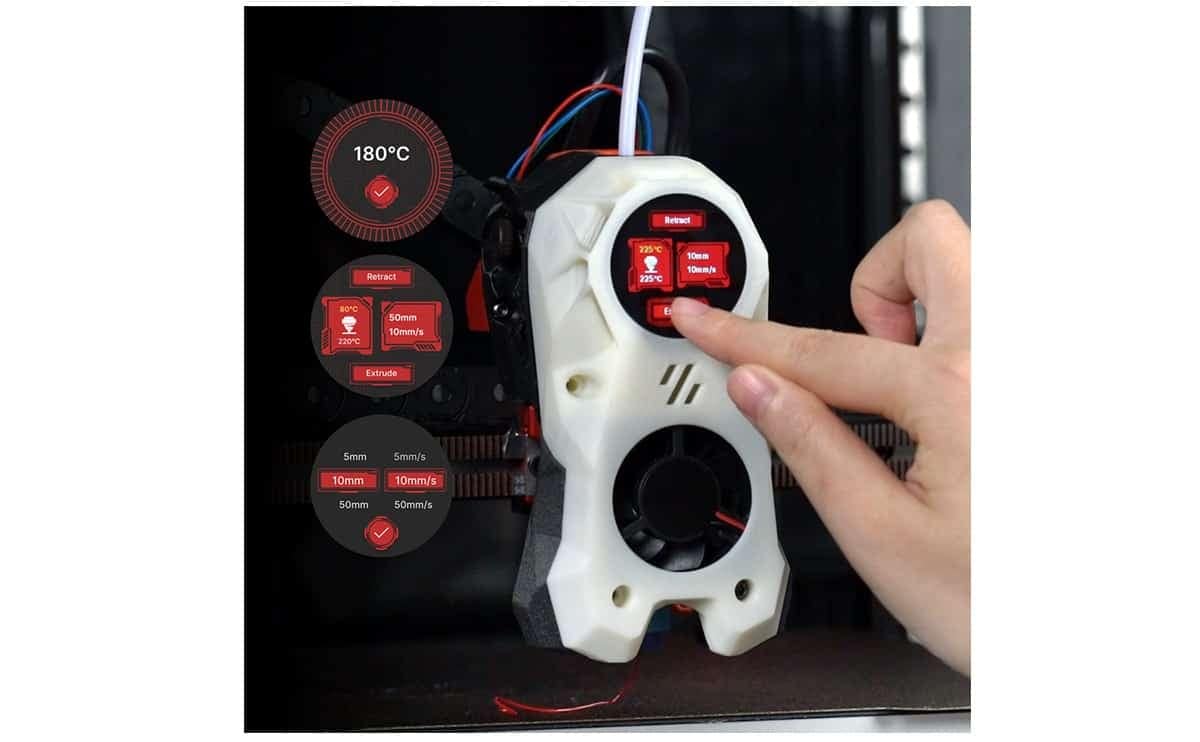

• Multi functional Upgrade: More refined KNOMI 2 state emoticons, support for Multi-color UI adjustment, select Model and Begin Printing,Extruding and Retracting Filament,Heated bed/Nozzle Warming Up management,ABL/QGL/Homing,Klipper system abnormalities,pop-up reminders.

Files:

• https://github.com/bigtreetech/KN

Package Include:

• 1 pcs of Bigtreetech KNOMI V2.0.
