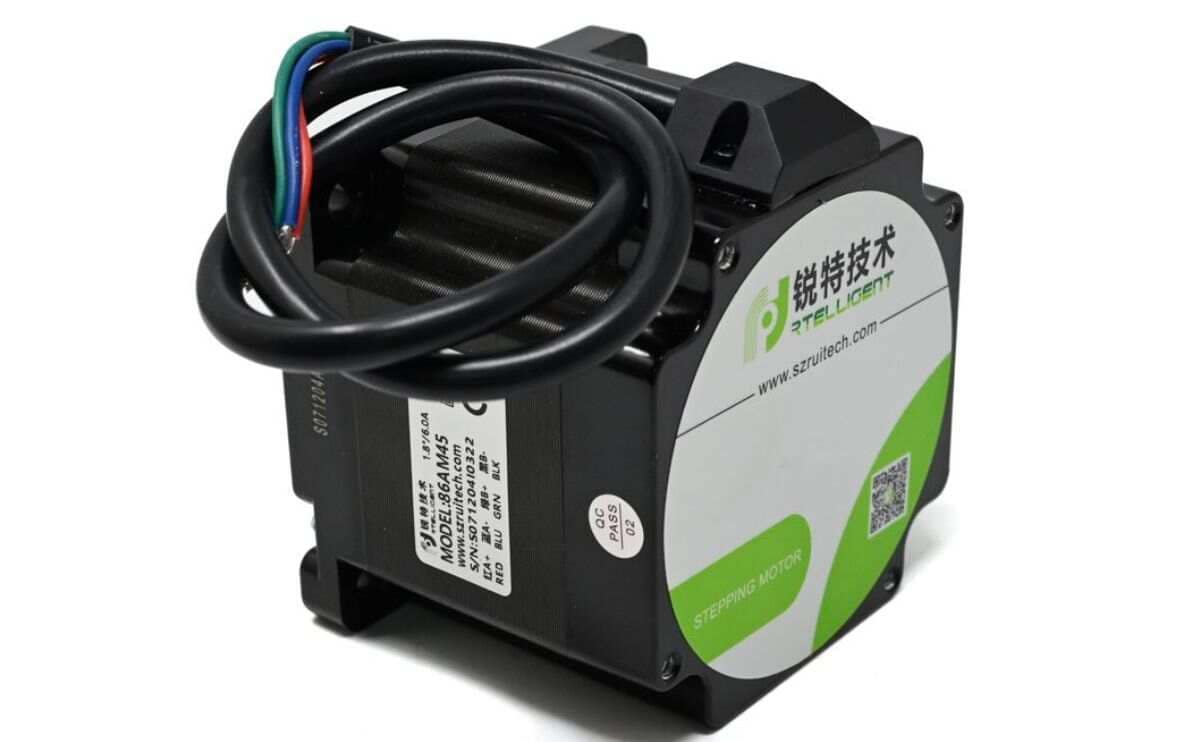

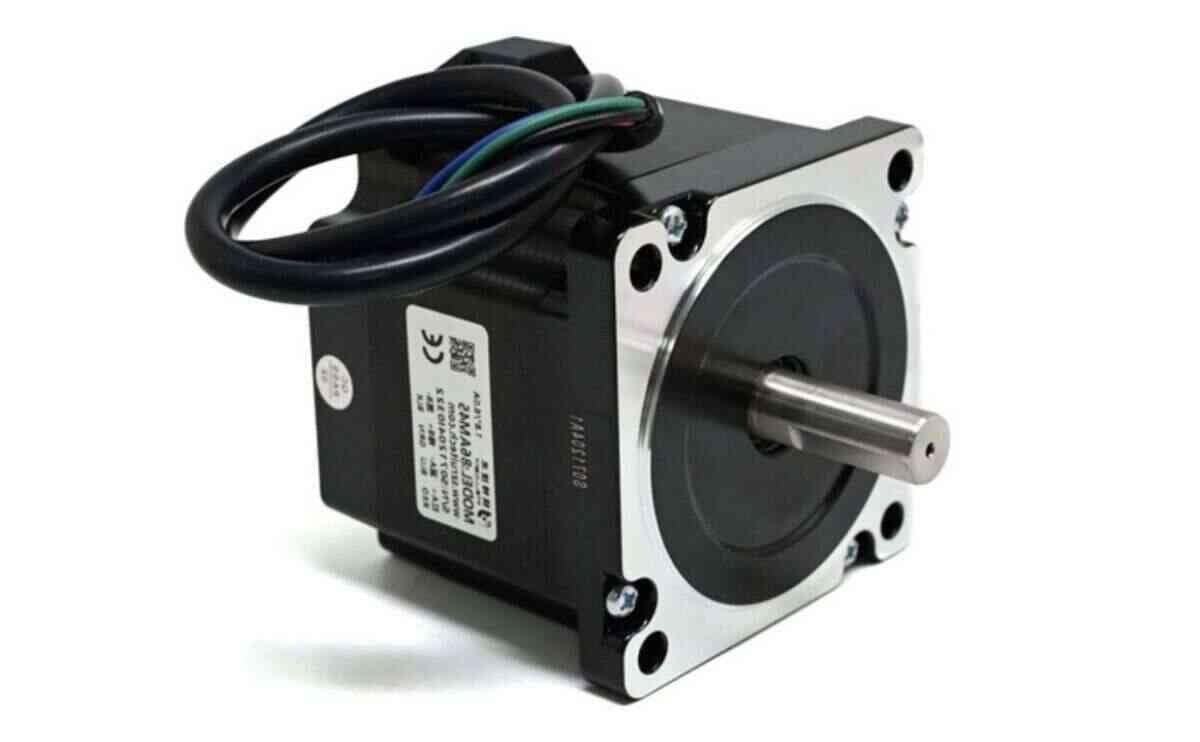

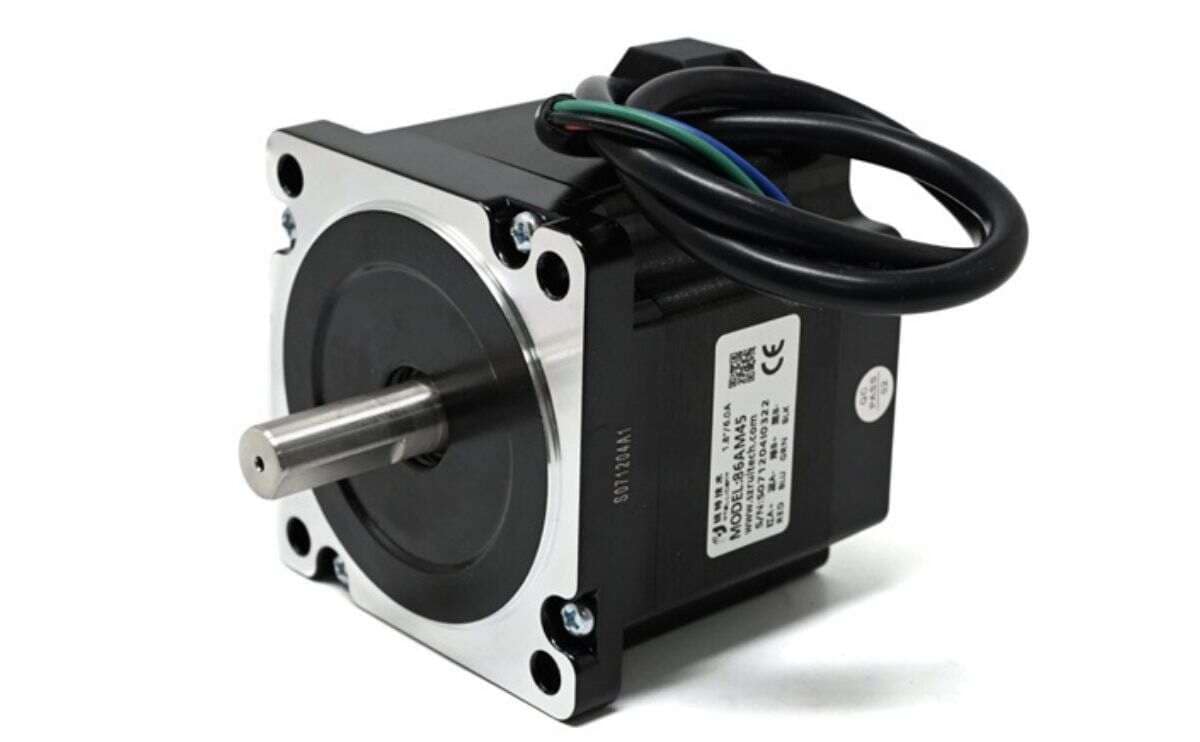

86AM45 Stepper Motor NEMA34 High Torque Hybrid Stepper Motor for CNC

86AM45 Stepper Motor NEMA34 High Torque Hybrid Stepper Motor for CNC

86AM45 Stepper Motor NEMA34 High Torque Hybrid Stepper Motor for CNC

• 86AM45 Stepper Motor is a robust NEMA34-size hybrid closed loop stepper motor engineered for accuracy and high-torque output.
• Superior build quality, low vibration, and precise 1.8° step angle, it is ideal for heavy-duty industrial applications.
• This motor ensures consistent performance in CNC routers, milling machines, automation equipment, pick-and-place systems
• Designed for long operational life and stable motion, it is a reliable choice for demanding environment

Specifications

• Model: 86AM45
• Motor Type: Hybrid Stepper Motor

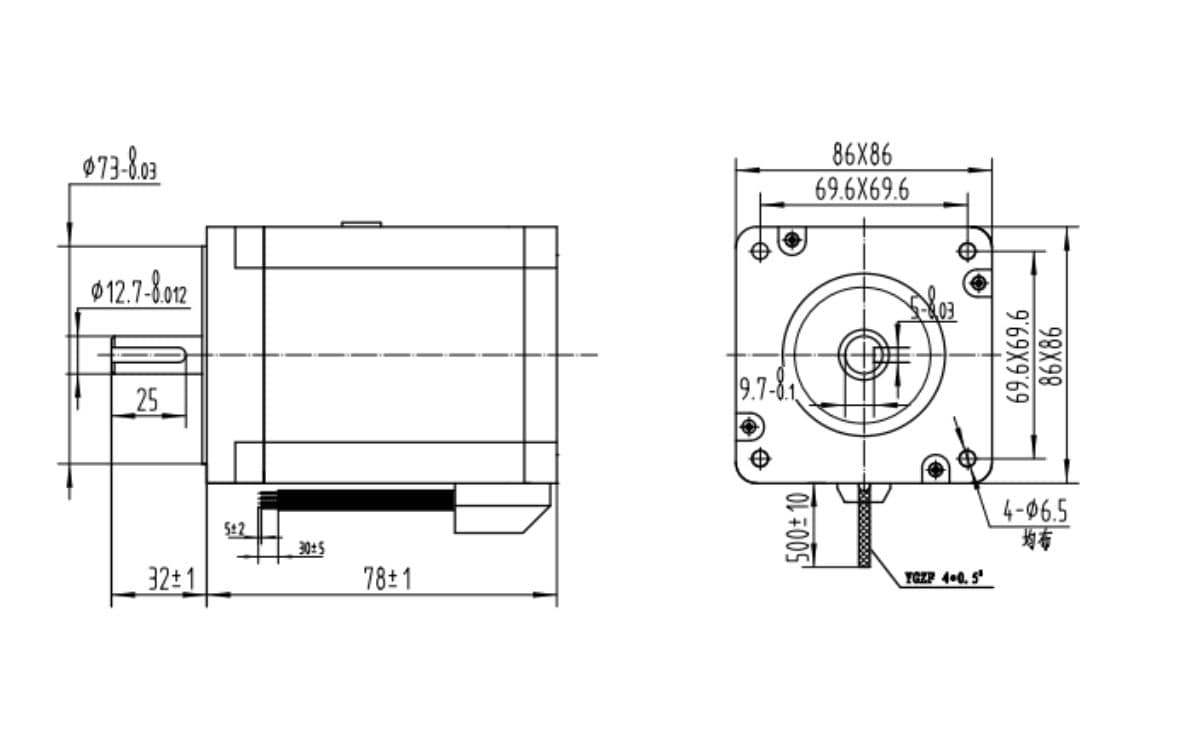

• Frame Size: NEMA 34 (86 × 86 mm)
• Step Angle: 1.8° per step
• Holding Torque: 4.5–6.0 N·m
• No. of Phases: 2 Phase
• Operating Mode: Open-loop / Compatible with closed loop stepper driver

Electrical Specifications

• Rated Current: 4.5 A
• Phase Resistance: 0.9–1.1 Ω

Features

• High torque output for industrial applications
• Smooth and stable step accuracy
• Low noise and low vibration performance
• Durable build for long-term continuous operation
• Compatible with a wide range of stepper drivers
• Ideal for both open-loop & closed-loop systems

Applications

• CNC Routers & Milling Machines
• Industrial Automation
• Robotics & Machinery

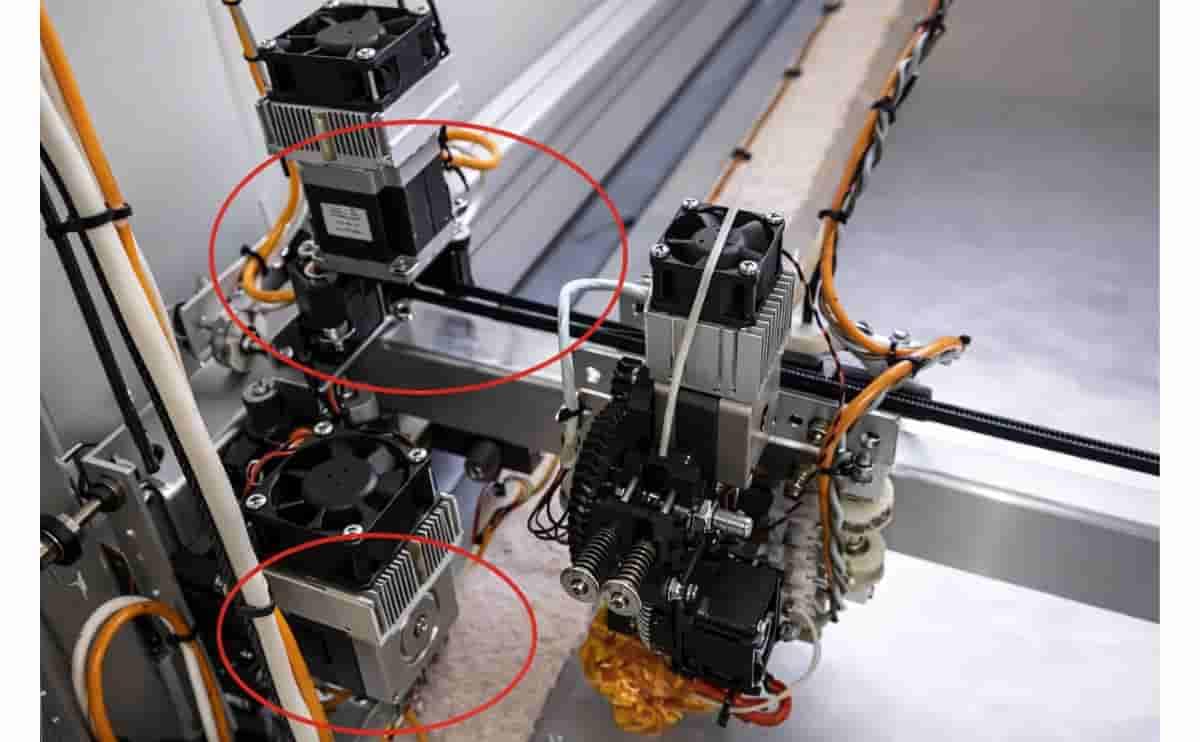

• 3D Printing & Motion Systems
• Packaging Machines
• Textile Machines
• Pick-and-Place Equipment

Package Includes

• 1 piece of 86AM45 Stepper motor
