698zz bearing high precision miniature bearing 698ZZ dimensions 8x19x6mm

698zz bearing high precision miniature bearing 698ZZ Dimensions 8x19x6mm

698zz high precision miniature bearing 698ZZ dimensions 8x19x6mm, types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.

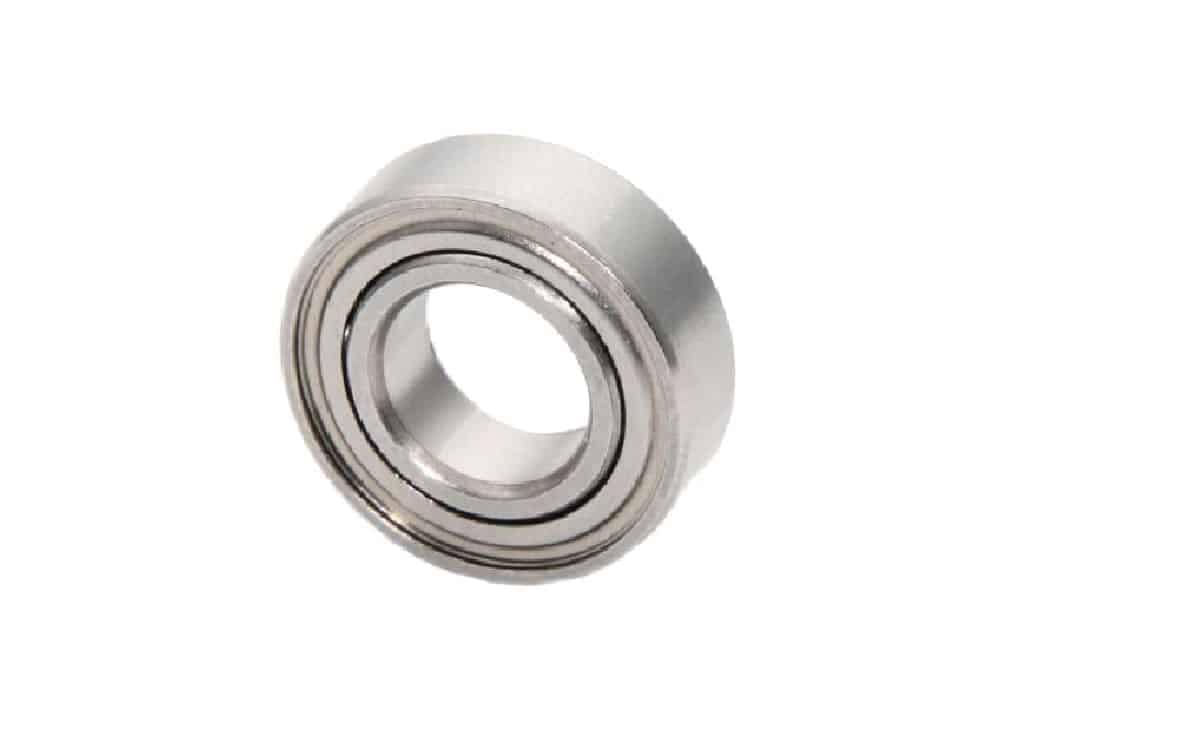

• Metal Shielded Miniature Ball Bearing has an inside diameter of 8mm, an outside diameter of 19mm, and a width of 6mm.
• miniature ball bearing with smallest dimensions
• suitable for high radial loads and light axial loads in both directions
• suitable for high running accuracy, quiet running and very high speeds
• seal: non-contact gap seal on both sides made of a profiled sheet steel disc (ZZ / 2Z) for higher speeds than with rubber seal
• good fixed bearing property, but can also be used as a floating bearing, each in both directions

Key Features

• Type: Deep groove ball bearing
• Item: 698ZZ Ball Bearing

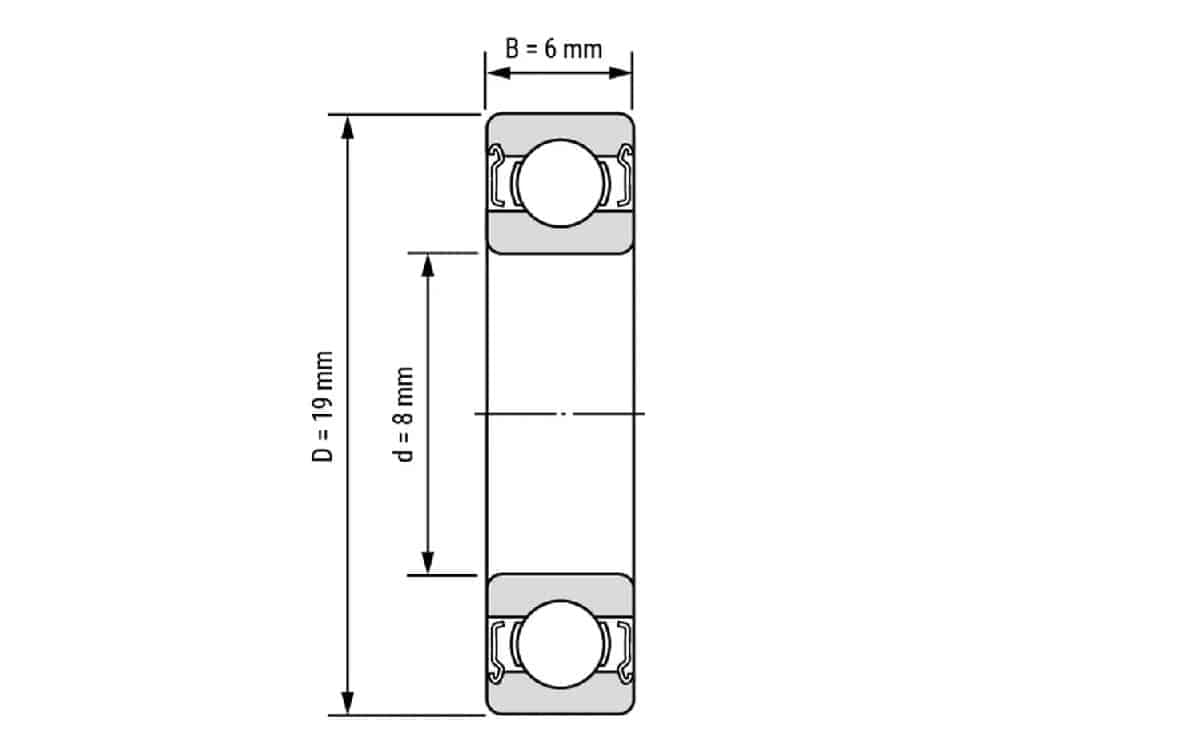

• Dimensions: 8mm (ID) x 19mm (OD) x 6mm (Width)
• Seal: Double metal shields (ZZ / 2Z) for high-speed capability
• Lubrication: Pre-lubricated with long-life grease
• Load Capacity: Dynamic – 2250 N, Static – 910 N
• Speed Limit: 39,000 RPM with grease lubrication
• Operation: Quiet running, high running accuracy, suitable for high-speed applications
• Versatility: Can be used as a fixed or floating bearing

Applications

The 698ZZ miniature bearing is ideal for precision applications across multiple industries:

• Electric Motors: Supports high-speed rotation in small motors and hobby projects
• Robotics: Enables smooth and precise motion in robotic joints and actuators

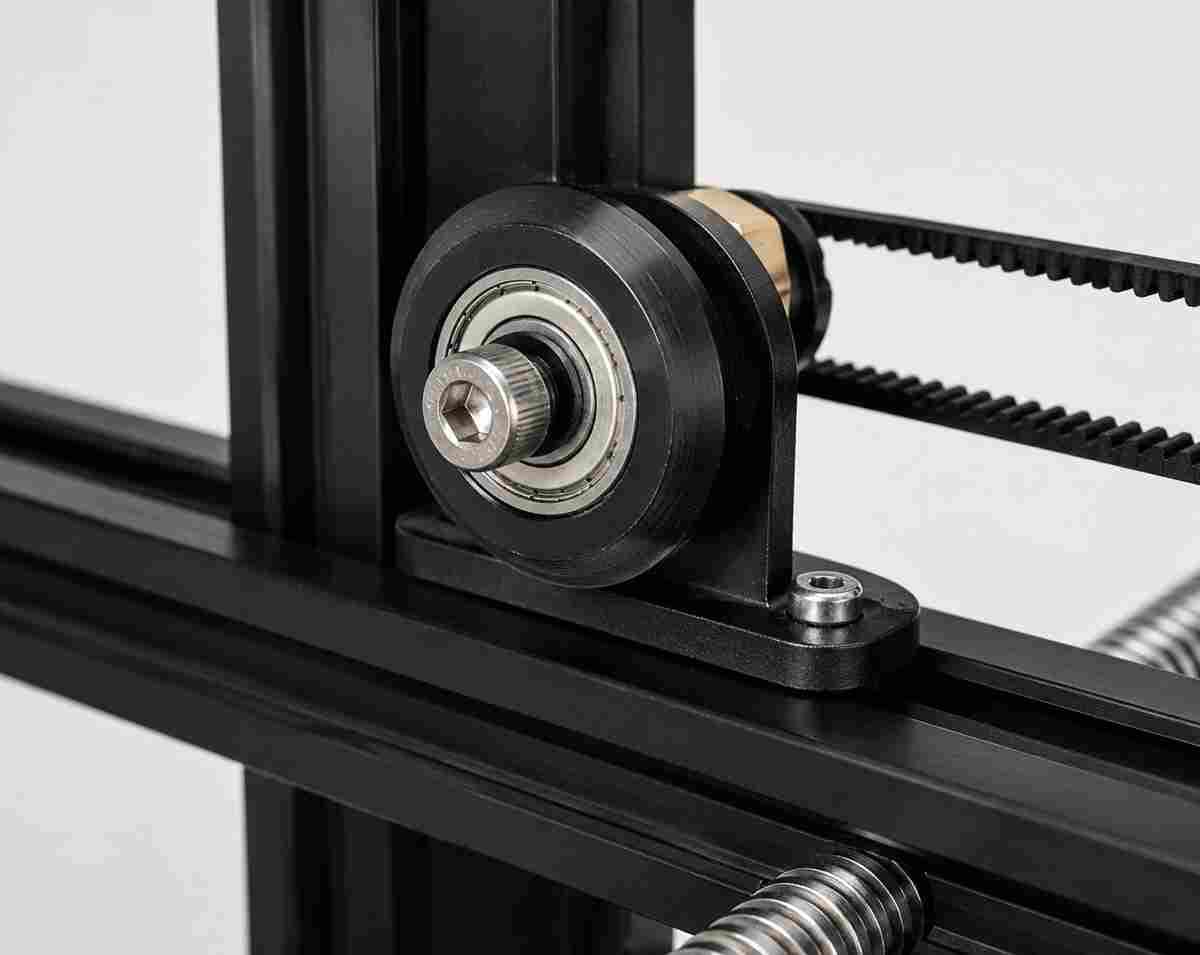

• 3D Printers: Used in guide rods, carriages, and moving components for accurate positioning
• Medical Devices: Suitable for compact, high-precision equipment
• Small Machinery: Fits tight spaces in miniature mechanical assemblies
• DIY Projects & Custom Machinery: Ideal for kinetic sculptures, automated devices, and hobbyist robotics

Benefits

• High-Speed Performance: Metal shields allow higher RPM than rubber-sealed bearings
• Precision Engineering: Ensures smooth, quiet, and accurate operation
• Durable & Compact: High-strength design fits space-constrained applications
• Low Maintenance: Pre-lubricated grease and shielded design reduce maintenance needs
• Versatile Use: Suitable for industrial, robotics, medical, and hobbyist applications

Package Includes

• 1 x 698ZZ Metal Shielded Miniature Ball Bearing
