57AM13 Stepper Motor NEMA 23 High Torque Motor

57AM13 Stepper Motor NEMA 23 High Torque Motor

57AM13 Stepper Motor NEMA 23 High Torque Motor

• The 57AM13 is a premium NEMA 23 hybrid closed loop stepper motor
• Designed for hybrid stepper motor 57AM applications that demand high accuracy, stable torque and smooth motion control.
• With encoder feedback, it eliminates missed steps and provides performance similar to servo motors—at a more affordable cost.

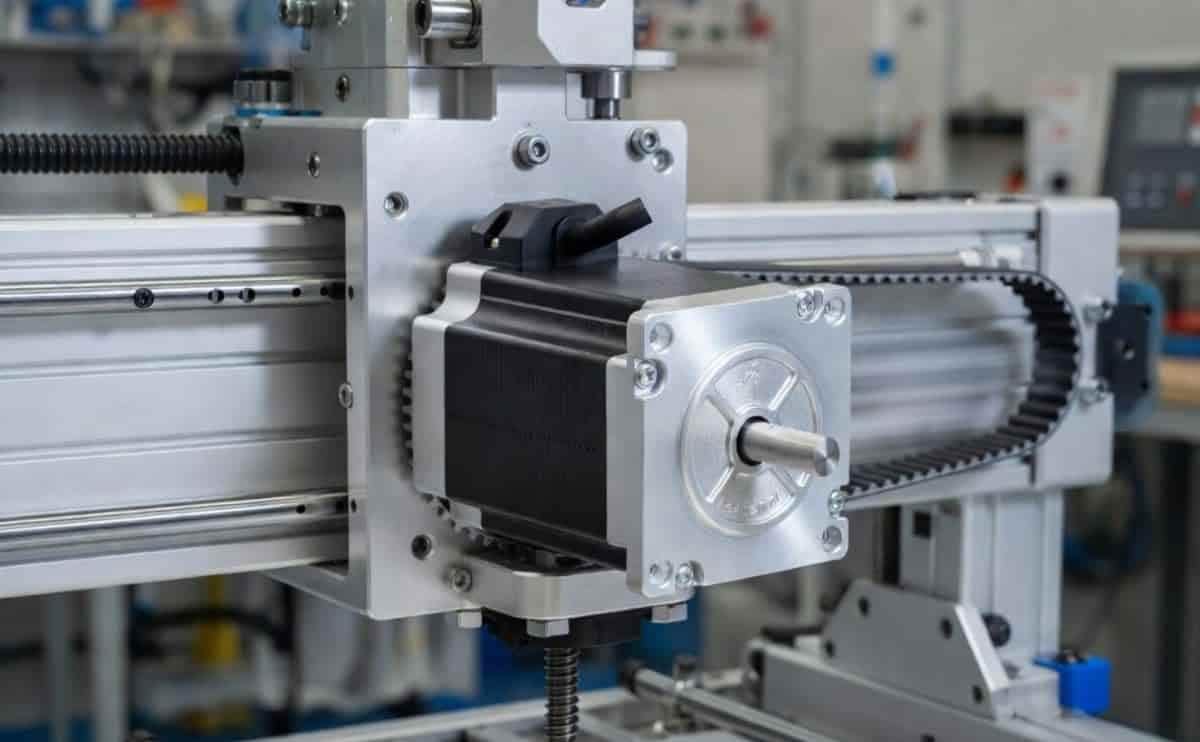

• Used in CNC routers, engraving machines, robotics, pick-and-place machines, packaging systems and industrial automation equipment.

Specifications

• Motor Model: 57AM13
• Frame Size: NEMA 23 (57 × 57 mm)
• Step Angle: 1.8°
• Holding Torque: 2.2–3.0 N·m
• Rated Current: 3–4 A per phase
• Motor Type: 2-Phase Hybrid Stepper Motor
• Shaft Diameter: 6.35 mm or 8 mm
• Body Length: 76–100 mm

Electrical Characteristics

• Phase Resistance: 0.6–1.0 Ω
• Inductance: 2.5–3.5 mH

Key Features

• Closed loop motor Feedback for zero step-loss
• High Torque Output for heavy-duty applications
• Smooth & Silent Operation
• Servo-like Performance at lower cost
• Low heat & higher efficiency
• Fast acceleration and stable speed
• Compatible with multiple closed loop drivers

Applications

• CNC routers & milling machines, Laser engraving & marking machines
• Industrial automation systems, 3D printers & extruder systems
• Robotics & pick-and-place machines, Packaging machines & textile equipment
• Conveyor systems & material handling

Package Includes

• 1 pice of 57AM13 stepper motor
