42 stepper motor nema17 40mm for 3D printer

42 stepper motor nema17 40mm for 3D printer

The 42 stepper motor nema17 is a high-quality motor designed specifically for 3D printer applications. With its precise control and reliable performance, this stepper motor is a perfect choice for any 3D printing project.

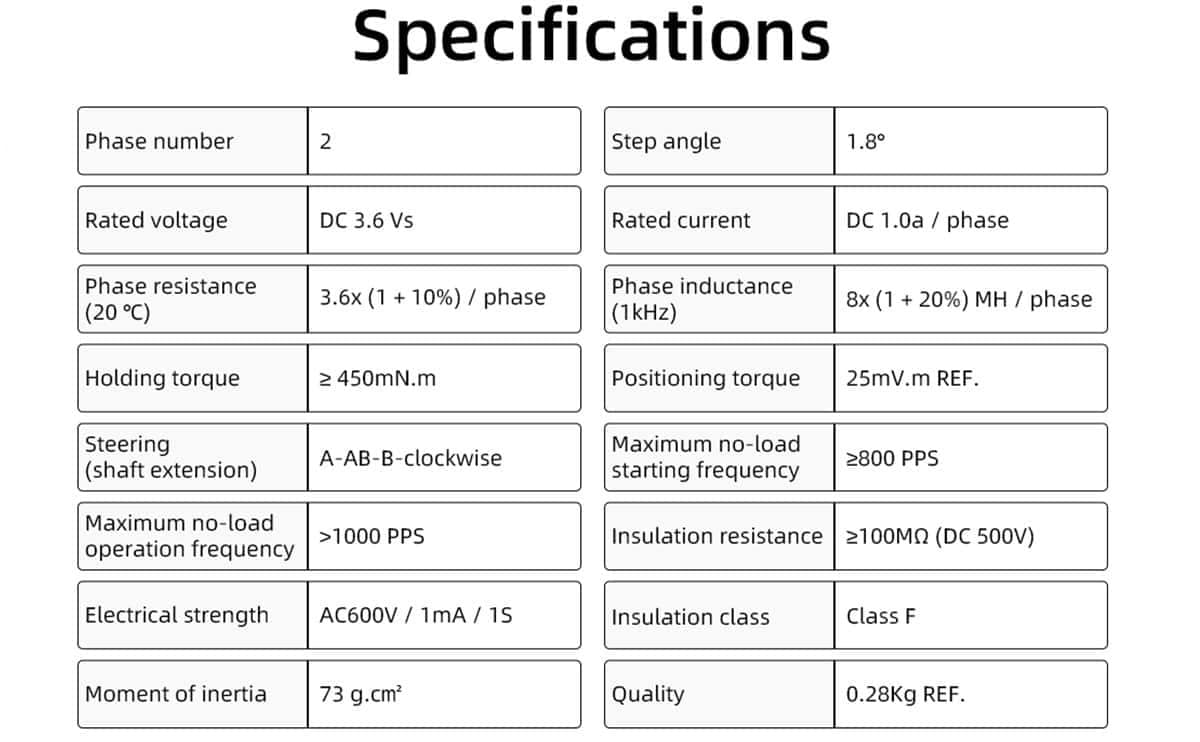

Specifications of 42 stepper motors:

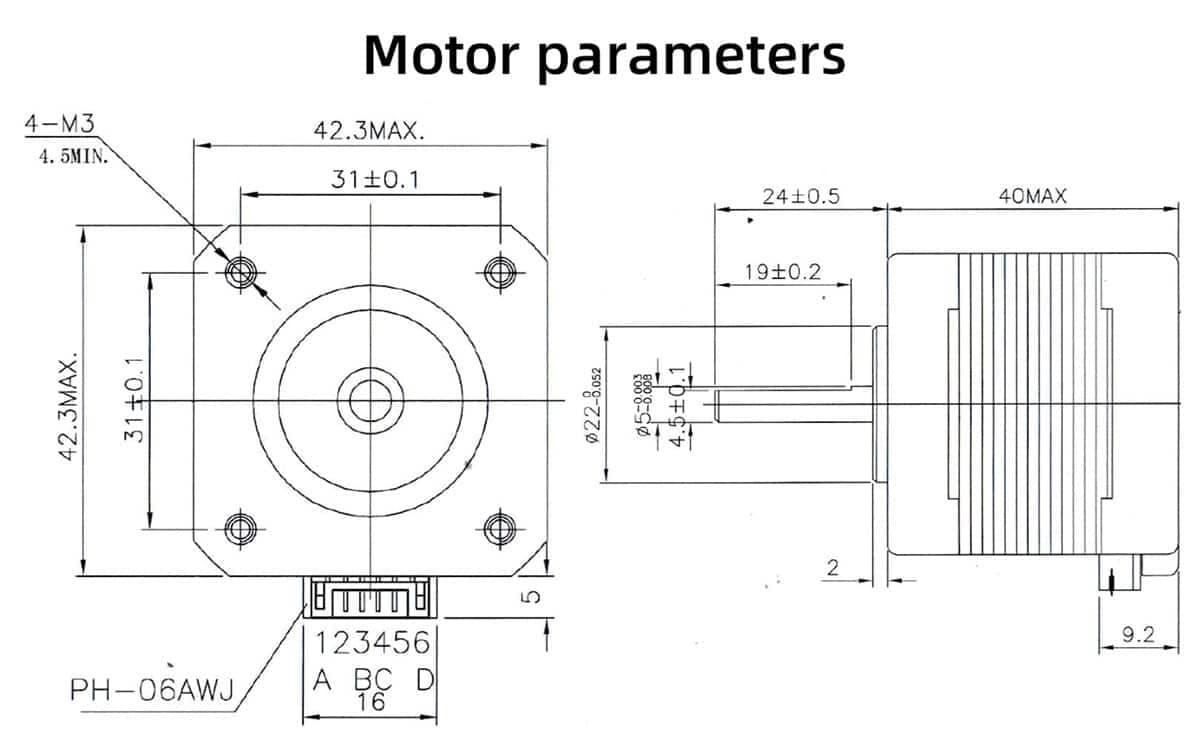

• High:40mm
• Shaft length:22mm
• Color:Black
• Phase number:2
• Rated voltage:DC 3.6 Vs
• Phase resistance:3.6*(1+10%) / phase
• Steering（shaft extension):A-AB-B-clockwise
• Maximum no-load operation frequency:＞1000 PPS
• Electrical strength:AC600V/1mA/1S
• Moment of inertia:73 g.cm ²
• Holding torque:≥450mN.m
• Step angle:±1.8°
• Rated current:DC 1.0a/phase
• Phase inductance（1kHz）:8X（1+20%）MH/phase
• Positioning torque:25mV.m REF.
• Maximum no-load starting frequency:≥800 PPS
• Insulation resistance:≥100MΩ（DC 500V）
• Insulation class:Class F

Usage:

• Featuring advanced technology and a robust construction, the stepper motor and driver offers smooth and accurate movement for precise 3D printing. It is compatible with a wide range of 3D printer models and can be easily connected to the printer’s control board.
• 42 stepper motor nema17 is designed to provide excellent torque and speed control, ensuring that your 3D printer can handle complex and intricate designs with ease.
• Whether you are printing small prototypes or large-scale models, the 42 stepper motor nema17 delivers consistent and reliable performance.
• Additionally, the 42 stepper motor nema17 is easy to install and maintain. Its durable design ensures a long lifespan, minimizing the need for frequent replacements. This makes it a cost-effective choice for 3D printer enthusiasts and professionals alike.
• Overall, the 42 stepper motor nema17 is a top-quality component that enhances the performance and precision of 3D printers. Its compact dimensions, reliable usage, and easy installation make it an ideal choice for both hobbyists and professionals in the 3D printing industry.

Packages Include:

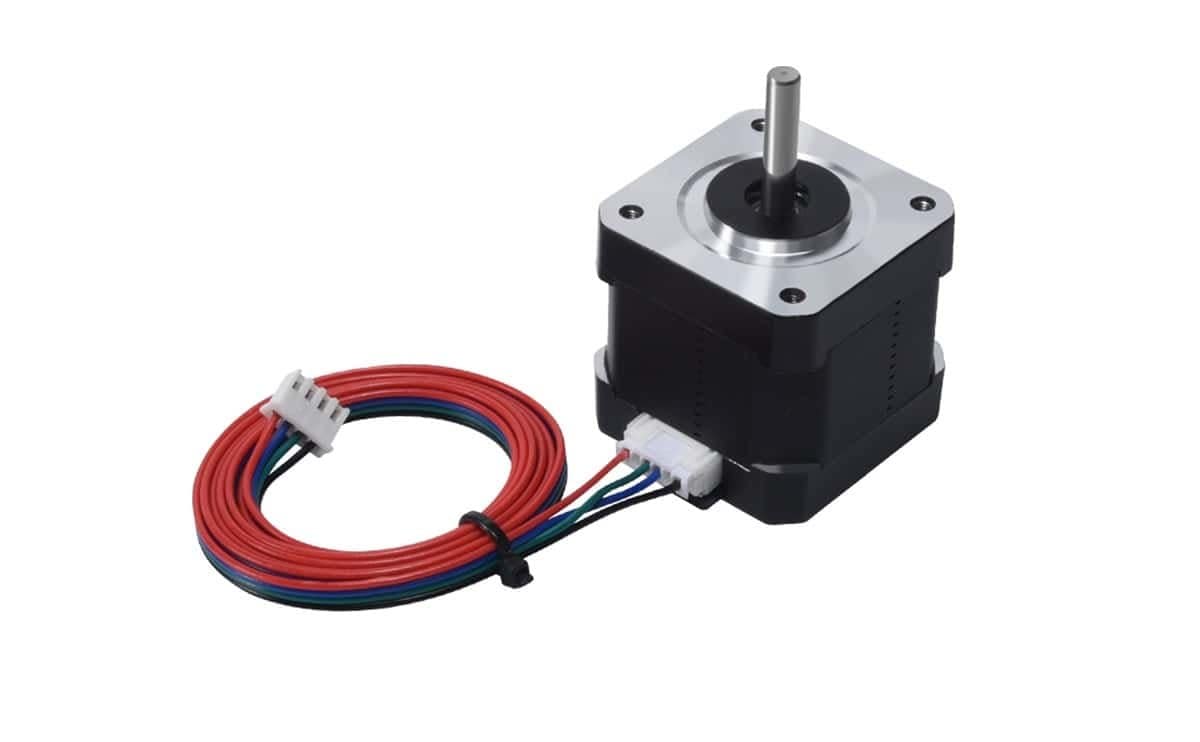

• 1 pieces of 42 stepper motor nema17 with 1m wire 6pin jst to 4pin jst.
