28BYJ 48 stepper motor and ULN2003 stepper motor driver board module for arduino DIY kit

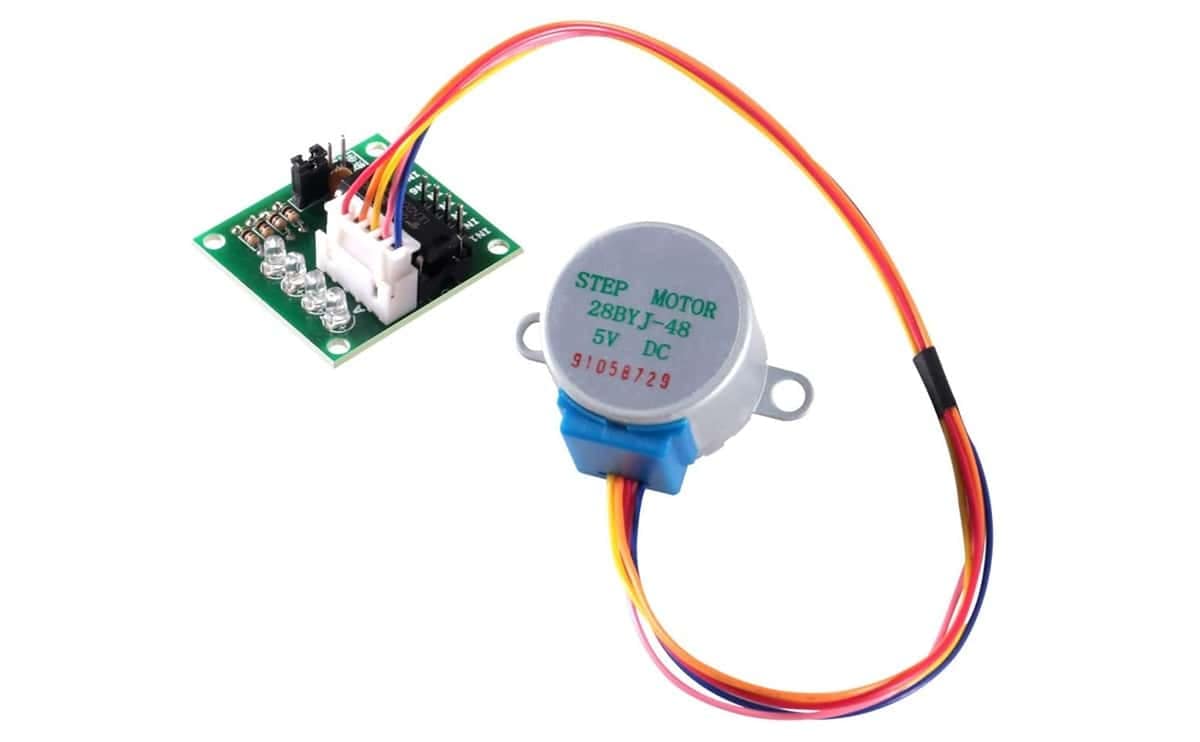

This 5V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.

  • Stepper motor and driver, 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors.
  • The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM.
  • It is a unipolar stepper motor that has 5-wires.

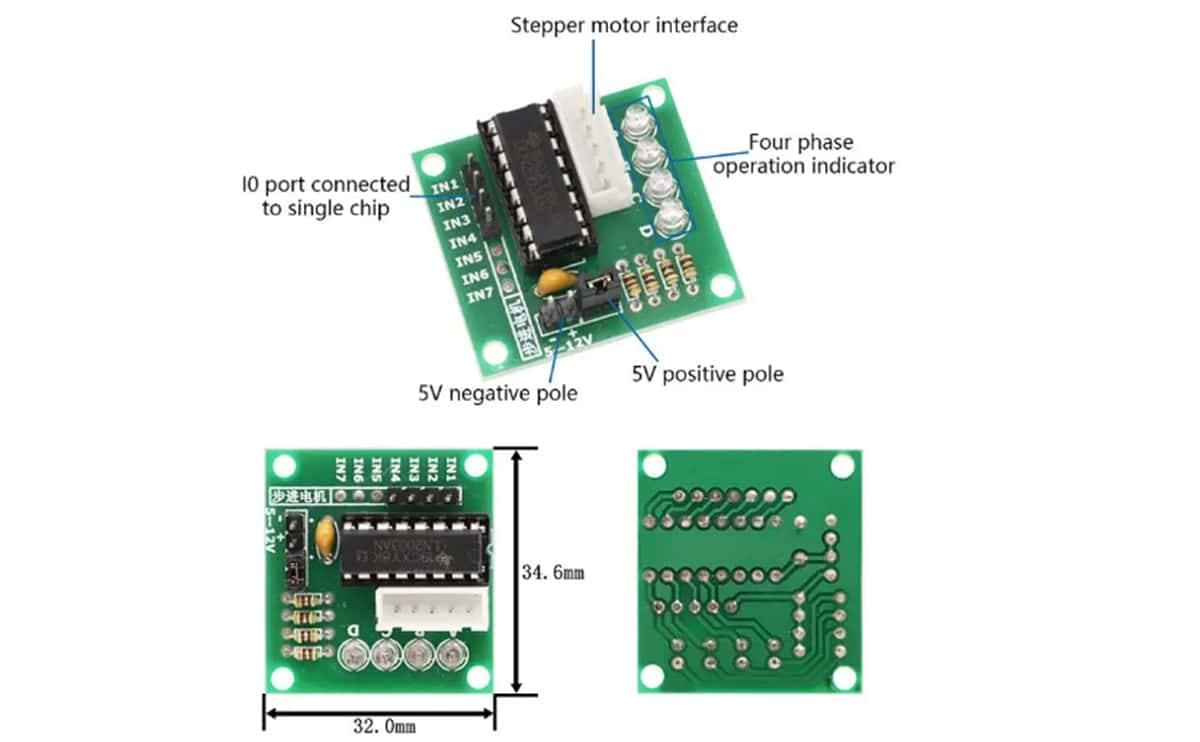

  • As stated before the pack contains ULN2003 Stepper Driver which is a Mini Stepper Driver.
  • The main purpose of driver is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.
  • Different type of stepper driver also availabe such as A4988 driver, DRV8825 driver, etc.

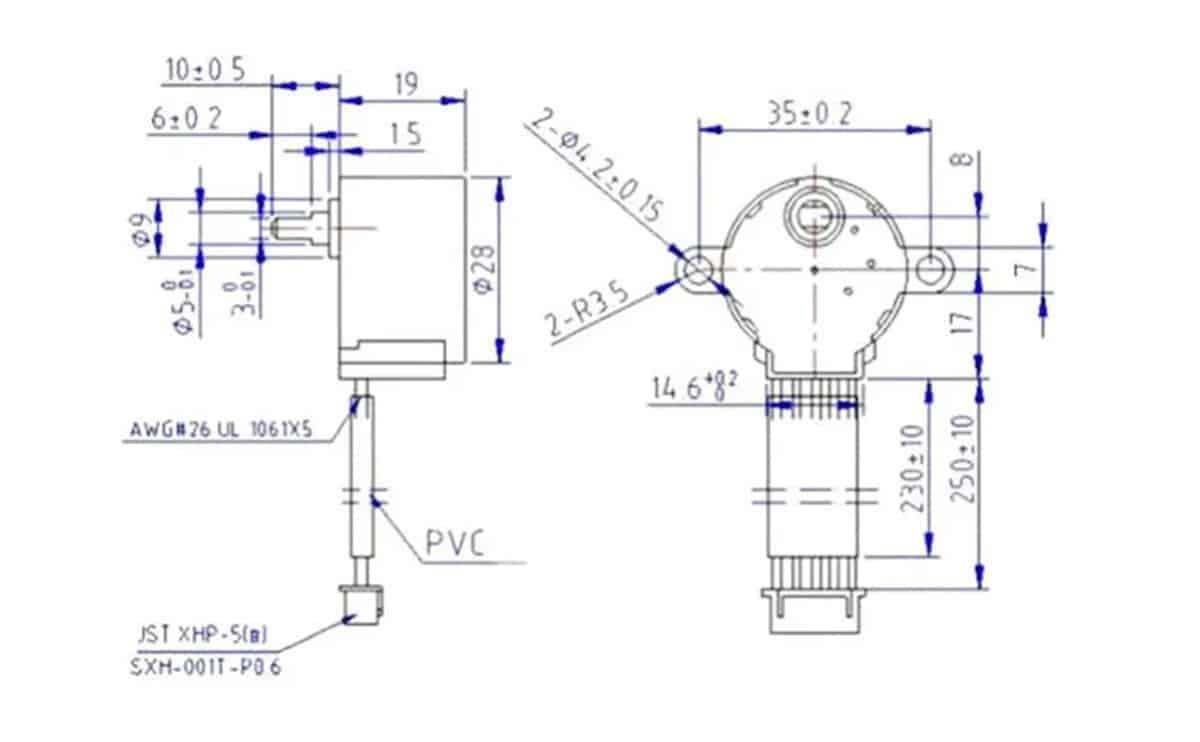

Specifications:

  1. Diameter: 28mm / 1.1in
  2. Voltage: DC 5V
  3. Length: 274mm / 10.8in
  4. Step Angle: 5.625 * 1/64
  5. Reduction ratio: 1/64
  6. DC Resistance: 200±7% (25)
  7. Insulation Resistance: >10M (500V)
  8. Dielectric Strength: 600V AC / 1mA / 1s
  9. Insulation Grade: A
  10. No-load Pull in Frequency: >600Hz
  11. No-load Pull out Frequency: >1000Hz
  12. Pull in Torque: >34.3mN.m(120Hz)
  13. Detent Torque: >34.3mN.m
  14. Temperature Rise: <40K(120Hz)
  15. Noise: <40dB (120Hz, No load, 10cm)
  16. Board Size: Approx. 29 * 21mm
  17. Total Weight: 41g / 1.43oz

Package Include:

  • 1 piece of stepper motor.
  • 1 piece of driver.
SKU: ND1151 Categories: , ,
Weight 50 g
