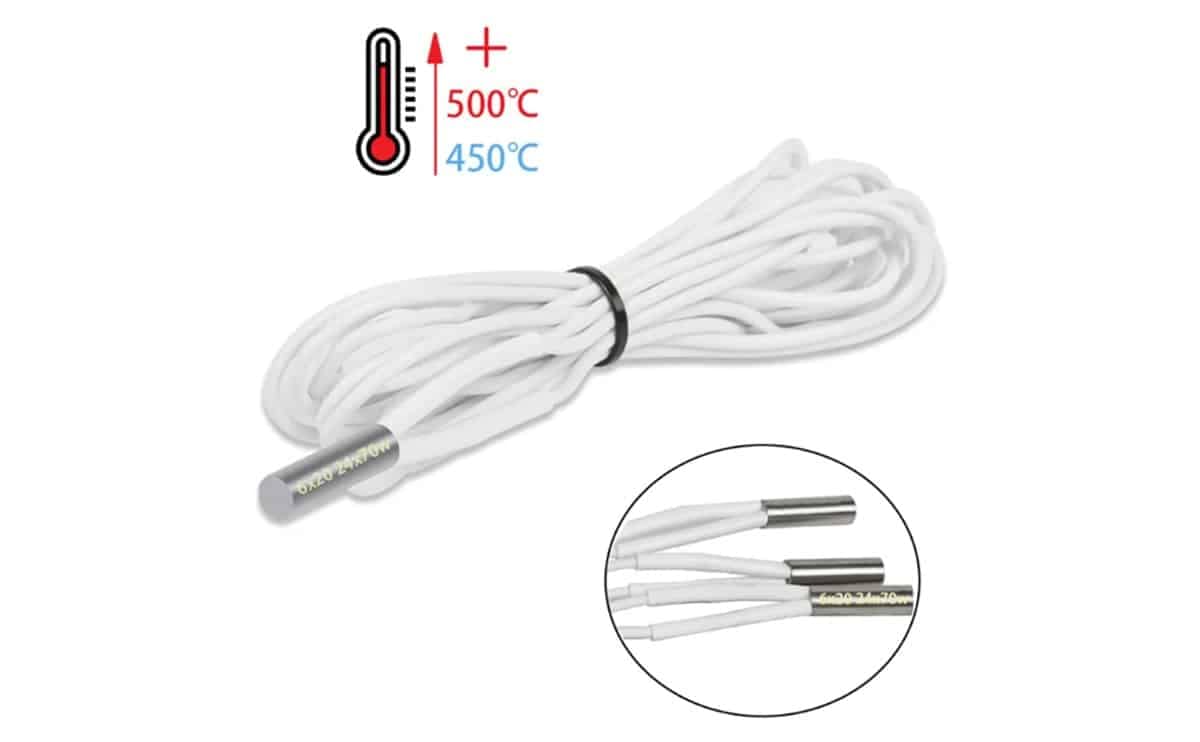

24V 70W Cartridge Heater 6x20mm with 100cm Cable for 3D Printers

Availability:

In stock


199.00

In stock

24V 70W Cartridge Heater 6x20mm with 100cm Cable for 3D Printers

Upgrade your 3D printer with the 24V 70W cartridge heater 6x20mm. This new version heater is designed to provide faster heating speed and a higher maximum temperature, making it ideal for various printing applications.

  • The heater cartridge 24v 70w 6x20mm features a 0.5-line thick white high-temperature cable, which not only enhances its appearance but also enables it to withstand higher temperatures.
  • Unlike the ordinary 0.3-line high-temperature line, this upgraded version can reach temperatures of up to 500℃, allowing for more efficient and precise printing.

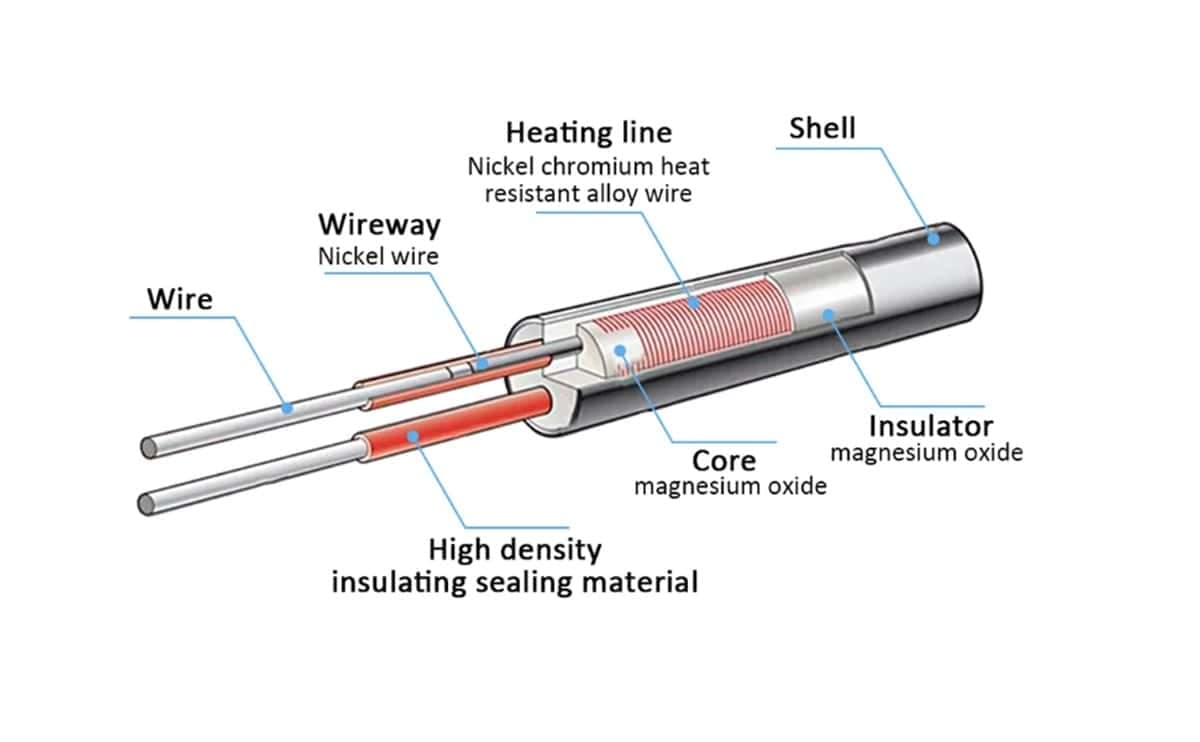

  • Thermisto & heater is constructed with imported skills, the heater utilizes 304 stainless steel and 2080 nickel chrome wire internally, ensuring maximum service life.
  • The customizable specifications of length and resistance make it suitable for different printer models and requirements.
  • For ease of use, the cartridge heating element is clearly marked with voltage and power information.
    The 24V voltage and 70W power ensure optimal performance and reliability.
  • It also available in 24V 80W cartridge heater, 24V 65W Cartridge heater.

Product Specification:

  • Voltage: 24V
  • Power: 70W

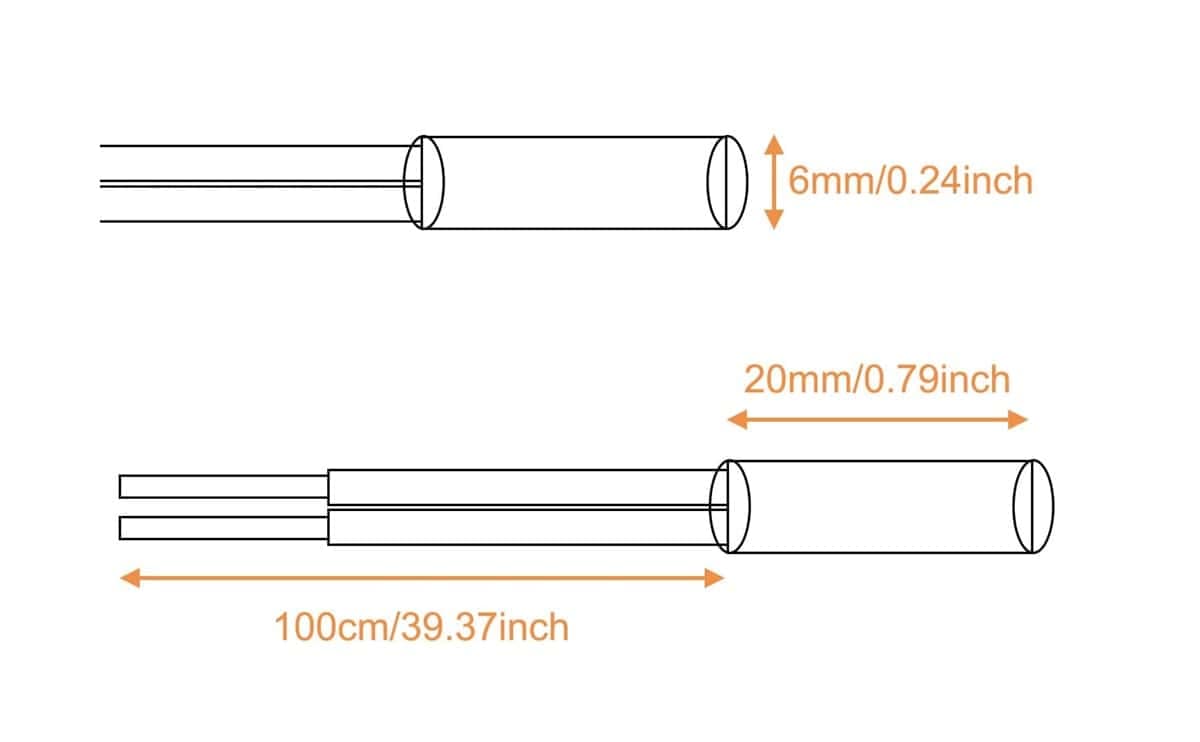

  • Heating Head Size: 6x20mm
  • Heating Head Material: 304 Stainless Steel
  • Line Length: 100cm
  • Line Thickness: 0.5 mm⊃2;
  • Color: As shown in the picture
  • Heating Temperature: Up to 500 degrees Celsius

Please note that the effective heating part of the heater must be kept dry. The electrical connector of the single-ended heater should be placed outside the insulation layer and heating room, and the working voltage should not exceed its rated value by more than 10%. Additionally, the shell should be effectively grounded, and the working environment temperature should not exceed 95 degrees Celsius. Avoid exposing the heater to explosive or corrosive gases, and store it in a dry place.

Packages Include:

  • 1 piece of 24V 70W Cartridge Heater.
Weight 20 g
HSN code

84779000
