TMC2226 driver v1.0 Bigtreetech stepper driver for 3d printer

TMC2226 driver v1.0 Bigtreetech stepper driver for 3d printer Driver

The TMC2226 is an ultra-silent motor driver IC for two phase stepper motors. Maximum efficiency and best motor torque.

• Its fast current regulation and optional combination allow highly dynamic motion while adding. StallGuard4 provides sensor less homing.
• The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation.
• A simple to use UART interface opens up tuning and control options.
• Stepper motor and driver is most advanced Step/Dir stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.

Specifications

• The TMC2226 Driver v1.0 by Bigtreetech is a high-performance stepper driver designed specifically for 3D printers. It offers a range of advanced features and specifications:
  • Input voltage: 4.75V to 36V
  • Output current: up to 2A RMS (3.2A peak)
  • Microsteps: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
  • StealthChop2™ silent motor operation
  • SpreadCycle™ highly dynamic motor control
  • StallGuard4™ sensorless motor load detection
  • CoolStep™ current control for energy savings
  • Thermal shutdown and overcurrent protection

Dimensions

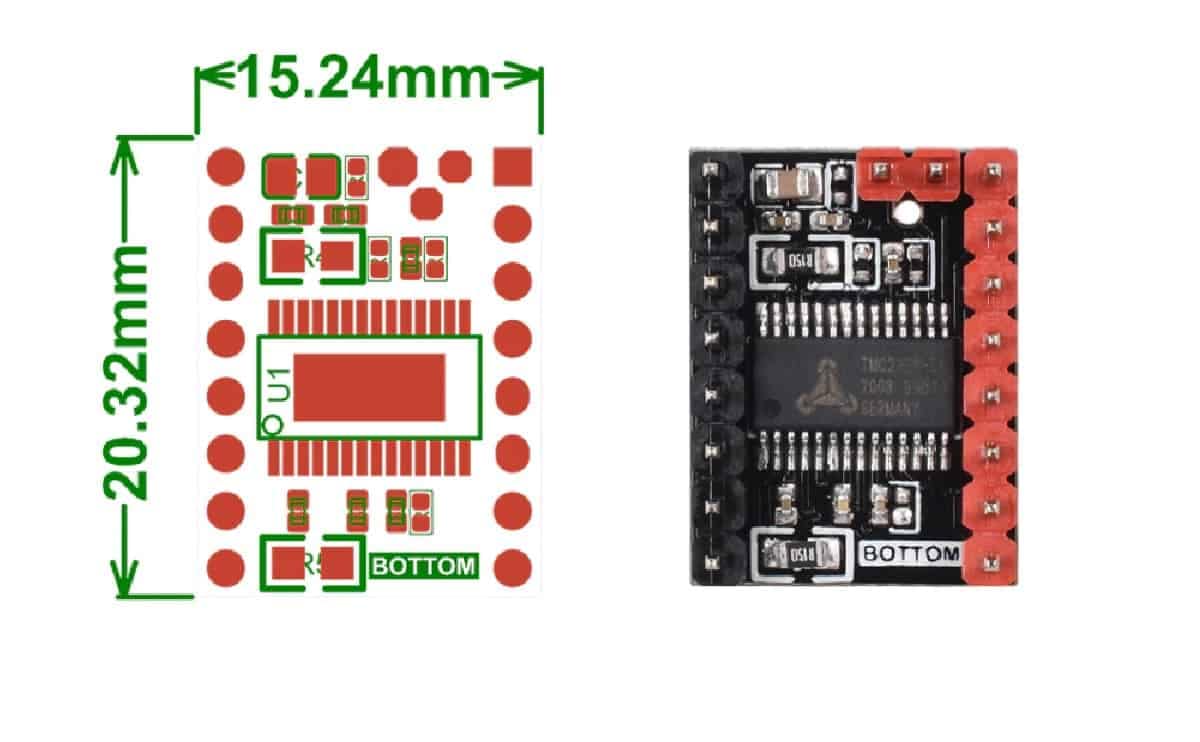

• The TMC2226 Driver v1.0 has compact dimensions, measuring 15mm x 20mm.
• Its small size allows for easy integration into 3D printer control boards and other applications.

Applications

• Bigtreetech driver is ideal for various applications, including:
  • 3D printers
  • CNC machines
  • Robotics
  • Automated systems

Usage

• The TMC2226 Driver v1.0 is easy to use and can be integrated into your 3D printer or other applications with minimal effort. Simply connect the driver to your control board, adjust the required settings, and you’re ready to go.
• The driver’s advanced features, such as StealthChop2™ and SpreadCycle™, ensure smooth and quiet motor operation, while StallGuard4™ and CoolStep™ provide reliable motor load detection and energy savings.
• With its compact size, high-performance specifications, and versatile applications, the TMC2226 Driver v1.0 by Bigtreetech is an excellent choice for enhancing the performance of your 3D printer or other motor-driven systems.

Package Include:

• 1 piece of TMC2226 driver.
