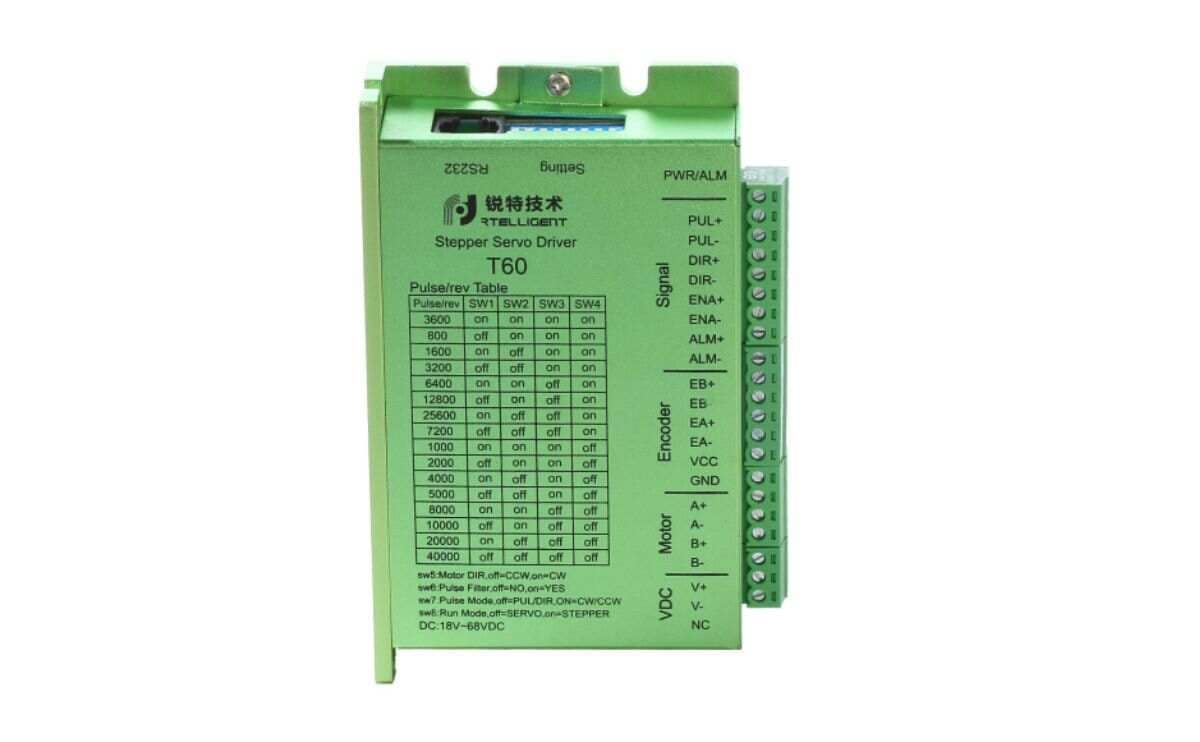

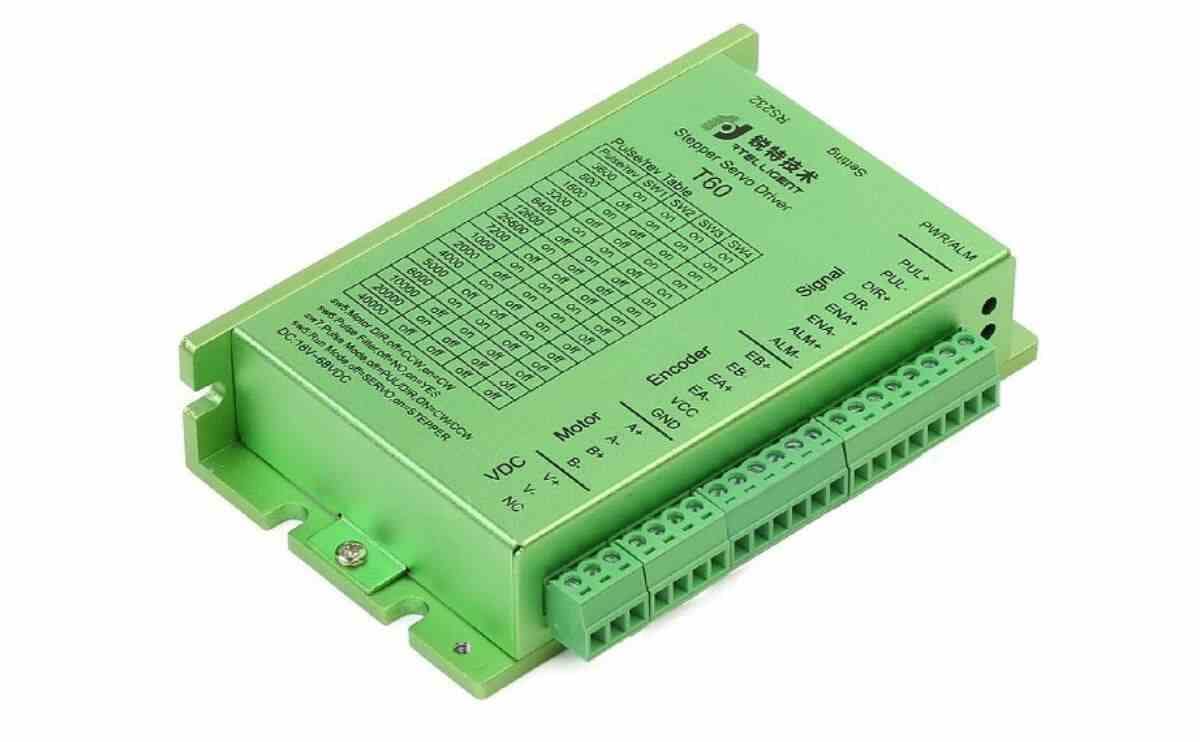

T60 Stepper Driver High Performance Microstepping Driver

T60 Stepper Driver High Performance Microstepping Driver

T60 Stepper Driver is a high-performance, digitally controlled microstepping driver designed for medium-to-high torque stepper motors

• NEMA 23 and NEMA 24. With intelligent current control, ultra-smooth microstepping, and an extended voltage range
• T60 motor driver delivers stable torque, reduced vibration, and highly accurate positioning for industrial automation systems
• T60 Motor Controller 3D printers, engraving machines, robotic platforms, and packaging equipment

Specifications

• Input Voltage: 20V – 60V DC
• Output Current: 1.0A – 6.0A (adjustable via DIP switches)
• Supported Motors:
  • NEMA 17 (low current),NEMA 23,NEMA 24
• Control Interface: Pulse / Direction / Enable
• Max Pulse Frequency: 200kHz
• Protection Features:
  • Stepper Driver T60 Over-current protection, Short-circuit protection, voltage protection Under-voltage lockout
• Cooling System:
  • Built-in heatsink + natural air cooling
• Operating Temperature: -10°C to 60°C

Key Features

• High-precision micro-stepping ensuring smooth and quiet motion
• Wide 20–60V input voltage for strong torque performance
• Auto-current reduction when motor idle
• Strong anti-interference DSP design for industrial applications
• T60 motor driver Ultra-low vibration & noise control
• Easy DIP-switch current & microstep configuration

Applications

• CNC Routers / CNC spindle feed, CNC Plasma & Laser Machines
• 3D Printers (large-format heavy-torque systems)
• Robotics & Automation Equipment
• Pick-and-Place Mechanisms
• Packaging Machines
• XY Gantry / Linear Actuator Systems

Package Includes

• 1 piece of  T60 Stepper Driver
