SFU1605 Ball Screw with Nut & Machined Ends – High Precision Linear Motion Lead Screw

SFU1605 Ball Screw with Nut & Machined Ends – High Precision Linear Motion Lead Screw

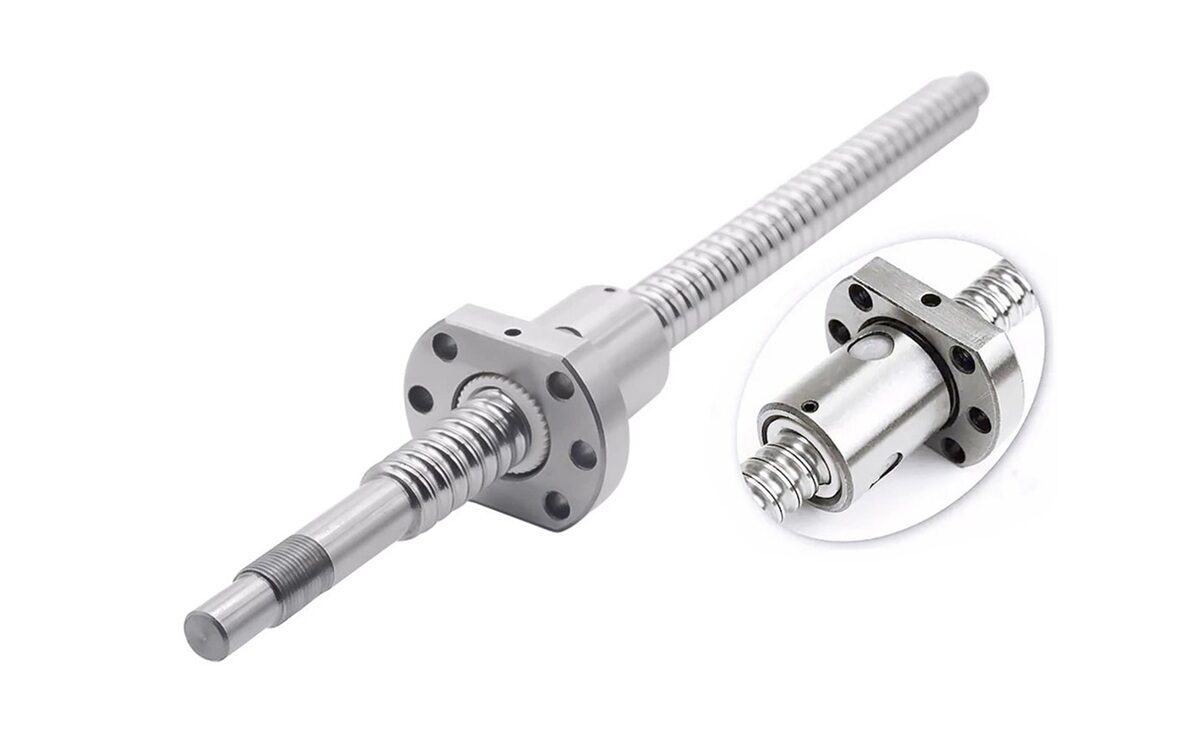

The SFU1605 Ball Screw with Nut and Machined Ends is a high-precision linear motion component designed for applications requiring smooth, accurate, and efficient transmission.

• Featuring a 16mm screw diameter and a 5mm lead, this ball screw delivers minimal friction and exceptional positioning accuracy — making it ideal for CNC machines, 3D printers, and automation equipment.

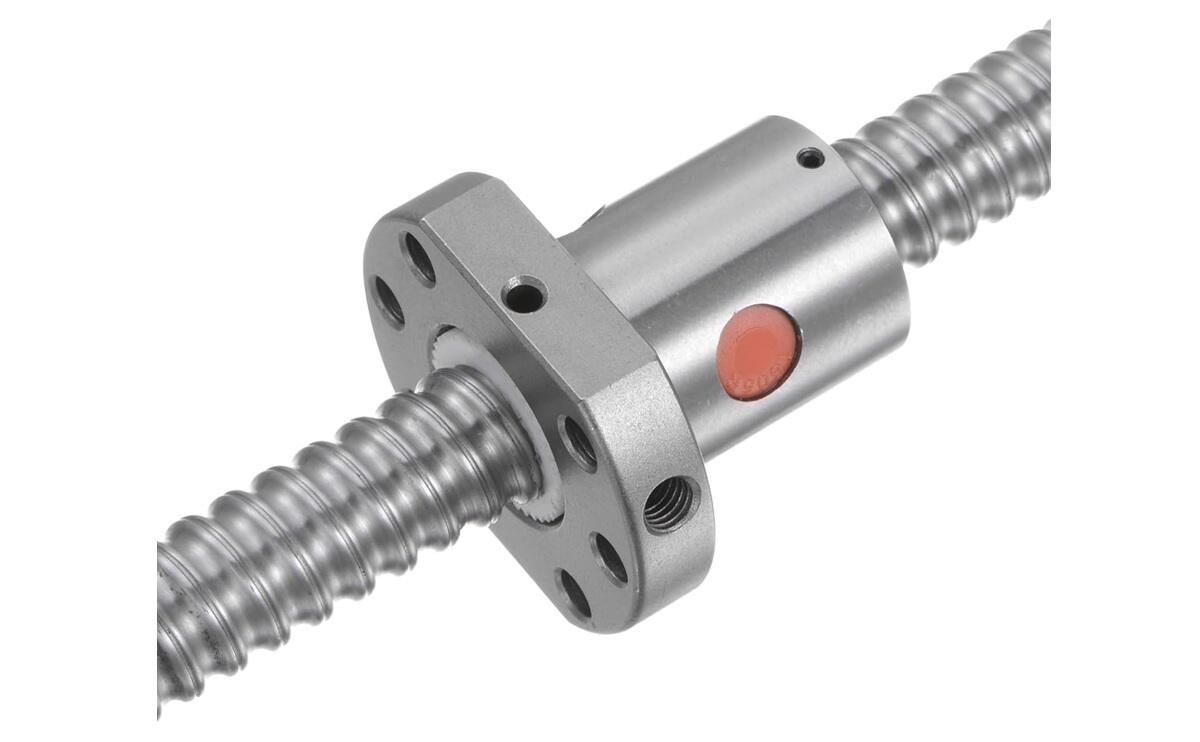

• This ball screw comes pre-installed with an SFU1605 ball nut, offering low backlash and smooth, linear motion.
• Its compact design and high-efficiency rolling mechanism reduce power consumption while increasing positioning speed and repeatability.

Product Specifications

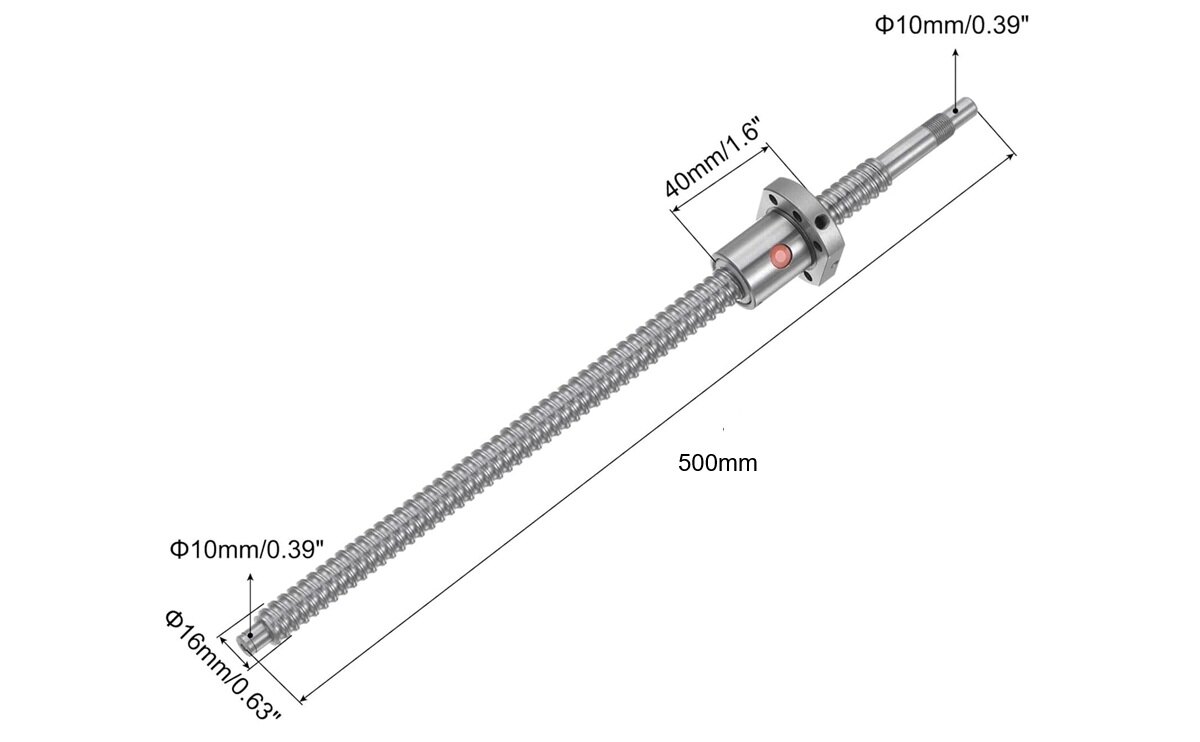

• Model: SFU1605 Ball Screw
• Screw Diameter: 16 mm
• Lead (Pitch): 5 mm
• Length: 500mm/1000mm
• Thread Type: Rolled Ball Screw
• Material: High-carbon bearing steel
• Nut Type: SFU1605 Ball Nut
• Nut Preload: Zero-backlash (optional preload available)
• End Machining: C7 precision-machined ends for easy coupling and bearing installation
• Length: Customizable (commonly available in 300mm to 1500mm)
• Accuracy Grade: C7 (±0.05mm/300mm)
• Hardness: HRC58-62
• Lubrication: Light oil pre-applied
• Mounting Ends: Compatible with BK/BF12, FK/FF12 bearing blocks

Applications

• CNC milling and routing machines
• 3D printers and delta robots
• Linear actuators
• Industrial automation systems
• Laser cutting/engraving machines
• Precision XY motion platforms
• Robotics and pick-and-place machines
• Injection molding machines

Package Include

• 1 piece of SFU1605 ball screw with ball screw nut in Length 500mm/1000mm.
