Aluminum profile fixing block 2020/2040 for MGN12H linear guide rail fixed block for 3D printer

Profile fixing block 2020/2040 for MGN12H linear guide rail fixed block for 3D printer

Aluminum profile fixing block 2020/2040 for MGN12H linear guide rail fixed block for 3D printer.

Specifications

• The Aluminum Profile Fixing Block 2020/2040 is specifically designed for use with the MGN12H linear guide rail fixed block in 3D printers.
• Aluminium profile parts made from high-quality aluminum material, ensuring durability and stability.
• The dimensions of the fixing block are compatible with the 2020 and 2040 aluminum profiles commonly used in 3D printers.
• This makes it easy to integrate into existing setups or to use as a replacement part.

Applications

• It is an essential component in 3D printers that use the MGN12H linear guide rail fixed block.

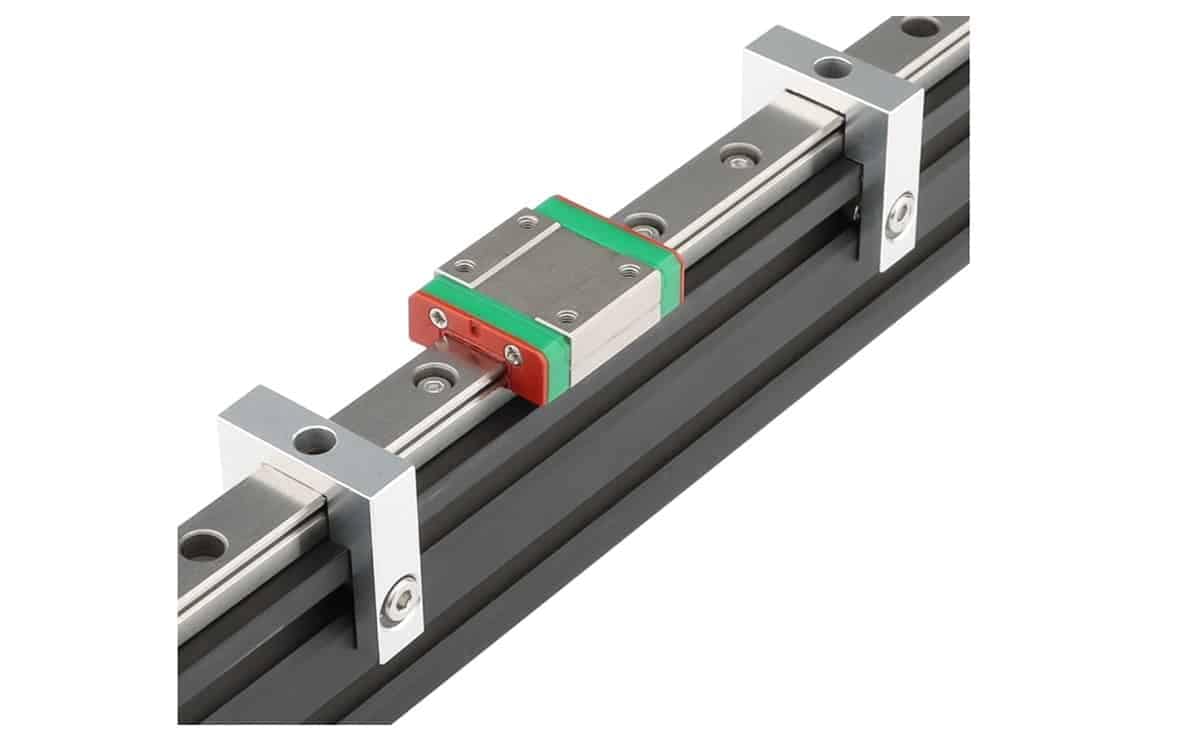

• It provides a secure and stable connection between the linear guide rail and the aluminum profile.

Usage

• When installing the aluminium fixed block, ensure that it is properly aligned with the linear guide rail and the aluminum profile.
• Secure it in place using appropriate fasteners, such as screws or bolts, to ensure a tight and reliable connection.
• The fixing block allows for easy adjustment and fine-tuning of the linear guide rail position.
• This is crucial for achieving precise and accurate movements in the 3D printer.
• Regular maintenance and inspection of the fixing block are recommended to ensure optimal performance and to prevent any issues that may arise from wear and tear.

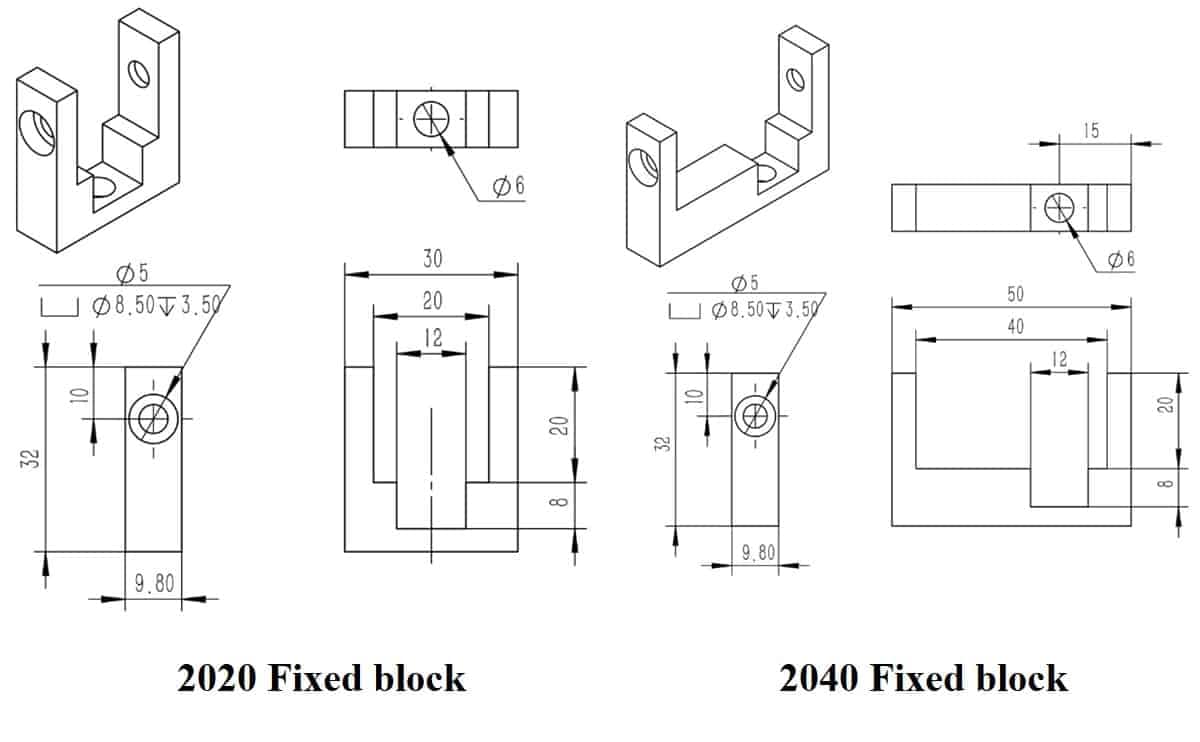

Product paratmeters 2020 fixed block:

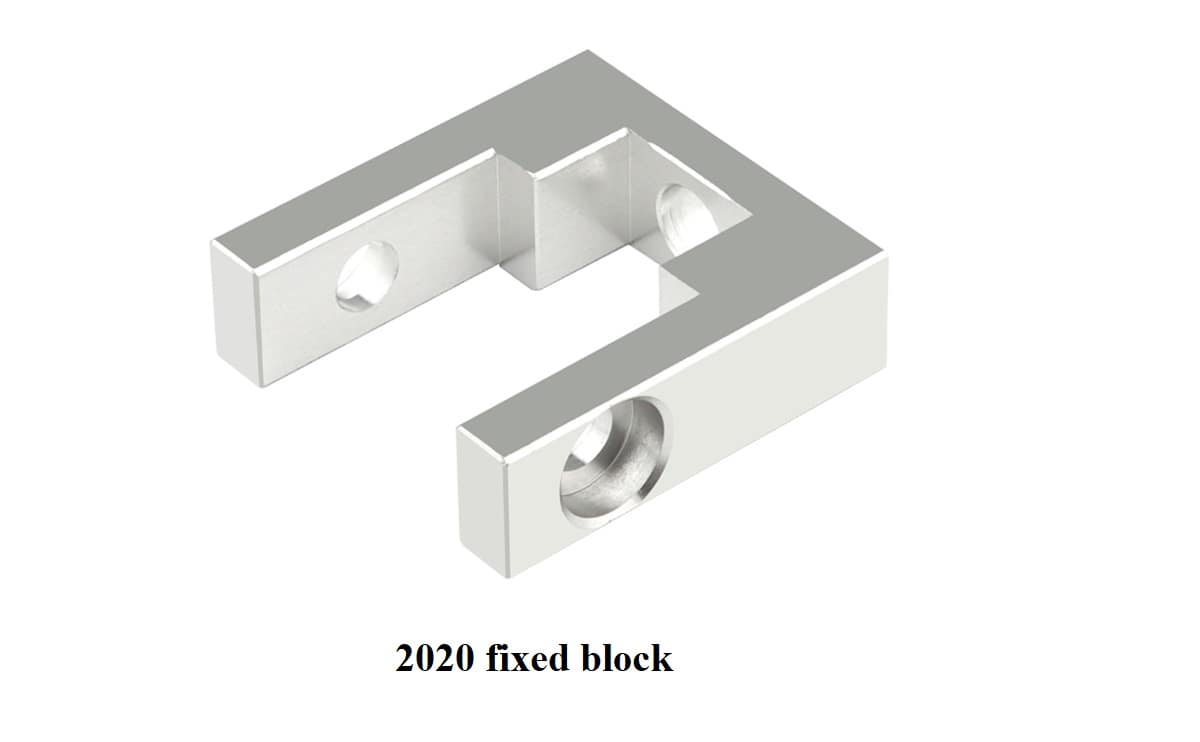

• Type : 2020 guide rail fixing block
• Material : Aluminum alloy.
• Surface treatment : Anodized
• Usage : Suitable for MGN12H linear guide
• Screw size: M4

Product paratmeters 2040 fixed blocks:

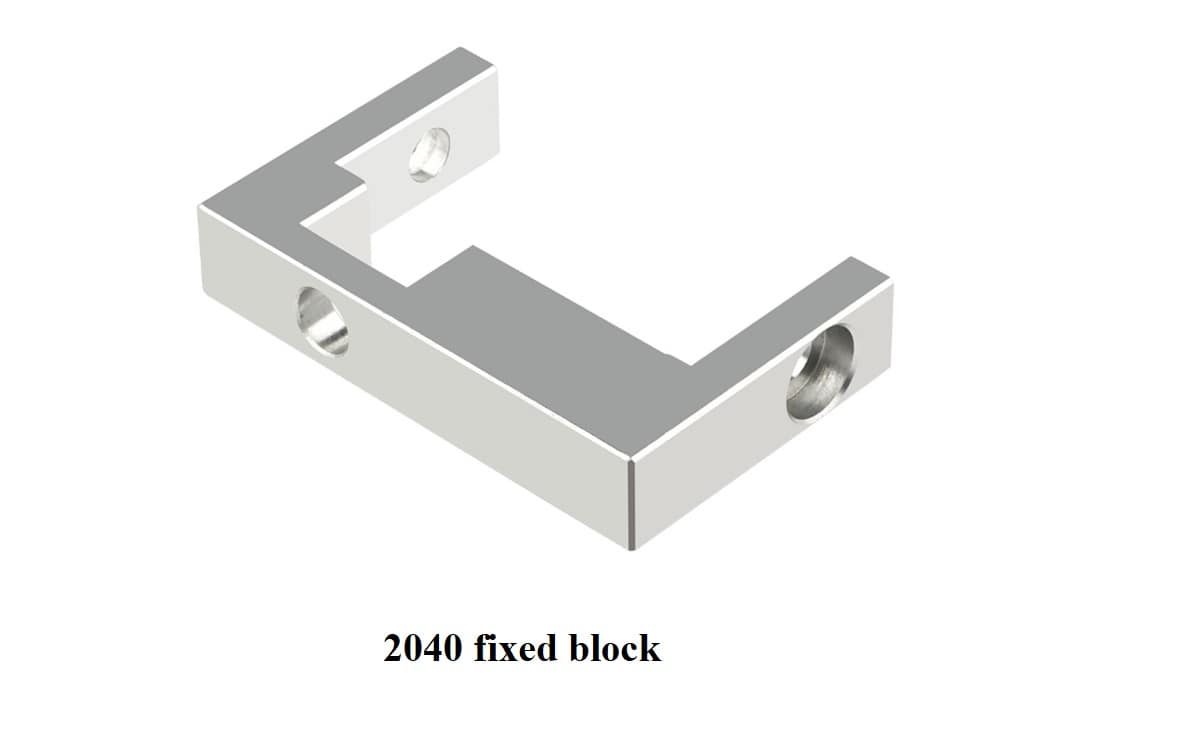

• Type : 2040 guide rail fixing block
• Material : Aluminum alloy.
• Surface treatment : Anodized
• Usage : Suitable for MGN12H linear guide
• Screw size: M4

Package Include:

• 1 piece of profile fixing block 2020/2040.
