Nema17 Stepper
Nema17 Stepper Motor 4.8kgcm 1.5A 47mm motor 4 lead for 3D printer - Image 2
Nema17 Stepper
ND991 3
,

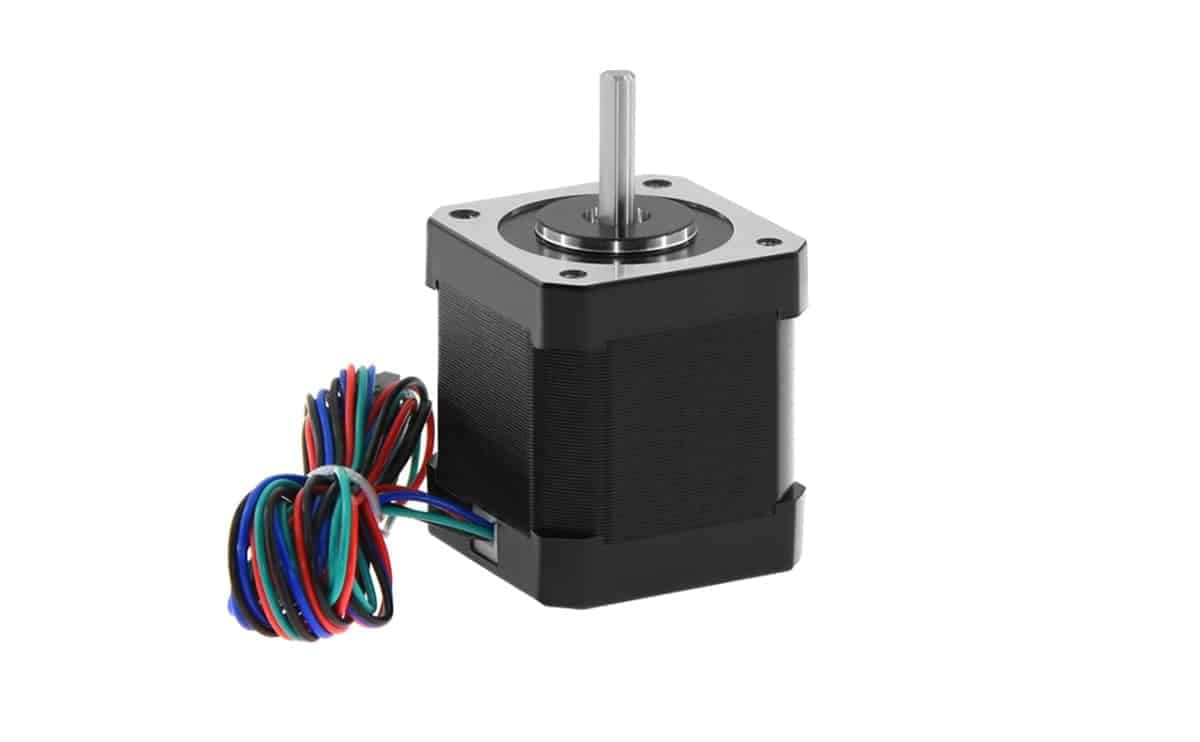

Nema17 Stepper Motor 4.8kgcm 1.5A 47mm motor 4 lead for 3D printer

6 reviews
Availability:

In stock
Add to wishlist

₹599.00  – ₹699.00

Add to wishlist

Nema17 Stepper Motor 4.8kgcm 1.5A 47mm motor 4 lead for 3D printer

Nema17 Stepper Motor 42 motor Nema 17 motor 1.5A 47mm motor 4-lead for 3D printer.

Features Nema17 Stepper Motor:

  • The motor is made of high-quality aluminum alloy, which has a long service life.
  • Stepper motor and Driver can be used for many years and not only to make your work more efficient but also better to improve efficiency.
  • The nema motor is easy to install and remove.
  • It can be installed in minutes without any tools or tools, so you can use it with confidence.
  • Small and exquisite: the nema motor is designed to be small and elegant, with an exquisite appearance.
  • Works perfectly: the nema motor is designed to be used in any room, office or home
  • High Quality With Global Standards

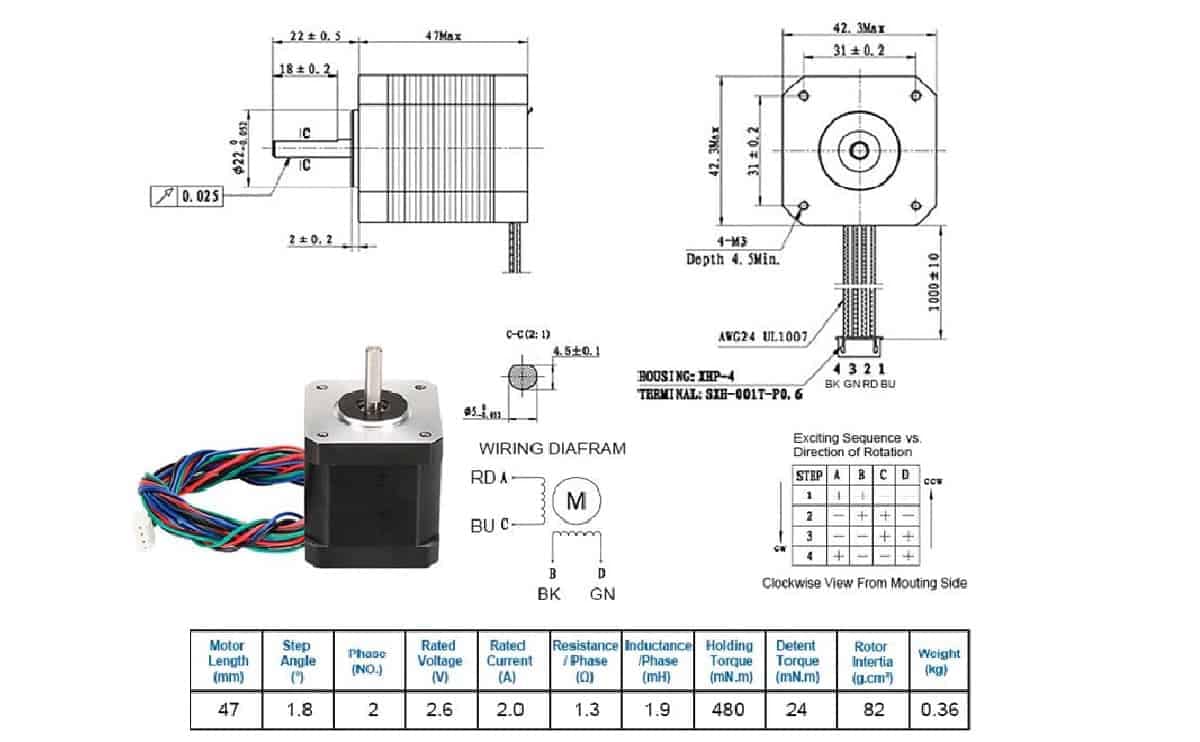

Specifications:

  • Bipolar two-phase
  • Step: 1.8 ° – 200 steps per revolution
  • Rated voltage: 3.3V DC
  • Rated current: 1.5A
  • Static Torque: 500mN.m Min (2 phases)
  • Rated resistance: 2.2 Ohm ± 10% (20 ° C)
  • Rated inductance: 4.4mH ± 20%
  • Inertia: 82g.cm 2
  • Weight: 360g
  • Length: 47mm
  • Insulation class: B (130 ° C)

Applications:

  • The Nema17 Stepper Motor is widely used in various applications, including:
    • 3D Printers
    • CNC Machines
    • Robotics
    • Automation Systems
    • Camera Sliders

Usage:

  • The Nema17 Stepper Motor is known for its precision and reliability. It is designed to provide smooth and accurate motion control in demanding applications. With its high holding torque of 4.8kgcm and current rating of 1.5A, it can effectively drive various mechanisms.
  • When used in 3D printers, the Nema17 Stepper Motor ensures precise movement of the print head and bed, resulting in high-quality prints. In CNC machines, it enables precise control of the cutting tool, allowing for intricate designs and smooth cutting operations. In robotics and automation systems, it provides precise positioning and movement control.
  • The Nema17 Stepper Motor’s 4-lead configuration allows for flexible wiring options, making it compatible with a wide range of stepper motor drivers and controllers.

Packages Include:

  • 1 piece of nema17 motor attached with 1m wire 6pin JST to 4pin JST.
SKU: ND991 Categories: ,
Weight 200 g
HSN Code

847790
Type

Attached cable with motor, Detachable cable with motor
