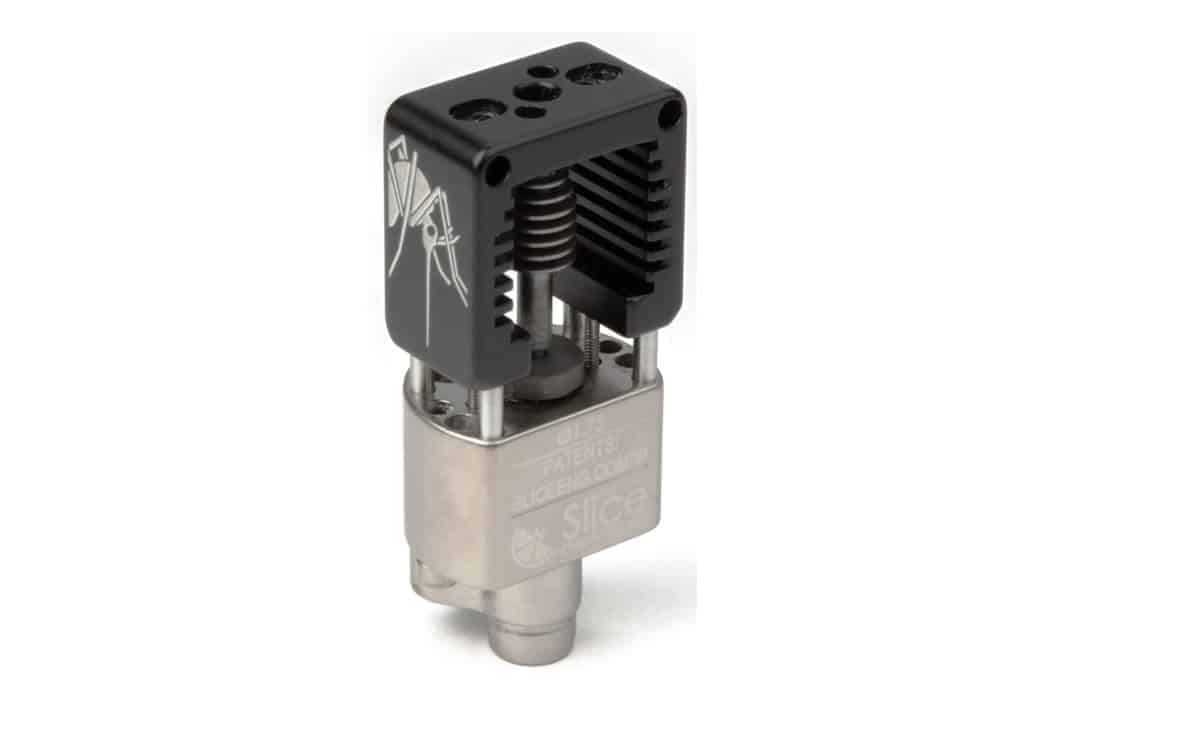

Mosquito Magnum Plus Air Slice Engineering

Mosquito Magnum Plus Air Slice Engineering

• Assembling the Mosquito Magnum Plus Air: Bondtech Mosquito Magnum Plus Air is delivered as a bundle of parts. You may find instructions on how to assemble it here:  Assembly instructions 1.75mm, 2.85mm air cooled. Mosquito Magnum+ supports up to 2 heater cartridges and 2 temperature sensors.

Industry Leading Hotend:

• Includes all of the industry-leading benefits of the Mosquito product line, such as Bimetallic Heat Break technology, a 500 °C temperature rating.
• Ability to print all filaments from basic PLA to medical-grade PAEK, and the rigid roll cage structure that enables our famous One-Handed Nozzle Change.

Thermally Optimized:

• Filament contacts the hot block directly for maximum heat transfer efficiency
• Enhanced structural strength, ideal for large format printers, and non-planar printing
• Print PLA up to 88 mm3/s and ABS up to 91 mm3/s*
• Boost speed without losing resolution†
• Tips the scales at just 30% heavier than a standard Mosquito, but with 3.5x the output

Highly Configurable:

• Expandable heater capacity, up to 100W
• Redundant temperature sensor sockets
• Optional 500 °C-rated nozzle insulator
• Uses standard-length (12.5 mm) Vanadium and Bridgemaster nozzles for both Ø1.75 or Ø2.85 filament sizes

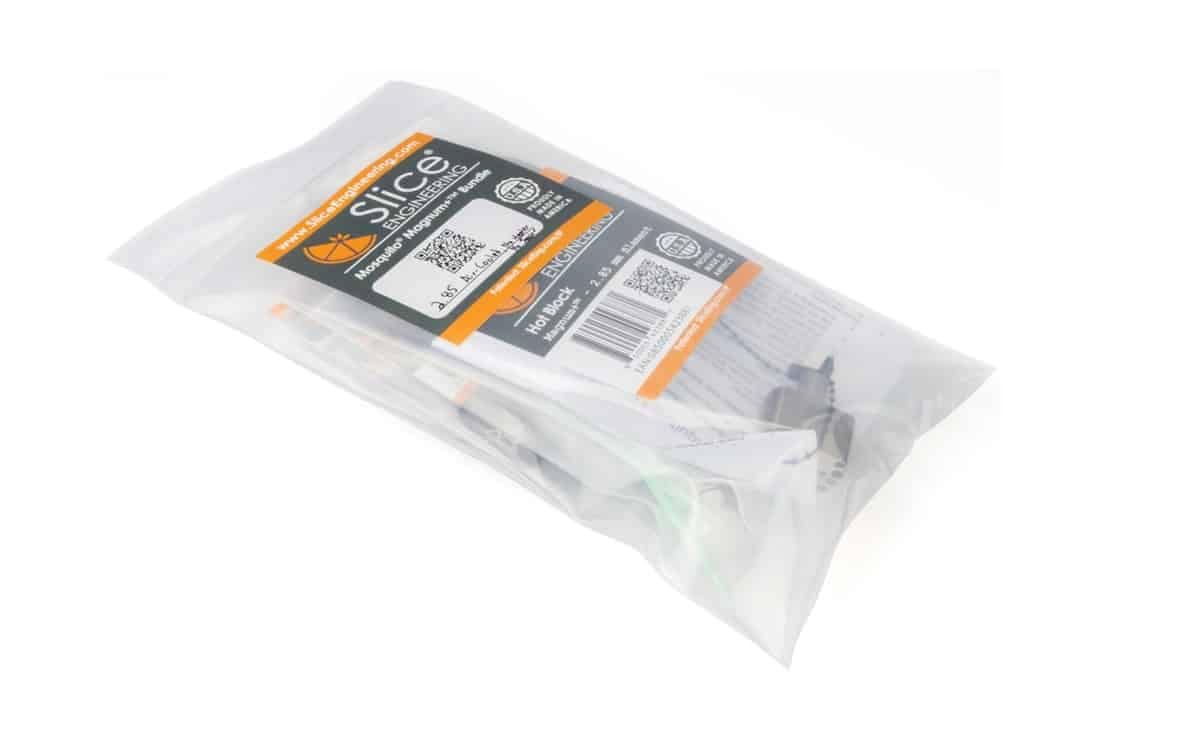

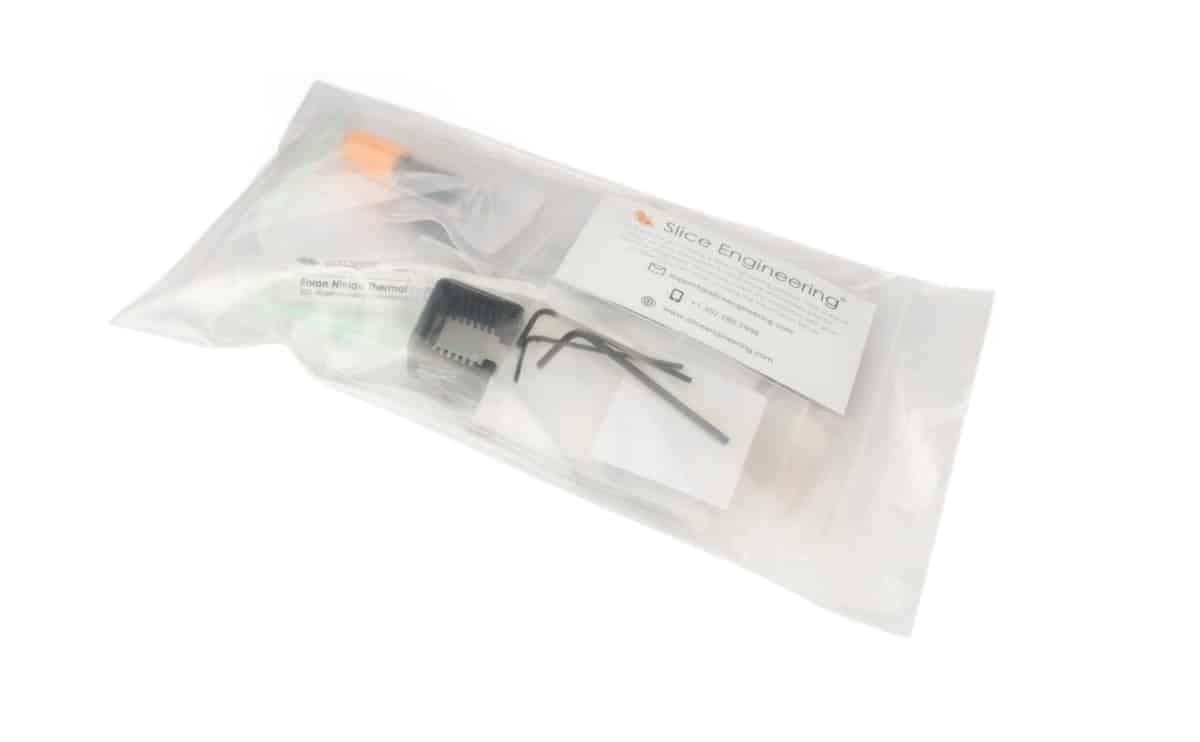

Included in the “Mosquito Magnum Plus Air 1.75mm,2.85mm” hotend kit:

• Mosquito Heat Sink  Magnum Plus – 1.
• Hot Block Magnum Plus 1.75mm,2.85mm – 1.
• Mosquito Heat Break Standard – current – 1.
• Hot Block Hardware Magnum Plus – 1.
• Hotend Mounting Hardware – 1.
• Boron Nitride Paste – 1.
