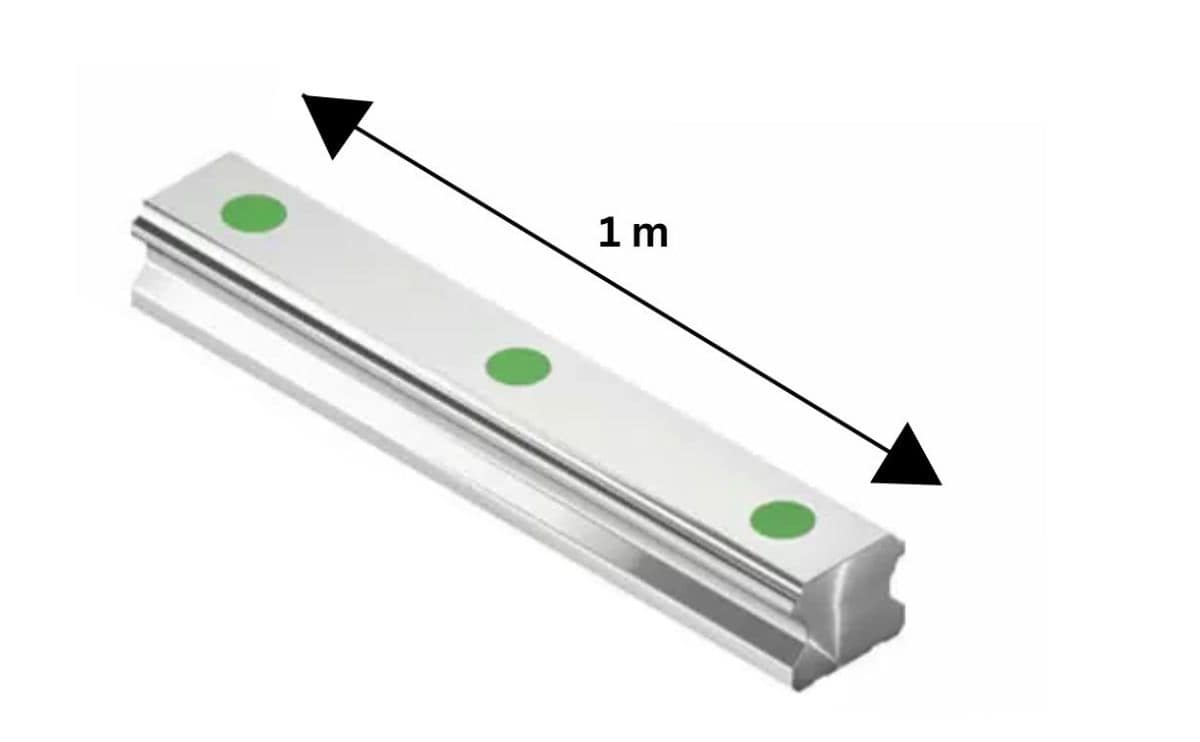

Hiwin MGN15 Linear Guide Rail Length 1000mm

Hiwin MGN15 Linear Guide Rail Length 1000mm

Hiwin MGN15 Linear Guide Rail Length 1000mm

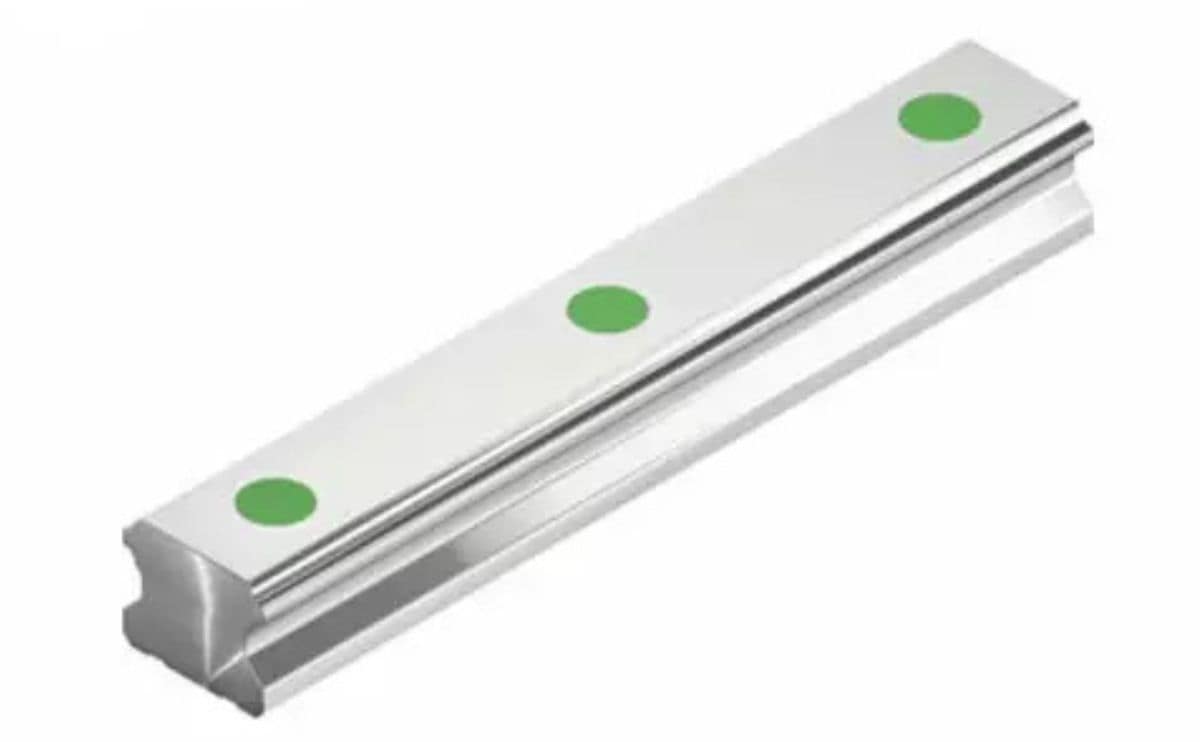

• Hiwin MGN15 Linear Guide Rail Length 1000mm is part of HIWIN’s miniature linear motion series, engineered to deliver high accuracy, smooth operation, and excellent rigidity in compact spaces.
• Manufactured by HIWIN, this rail meets stringent quality standards for precision and durability.

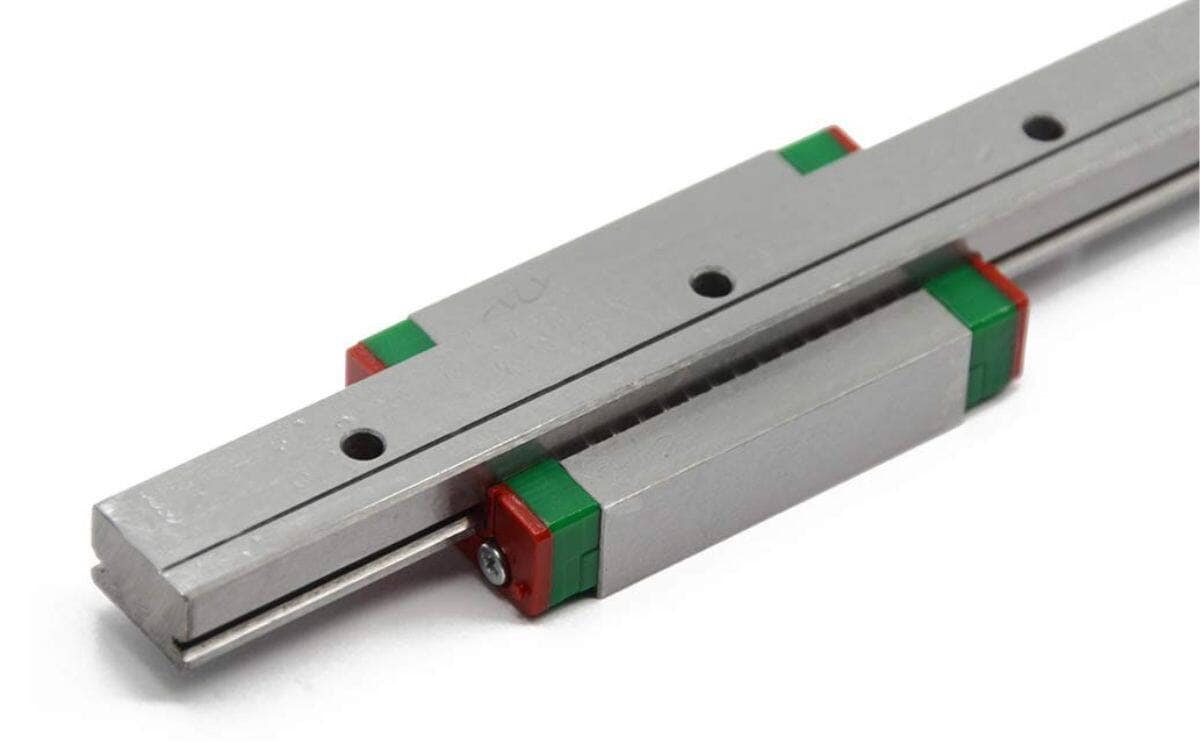

• Constructed from hardened alloy steel with precision-ground raceways, the MGN15 rail provides low friction, stable travel, and long service life. It is compatible with HIWIN MGN15H (long block) and MGN15C (short block), allowing flexibility based on load and space requirements.
• MGN15 rails are widely used in 3D printers, desktop CNC machines, laser engravers, robotics, pick-and-place units, and precision automation systems.

Specifications

• Brand: HIWIN
• Model: MGN15
• Series: Miniature Linear Guide
• Rail Width: 15 mm
• Material: Hardened alloy steel
• Surface Finish: Precision ground
• Mounting Hole Type: Counterbored
• Compatible Blocks: MGN15H, MGN15C
• Accuracy Class: Standard
• Mounting Orientation: Horizontal & vertical

Applications

• 3D printers (X / Y / Z axes)
• Desktop CNC and engraving machines
• Laser cutting and marking machines
• Robotics and automation systems
• Pick and place machines
• Camera sliders and motion platforms
• Precision measuring equipment

Advantages

• Original HIWIN miniature linear guide rail
• 15mm rail width for improved rigidity over smaller sizes
• Smooth, low-friction and low-noise operation
• High positional accuracy and repeatability
• Precision-ground hardened steel construction
• Long service life with minimal maintenance
• Compatible with MGN15H & MGN15C guide blocks

Package Contents

• 1 piece of Hiwin MGN15 Linear Guide Rail Length 1000mm
