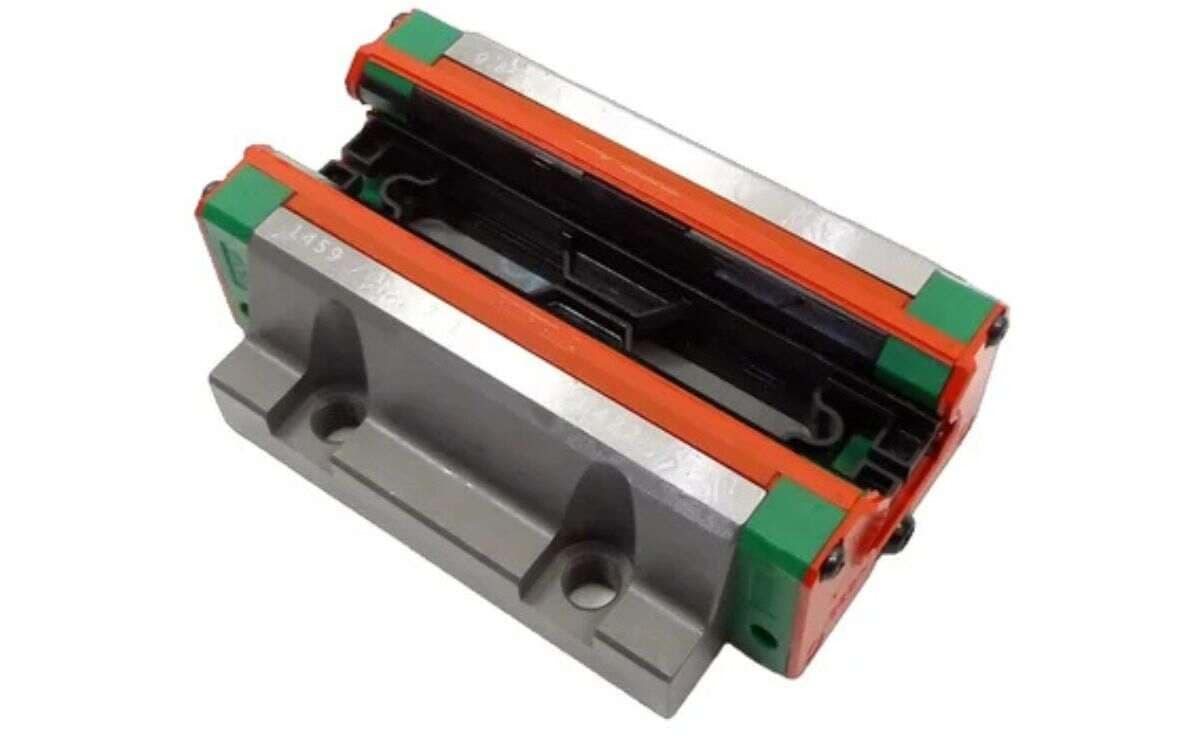

Hiwin HGW25 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW25 Linear Guide Block Wide Type for CNC Original Hiwin

Hiwin HGW25 Linear Guide Block Wide Type for CNC Original Hiwin

• HGW25 linear block is a wide-type (W series) carriage engineered for applications that require higher moment load capacity and improved stability compared to standard square blocks.
• Used with HGR25 linear guide rails, this block ensures smooth, accurate, and reliable linear motion.
• Manufactured from hardened bearing steel with precision-ground raceways, the HGW25 block offers low friction, minimal vibration, and long service life.
• The wider body design distributes load more effectively, making it suitable for heavy-duty CNC and industrial automation environments.
• Its sealed ball circulation system protects against dust and contaminants, ensuring consistent performance even under continuous operation.

Specifications HGW25 Linear Guide Block

• Brand : Hiwin
• Model: HGW25
• Type: Wide Type Linear Guide Block
• Rail Compatibility: HGR25 linear rail
• Rail Size: 25 mm
• Material: Hardened bearing steel
• Mounting Type: Top mounting
• Lubrication: Grease lubricated
• Sealing: End seals for dust protection
• Accuracy Class: Standard / High precision (variant dependent)
• Application Orientation: Horizontal & vertical

Applications

• CNC routers and milling machines
• Heavy-duty automation systems
• Laser cutting and engraving machines
• Robotics and gantry systems
• Pick and place machines
• Industrial linear motion assemblies

Package Includes

• 1 piece of Hiwin HGW25 Linear Guide Block Wide Type for CNC Original Hiwin
