Hiwin Ball Screw Nut 2505 Precision Ball Screw Nut for CNC

Hiwin Ball Screw Nut 2505 Precision Ball Screw Nut for CNC

Hiwin Ball Screw Nut 2505 Precision Ball Screw Nut for CNC

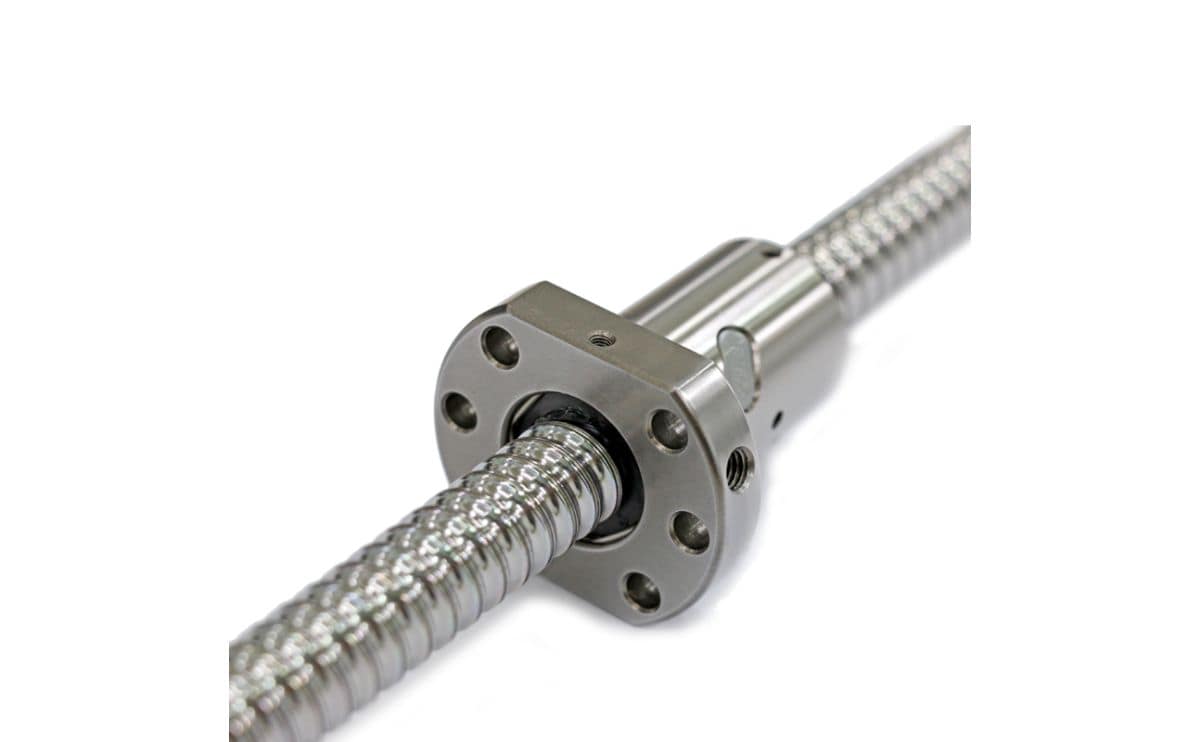

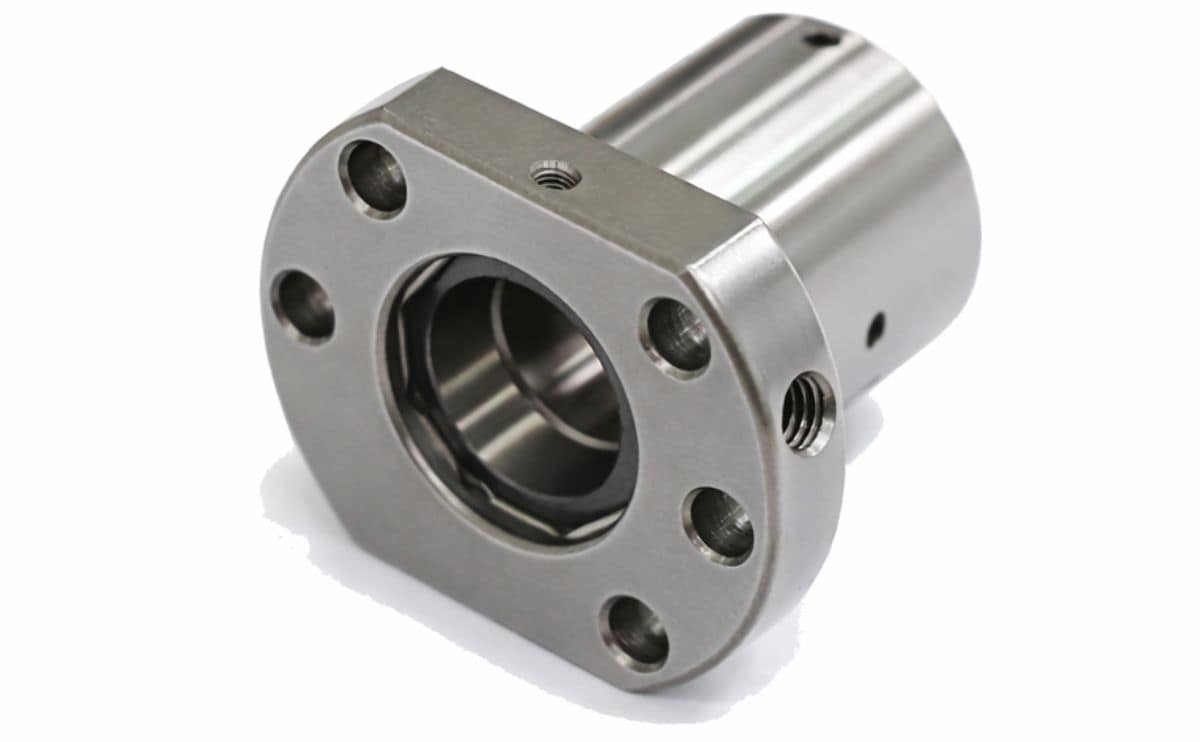

• Hiwin Ball Screw Nut 2505 is a precision linear motion component engineered to work seamlessly with HIWIN 2505 ball screws.
• Manufactured by HIWIN, a globally trusted leader in motion control technology, this ball nut delivers low friction, high load capacity, and excellent positioning accuracy.
• Its recirculating ball design minimizes friction and backlash compared to conventional lead nuts, ensuring smooth travel, higher efficiency, and extended service life. Precision-ground internal raceways provide stable motion, high repeatability, and consistent performance even in demanding CNC and industrial automation environments.
• HIWIN ball nuts are built under strict quality standards, making them ideal for continuous operation and precision motion applications.

Specifications

• Brand: HIWIN
• Model: 25-05
• Compatible Screw: HIWIN 2505 Ball Screw
• Screw Diameter: 25 mm
• Lead: 5 mm
• Type: Recirculating Ball Nut
• Material: Hardened alloy steel
• Manufacturing Process: Precision ground
• Efficiency: High (ball recirculation system)
• Accuracy Grade: Standard (higher grades available on request)

Applications

• CNC milling and routing machines
• CNC lathes and machining centers
• Heavy-duty industrial automation systems
• Linear actuators and motion stages
• Robotics and positioning systems
• Pick-and-place machines
• Precision machinery and tooling

Key Features

• Original HIWIN precision ball nut
• Designed for 25 mm diameter, 5 mm lead (2505) ball screws
• Smooth, low-friction linear motion
• High positioning accuracy and repeatability
• Reduced backlash and vibration
• High load-carrying capacity
• Precision-ground internal raceways
• Long service life with minimal maintenance

Package Includes

• 1 piece of Original HIWIN 25-05 Ball Nut
