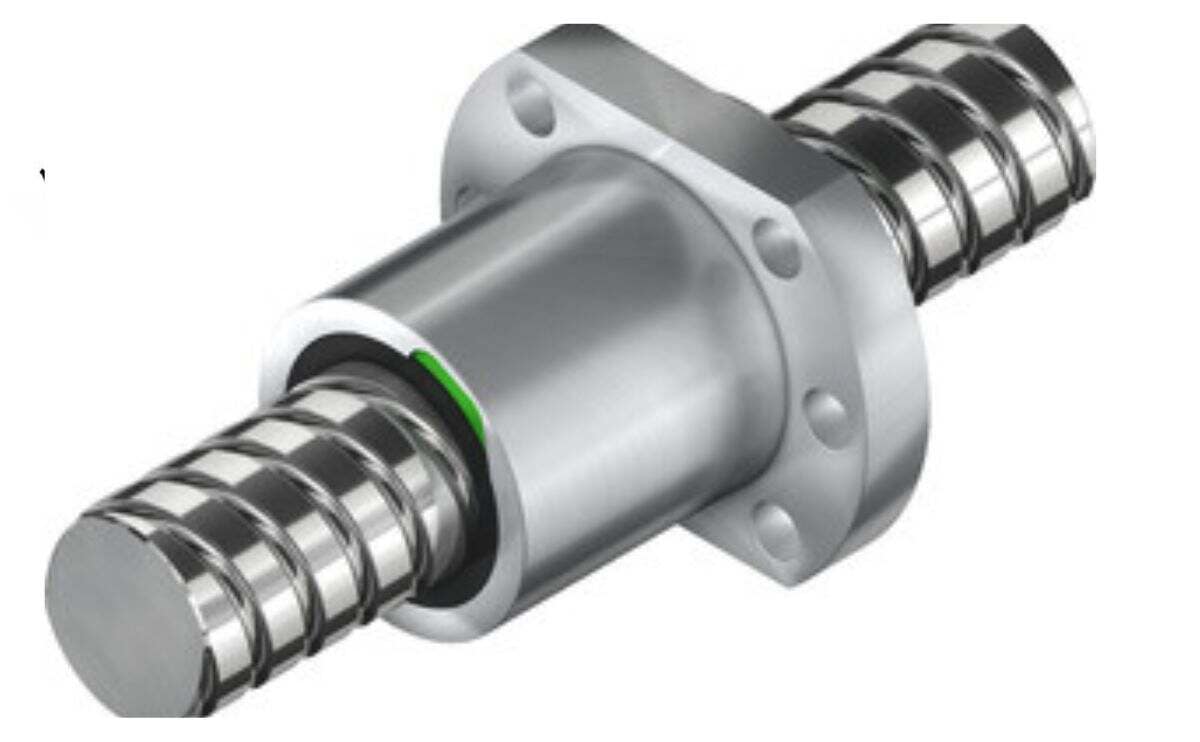

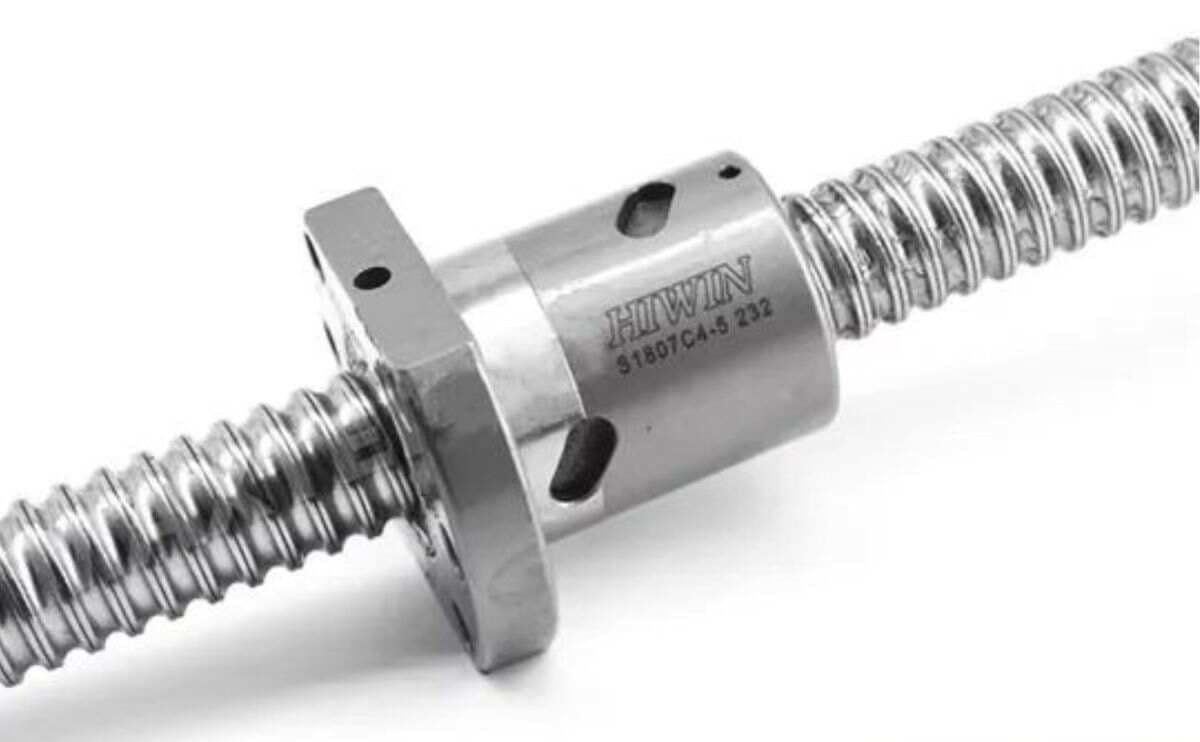

Hiwin Ball Screw Nut 1605 Ball Nut Precision Ball Screw Nut for CNC

Hiwin Ball Screw Nut 1605 Ball Nut Precision Ball Screw Nut for CNC

Hiwin Ball Screw Nut 1605 Ball Nut Precision Ball Screw Nut for CNC

• Hiwin Ball Screw Nut 1605 is an essential linear motion component that works with HIWIN 1605 ball screws to convert rotary motion into precise linear movement.
• Manufactured by HIWIN, a globally trusted brand in motion control technology, this ball nut ensures low friction, high accuracy, and long service life.
• Featuring a recirculating ball design, the 16-05 ball nut significantly reduces friction and backlash compared to conventional lead nuts.
• Its precision-ground internal raceways provide smooth travel, excellent repeatability, and consistent performance in demanding CNC and automation environments.
• HIWIN ball nuts are manufactured under strict quality standards, making them suitable for continuous industrial operation and precision positioning applications.

Specifications

• Brand: HIWIN
• Model: 16-05
• Compatible Screw: HIWIN 1605 Ball Screw
• Screw Diameter: 16 mm
• Lead: 5 mm
• Type: Recirculating Ball Nut
• Material: Hardened alloy steel
• Manufacturing: Precision ground
• Efficiency: High (ball recirculation system)
• Accuracy Grade: Standard / Higher grades available on request

Applications

• CNC milling and routing machines
• CNC lathes and machining centers
• Industrial automation systems
• Linear actuators and motion stages
• Robotics and positioning systems
• Pick and place machines
• Precision machinery and tooling

Key Features

• Original HIWIN precision ball nut
• Designed for 16mm diameter, 5mm lead (1605) ball screws
• Smooth and low-friction linear motion
• High positioning accuracy and repeatability
• Reduced backlash and vibration
• High load capacity with long service life
• Precision-ground internal raceways
• Ideal for CNC and industrial automation use

Package Includes

• 1 piece of Hiwin Ball Screw Nut 1605
