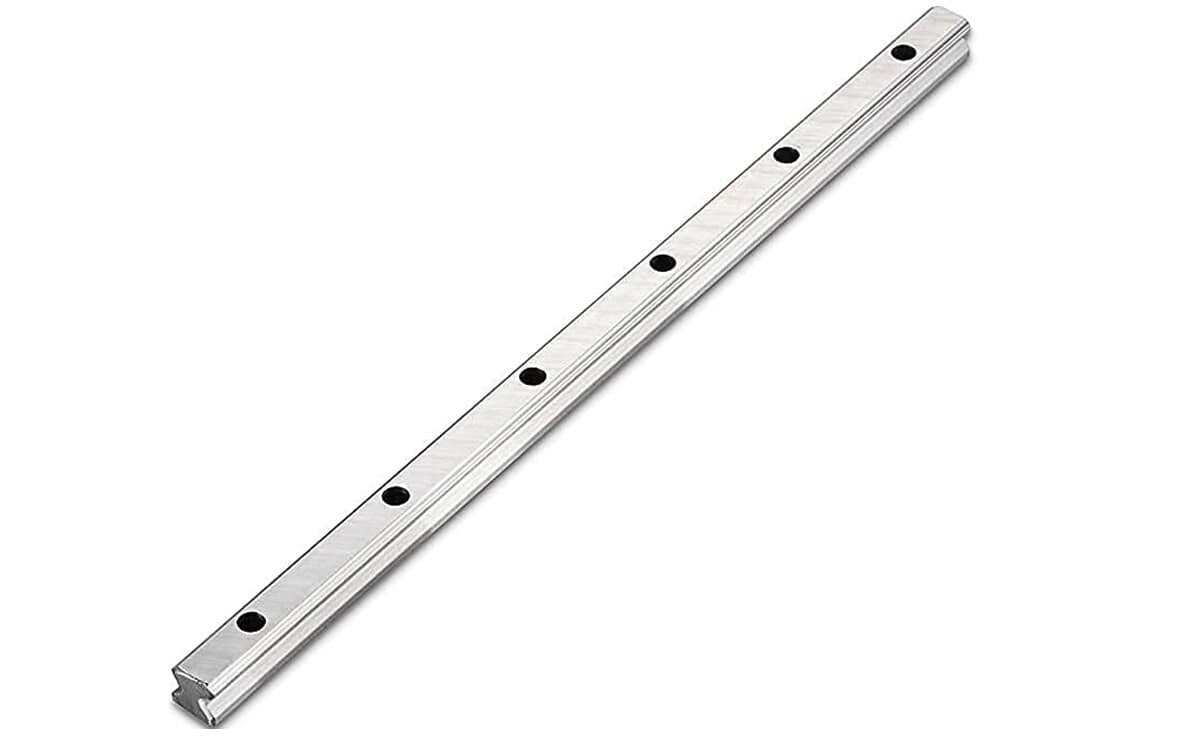

HGR15 Linear Rail 15mm Width Square Linear Motion Guideway Guide Rail Without Block

HGR15 Linear Rail 15mm Width Square Linear Motion Guideway Guide Rail Without Block

The HGR15 linear rail is a precision guideway system designed for linear motion applications.

• With an impressive 15mm width, it offers robust support and stability in various machinery setups.

Specifications

• Model: HGR15 linear rail
• Material: Hardened steel with anti-corrosion coating for enhanced durability
• Rail Width: 15mm
• Length: Available in customizable lengths 400mm, 500mm and 600mm.
• Dynamic Load Capacity: Up to 1,200 Newtons (varies depending on application)
• Static Load Capacity: Approximately 2,000 Newtons
• Mounting Holes: Pre-drilled holes for easy installation
• Coating: Anti-rust and wear-resistant surface treatment for extended lifespan
• Flatness Tolerance: ± 0.01mm for superior precision
• Compatible Blocks: HGW15CC, HGH15CA, and other HGR15-compatible linear blocks

Key Features

1. High Precision: Linear Guide Rail Guarantees stable and accurate motion for applications requiring tight tolerances.
2. Robust Construction: Hardened steel rail ensures resistance to wear and deformation, even under heavy loads.
3. Corrosion Resistance: Special coating protects against rust and environmental damage, making it suitable for harsh conditions.
4. Easy Installation: Pre-drilled mounting holes ensure quick and hassle-free setup.

Applications

• CNC Machines: Perfect for high-precision cutting, milling, and engraving tasks.
• 3D Printers: Ensures smooth and stable linear motion for consistent print quality.
• Automation Systems: Provides reliable performance in conveyor belts, robotic arms, and production lines.
• Robotics: Delivers precise movement essential for intricate robotic operations.
• Medical Equipment: Used in medical-grade machinery for accurate and reliable linear motion.

Package Include

• 1 Piece HGR15 Linear Rail length 400/500/600mm (without block).
