Hermit Crab V2 Can Version Quick Change Extruder Hotend Tool for 3D Printing

Availability:

In stock


  • Preorder Available.
  • Delivered within 2-3 weeks.

14,299.00

In stock

Hermit Crab V2 Can Version Quick Change Extruder Hotend Tool for 3D Printing

Biqu Hermit Crab V2 Can Version Quick Change Extruder Hotend Tool for 3D Printing.

Product Description:

  • Hermit Crab V2 Can Version is a tool plate set for quickly changing print heads.
  • Bigtreetech Hermit Crab V2 Can Version set includes three tool plates and a fixed plate to meet your needs for quickly changing and using multiple print heads on one printer.

Key Features:

  • Lightweight innovation. Through the careful optimization design of the metal structure, the weight of the fixed plate has been successfully reduced, and a more compact configuration of components has been achieved, reducing the overall weight by 63g. At the same time, the connecting parts are upgraded to ensure a perfect and seamless connection between the tool plate and the fixed plate.
  • Strong scalability.The Hermit Crab V2 CAN version specially designed for Klipper firmware users introduces the latest LIS2DW accelerometer, X-axis limit switch, Max31865, and upgrades to the USB interface and CAN interface to provide users with a smarter and more efficient 3d printing experience.
  • Easy to disassemble. The circular buckle structure and the spring contact on the tool plate complement each other. The extrusion head can be easily removed by simply pressing the spring, making the operation simple and fast.
  • Compatible with a variety of tool heads. Flexible adaptation to various types of tool heads, including different types of print heads (such as H2, E3D Hemera, etc.), laser cutting machine tool heads, pen plotter tool heads, etc., to meet the diverse printing needs of users.

Efficiency and Convenience

  • One of the standout features of the Biqu Hermit Crab V2 Can Version is its quick change extruder hotend. This allows users to easily swap out different hotends and nozzles, saving valuable time and effort. Whether you need to switch between different filament materials or adjust the nozzle size for finer or faster prints, this tool makes it a breeze.
  • The Biqu Hermit Crab V2 Can Version also boasts a user-friendly design, with intuitive controls and a clear LCD screen for easy monitoring and adjustment of settings. This ensures a seamless printing experience, even for beginners.

Specifications:

  • Firmware: Klipper.
  • Onboard accelometer: LIS2DW.
  • Onboard Max3186: yes.
  • Can interface: XT30.
  • MCU: RP2040 dual ARM Cortex-M0+@133MHz
  • Material: Aluminium alloy
  • Input voltage: DC12V – DC24V 9A.
  • Logic voltage: DC3.3V

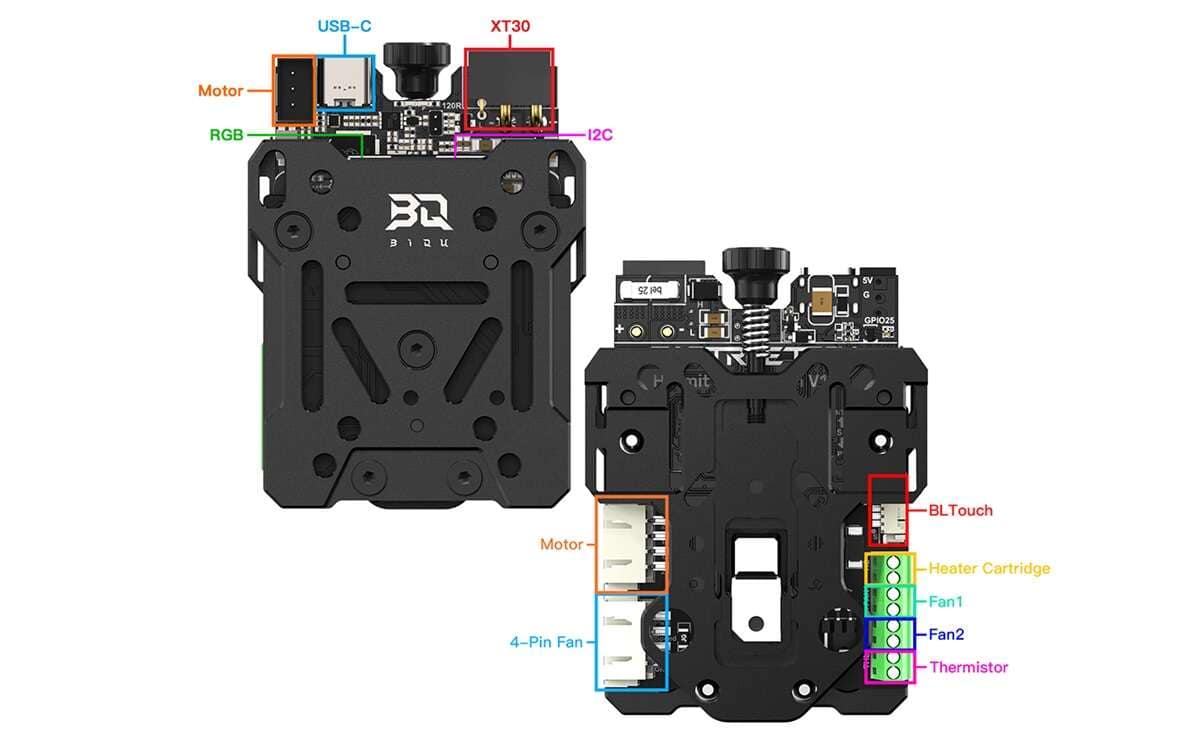

  • Expansion Interface: I2C,  RGB, Probe, 2x2pins, 4-pin fan (fan voltage selectable).
  • Maximum fan Interface: 0.75A, Peak 0.9A.
  • Motor driver: TMC2209.
  • Driver operating mode: UART.
  • Stepper motor interface: E0
  • Temperature sensor interface: 1xNTC100K/PT100/PT1000 selectable.
  • USB communication: Type – C.
  • DCDC 5V Maximum output current: 1A.

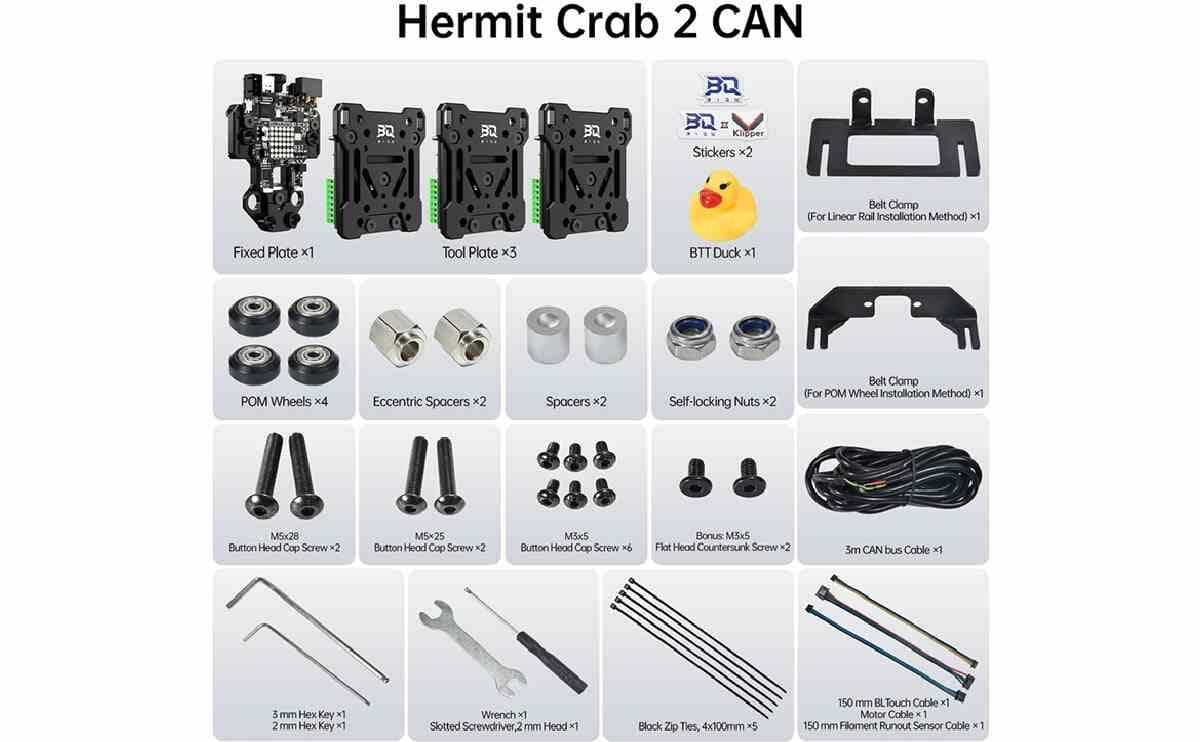

Package Include:

  • 1 piece of hermit crab V2 Can version.



Weight500 g
