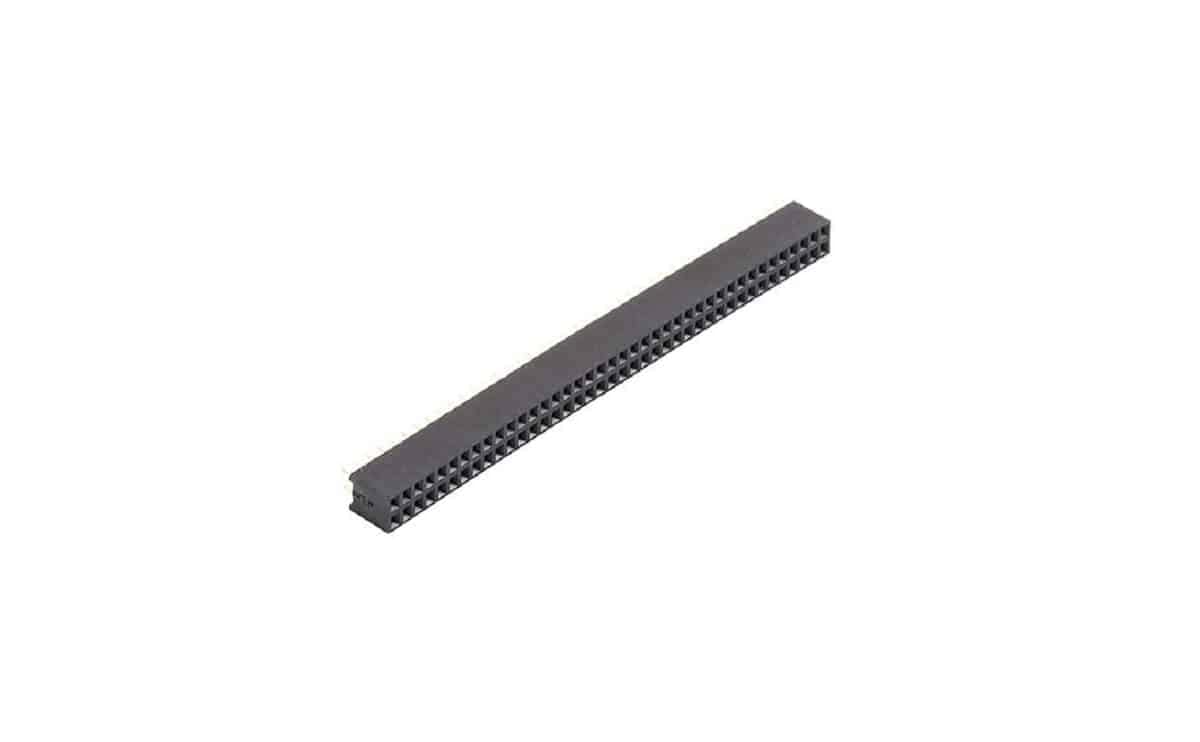

Header Strip Dual Row Straight Connector Female Pin 2×40-Pin 2.54mm Pitch Berg Strip for PCB Panel Mounting
In stock
₹15.00 ₹35.00
In stock
Header Strip Dual Row Straight Connector Female Pin header 2×40-Pin 2.54mm Pitch for PCB Panel Mounting

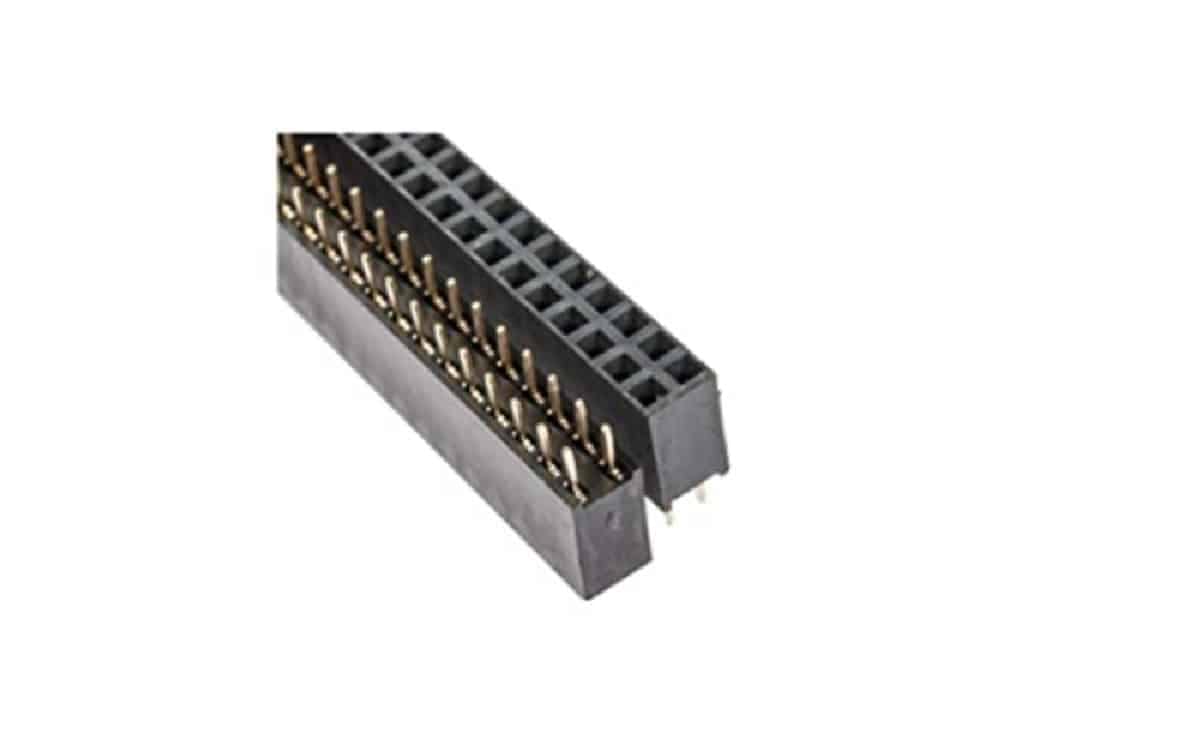

Header Strip are used on PCB or perf board to tap out connections. They can be commonly found on development boards, test boards, evaluation boards and sensor modules.
| Pitch: | 2.54mm |
| Pins: | 2-40 |
| Pin type: | straight/SMT type |
| Row: | double/dual-row |
| Insulator material: | PA66 |
| Applications: | PCB panel board mounting |
| Contact material: | phosphor bronze |
| Plating (contact): | nickel gold and tin plating |
| Insulator body: | glass filled polyester UL94V-0 |
| Current rating: | 1.5A AC, DC |
| Contact resistance: | 20m Ohms (maximum) |
| Insulation resistance: | 1,000M Ohms (minimum) |
| Dielectric withstanding voltage: | 500V AC (RMS) |
| Operating temperature: | -40 to +105°C |
Q & A
12MM INCLUDING PIN HEIGHT
