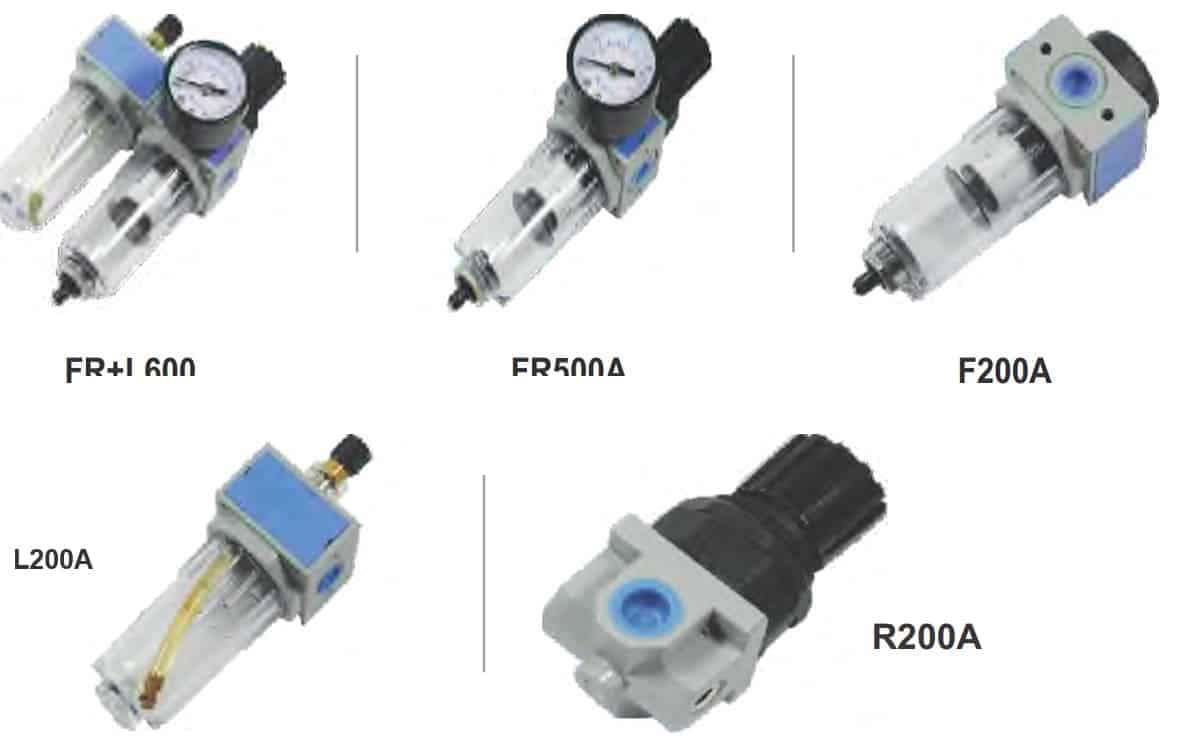

FRL Units Legris Type Series Combination of filter, regulator, lubricator for pneumatic systems a Legris pneumatics product

FRL Units Legris, offers an extensive range of filters, regulators and lubricators, including individual units and combinations. Compressed air contains water vapors and contaminant particles concentrated by compression that can be harmful to the pneumatic equipment. Air leaving a compressor is hot, dirty, and wet—which can damage and shorten the life of downstream equipment, including valves, cylinders, and air tools.

Filters remove these impurities and a large part of the water, regulators ensure an adequate pressure inside the system and lubricators inject a metered quantity of lubricating oil to expand the life span of tools and the equipment.

Filters of FRL Legris :

• Eliminate dust and coagulation from compressed air
• Series standard and mini
• Drain: manual as a standard, semi automatic as an option
•  Filter element: 5 μ as a standard, 40 μ as an option
• High quality bowl designed for long service life

Regulators:

•  Allow easy adjustment of air pressure
• Series standard and mini
• 0,1% accuracy of pressure control
• Can be installed in any position
• Technology: piston type regulation

Lubricators:

• Fog style lubrication to extend life of equipment
• Series standard and mini
•  Refilling of oil without stopping the air line
• Easy adjustment of oil delivery volume
