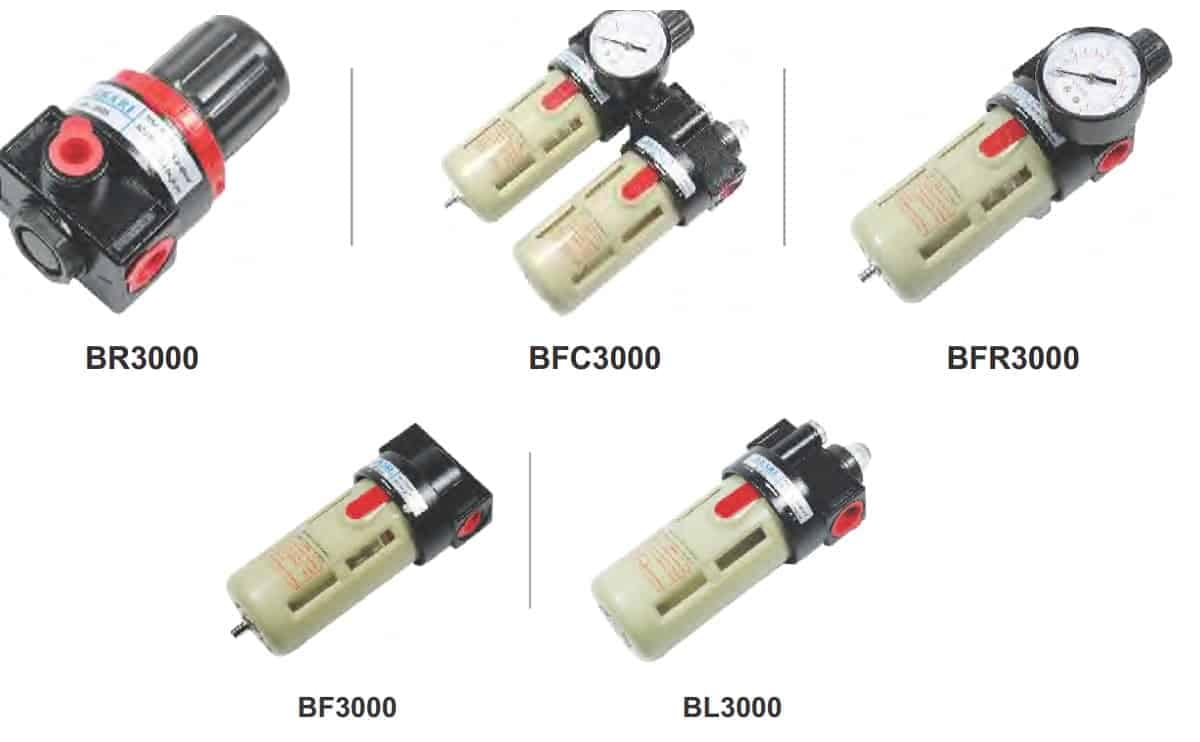

FRL unit BF airtech Type Series Combination of filter, regulator, lubricator for pneumatic systems

FRL unit BF airtech series is an essential accessory for Air-Operated Double Diaphragm Pumps. It is composed by two units, the first one is the filter with a pressure regulator, which allows to keep the air cleaned and dry and to adjust the inlet air pressure to the air motor. The regulation system is made by a piston of high precision and a pressure gauge for displaying the set pressure. The second unit is a lubrification that allows to nebulize the lube oil in the compressed air flow.

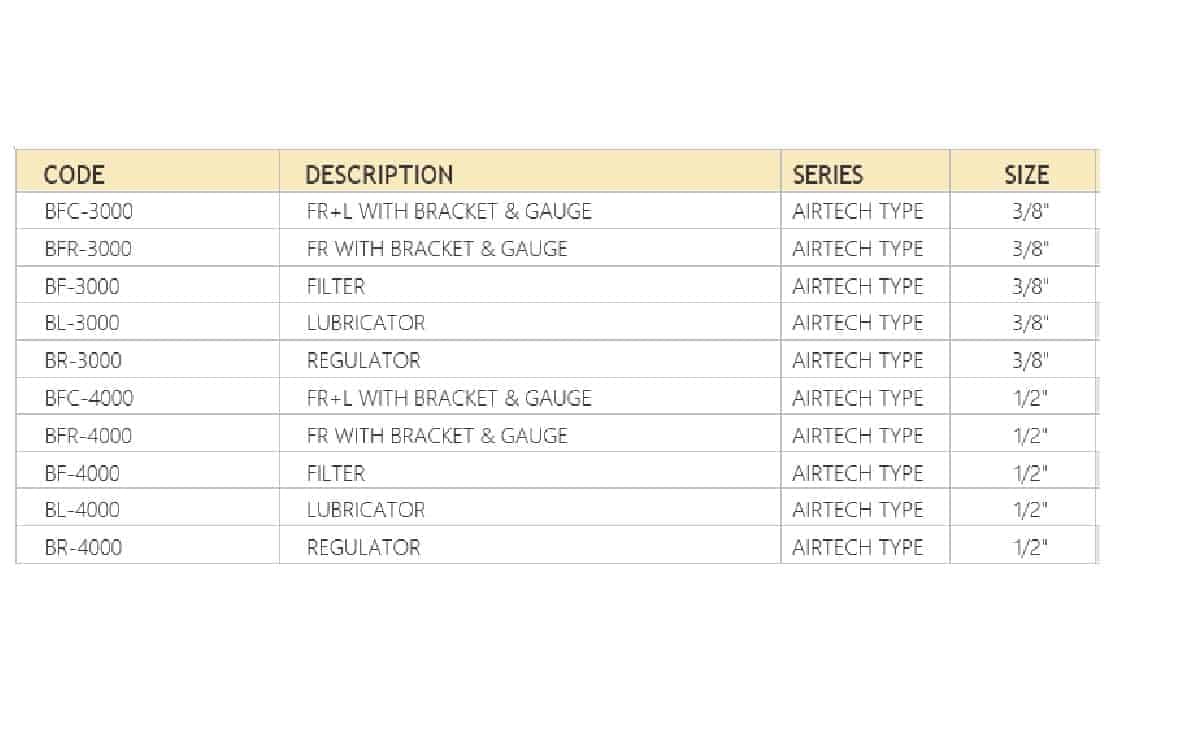

Considering the features of the Airtech spool valve and the high quality materials with which it is built, it is suggested to set the lubrication to a minimum. Airtech offers you a complete range of connections starting from 1/8″ up to 1″ (including 1/4″, 3/8″, 1/2″, 3/4″)

Features of FRL units BF airtech:

• Brand: Air-Tech Or Equivalent.
• Type: Filter + Regulator + Lubricator.
• Material: Aluminium, Metal & Plastic.
• Working Pressure: Upto 0-12 kg/cm2.
• Temperature: 5-60*C
• Type: Pneumatic.
• Working Medium: 40 Micron Filtered Air
• Operating Temperature: 5-50*C
