FK10 FF10 Ballscrew End Support Set Grade 7 CNC Ball Screw Bearing Units for Precision Applications

Availability:

Out of stock


1,019.00

Out of stock

Notify Me when back in stock

FK10 FF10 Ballscrew End Support Set Grade 7 CNC Ball Screw Bearing Units for Precision Applications

Upgrade your CNC machine with our FK10 FF10 Ballscrew End Support set, designed for precision, durability, and seamless performance.

  • Perfect for linear motion guide actuators, this set is crafted from high-quality carbon steel and built to handle demanding applications.

Specifications

  • Product Name: FK10 FF10 Ballscrew End Support
  •  Model: FK10 FF10 Grade 7

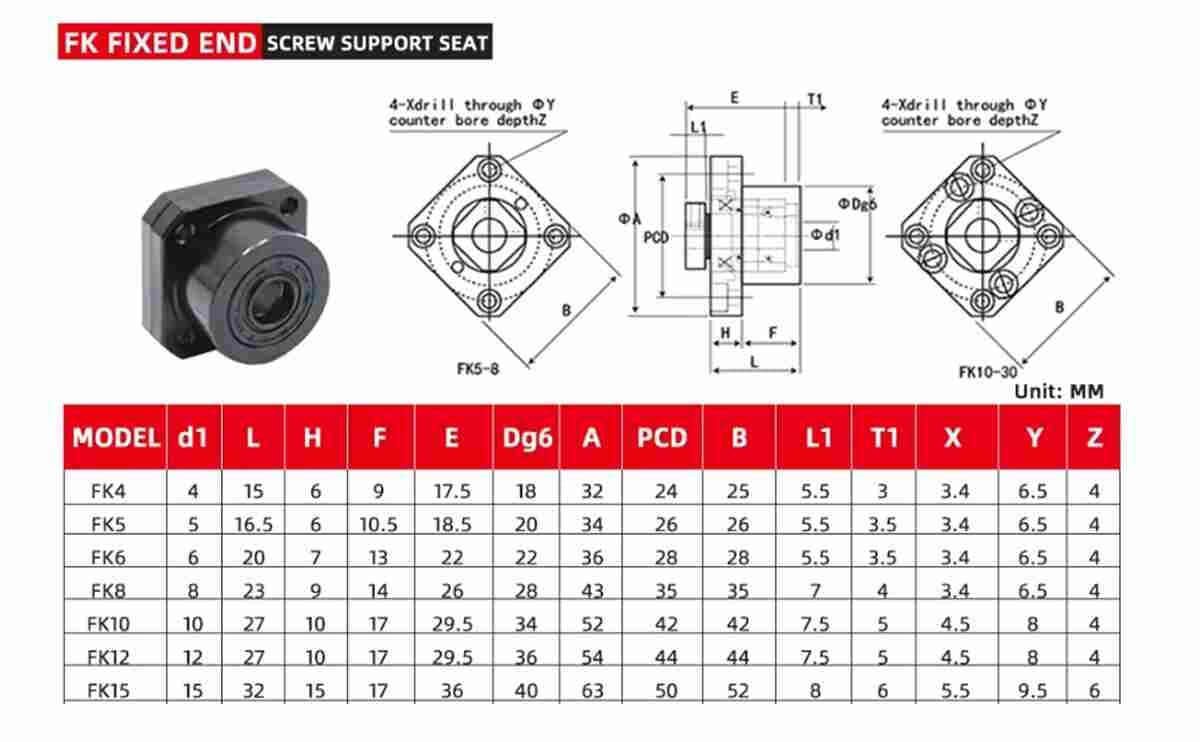

  • Inner diamerter for FK10: 10mm

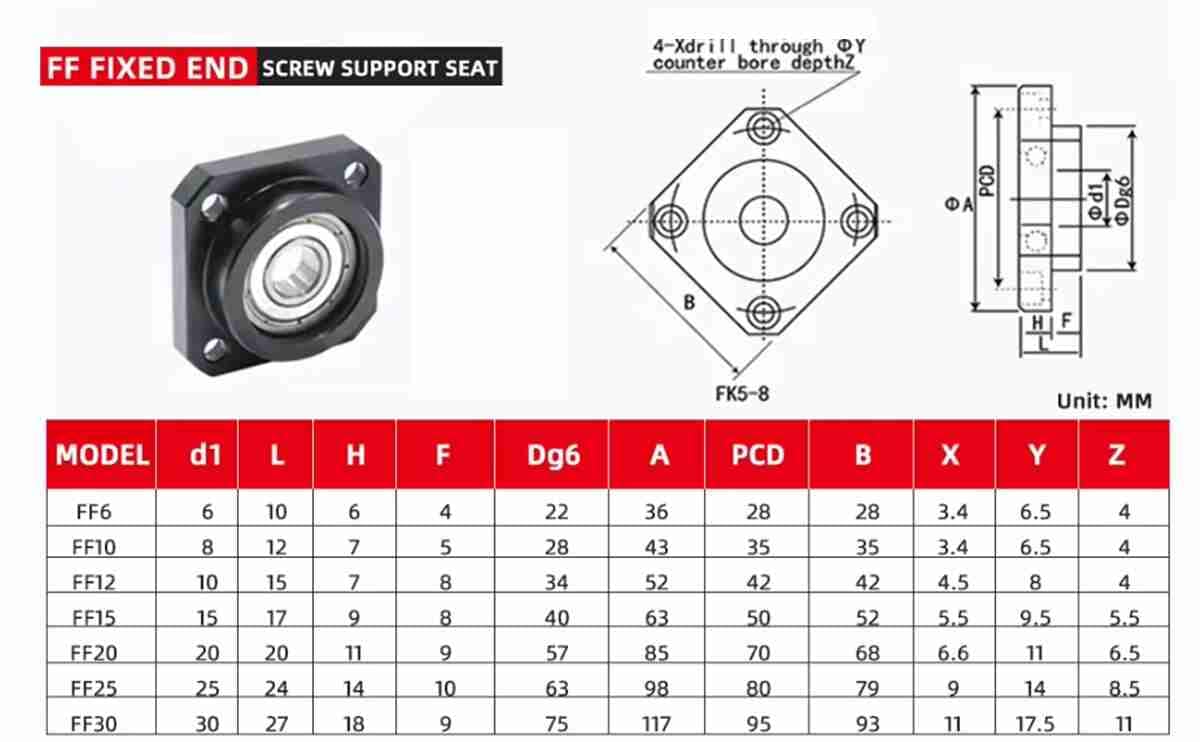

  • Inner diamerter for FF10: 8mm
  • Color: Sleek Black Finish
  • Material: Durable Carbon Steel

Key Features

  1. Secure Mounting:
    • Fixed side: Easily mount the threaded rod to the fixed side for maximum stability.
    • Support side: Secured with a stop ring for smooth, consistent motion.
  2. Precision Engineering:
    • Tighten the lock nut with ease and secure it using the cushion block and inner hex bolts for a rock-solid setup.
    • Ensures minimal vibration and high accuracy in your CNC projects.
  3. Reliable Performance:
    • Made from premium-grade carbon steel, offering exceptional durability and wear resistance.
  4. Versatile Application:
    • Designed for various linear motion systems, perfect for CNC machines, 3D printers, and other automation projects.

Package Include

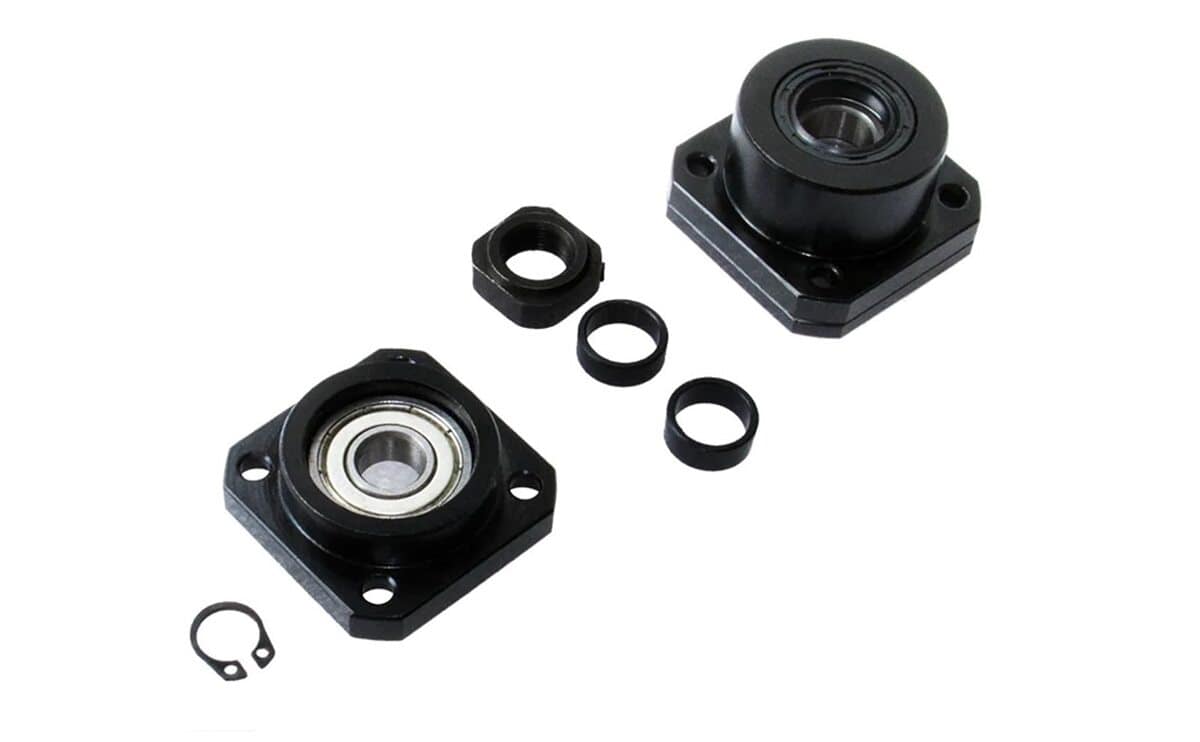

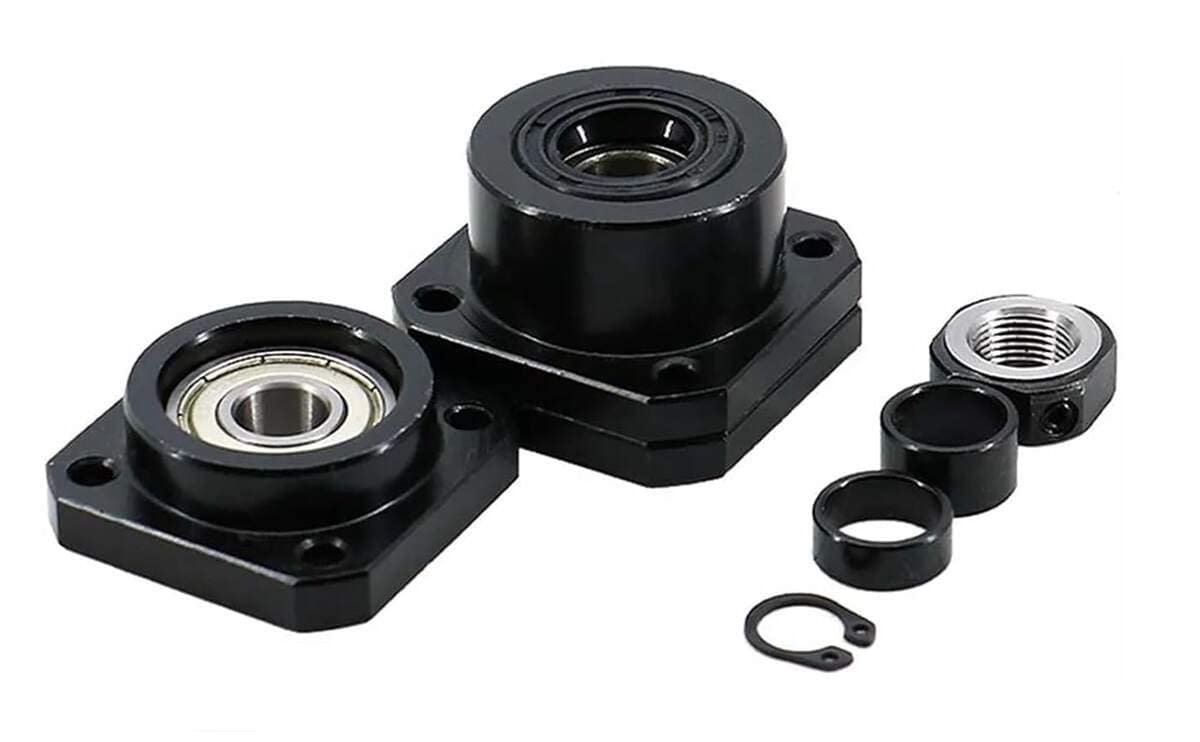

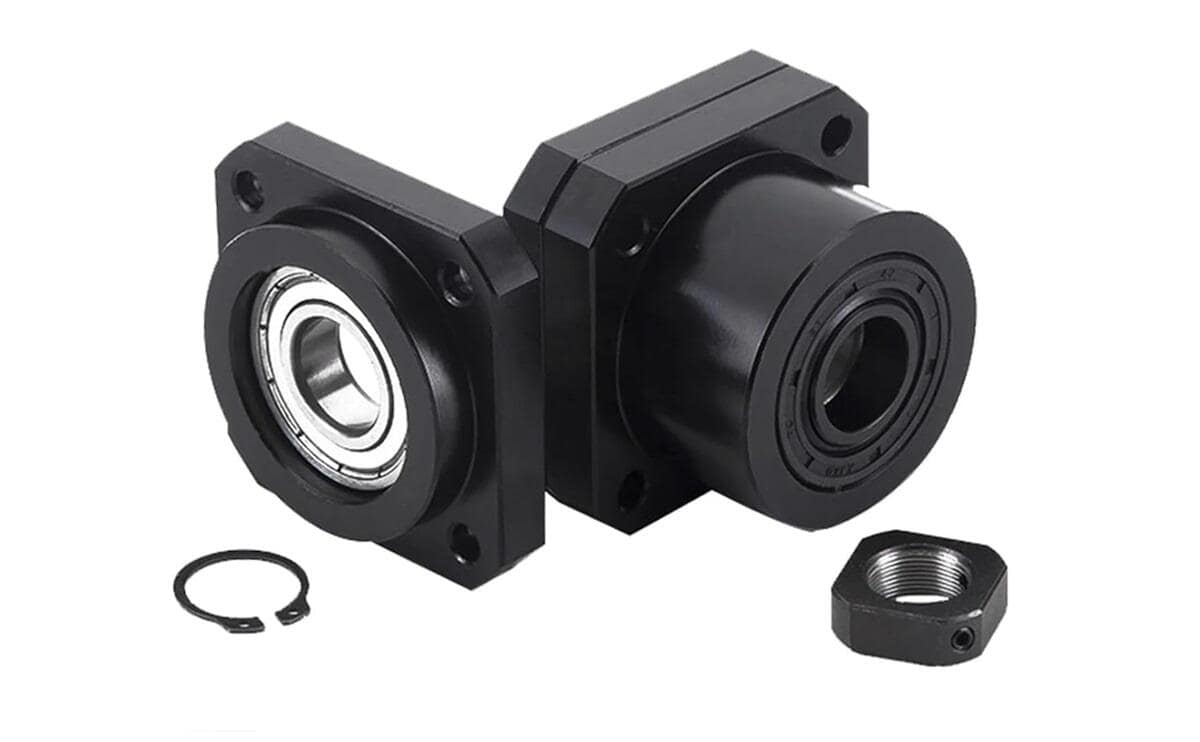

  • 1 set of FK10 FF10 grade 7.
  • Note: Grade 7 Means Angular Contact.
HSN code

84779000

FK10 Inner Diameter

10mm

FF10 Inner Diameter

8mm

Grade

7 ( Angular Contact )
