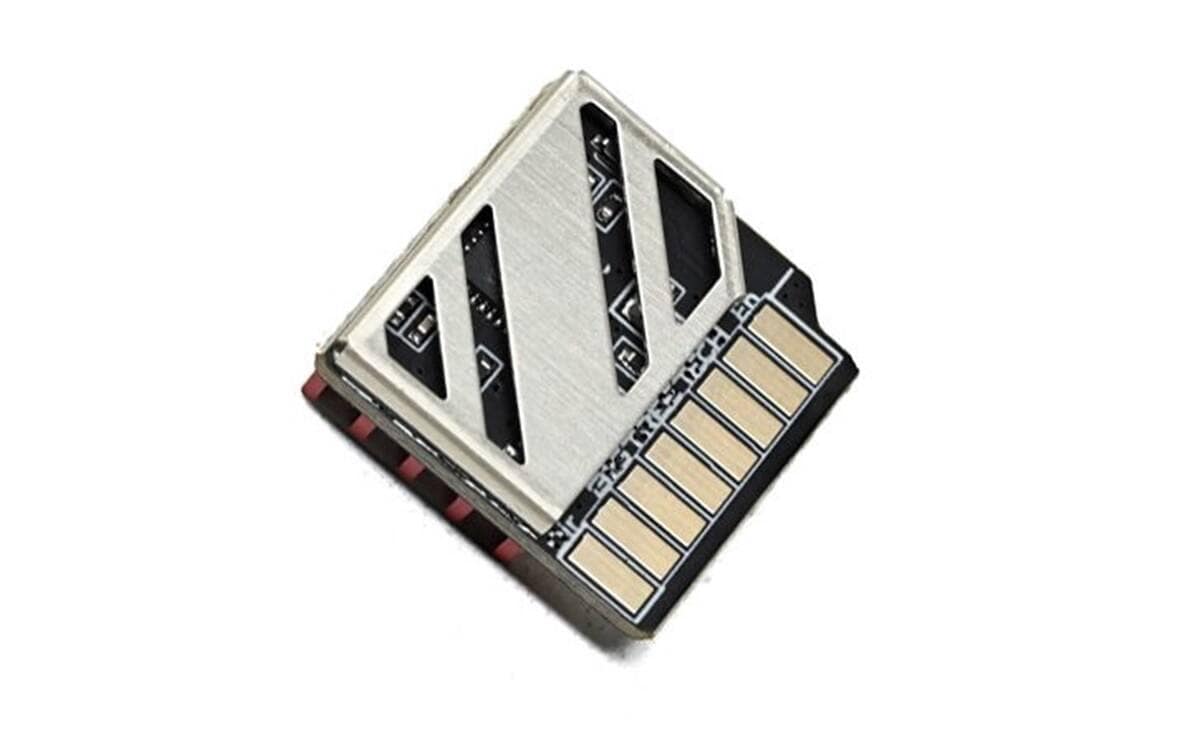

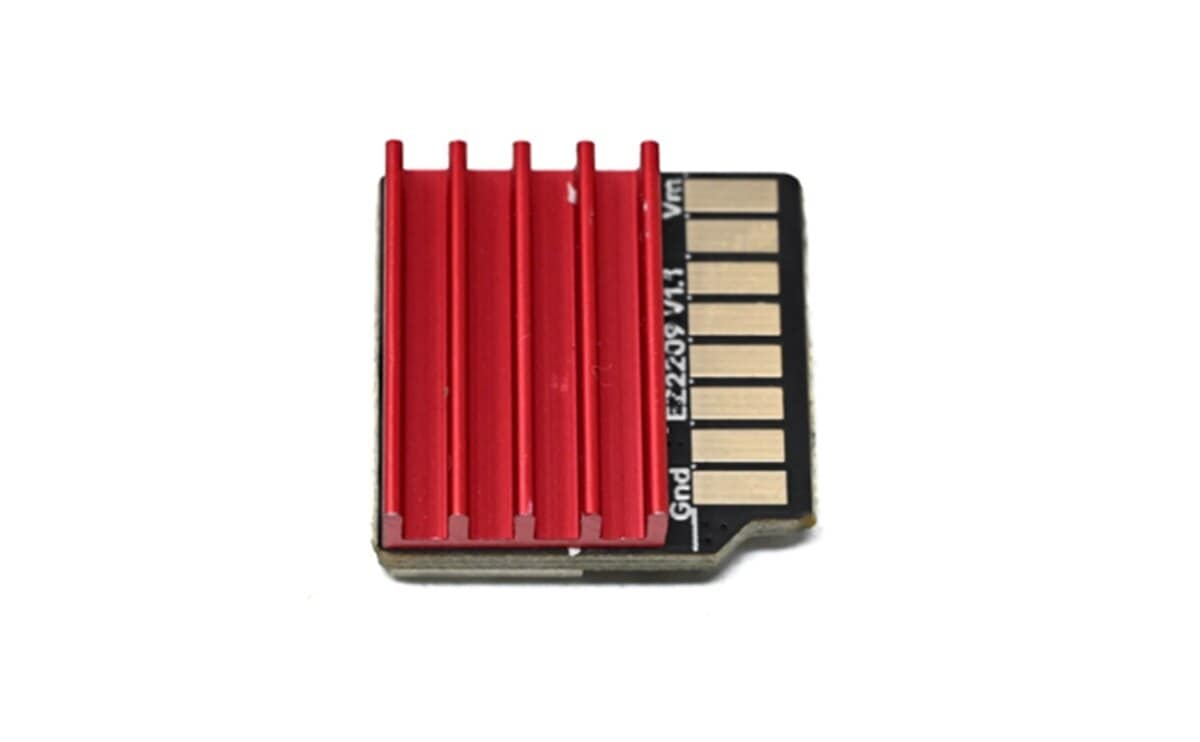

EZ2209 Driver for SKR 3 EZ Control Board of 3D Printer

The EZ2209 driver is a Bigtreetech high-performance stepper motor driver designed specifically for the SKR 3 EZ control board of 3D printers. This driver offers advanced features and precise control, making it an ideal choice for professional 3D printing applications.

Specifications

• Compatible with the SKR 3 EZ control board
• Supports up to 2.2A RMS output current
• Microstepping resolution: 1/16, 1/32, 1/64, 1/128
• Supports both spreadCycle and stealthChop2 modes
• Thermal shutdown and overcurrent protection
• Input voltage: 12V – 24V

Applications

• Stepper motor and driver is suitable for a wide range of 3D printing applications, including:
  • Prototyping
  • Product development
  • Small-scale production
  • Education
  • Research and development

Dimensions

• It has compact dimensions, measuring 20mm x 20mm x 15mm.
• Its small size allows for easy integration into 3D printer control boards and reduces the overall footprint of the printer.

Usage

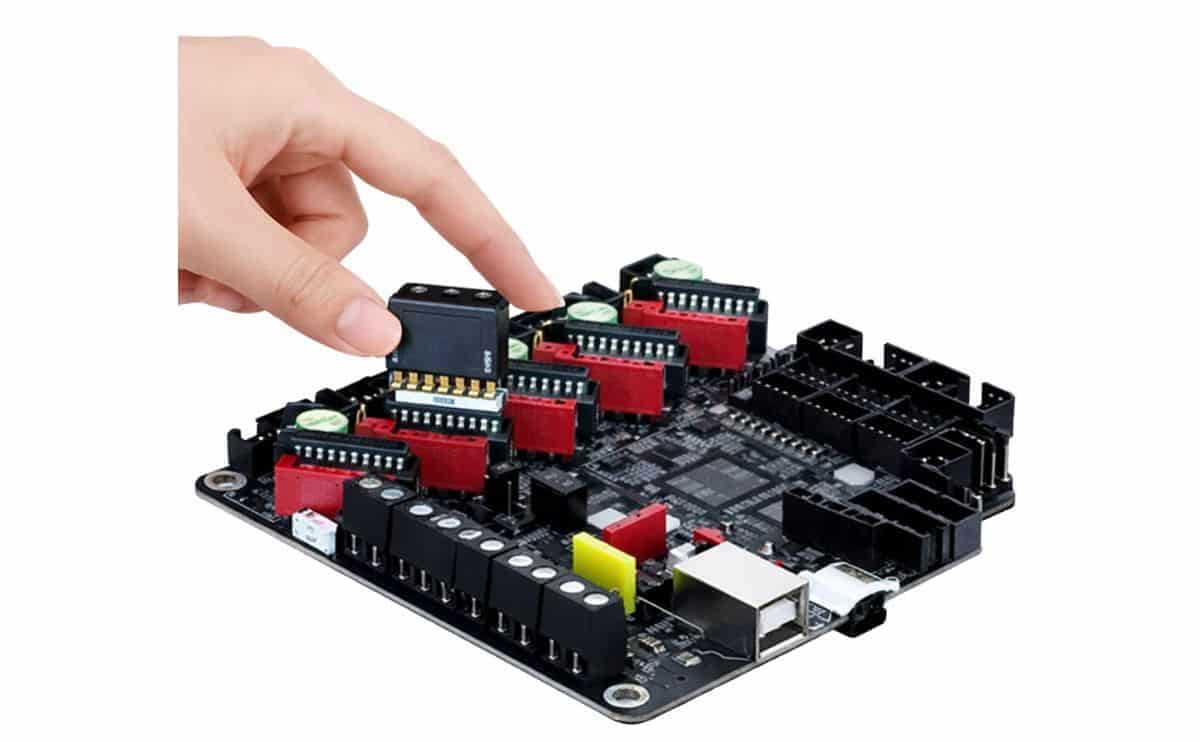

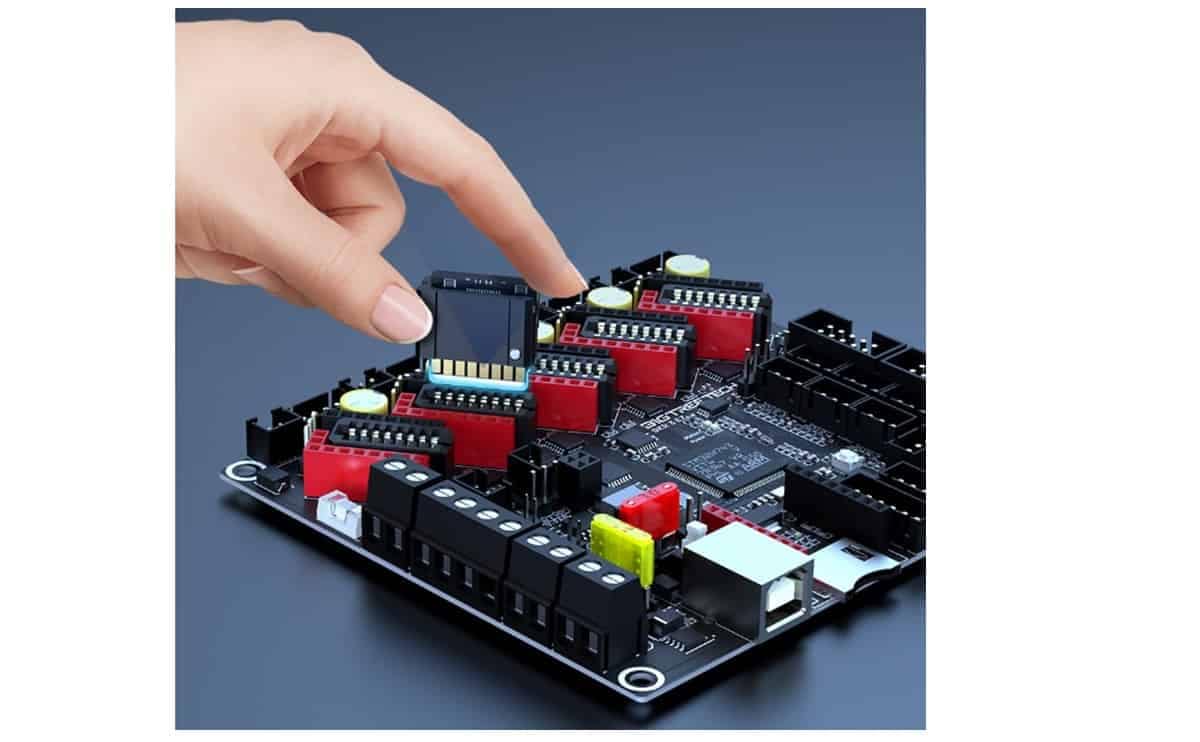

• simply connect it to the SKR 3 EZ control board using the provided connectors.
• Ensure that the power supply is within the specified voltage range.
• The driver can be configured and controlled through the firmware of the control board, allowing for precise motor control and smooth movement.
• TMC driver can expect improved performance, reduced noise, and enhanced reliability in your 3D printing projects.
• Upgrade your SKR 3 EZ control board with the EZ2209 driver and experience high-quality prints with ease.

Package Include:

• 1 piece of EZ2209 driver.
