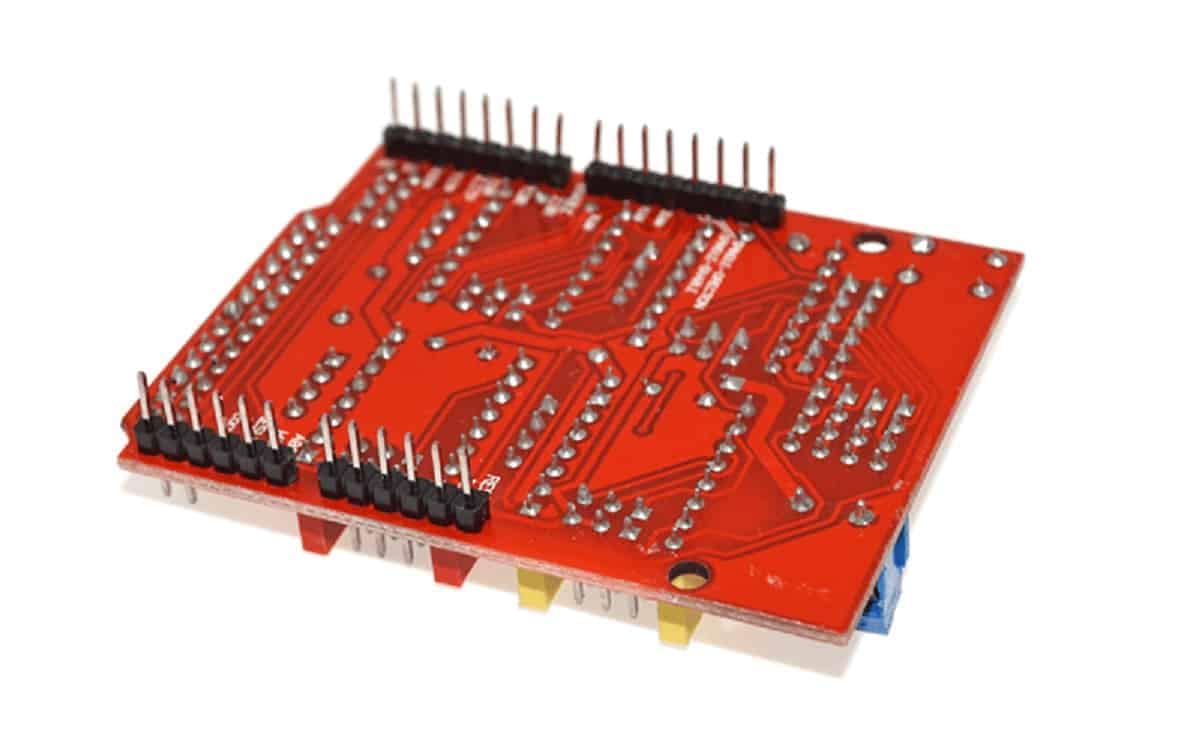

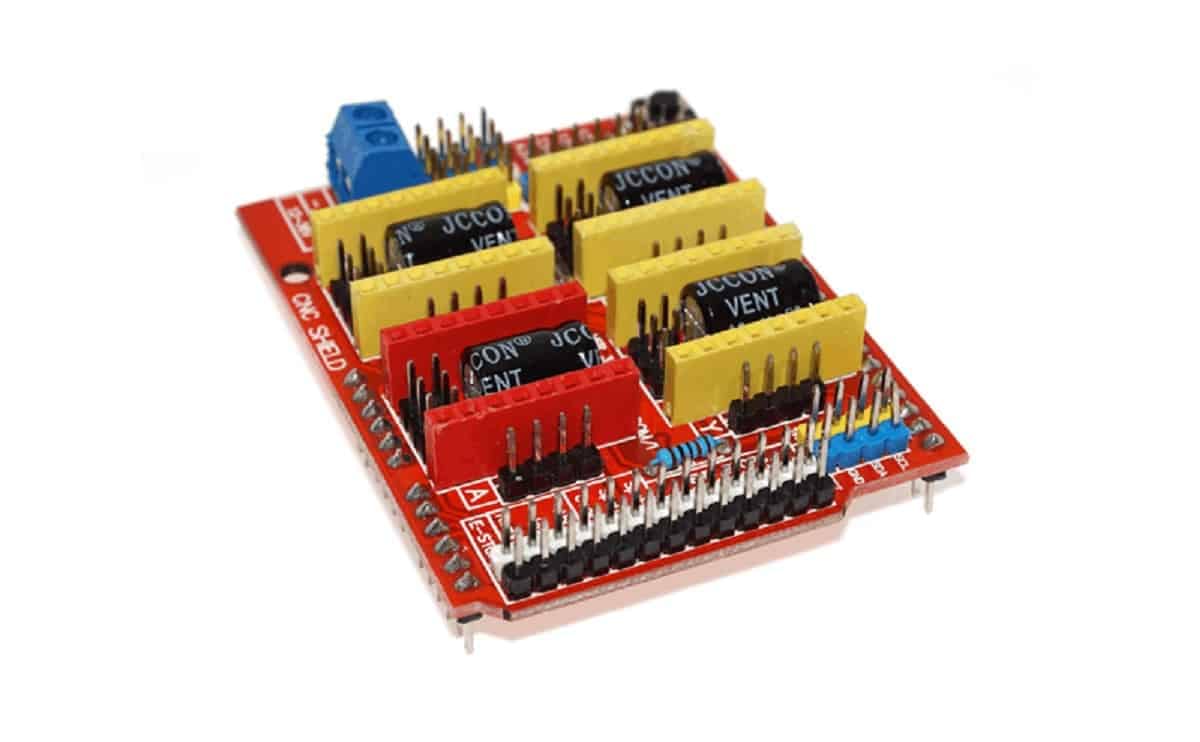

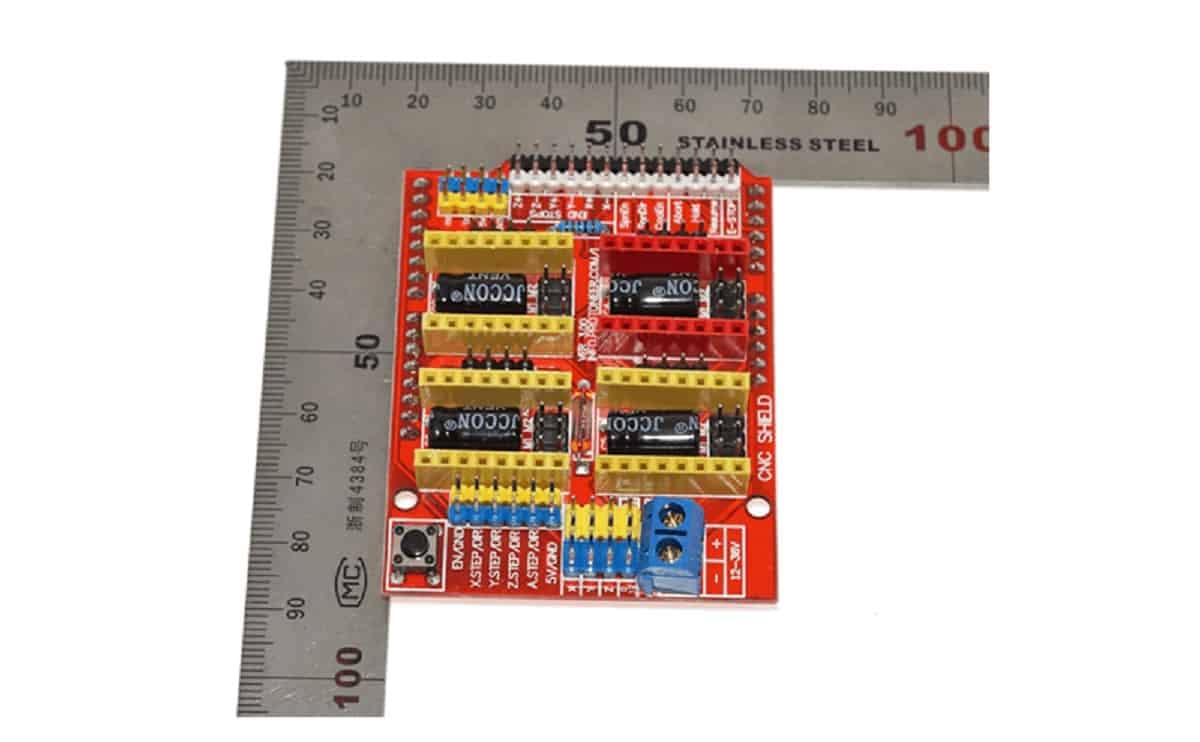

CNC Shield Upgraded CNC Extension Shield for 3D Printer Machine:
- CNC shield upgraded can be used as driver expansion board for engraving machines and 3D printers. It has in total 4 channel slots for stepper motor driver modules for driving 4 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.
- The CNC Shield Upgraded CNC Extension Shield is an essential tool for enhancing the performance and capabilities of your 3D printer machine. With its advanced features and improved functionality, this shield is designed to take your printing experience to the next level.
- Featuring a compact and durable design, the CNC Shield is easy to install and compatible with a wide range of 3D printer machines. It provides reliable and stable connectivity, allowing for seamless communication between your printer and the computer. With this shield, you can expect faster and more accurate printing results.
- One of the key features of the CNC Shield is its ability to support multiple stepper motor drivers, including A4988, DRV8825, and others. This flexibility allows you to choose the motor driver that best suits your needs, ensuring optimal performance and precision. Additionally, the shield is equipped with a dedicated cooling fan port to prevent overheating and ensure long-lasting operation.
- Furthermore, the CNC Shield comes with various input and output pins, providing you with the flexibility to connect additional components such as limit switches, endstops, and sensors. This expandability enables you to customize and upgrade your 3D printer according to your specific requirements.
- Whether you are a professional or a hobbyist, the CNC Shield Upgraded CNC Extension Shield is a must-have accessory for your 3D printer machine. Experience improved functionality, enhanced performance, and greater precision with this reliable and versatile shield.
CNC Shield upgraded Specification:
- 3 axis stepper motor driver.
- Compatible with micro-drive laser engraving machine, three-axis engraving machine.
- 2A can be controlled within the two-phase four-wire stepper motor.
- Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
- Released the I2C interface, you can connect to the LCD I2C or other I2C module.
- Power DC5V interface, 7.5-12V voltage input.
- GRBL compatible.
- Worked with motherboards like arduino nano, etc.
Package Include :
1 x CNC Extension Shield.
