Bondtech DDX v3 direct drive extruder for CR-10 Max/Pro printers

Bondtech DDX v3 direct drive extruder for CR-10 Max/Pro printers

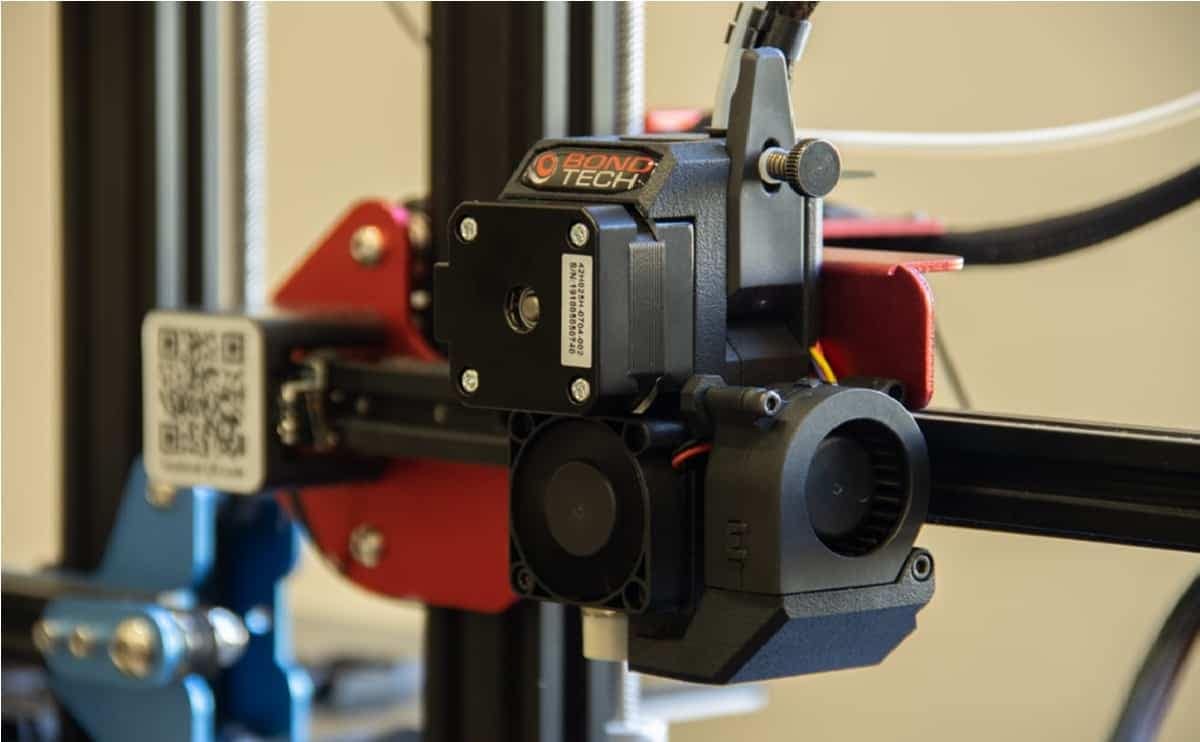

Bondtech DDX v3 direct drive extruder for Creality 3D printers is an upgrade kit that replaces the original bowden with a direct drive setup. It is a high-performance Dual Drive extruder based on the BMG Bondtech Mini Geared.

Multiple Hot-ends Compatibility:

• This model was created to be compatible with the original hotend of each Creality model. Users may also upgrade the hotend to Copperhead or Mosquito.
• The DDX v3 is much easier to install: With this integrated fan shroud and mount the DDX v3 is even easier to install. Snap the fan to the shroud without using screws. Adjust the height of the shroud with one front access screw.
• Using a bed probe with DDX v3: The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no available space to attach a bed probe, like the BL Touch, to the X-carriage – CR-10 Max as example – a mount can be printed and attached to the right hand side of the DDX.

Bondtech DDX v3 Direct Drive extruder:

• This Direct Drive extruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG.
• Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading ho-tends Copperhead™ or Mosquito™ from Slice Engineering, gives you a direct drive extruder with trouble free material feeding and enables the use of a wider range of materials.
• Make your 3D printer even better: Bondtech DDX v3 Direct Drive extruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX v3 is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX v3 housing design provides an effective Hot-End cooling.  With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.
• Easy To Setup: For ease of setup the kit is attached to the carriage with only 2 screws.

Packing List:

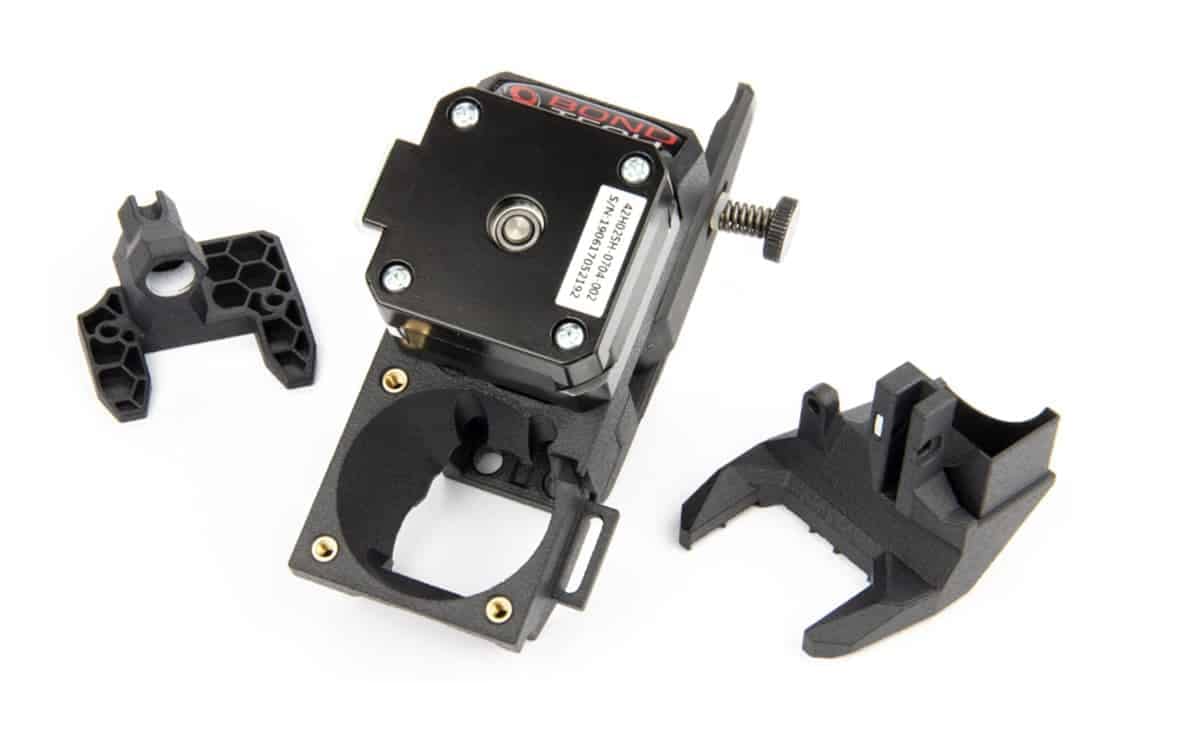

• 1x DDX v3 Extruder
• 1x Nema17 Pancake stepper motor
• 1x Thumbscrew Assembly
• 1x 70cm Stepper motor extension cable
• 1x 60cm PTFE tube
• 1x 7cm Capricorn tube
• 4x Zip-ties
• 3x M3x12mm screw
• 2x M3x20mm screw
• 1x M3x10mm button head screw
• 1x M3 square nut

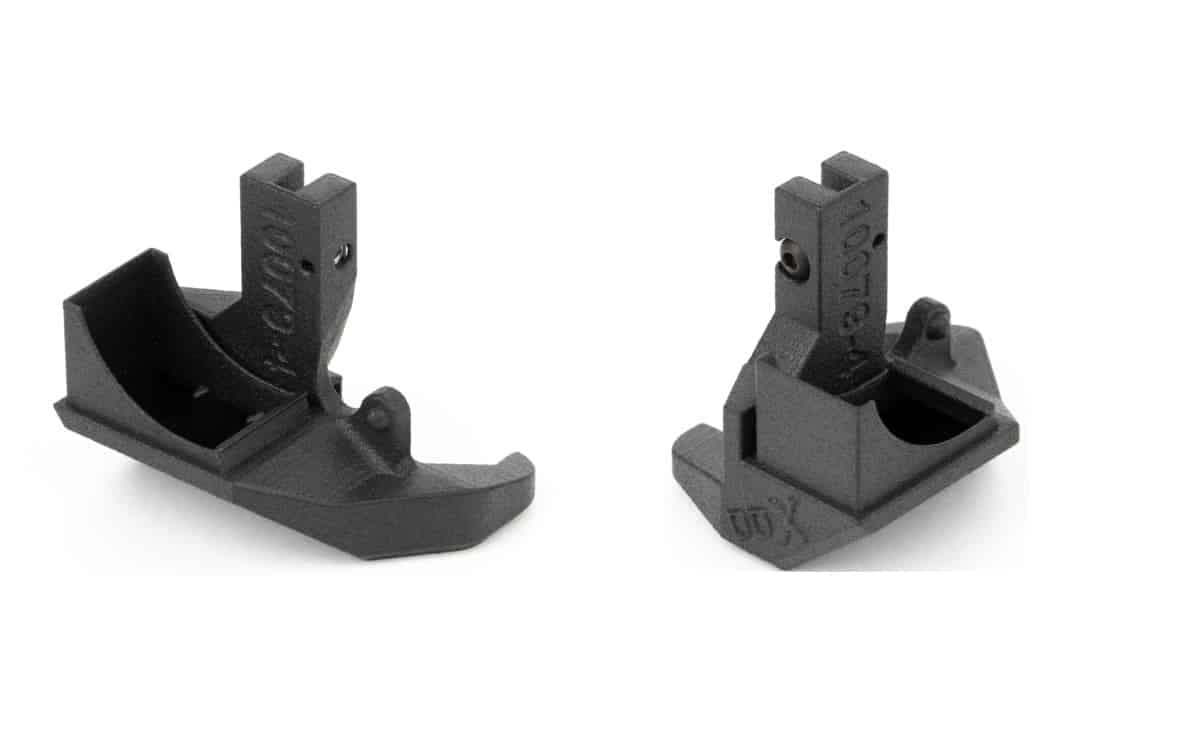

• 1x 10079-4 PA12 Fan Shroud
• 1x 10079-44 SLS Bowden Adapter
  (supplied with a tapered thread to better fit the stock metal threaded push-fit)
• 1x M3x18 Screw
• 1x M3x20 Screw
• 2x M3x8 Screw
• 2x M3 5mm Square Nut
• 1x PTFE/Capricorn Cutting Fixture (FDM) NEW!!

Product Includes:

• Bondtech DDX v3 For Creality

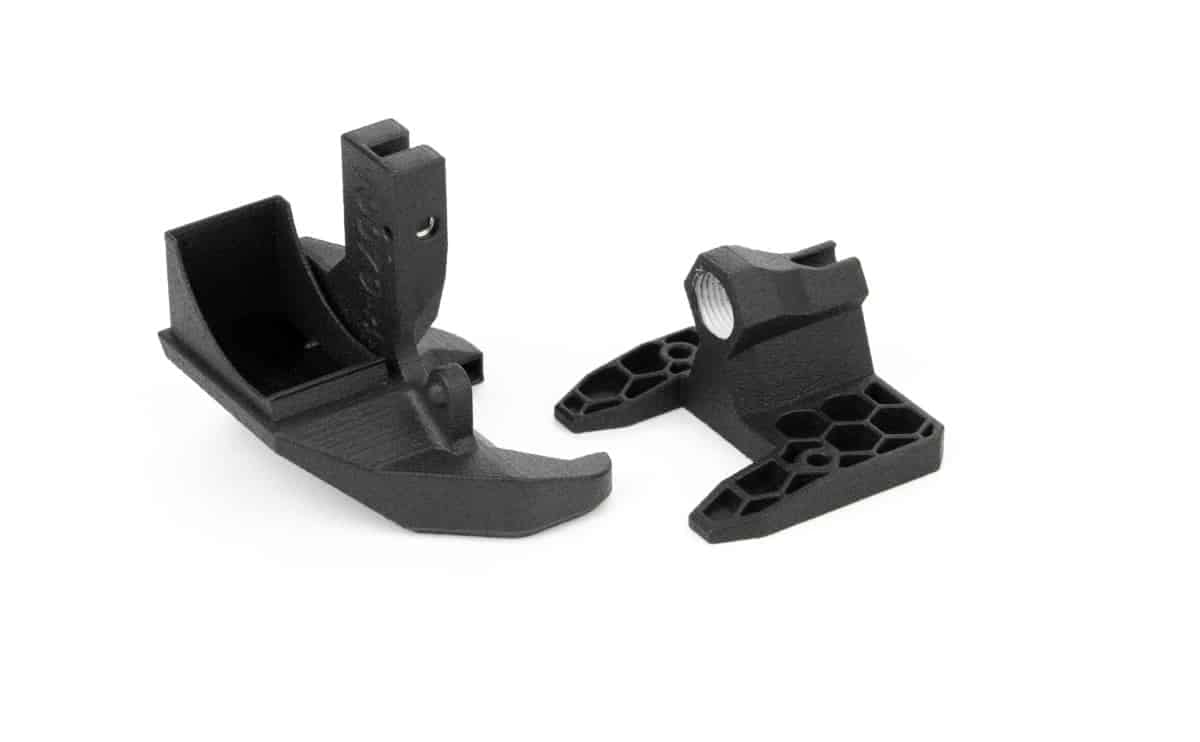

• DDX v3 Adapter Set For Creality CR-10(S)Pro/Max
