Blues PTFE Tube and J-head Hotend Bowden Extruder 1.75mm for 3D Printer Parts:
- Blue PTFE Tube is an important part of any 3D Printer extruders, whether it’s serving as a filament guide tube on a direct drive system or as the filament path itself on Bowden setups.
- Low friction and tight tolerances are very important to consistent and reliable performance, providing great prints and easy filament loading. blue teflon tube is specially manufactured expressly for use in 3D printing.
- It is a fluorocarbon solid, as it is a high molecular weight compound consisting wholly of carbon and fluorine.
- It is hydrophobic neither water nor water-containing substances wet PTFE, as fluorocarbons demonstrate mitigated London dispersion forces due to the high electro-negativity of fluorine.
- PTFE tubing is most widely used as laboratory tubing and for applications where Blue PTFE chemical resistance and purity are essential.
- PTFE has a very low coefficient of friction and is one of the most “slippery” substances known.
- We offer a broad range of sizes which can be used with standard compression fittings.
- This has one of the lowest coefficients of friction of any solid.
- Blue PTFE teflon tube is widely used for its non sticking property used for 3d printers
Specifications:

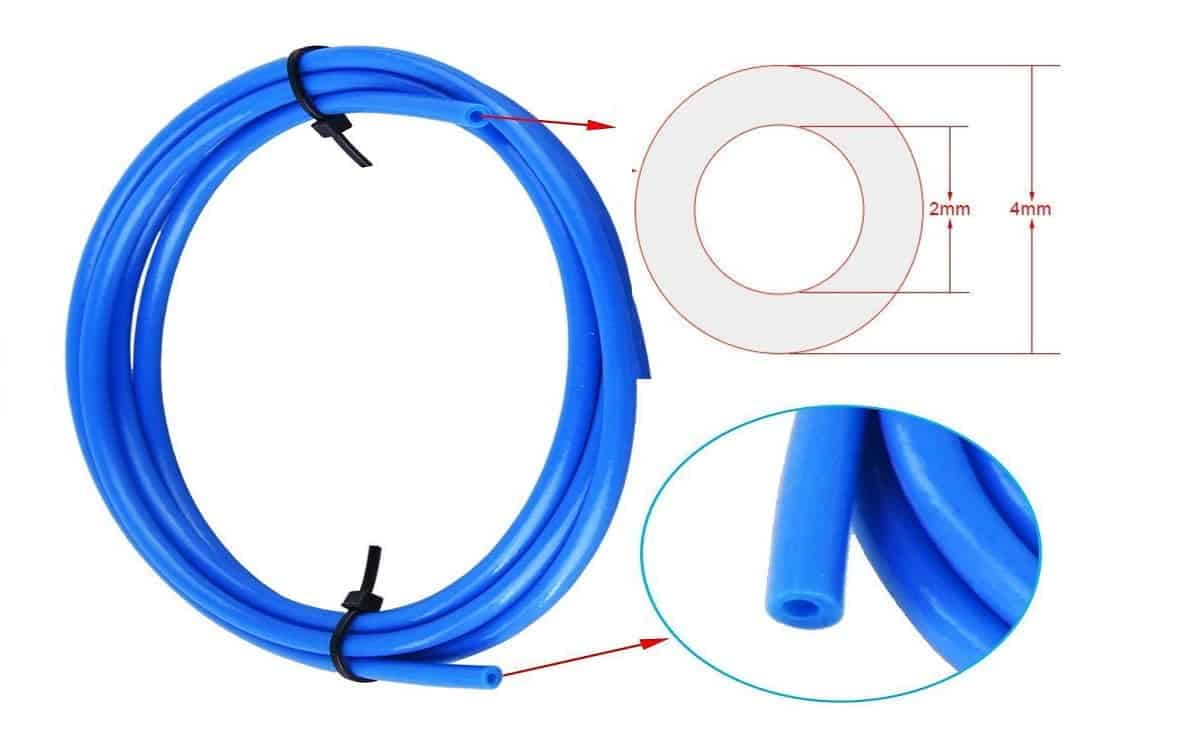

- Inside Diameter:2mm
- Outer Diameter:4mm
- For 1.75mm filament
- Color: Blue
- Name: PTFE tube
- Material: PTFE
- Fit to Extruder: 3D V5/V6
- Working temperature: -190 ° C to 280 ° C
Features:
- Excellent chemical resistance
- Large temperature range
- Hydrophobic
- Very low coefficient of friction
- Greatest resistance to fatigue
- Non-flammable
- FDA approved
Applications:
- Used for 1.75 mm filament.
- 3D printer
- Automation
Packages Include:
- 1m of Blue PTFE tube.
Verified review - view original
Verified review - view original
Verified review - view original
This tube is a great choice for those looking to upgrade their 3D printer’s hotend or Bowden extruder. One of the best things about this PTFE tube is its durability. It can withstand high temperatures and won’t degrade or break down over time, meaning you can count on it to deliver consistent performance over multiple prints. Additionally, the smooth interior of the tube helps to reduce friction and prevent filament from getting stuck, resulting in better overall print quality.
Overall, I would highly recommend the Blue PTFE Tube
