Bigtreetech EBB SB2209 CAN (RP2040) V1.0 For Voron StealthBurner

Bigtreetech EBB SB2209 CAN (RP2040) V1.0 For Voron StealthBurner

Bigtreetech EBB SB2209 CAN (RP2040) V1.0 For Voron StealthBurner.

Features:

• The TMC2240 features abundant diagnostic and protection features, such as short/open circuit protection, thermal shutdown, and under-voltage lockout.
• Due to internal optimizations, it can drive more current at lower temperatures, keeping your extruder running harder for longer.
• EBB SB2240 CAN comes with a TMC2240, EBB SB2209 CAN or EBB SB2209 CAN (RP2040) comes with a TMC2209.

Drop-in Installation

• Careful header spacing and location means that wiring will be a breeze.
• No need to solder anything thanks to the onboard header pins.

Robust and Reliable

• Using high-performance, 32-bit, 64 MHz MCUs from the industry-leading STM ensures rock-solid performance with CAN bus signaling that can support higher data rates over longer distances without errors.

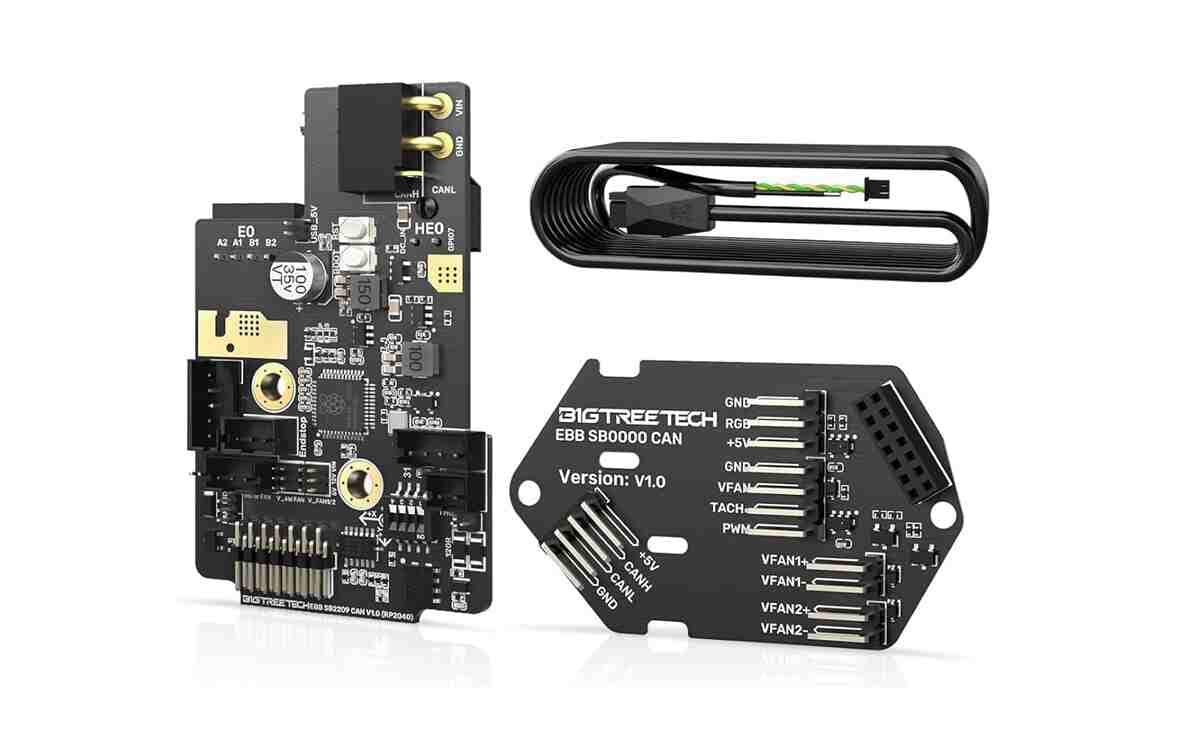

Package Includes:

• EBB SB2209 CAN (RP2040)  x1
• EBB SB0000 CAN x 1
• 3m CAN bus Cable x 1

• Heat Sink x 1

• DIY Crimp Terminal Set x 1

• Jumper Cap Set x 1

• Zip Ties x 2

• Fixing Screw Set x 1.（Gifts: 30PIN wire x 1, 100K NTC B3950 thermistor x 1)
